Description

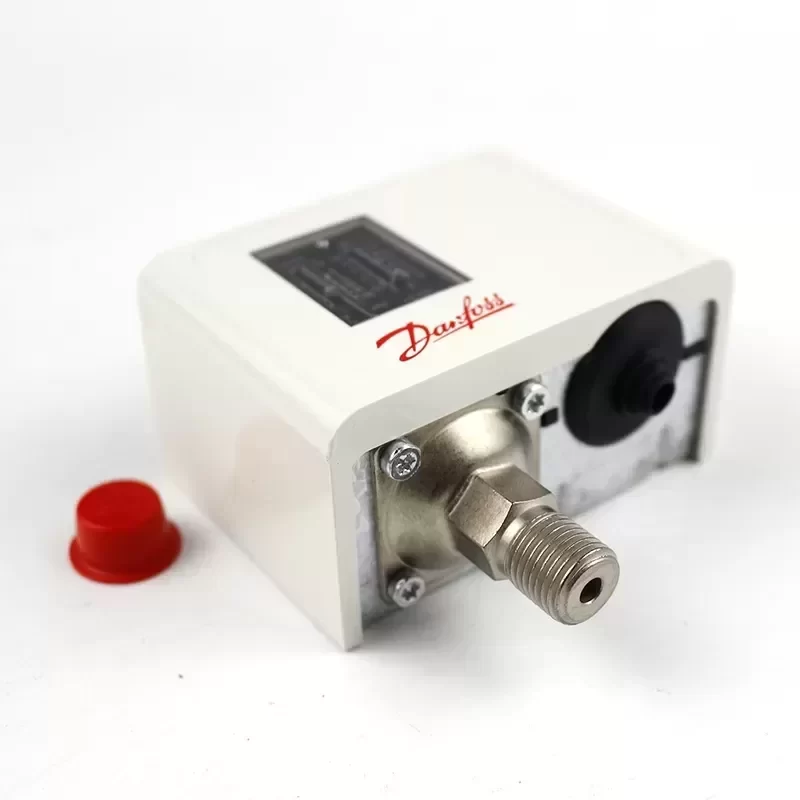

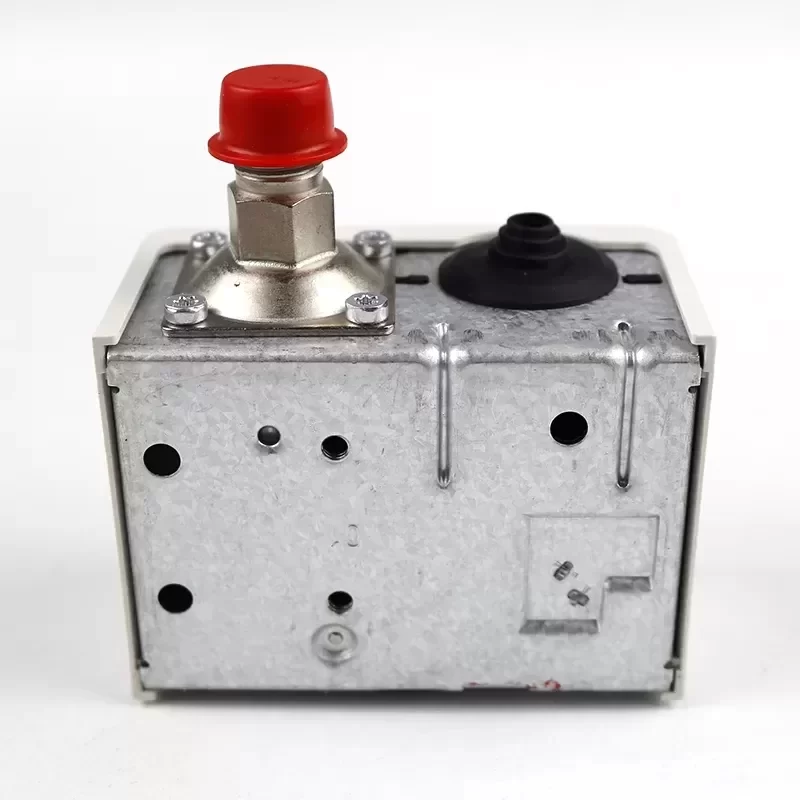

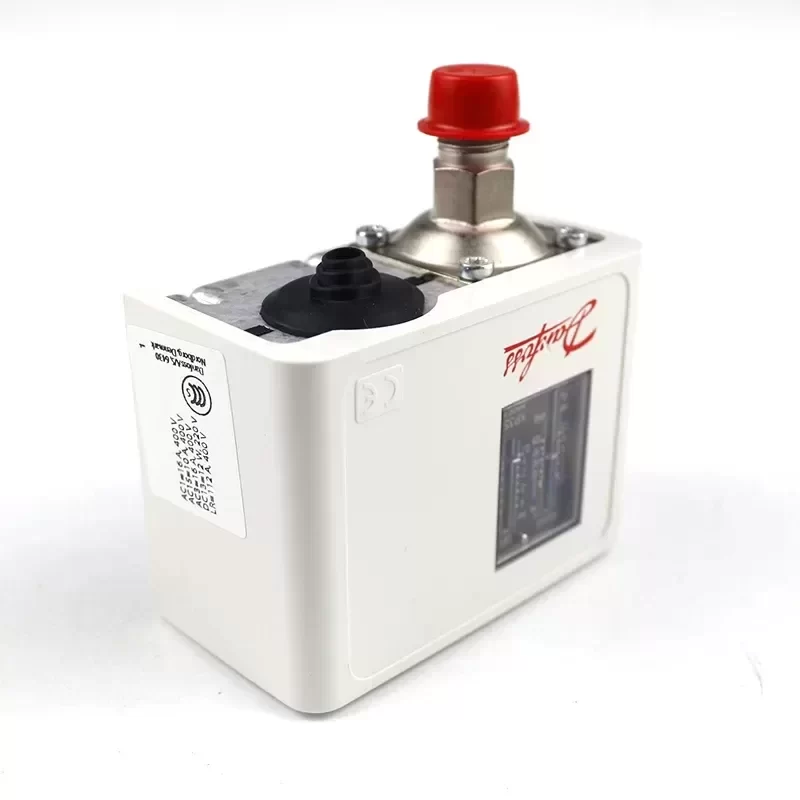

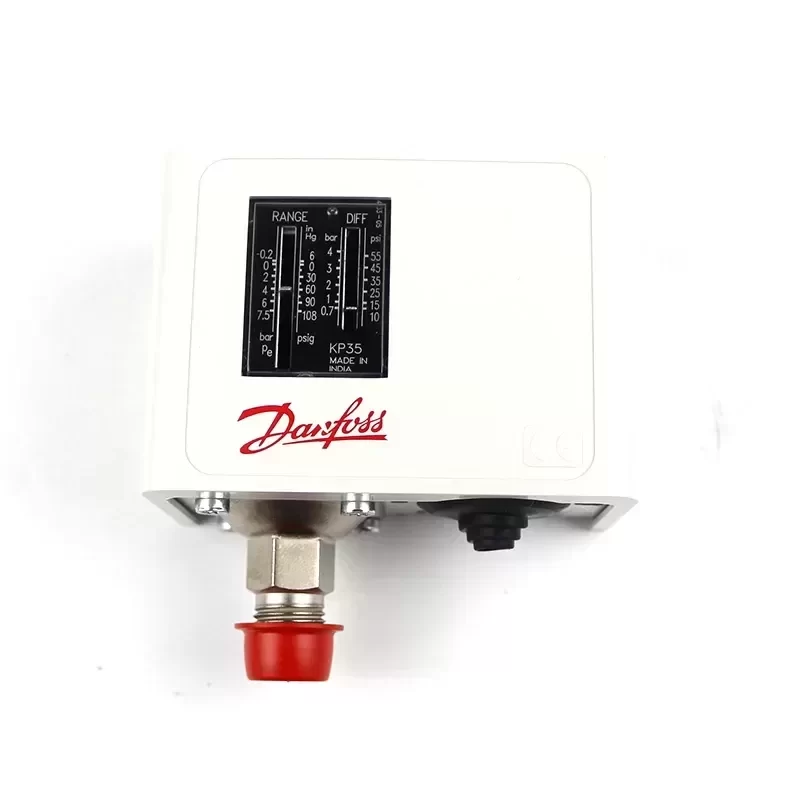

The Danfoss 060-113391 KP35 Pressure Switch is a precision-engineered electromechanical control device designed for regulating, monitoring, and alarm functions in industrial pneumatic systems. This unit represents Original Engineering from Danfoss, ensuring high reliability in gaseous media applications. The KP35 series utilizes a bellows element to actuate a single-pole double-throw (SPDT) contact system, providing rapid snap-action switching essential for protecting motors and compressors against pressure anomalies. The 060-113391 is specifically calibrated for low-pressure control with automatic reset functionality.
Technical Specifications:
Manufacturer: Danfoss
Model Code: 060-113391
Series: KP35
Product Type: Pressure Switch
Regulating Pressure Range: -0.2 bar to 7.5 bar
Differential Pressure Range: 0.7 bar to 4.0 bar
Reset Function: Automatic
Pressure Connection: G 1/4 A (ISO 228-1 Male)
Contact System: SPDT (Single Pole Double Throw)
Contact Material: Silver (Ag)
Electrical Rating AC-1 (Resistive): 16 A / 400 V
Electrical Rating AC-3 (Inductive): 16 A / 400 V
Electrical Rating AC-15: 10 A / 400 V
Enclosure Rating: IP30
Ambient Temperature Range: -40 °C to +65 °C
Media Compatibility: Air and Gaseous Media
Cable Entry: 6 mm to 14 mm rubber cable gland
Net Weight: 0.31 kg
Industrial Application:
This specific KP35 model is critical for the automation of industrial air compressors and booster pumps. It serves as the primary control interface, engaging or disengaging the compressor motor based on real-time pressure feedback from the receiver tank. The specific range of -0.2 to 7.5 bar allows for versatile application in both vacuum monitoring and standard positive pressure regulation. By maintaining pressure within the defined differential, it prevents rapid cycling and extends the operational lifespan of the compressor unit. Ensure Technical Compatibility with your existing pneumatic circuit before installation. Contact our supply team for current Lead Time and volume availability.
Key Attributes
Model Number: 060-113391
Place of Origin: Original
Brand Name: Danfoss
Packaging and Delivery
Port of dispatch: Shenzhen
Selling Units: Single item
