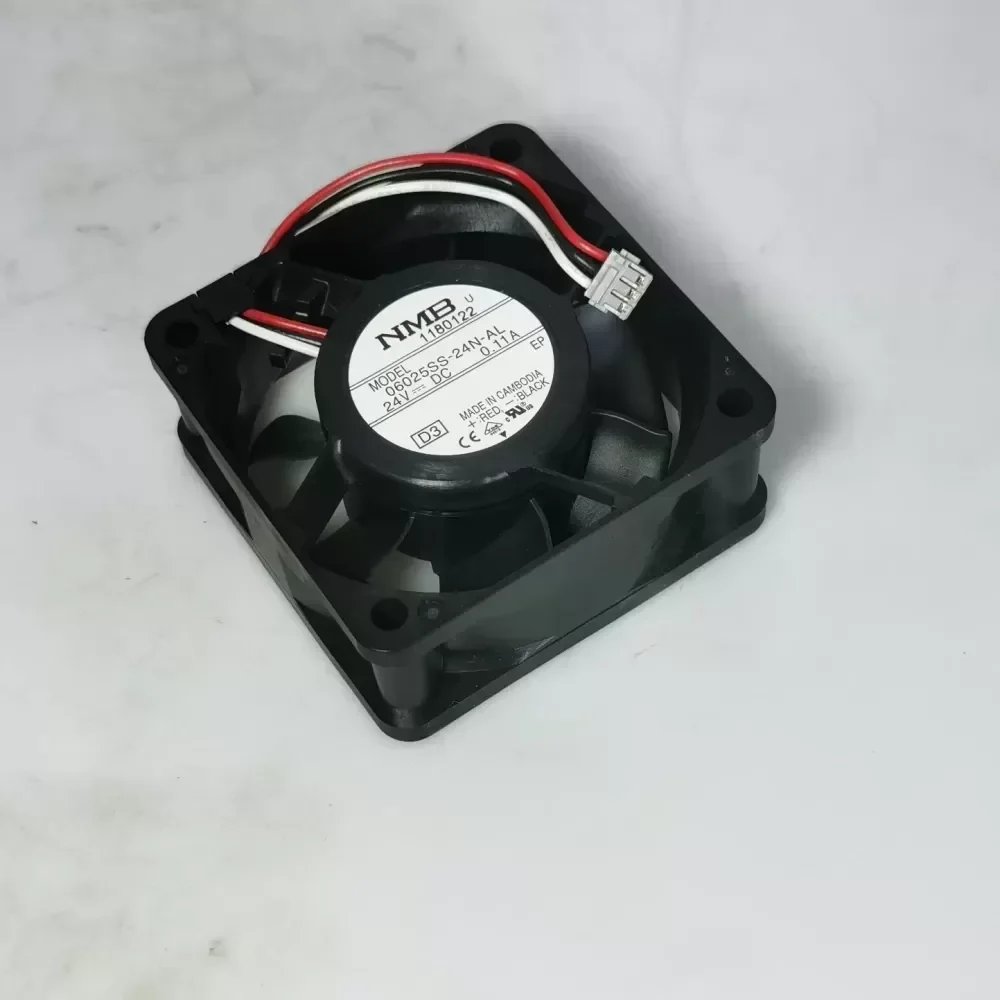

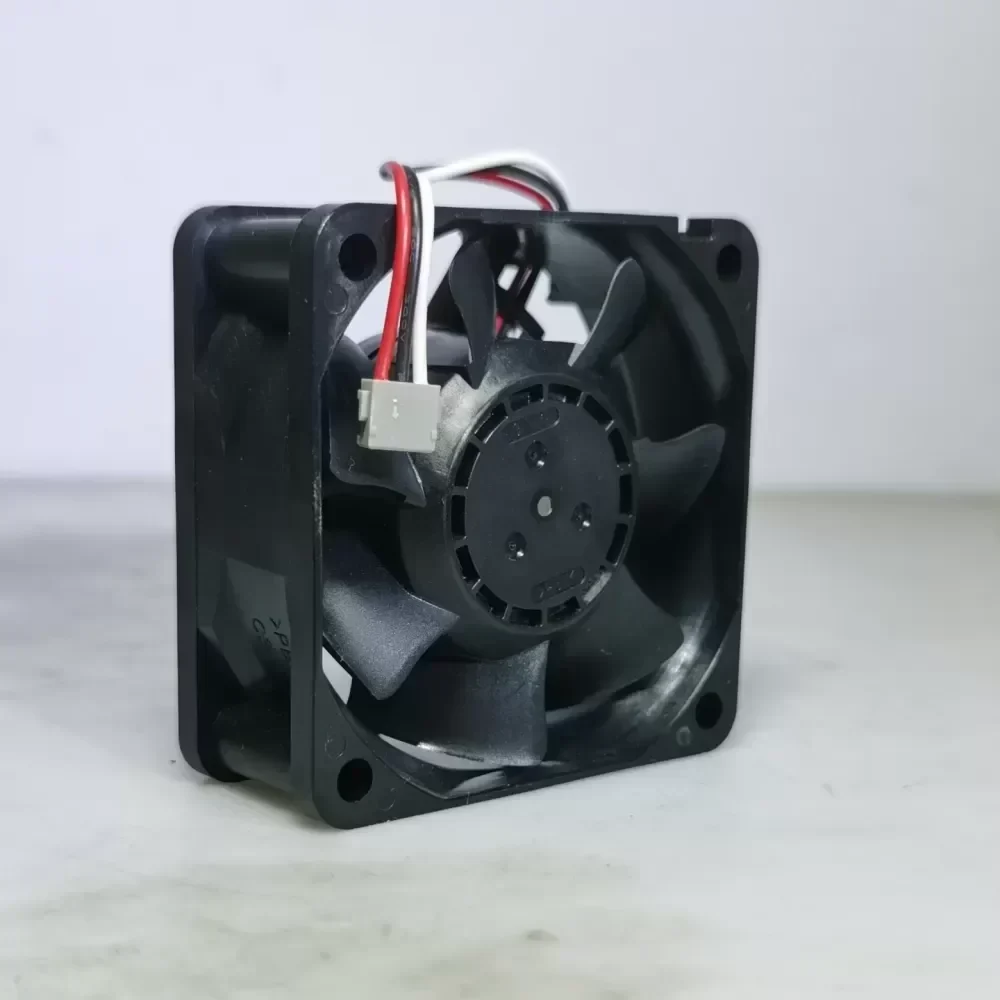

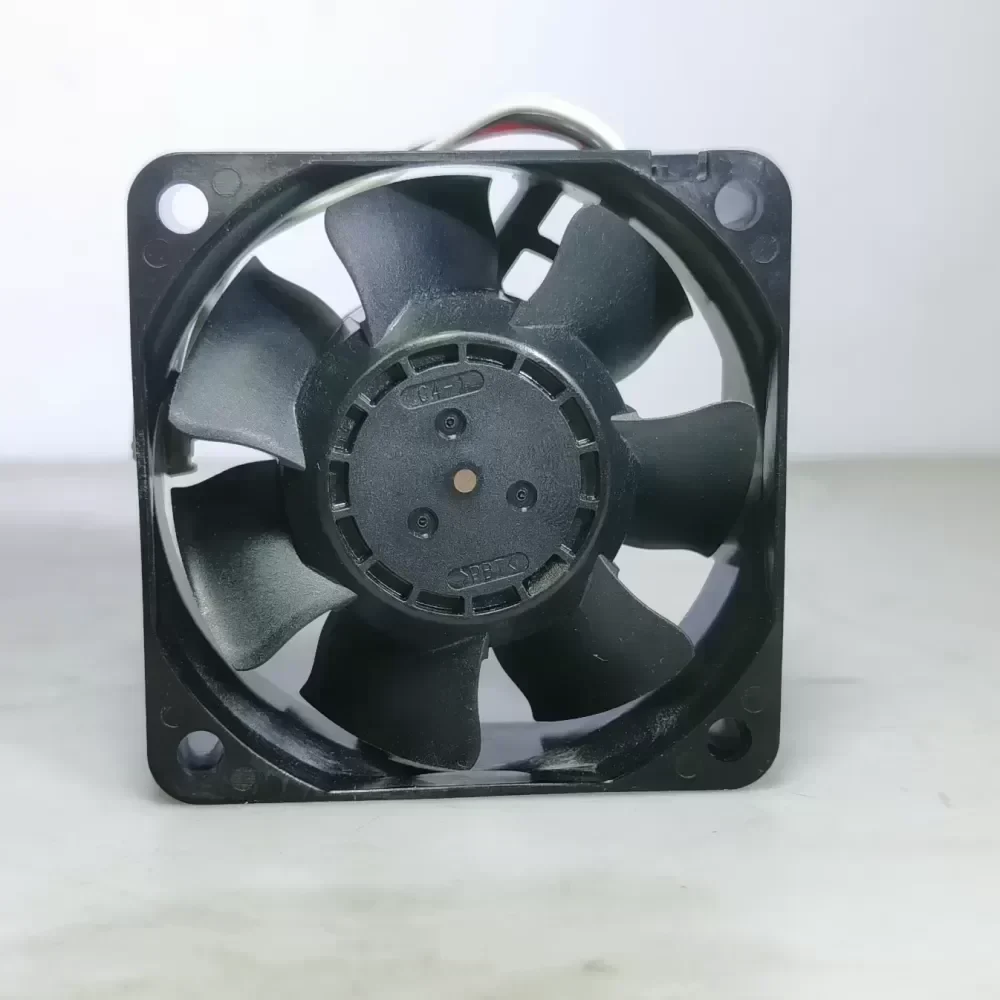

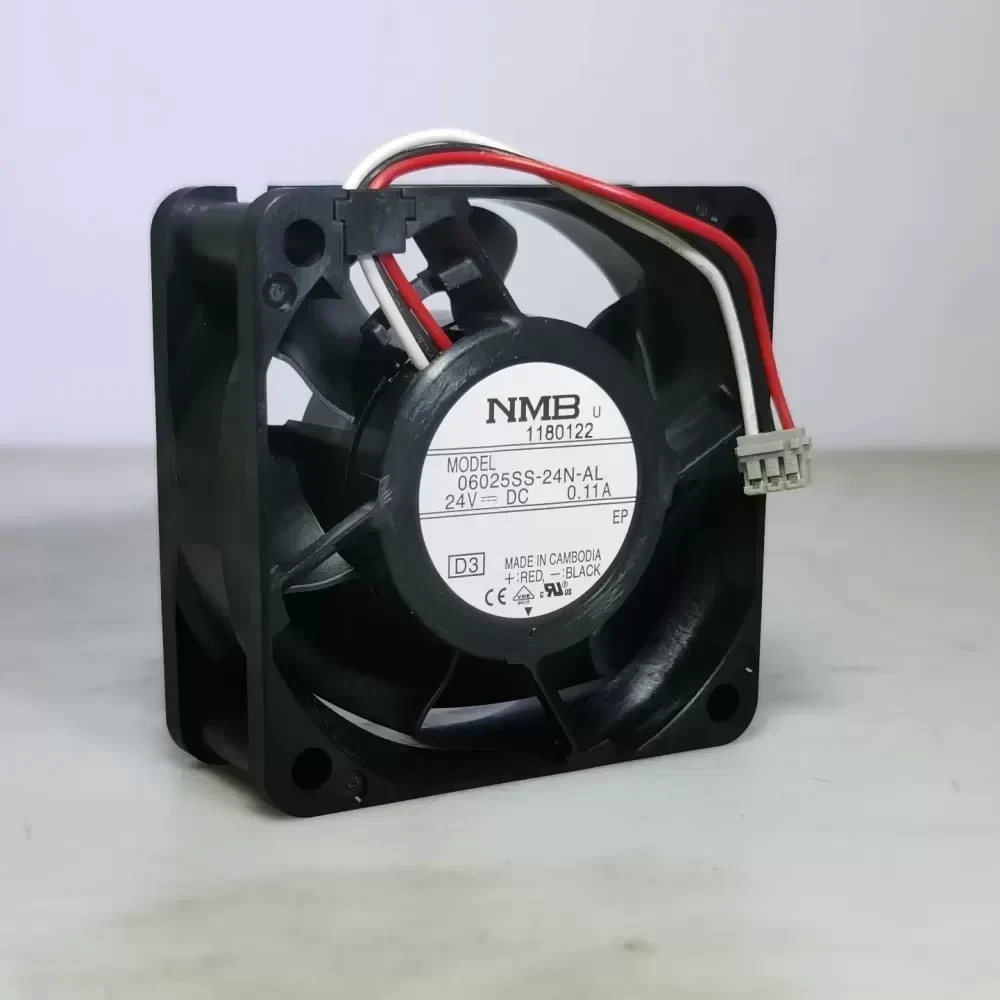

06025SS-24N-AL NMB 6025/24V fan

Name: 06025SS-24N-AL NMB 6025/24V fan
Brand: NMB
SKU: 727717111747
Availability: InStock
Rating: 5 (4 reviews)

$6.00

SKU: 727717111747 Brand: NMB, Yaskawa

Description
Reviews (0)

Description

The NMB-MAT 06025SS-24N-AL is a precision-engineered DC axial cooling fan designed specifically for the rigorous thermal demands of industrial automation equipment. Manufactured by MinebeaMitsumi, this 60mm unit serves as a critical OEM component for thermal management within Schneider Electric inverters and Yaskawa servo driver systems. The fan features a compact 60mm x 60mm x 25mm form factor, optimized to deliver high static pressure, which is essential for forcing air through the dense heatsink fins of Variable Frequency Drives (VFDs) and power electronics. Operating at a nominal 24V DC, this model utilizes a three-wire configuration that integrates a sensor signal (typically a Locked Rotor Alarm or Tachometer), allowing the host drive to monitor fan health in real-time and prevent catastrophic overheating of IGBT modules. Built with NMB’s proprietary bearing technology, it ensures extended service life under continuous duty cycles. Adhering to Original Engineering specifications, this component guarantees exact physical fitment and electrical matching, eliminating the risks associated with generic aftermarket replacements.

Technical Specifications:
Manufacturer: NMB-MAT (MinebeaMitsumi)
Model Number: 06025SS-24N-AL
Component Type: DC Axial Cooling Fan
Frame Dimensions: 60mm x 60mm x 25mm
Nominal Voltage: 24V DC
Operating Voltage Range: 14V – 27.6V DC
Input Current: 0.09 A – 0.13 A (Typical)
Rated Speed: 4200 RPM ±10%
Max Airflow: 19.4 CFM (0.55 m³/min)
Static Pressure: 46 Pa
Noise Level: 32 dB(A)
Termination: 3-Wire Lead (VCC, GND, Sensor)
Sensor Type: Alarm / Locked Rotor Signal
Bearing System: Precision Dual Ball Bearing
Housing Material: Reinforced PBT Plastic (UL94V-0)
Impeller Material: Reinforced PBT Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Life Expectancy: 60,000 Hours at 25°C
Mounting Hole Distance: 50mm ±0.3mm
Weight: 65g

Industrial Application:
This cooling unit is engineered for the active heat dissipation of power semiconductors within industrial control cabinets. Specifically, it is the designated replacement for cooling circuits in Schneider Electric Altivar series inverters and Yaskawa Sigma series servo drivers. The 06025SS-24N-AL ensures Technical Compatibility with the drive’s internal diagnostic logic, preventing nuisance tripping by providing the correct impedance and signal feedback. Maintaining optimal airflow is critical to preserving the Lead Time and operational efficiency of the inverter, preventing thermal derating during high-load operations.

06025SS-24N-AL NMB 6025/24V fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
