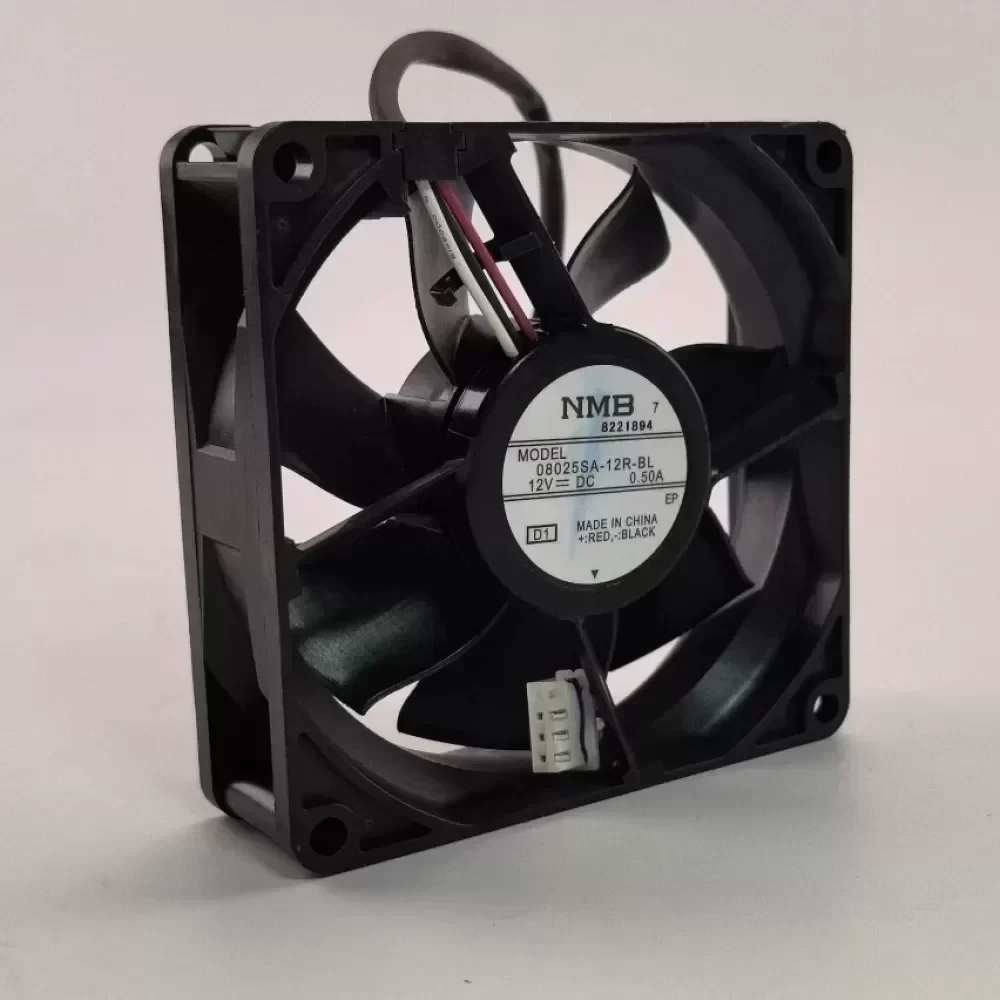

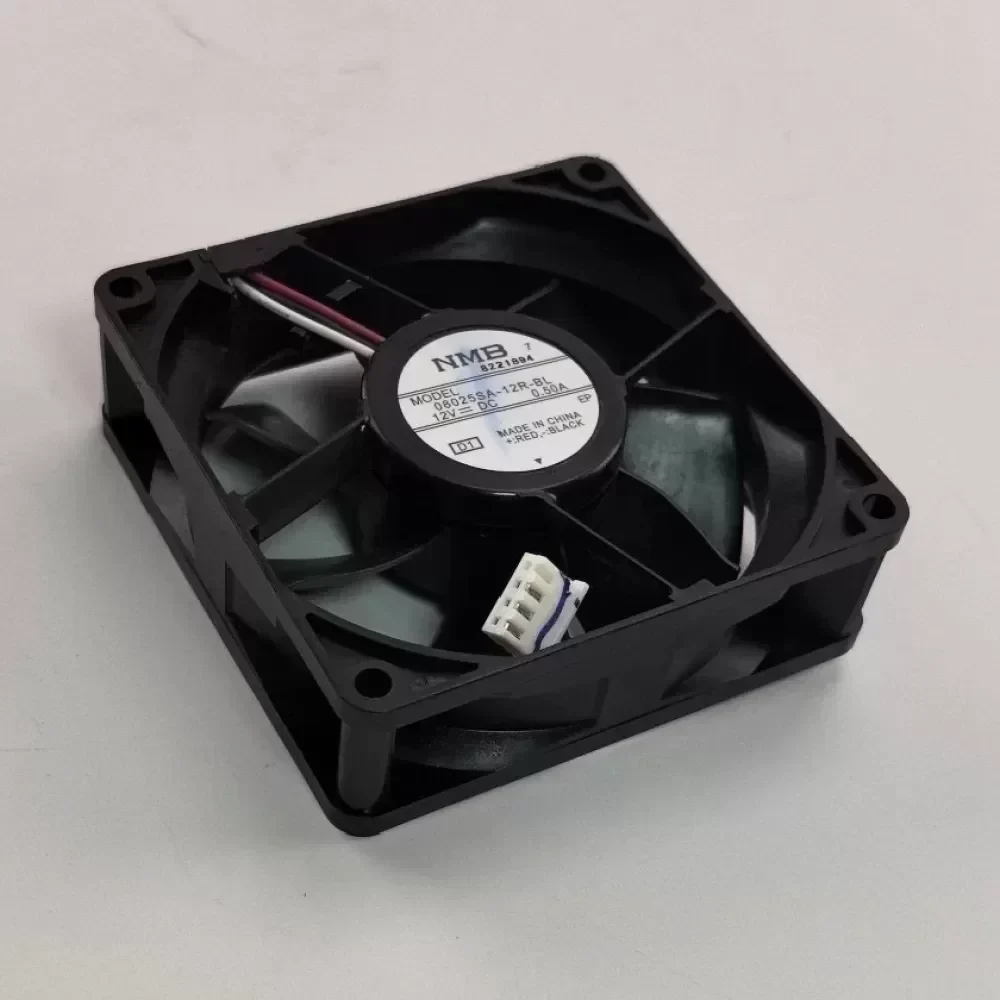

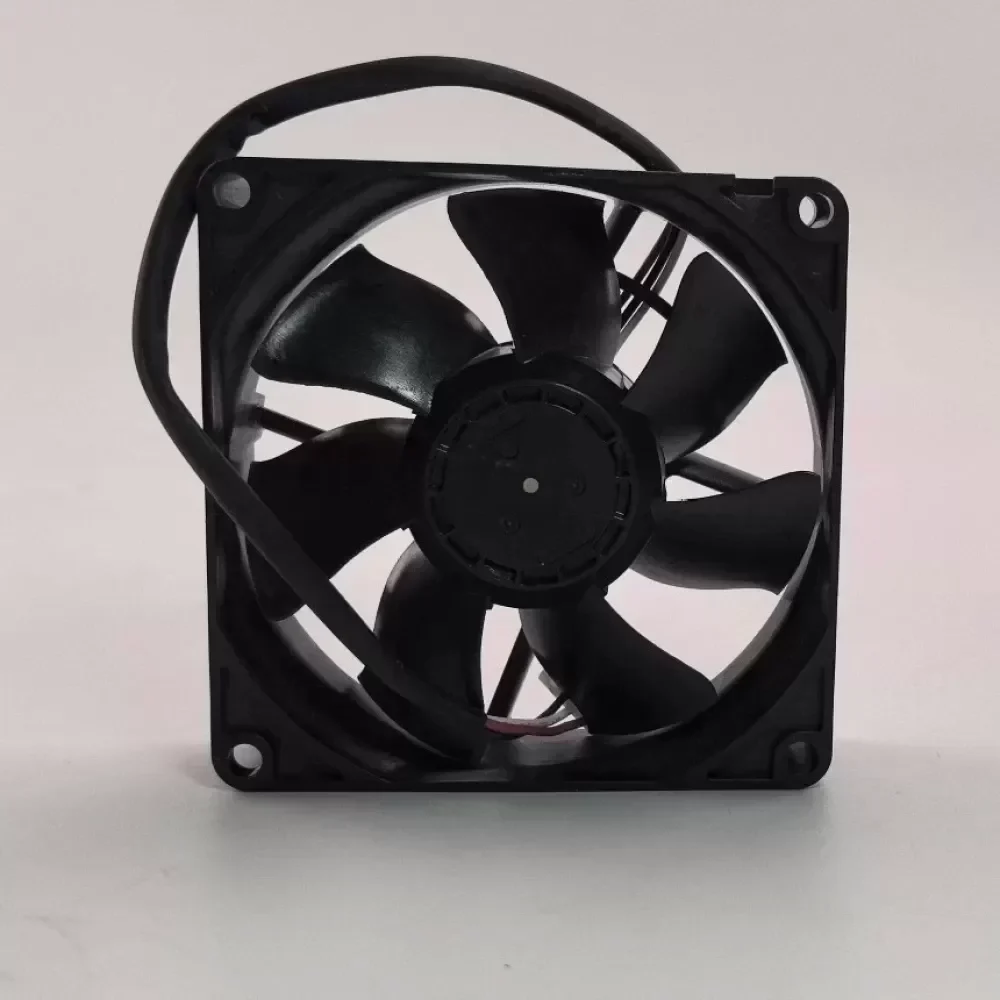

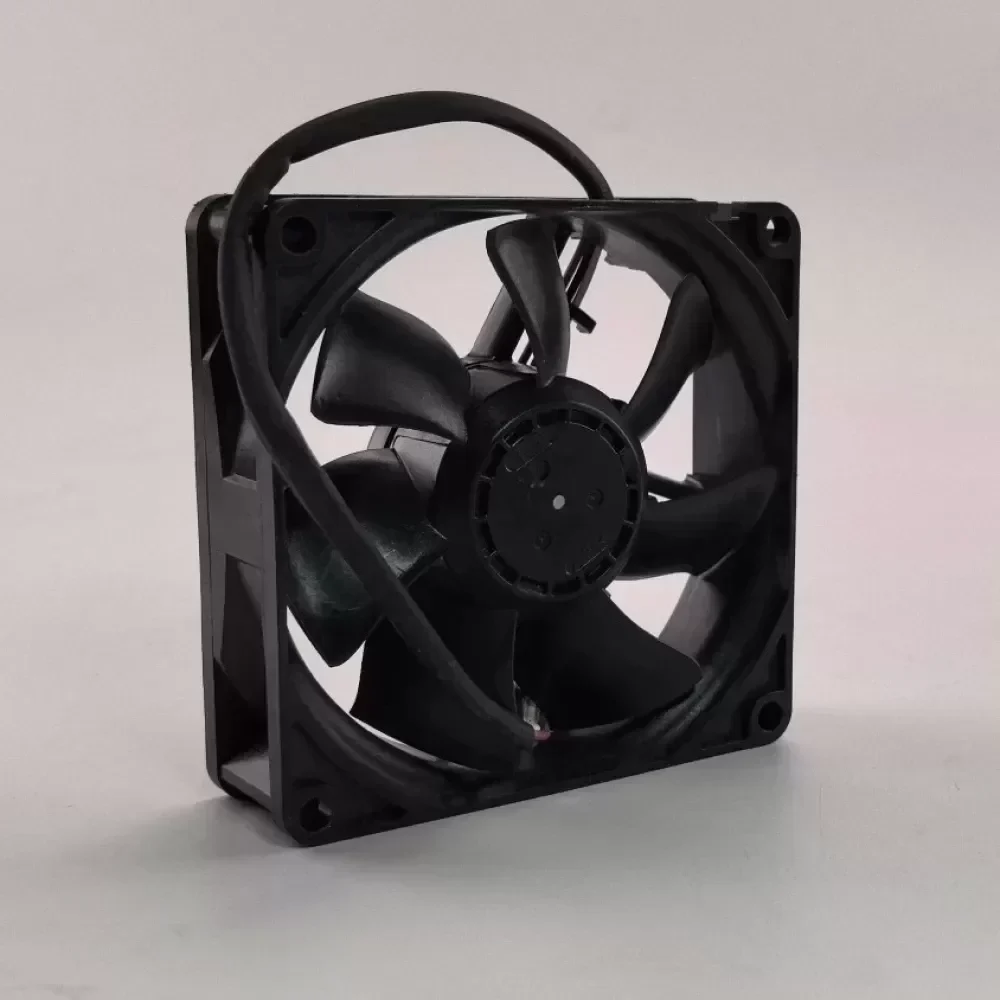

Name: 08025SA-12R-BL 8025/12V NMB Waterproof fan
Brand: NMB
SKU: 923214006748
Availability: InStock
Rating: 5 (4 reviews)

$6.00

SKU: 923214006748 Brand: NMB

Description
Reviews (0)

Description

The NMB 08025SA-12R-BL is a high-performance 80mm axial cooling fan engineered for demanding industrial environments requiring moisture protection and active status monitoring. This unit features Original Engineering from MinebeaMitsumi, ensuring precise thermal management and long-term reliability for critical infrastructure.

Technical Specifications:
Manufacturer: NMB-MAT (MinebeaMitsumi)
Model Number: 08025SA-12R-BL
Frame Dimensions: 80mm x 80mm x 25mm
Rated Voltage: 12V DC
Operating Voltage Range: 7.0V to 13.8V
Rated Current: 0.22A
Input Power: 2.64W
Bearing Type: Precision Dual Ball Bearing
Rated Speed: 3200 RPM
Maximum Air Flow: 41.3 CFM (1.17 m³/min)
Maximum Static Pressure: 38.2 Pa
Noise Level: 34.0 dB(A)
Wiring Configuration: 3-Wire Lead
Signal Output: Locked Rotor Alarm / RD Signal
Environmental Protection: Waterproof Coating (IP-rated)
Frame Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Weight: 85g
Certifications: UL, CSA, VDE, CE

Industrial Application: This component is specifically designed for integration into outdoor telecommunication enclosures and industrial automation control panels. The integrated 3-line alarm logic provides Technical Compatibility with system monitoring circuits, allowing for immediate fail-safe triggers if fan rotation is obstructed. Its waterproof construction ensures continuous operation in high-humidity or condensing environments, reducing maintenance-related Lead Time and preventing critical system overheating in remote deployments.

08025SA-12R-BL 8025/12V NMB Waterproof fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
