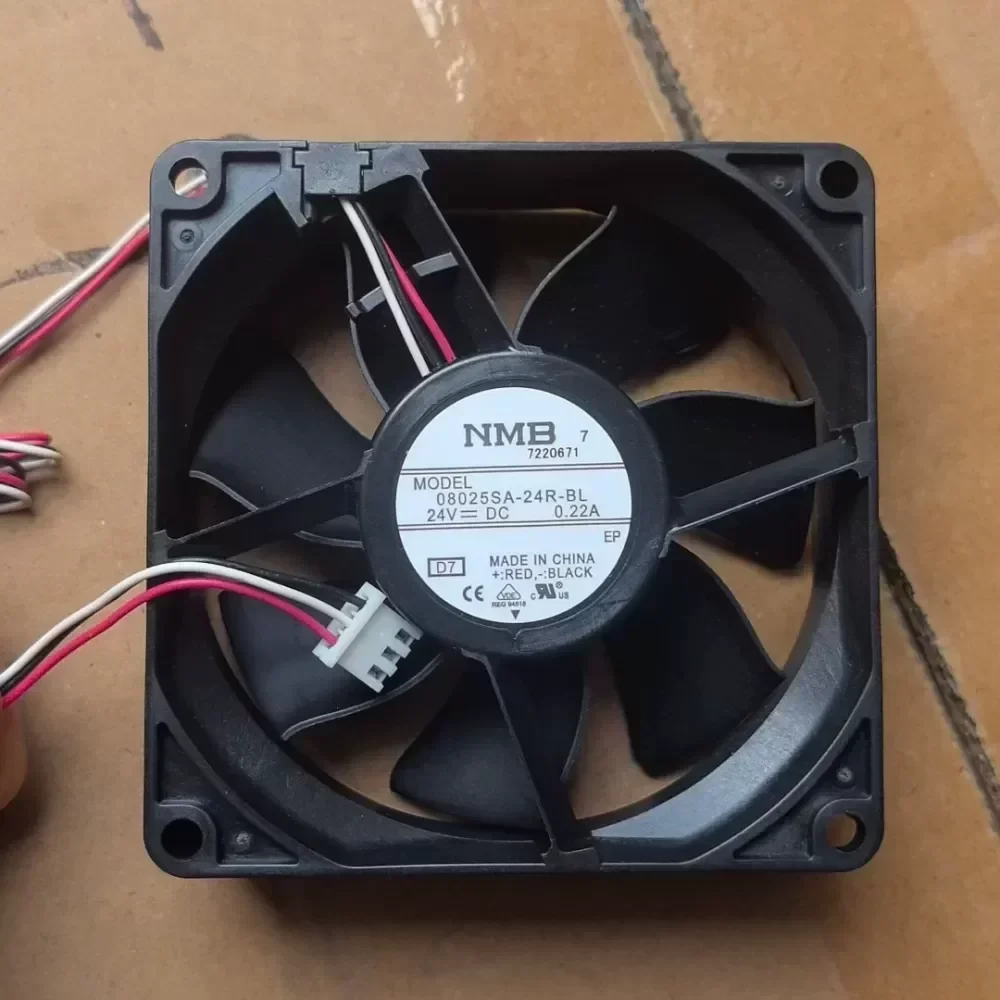

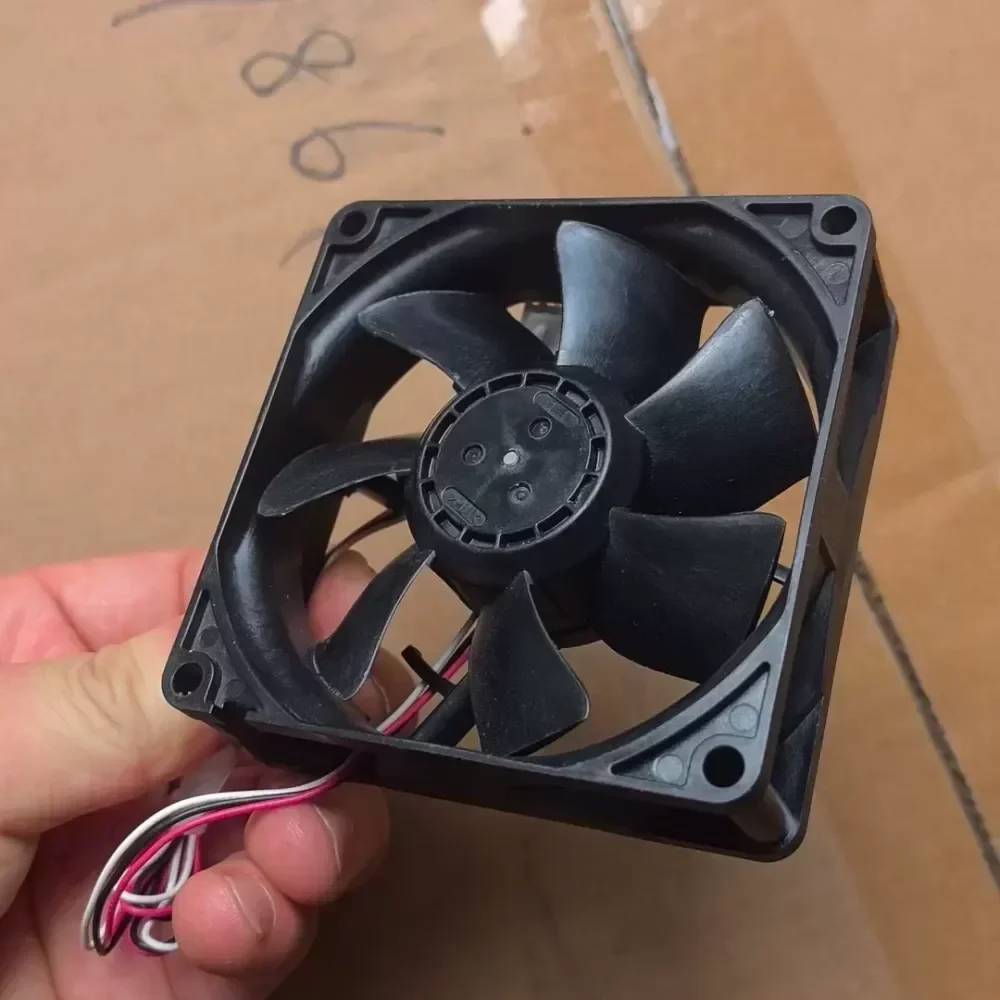

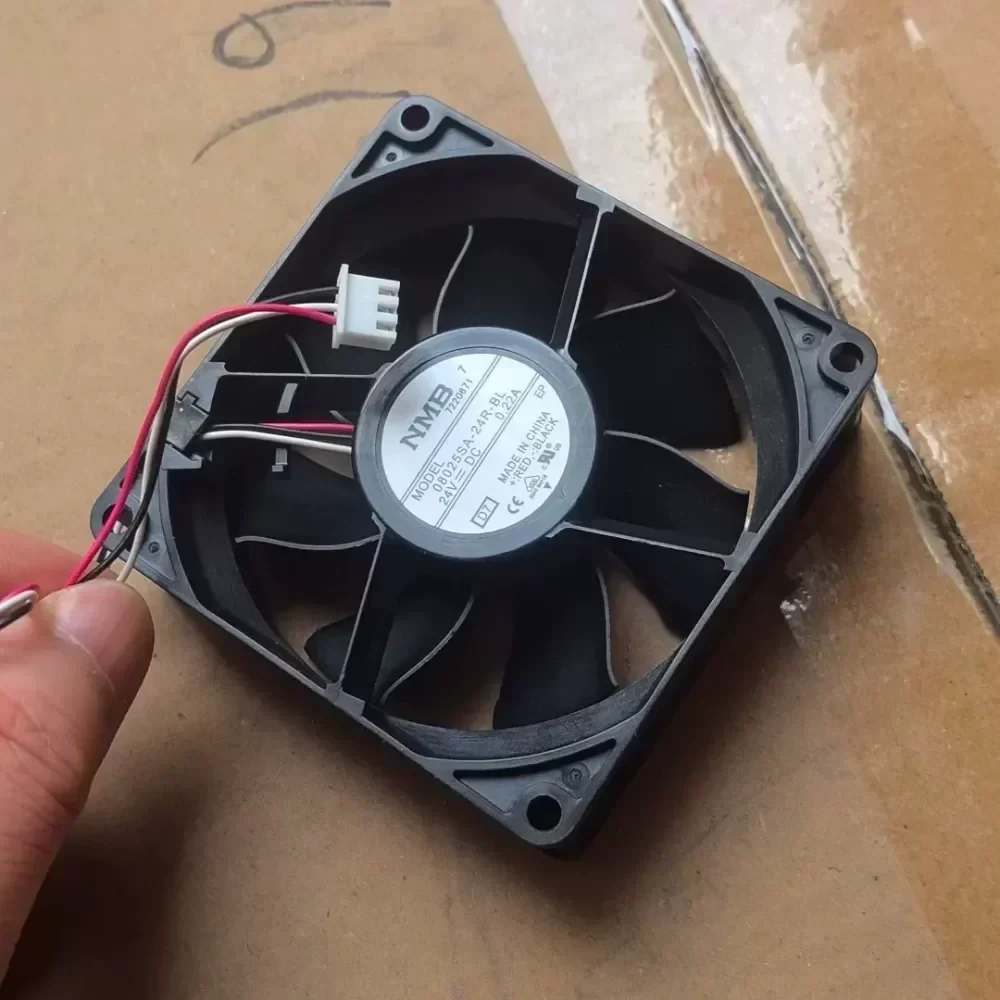

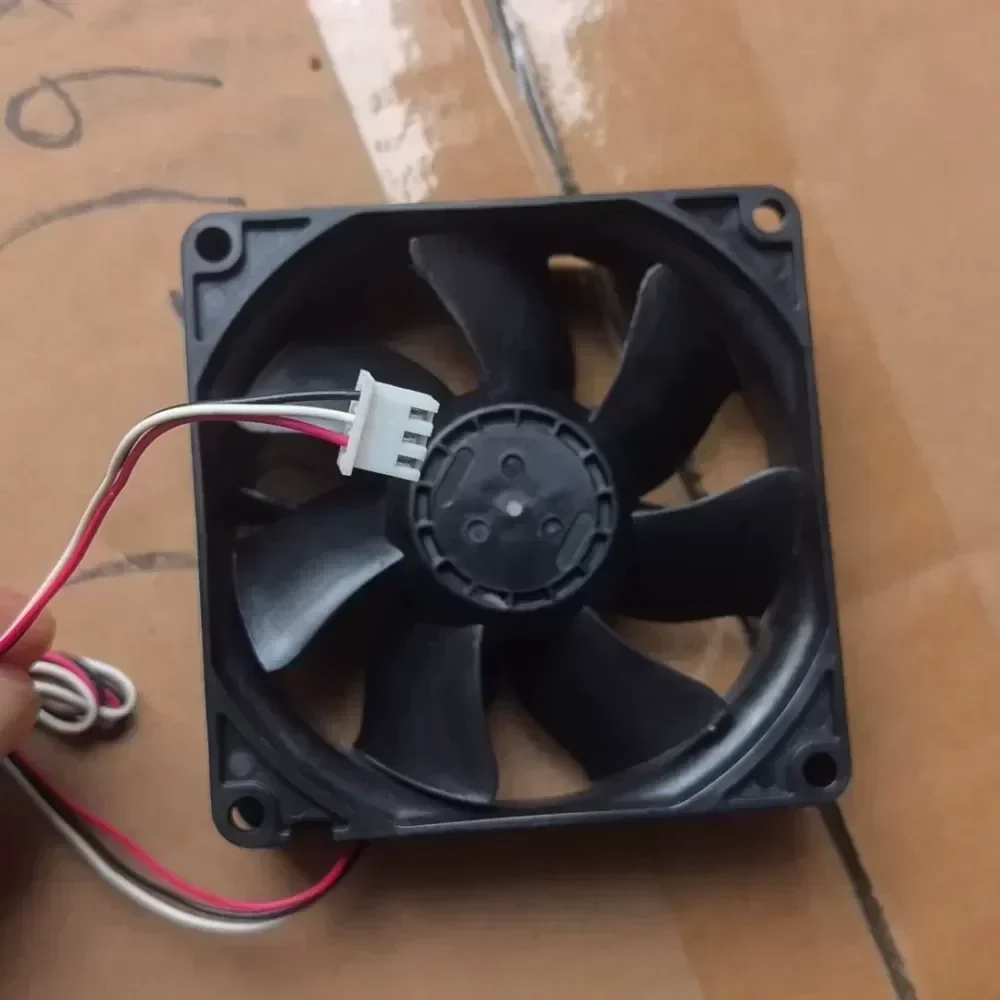

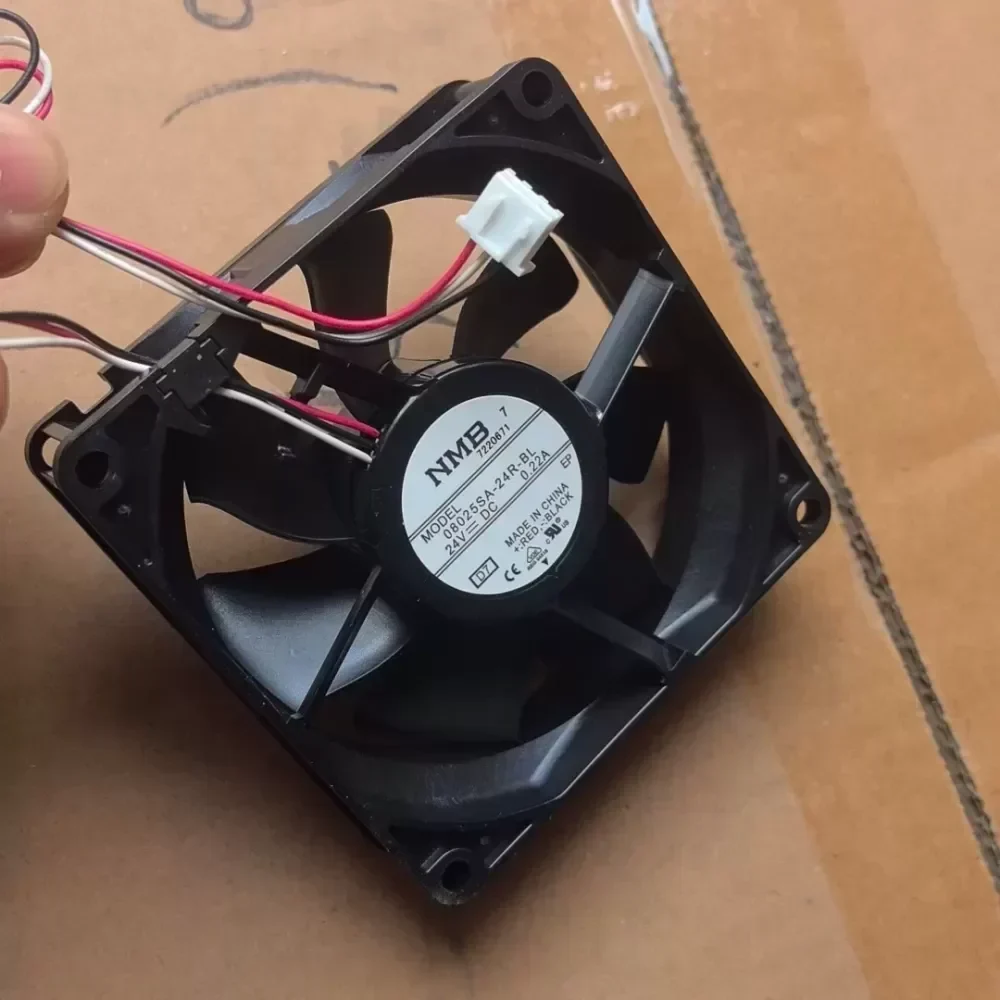

08025SA-24R-BL NMB fan 24V

Name: 08025SA-24R-BL NMB fan 24V
Brand: NMB
SKU: 922416879575
Availability: InStock
Rating: 5 (4 reviews)

$6.43

SKU: 922416879575 Brand: NMB

Description
Reviews (0)

Description

The NMB 08025SA-24R-BL is a high-performance axial cooling fan engineered for precision thermal management in demanding industrial environments. This 80mm component utilizes Original Engineering standards to ensure seamless Technical Compatibility with high-density electronic enclosures and automated control systems.

Technical Specifications:
Manufacturer: NMB-MAT (MinebeaMitsumi)
Model Number: 08025SA-24R-BL
Frame Dimensions: 80mm x 80mm x 25mm
Rated Voltage: 24V DC
Operating Voltage Range: 14.0V – 27.6V DC
Rated Current: 0.22A
Input Power: 5.28W
Bearing Type: Dual Precision Ball Bearing
Rated Speed: 4300 RPM ±10%
Maximum Air Flow: 1.35 m³/min (47.6 CFM)
Maximum Static Pressure: 68.0 Pa
Noise Level: 41.0 dB(A)
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Insulation Resistance: 10M Ω minimum at 500V DC
Dielectric Strength: 700V AC for 1 minute
Termination: 2-Wire Lead
Weight: 85g
Certifications: UL, CSA, VDE, CE

Industrial Application:
The NMB 08025SA-24R-BL is specifically designed for continuous duty cycles in CNC machinery, variable frequency drives (VFDs), and telecommunications power supplies. Its dual ball bearing architecture provides a MTBF (Mean Time Between Failures) exceeding 100,000 hours at 25°C, making it a critical spare part for reducing unplanned downtime in mission-critical infrastructure. This unit offers a reliable solution for localized heat dissipation where high static pressure is required to overcome airflow resistance in tightly packed component arrays. Optimized Lead Time ensures rapid deployment for maintenance and repair operations.

08025SA-24R-BL NMB fan 24V

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
