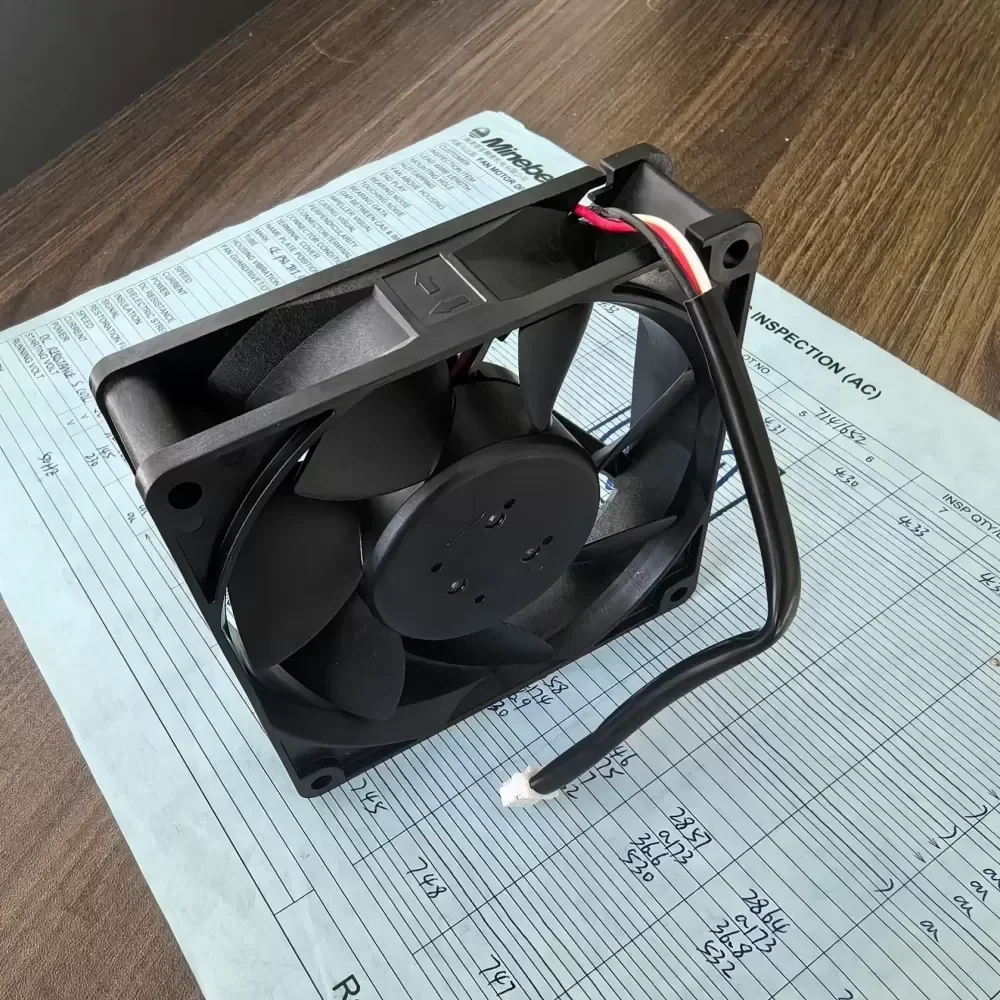

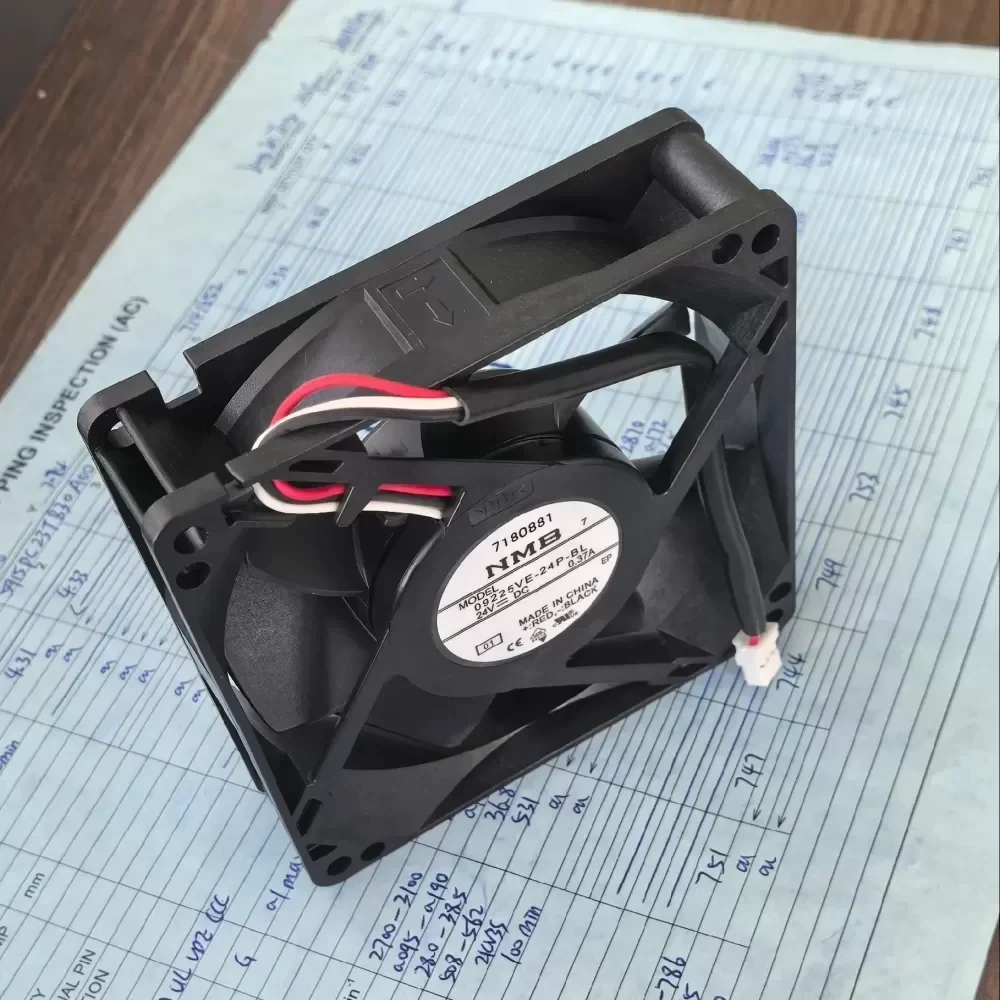

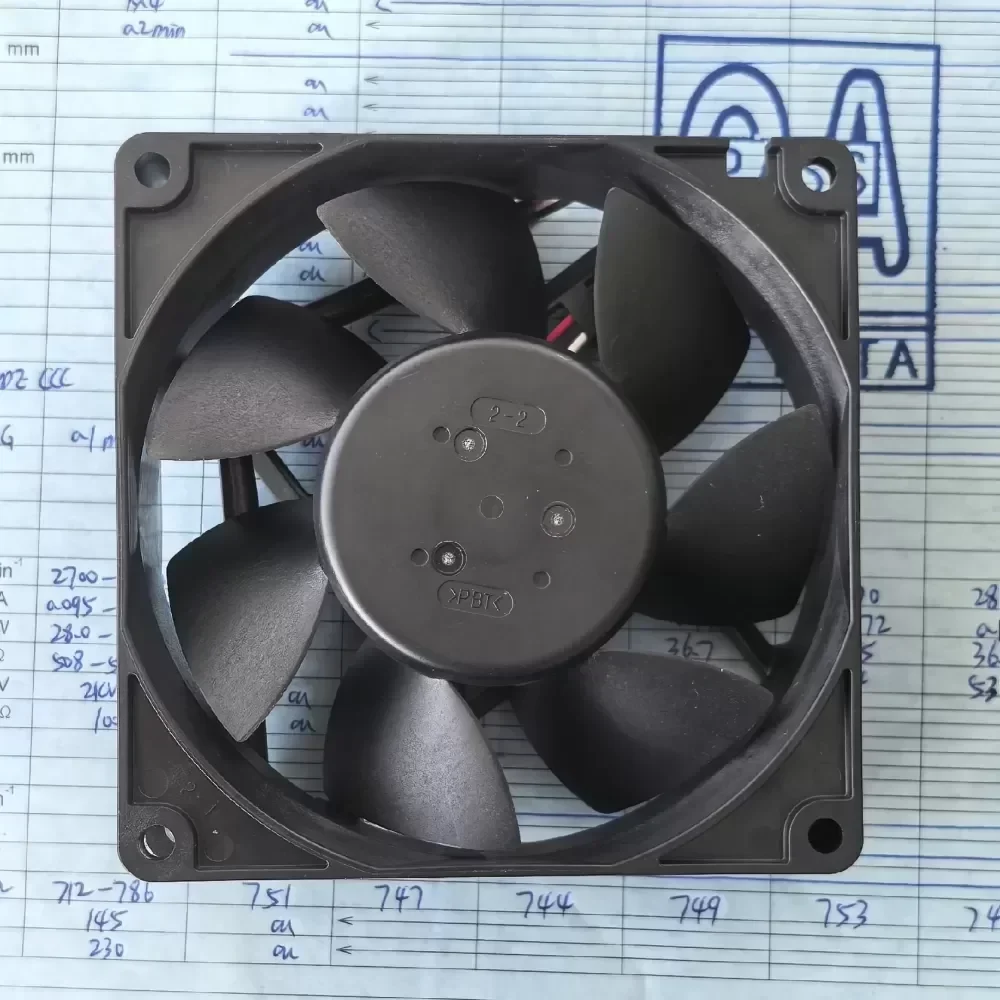

09225VE-24P-BL NMB 24V fan

Name: 09225VE-24P-BL NMB 24V fan
Brand: NMB
SKU: 884903625347
Availability: InStock
Rating: 5 (4 reviews)

$7.14

SKU: 884903625347 Brand: NMB, Yaskawa

Description
Reviews (0)

Description

The NMB-MAT 09225VE-24P-BL is a high-performance DC axial fan engineered by MinebeaMitsumi for critical thermal management in industrial power electronics. Designed as a direct OEM replacement for Yaskawa servo drivers and frequency inverters, this unit utilizes a precision dual ball bearing system to ensure stability and longevity under continuous 24/7 operation. The fan features a specialized 3-wire configuration with a fault alarm signal, allowing the host drive to detect cooling failures immediately and prevent catastrophic thermal shutdown of IGBT modules. Its 92mm form factor combined with a high-torque motor profile delivers optimized static pressure, essential for forcing air through dense heatsink fins found in variable frequency drives.

Manufacturer: NMB-MAT (MinebeaMitsumi)
Model: 09225VE-24P-BL
Type: DC Axial Cooling Fan
Nominal Voltage: 24V DC
Current: 0.37 A
Dimensions: 92mm x 92mm x 25mm
Bearing Type: Dual Ball Bearing
Housing Material: Reinforced PBT (UL94V-0)
Impeller Material: Reinforced PBT (UL94V-0)
Termination: 3-Wire (VCC, GND, Alarm/Sensor)
Signal Type: Locked Rotor Alarm / Fault Detection
Operating Temperature: -10°C to +70°C
Insulation Resistance: 10M Ohm min. at 500V DC
Dielectric Strength: 700V AC for 1 second
Application: Yaskawa Inverter Cooling, VFD Thermal Regulation

Ensuring Original Engineering specifications is vital for maintaining the factory-rated efficiency of Yaskawa drives. Generic substitutes often lack the specific impedance and alarm logic required by the driver’s control board, leading to false error codes or inadequate cooling. This unit offers guaranteed Technical Compatibility and immediate Lead Time availability for urgent MRO requirements.

09225VE-24P-BL NMB 24V fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
