200FZY6-S Jiulong AC220V metal fan

Name: 200FZY6-S Jiulong AC220V metal fan
Brand: Jiulong
SKU: 912235159539
Availability: InStock
Rating: 5 (4 reviews)

$24.14

SKU: 912235159539 Brand: Jiulong

Description
Reviews (0)

Description

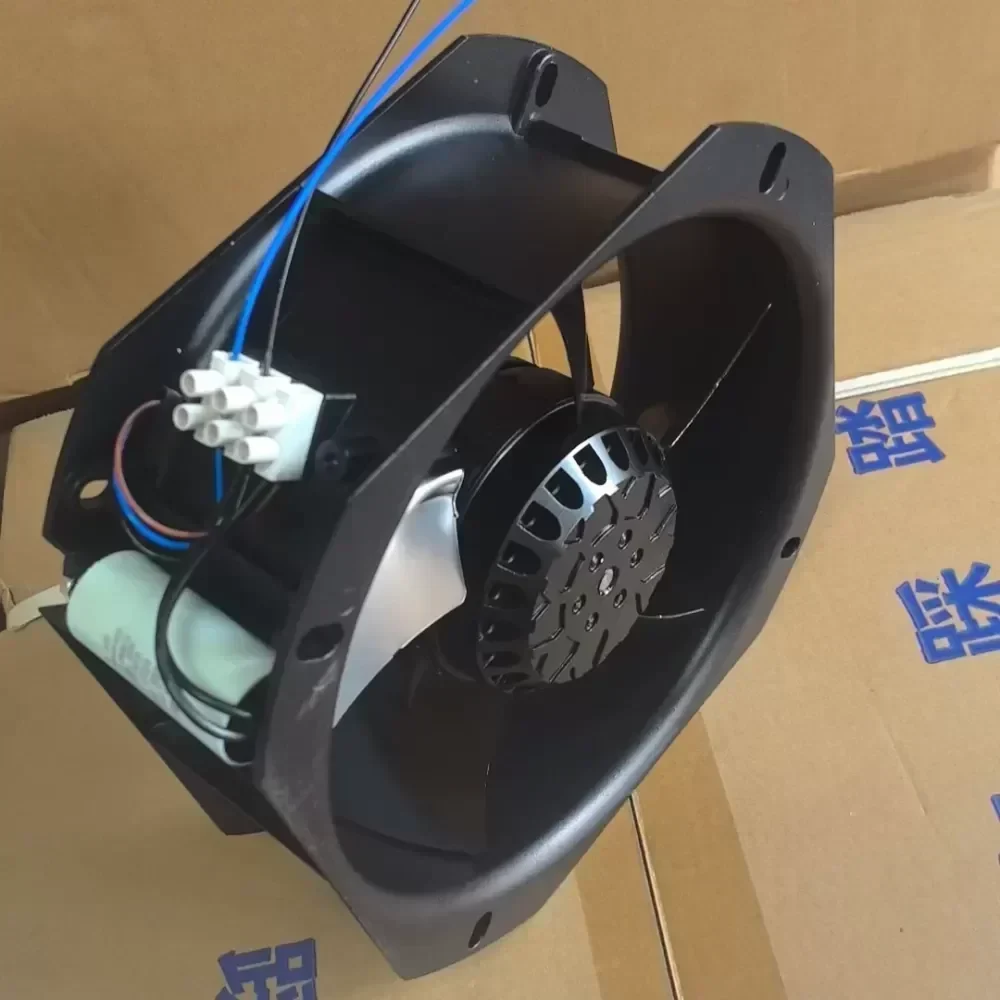

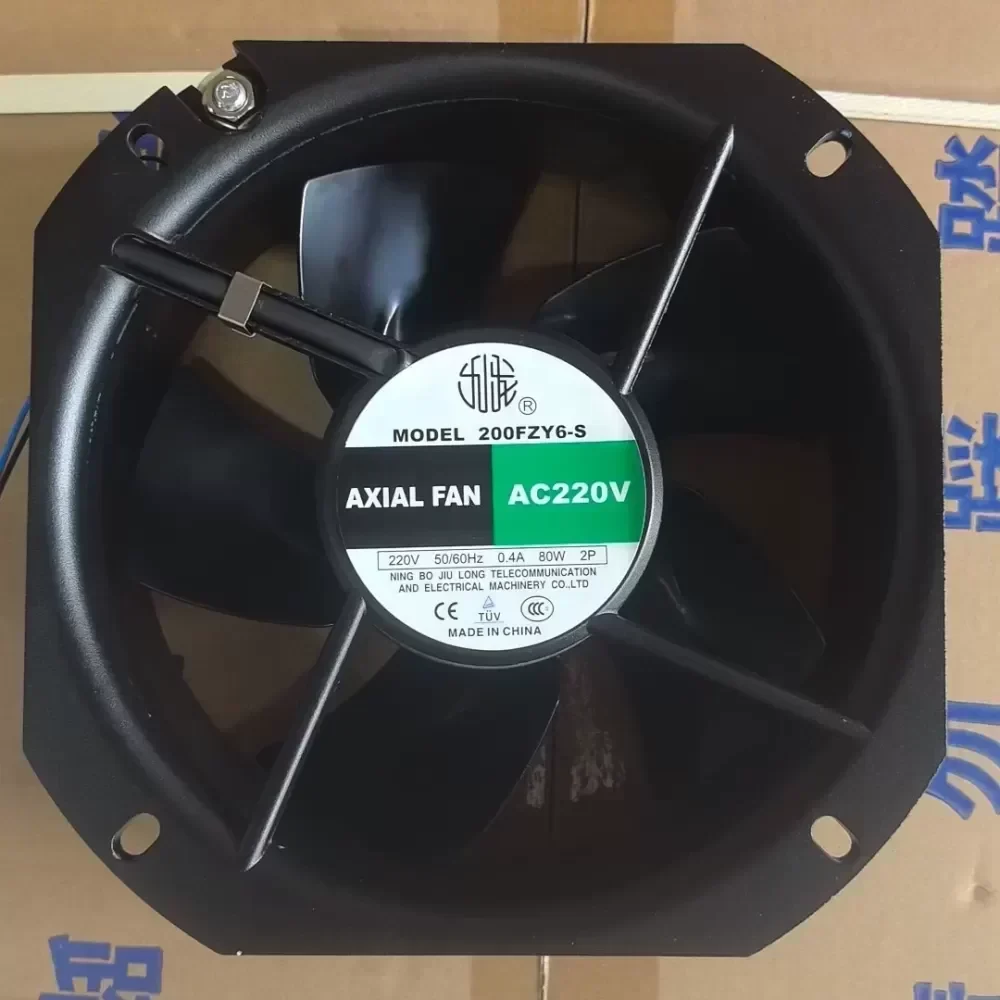

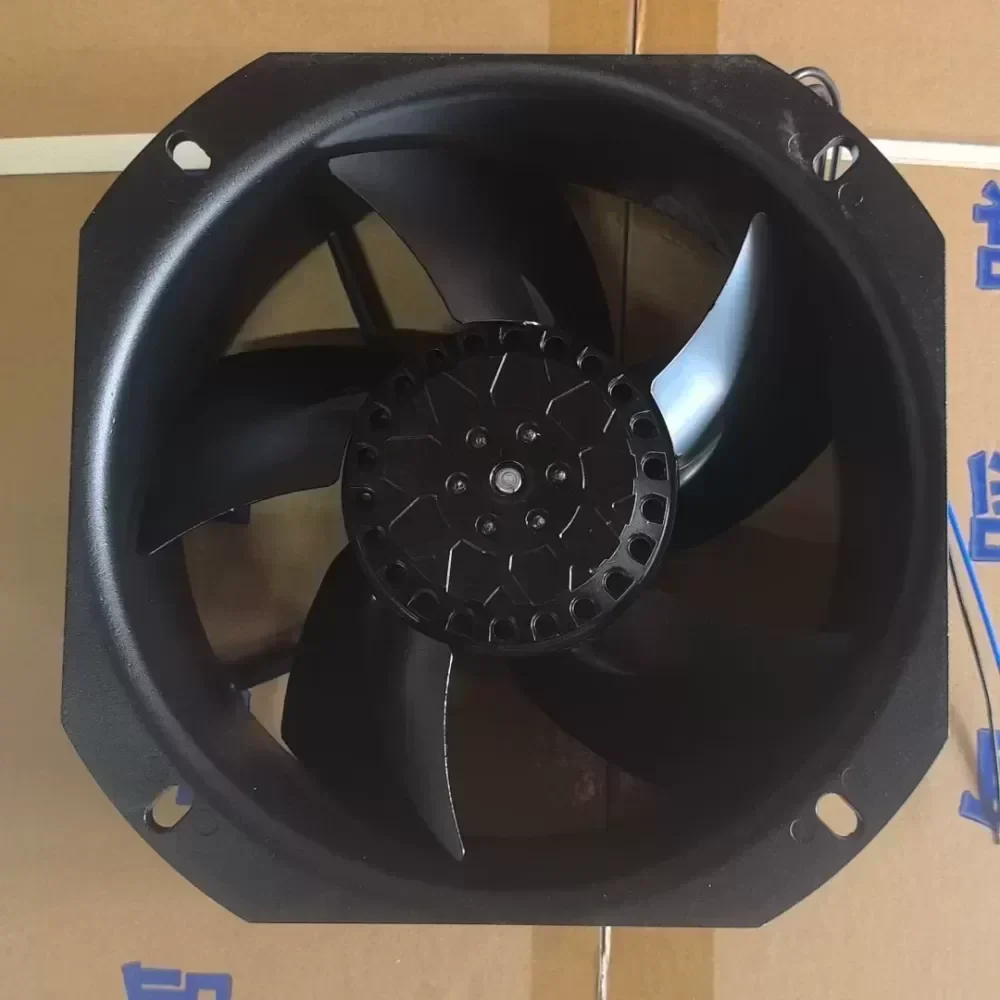

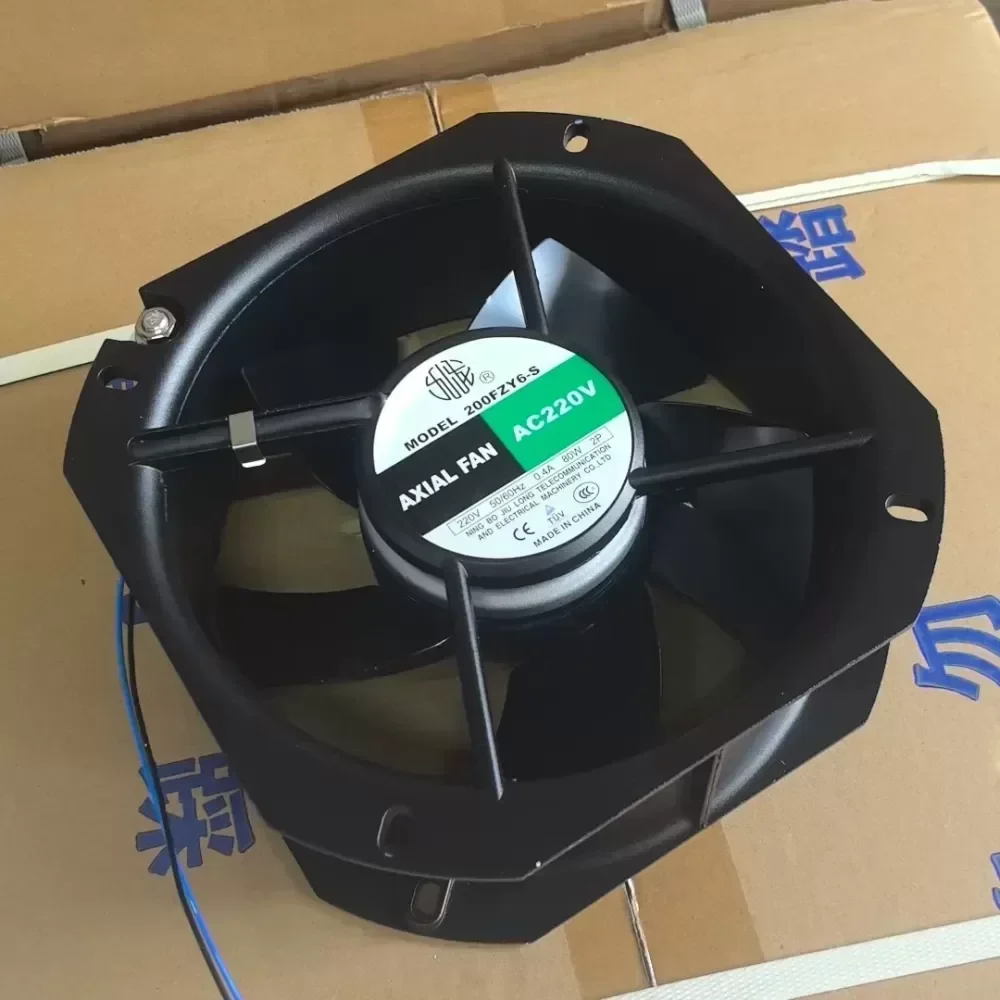

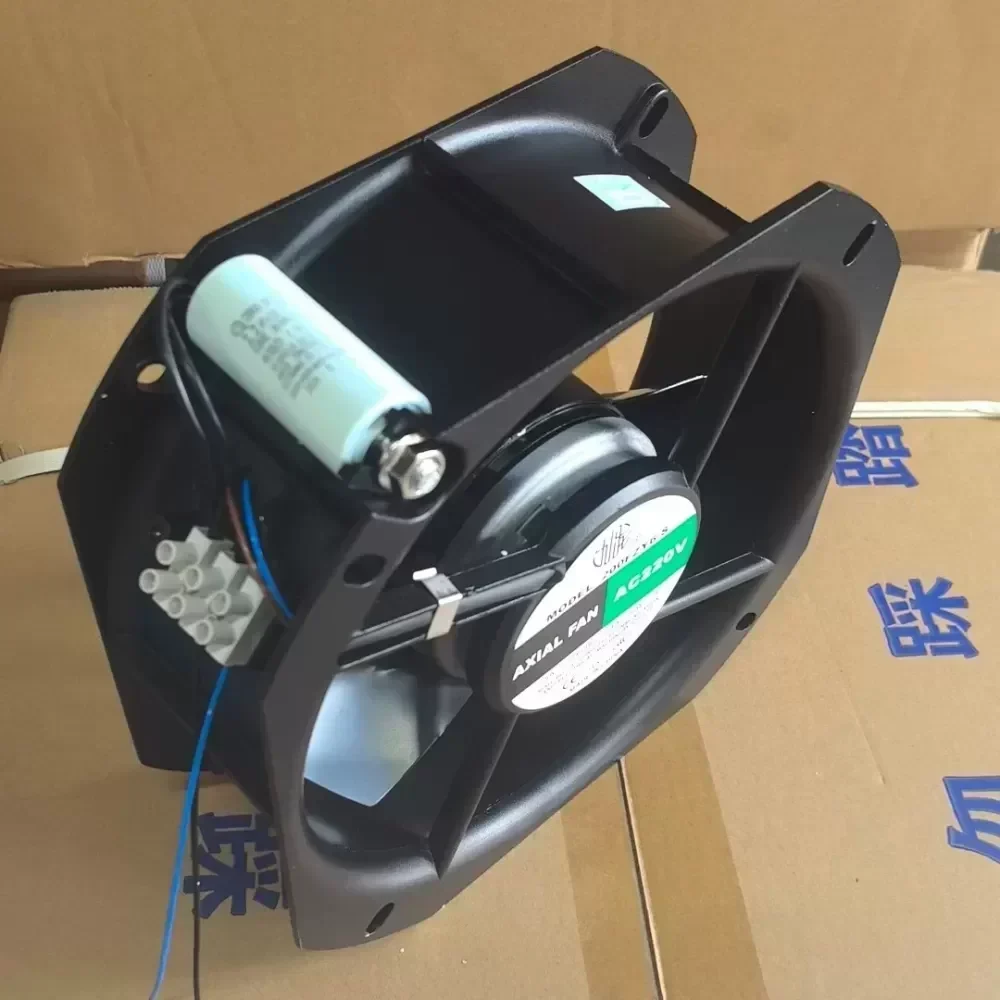

The 200FZY6-S is a heavy-duty industrial AC axial fan designed specifically for high-thermal-load applications such as inverter welding machines, power distribution cabinets, and industrial instrumentation. This unit features a robust all-metal construction, utilizing a die-cast aluminum alloy frame and steel impellers, ensuring structural integrity under high vibration and elevated operating temperatures. The external rotor motor design provides superior heat dissipation and torque efficiency compared to standard internal rotor variants. Engineered for continuous operation, the unit utilizes a double ball bearing system, validating the maintenance-free functional status and ensuring long-term reliability without the need for lubrication. This component ensures Original Engineering performance standards are met for critical cooling systems.

Technical Specifications:
Model: 200FZY6-S
Component Type: AC Axial Flow Fan / External Rotor Motor
Dimensions: 210mm x 210mm x 71mm
Mounting Hole Distance: 168mm x 168mm (Center-to-Center)
Rated Voltage: 220V AC
Frequency: 50/60 Hz
Input Power: 65W
Rated Current: 0.30A
Rotational Speed: 2600 RPM
Airflow Volume: 12.5 m³/min (approx. 441 CFM)
Static Pressure: 90 Pa
Noise Level: 70 dBA
Housing Material: Die-Cast Aluminum with Anti-Corrosion Coating
Blade Material: Carbon Steel
Bearing Type: Double Ball Bearing (Maintenance-Free)
Insulation Class: Class B
Dielectric Strength: 1500V / 1 minute
Operating Temperature: -20°C to +75°C
Life Expectancy: >50,000 Hours
Connection: Lead Wire or Terminal Block
Weight: 1.5 kg

Industrial Application:
This fan is critical for forced convection cooling in IGBT and MOSFET-based welding power sources. The 200FZY6-S delivers the high static pressure required to push air through dense aluminum heatsink fins, preventing thermal runaway in power semiconductors during high-amperage duty cycles. Its all-metal composition makes it resistant to the radiant heat and electromagnetic interference common in welding environments. We verify Technical Compatibility with major industrial machinery brands requiring 210mm form factor cooling solutions.

Logistics & Procurement:
Condition: Brand New, Factory Sealed
Availability: In Stock
Lead Time: Immediate dispatch available
Shipping: Global freight options available (reimbursement required for remote areas)

200FZY6-S Jiulong AC220V metal fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
