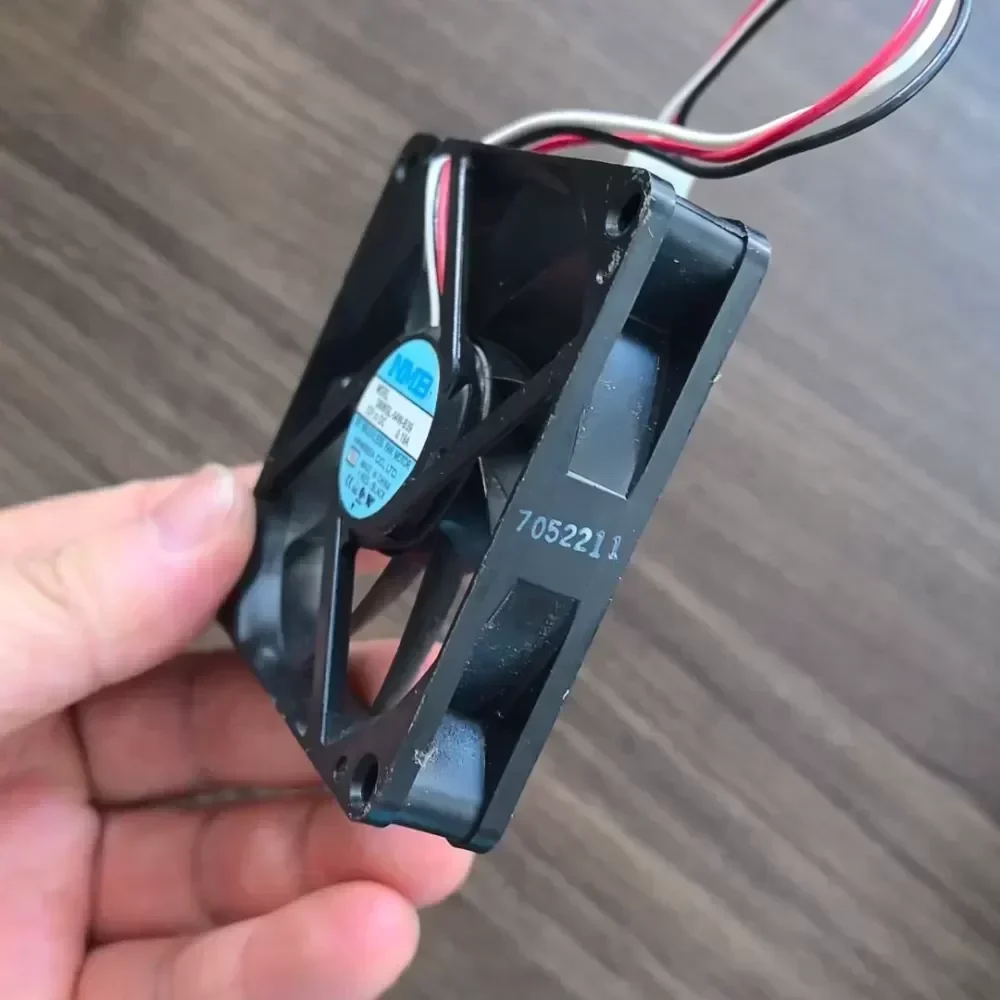

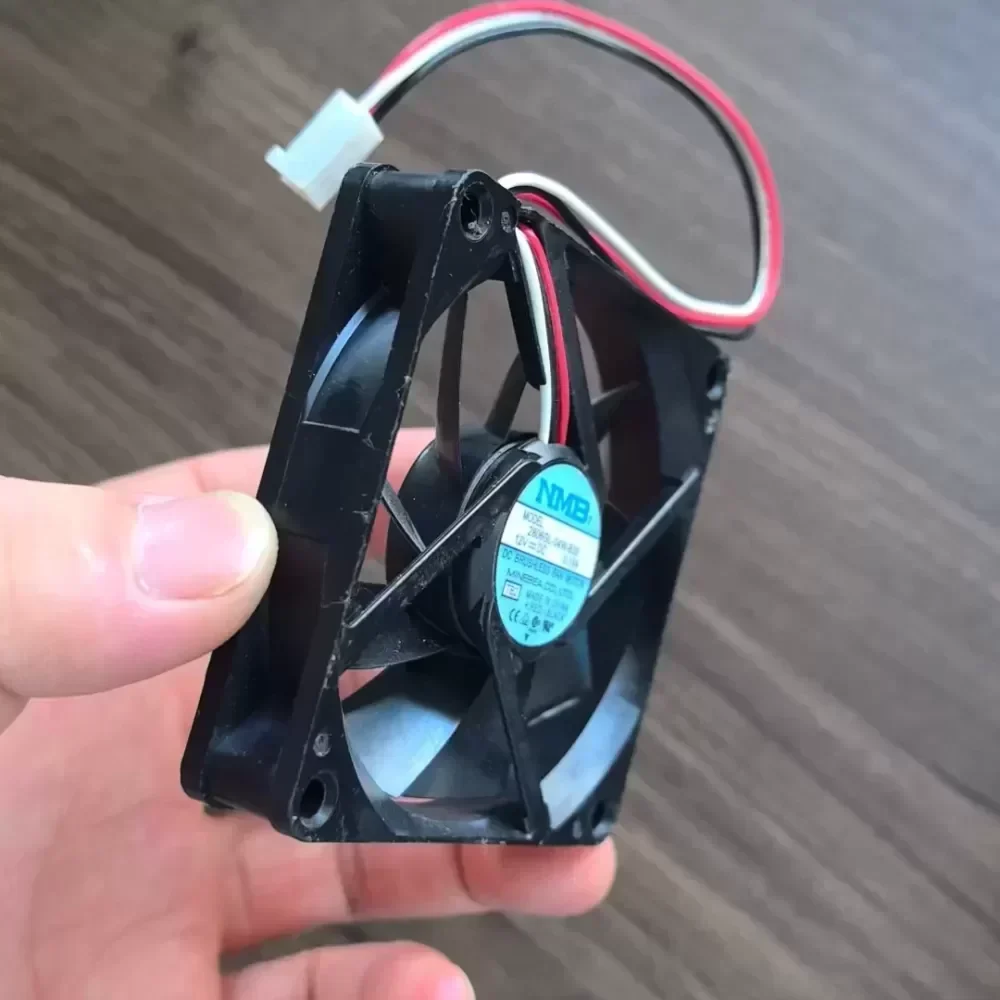

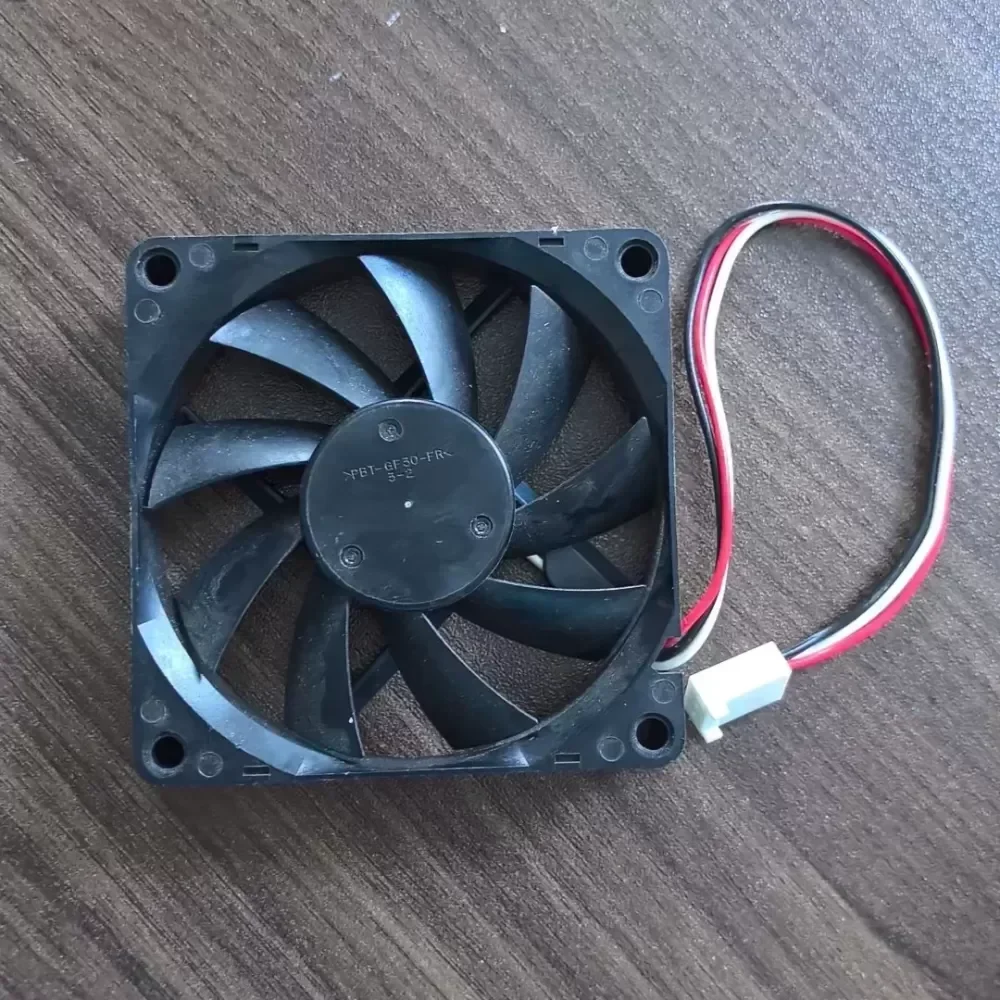

The NMB-MAT 2806GL-04W-B39 is a high-performance industrial axial fan engineered by MinebeaMitsumi for critical thermal management applications. This 70mm x 15mm cooling solution operates at a nominal 12 VDC with a rated current of 0.19A, delivering an optimal balance between airflow efficiency and acoustic performance. Equipped with precision dual ball bearings, the 2806GL series is designed for extended service life in demanding environments, offering significantly higher MTBF (Mean Time Between Failures) compared to standard sleeve bearing alternatives.
Technical Specifications:
Manufacturer: NMB-MAT (MinebeaMitsumi)
Model Number: 2806GL-04W-B39
Dimensions: 70 x 70 x 15 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 6.0 – 13.8 VDC
Rated Current: 0.19 A
Bearing Type: Dual Ball Bearing
Interface: Lead Wire
Housing Material: Reinforced Plastic (UL94V-0)
Industrial Application:
This component is specifically utilized in high-density electronic enclosures, industrial power supply units (PSUs), and telecommunications infrastructure where consistent heat dissipation is mandatory. Its low-profile 15mm depth makes it ideal for space-constrained chassis, server racks, and medical diagnostic equipment requiring reliable, long-term cooling performance under continuous operation. The dual ball bearing system ensures stability in various mounting orientations, making it a versatile choice for original engineering replacements and system upgrades.
Reviews
There are no reviews yet.
Only logged in customers who have purchased this product may leave a review.
Fans Maintenance and upkeep
1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;
2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.
3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;
4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
