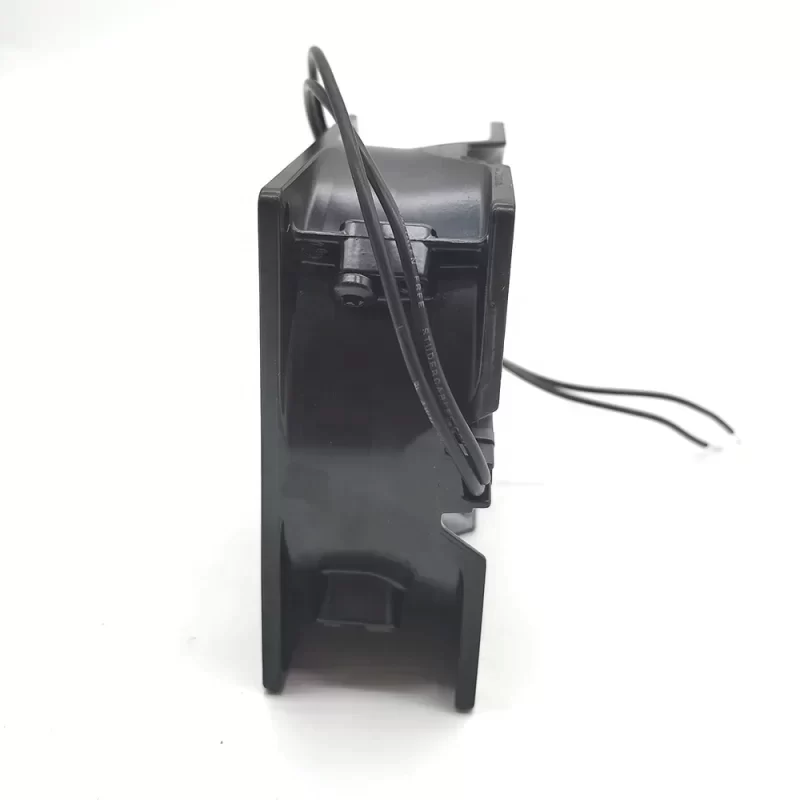

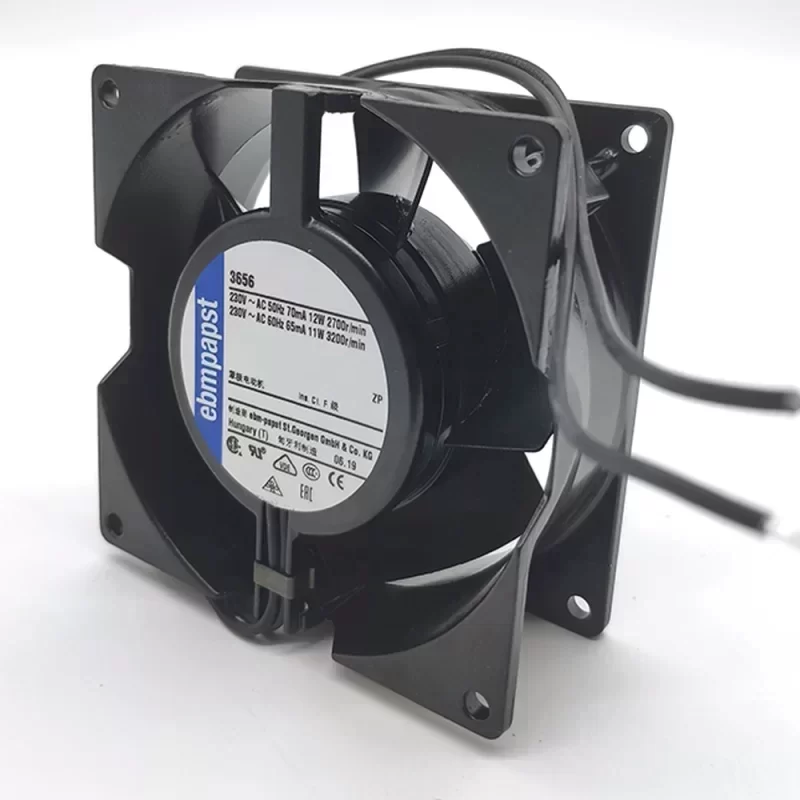

Name: 3556 Ebmpapst 230V AC 92x92x38mm Inverter Cabinet Axial Fan
Brand: ebmpapst
SKU: 62586384555
Availability: InStock
Rating: 5 (4 reviews)

$23.50

SKU: 62586384555 Brand: ebmpapst

Description
Reviews (0)

Description

The Ebmpapst 3556 is a high-performance AC axial fan engineered for precision thermal management in industrial inverter cabinets and electronic enclosures. This unit represents Original Engineering standards, providing reliable cooling for high-density power components. Technical Compatibility is guaranteed for standard 92mm mounting configurations, making it an ideal replacement or OEM component for mission-critical systems.

Technical Specifications:
Manufacturer: Ebmpapst
Model Number: 3556
Product Type: AC Axial Fan
Nominal Voltage: 230 VAC
Frequency: 50/60 Hz
Dimensions: 92 x 92 x 38 mm
Airflow: 67 m³/h at 50 Hz
Airflow: 75 m³/h at 60 Hz
Power Consumption: 8.5 W at 50 Hz
Power Consumption: 7.5 W at 60 Hz
Nominal Current: 55 mA
Rotational Speed: 2400 RPM at 50 Hz
Rotational Speed: 2700 RPM at 60 Hz
Sound Pressure Level: 32 dB(A) at 50 Hz
Sound Pressure Level: 36 dB(A) at 60 Hz
Bearing Type: Dual Ball Bearing
Housing Material: Die-cast aluminum
Impeller Material: Glass-fiber reinforced PA plastic
Service Life L10: 70000 hours at 40 °C
Operating Temperature Range: -40 °C to +70 °C
Electrical Connection: 2 flat plugs 2.8 x 0.5 mm
Motor Protection: Impedance protected
Approval Certificates: VDE, CSA, UL, CE
Weight: 0.420 kg
Origin: Germany

Industrial Application:
The Ebmpapst 3556 is specifically designed for environments requiring high static pressure and long-term reliability. Its dual ball bearing system allows for mounting in any orientation, solving cooling challenges in compact inverter cabinets where airflow direction is constrained. By maintaining a stable Lead Time for this essential spare part, facilities can ensure continuous operation of frequency converters and power supplies, mitigating the risk of thermal shutdown in automated production lines.

Key Attributes
Voltage: 230(V)
Mounting type: Free Standing
Type: Axial Cooling Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Plastic
Bearing type: Ball Bearing
Customized support: OEM
After-sales service provided: Online support
Place of origin: Germany
Brand name: Ebmpapst
Model number: 3556
Type: Axial fan
Nominal voltage: 230V
Bearing Type: Ball Bearing
Power consumption: 8.5/7.5 (w)
Current: 0.55 (A)
Speed: 2400 (r/min)
Diameter: 92*92*38mm

Packaging and Delivery
Selling Units: Single item

3556 Ebmpapst 230V AC 92x92x38mm Inverter Cabinet Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
