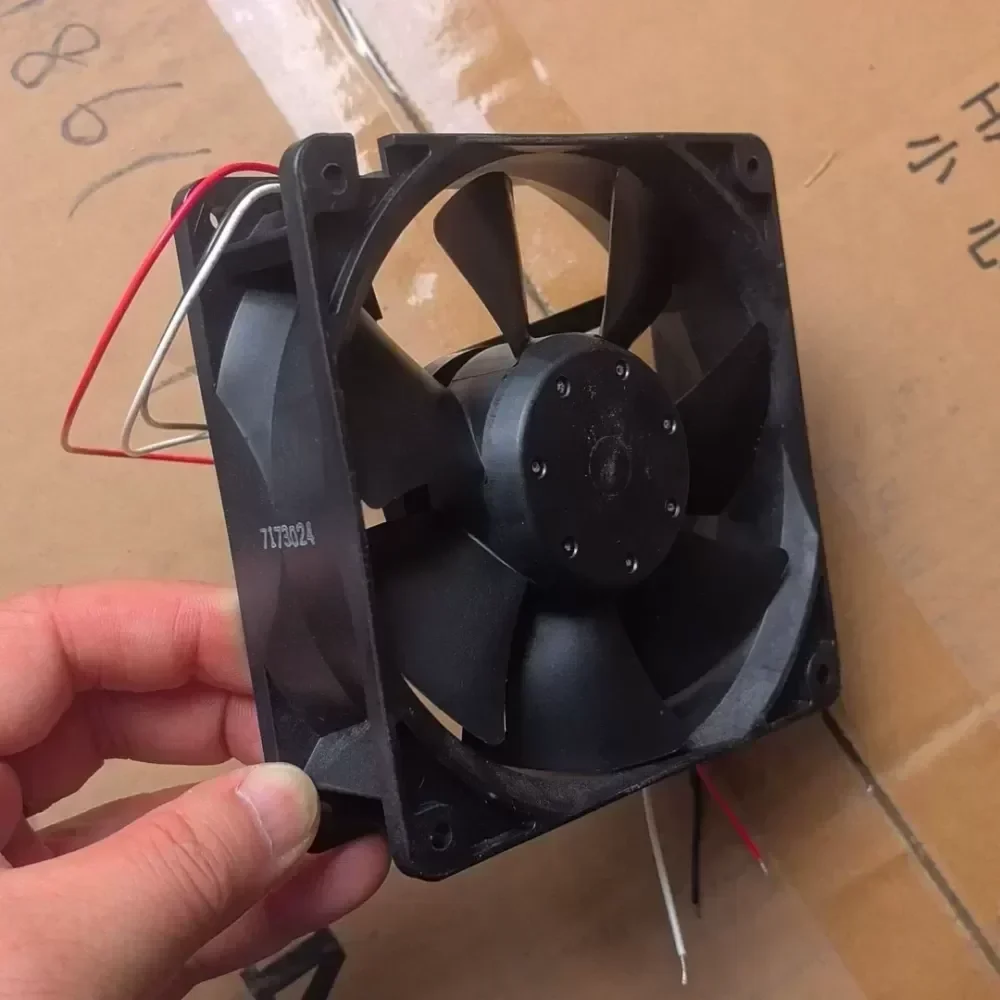

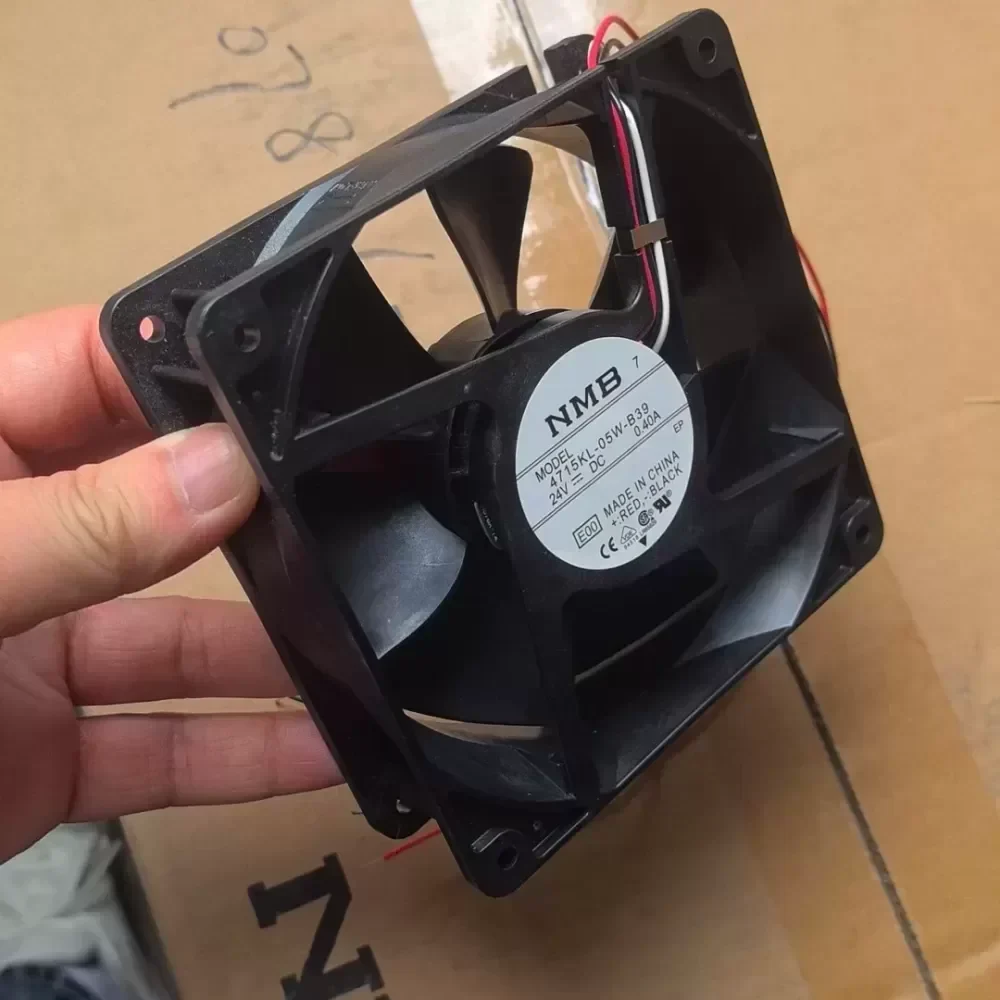

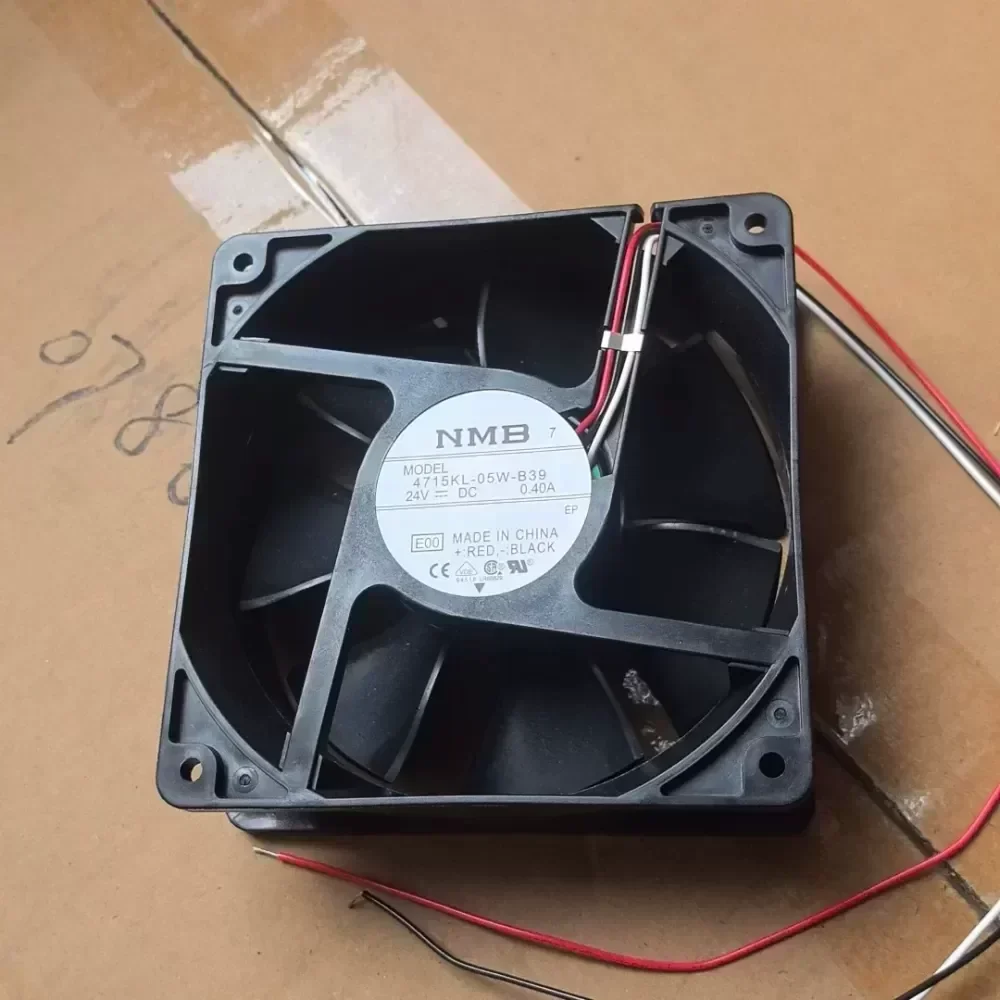

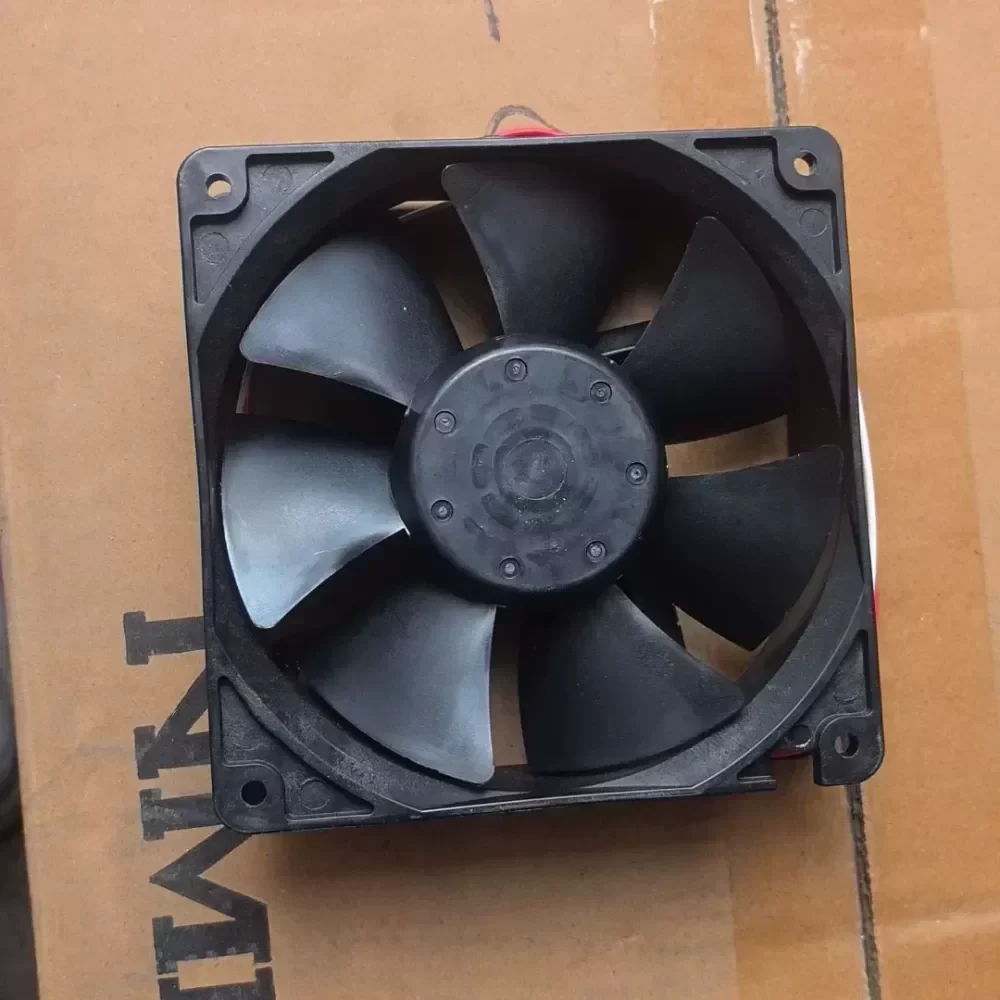

4715KL-05W-B39 NMB fan

Name: 4715KL-05W-B39 NMB fan
Brand: NMB
SKU: 922417135730
Availability: InStock
Rating: 5 (4 reviews)

$9.29

SKU: 922417135730 Brand: NMB

Description
Reviews (0)

Description

The NMB 4715KL-05W-B39 is a high-performance axial cooling fan engineered for critical thermal management in Fanuc CNC systems and industrial inverters. This unit features Original Engineering standards to ensure seamless Technical Compatibility with Fanuc Alpha i series drives and power supplies.

Technical Specifications:
Manufacturer: NMB-MAT (MinebeaMitsumi)
Model Number: 4715KL-05W-B39
Frame Size: 119 x 119 x 38 mm
Rated Voltage: 24V DC
Operating Voltage Range: 10.0V to 27.6V DC
Rated Current: 0.40A
Input Power: 9.60W
Rated Speed: 3200 RPM
Maximum Airflow: 3.34 m³/min
Maximum Static Pressure: 82.0 Pa
Bearing Type: Dual Precision Ball Bearings
Acoustic Noise: 46.5 dB
Frame Material: Aluminum Die-Cast
Impeller Material: Polybutylene Terephthalate (PBT) UL94V-0
Motor Protection: Auto Restart / Polarity Protection
Insulation Resistance: 10M Ohm min at 500V DC
Dielectric Strength: 700V AC for 1 minute
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Service Life: 100,000 Hours (L10 at 25°C)
Termination: 3-Wire Lead with Fanuc Specific Connector
Weight: 260g

Industrial Application Scenario:
In high-duty cycle CNC machining environments, the 4715KL-05W-B39 is deployed within Fanuc servo amplifiers and spindle drives to prevent thermal throttling. Its dual ball bearing architecture is specifically designed to withstand the continuous vibration and elevated ambient temperatures found in electrical cabinets. By maintaining optimal airflow across the power modules, it prevents premature component failure and minimizes Lead Time associated with emergency machine repairs.

4715KL-05W-B39 NMB fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
