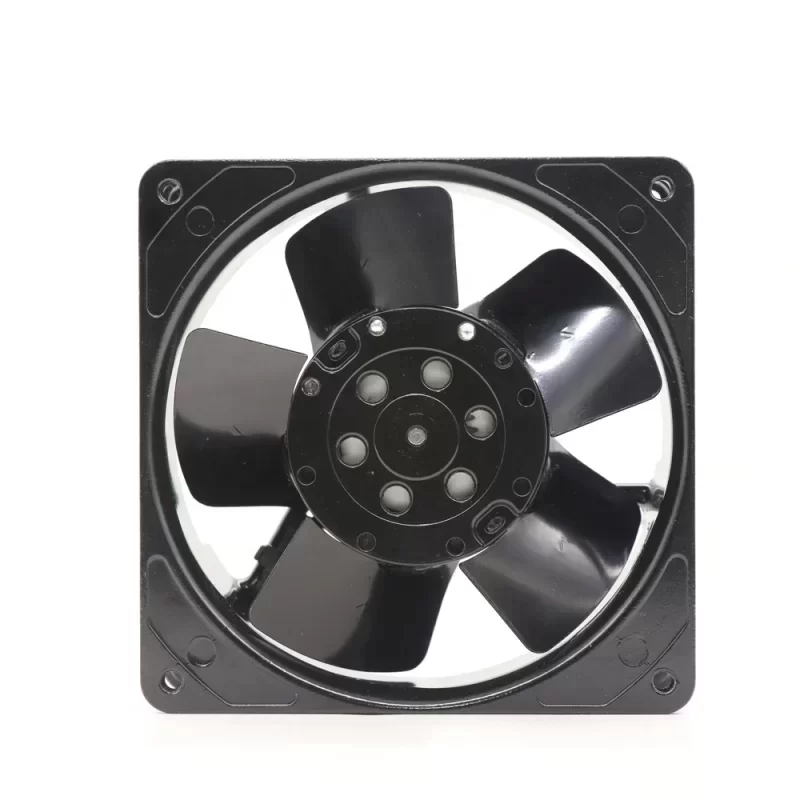

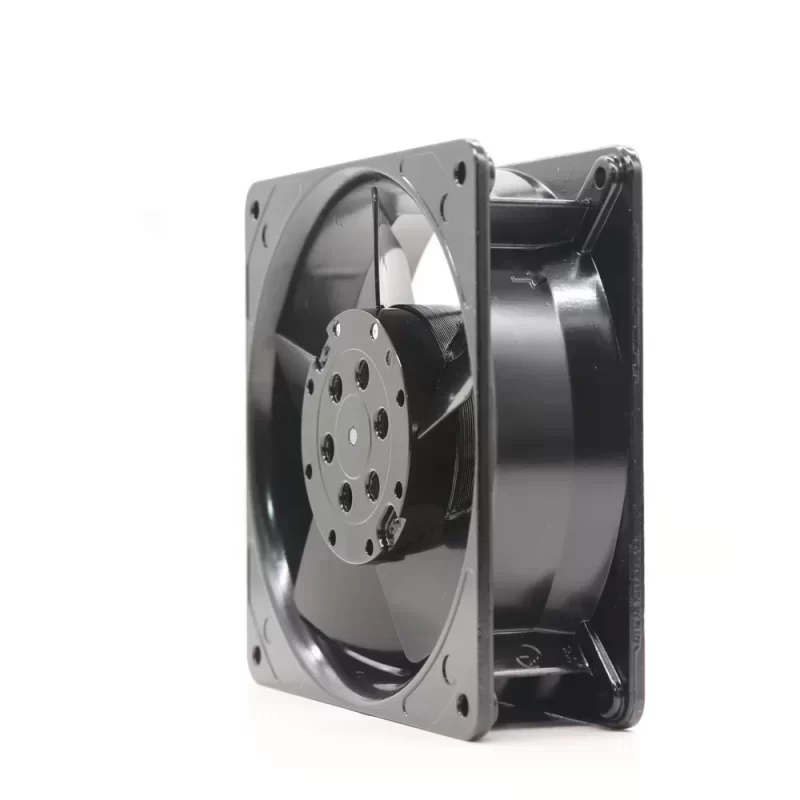

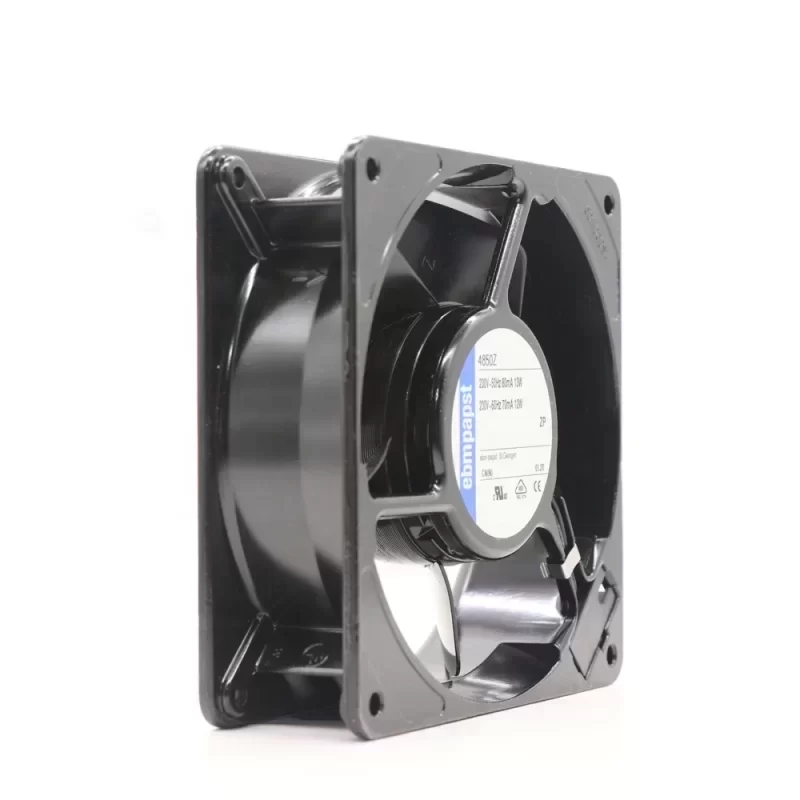

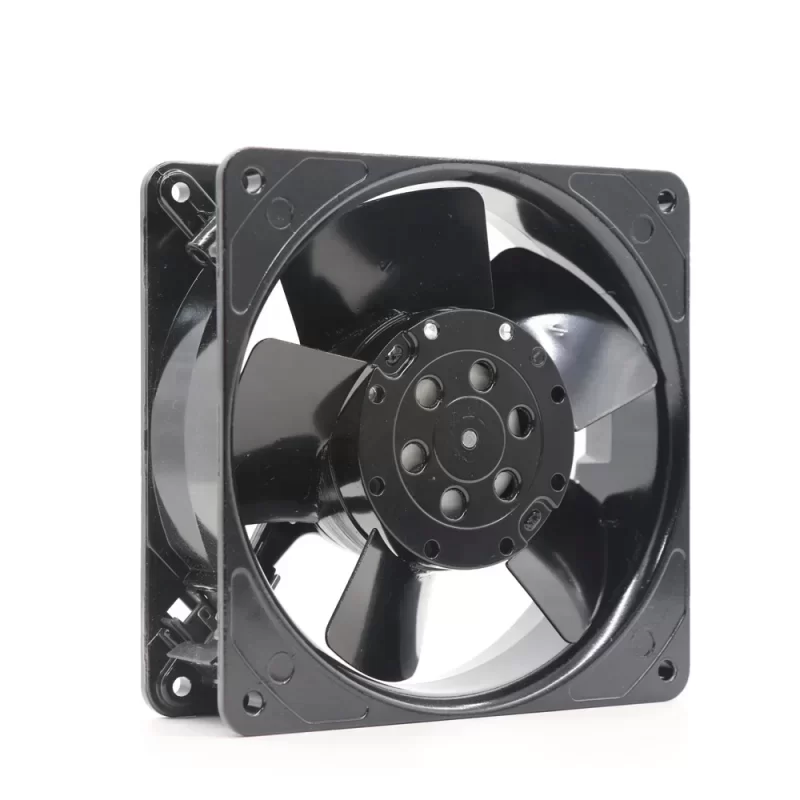

4850Z ebmpapst 120x120x38mm 230V Cabinet AC Axial Fan

4850Z ebmpapst 120x120x38mm 230V Cabinet AC Axial Fan

Name: 4850Z ebmpapst 120x120x38mm 230V Cabinet AC Axial Fan
Brand: ebmpapst
SKU: 1601111430601
Availability: InStock
Rating: 5 (4 reviews)

$19.00

SKU: 1601111430601 Brand: ebmpapst

Description
Reviews (0)

Description

Manufacturer: ebmpapst
Model Number: 4850Z
Product Category: AC Axial Fan
Original Engineering: German Precision Engineering
Frame Dimensions: 120 x 120 x 38 mm
Nominal Voltage: 230 VAC
Frequency: 50 Hz
Airflow: 100 m³/h (58.9 CFM)
Power Consumption: 13.0 W
Sound Pressure Level: 26 dB(A)
Sound Power Level: 4.4 Bel
Nominal Speed: 1700 RPM
Bearing Type: Sintec Sleeve Bearing
Housing Material: Die-cast aluminum
Impeller Material: Mineral-reinforced PA plastic
Motor Type: Shaded pole motor
Electrical Connection: 2 flat plugs 2.8 x 0.5 mm
Direction of Rotation: Clockwise (viewed toward rotor)
Direction of Airflow: Exhaust over struts
Service Life L10 at 40 °C: 52500 h
Service Life L10 at Max Temp: 27500 h
Operating Temperature Range: -10 °C to +70 °C
Weight: 0.550 kg
IP Rating: IP20
Approvals: VDE, CSA, UL, CE
Technical Compatibility: Standard 120mm cabinet mounting patterns

Industrial Application: The ebmpapst 4850Z is specifically designed for low-noise thermal management in sensitive electronic enclosures and telecommunications racks. Its 26 dBA acoustic profile solves the critical problem of noise pollution in office-integrated server environments while maintaining a consistent 100 m³/h airflow. The die-cast aluminum frame acts as an integrated heat sink for the motor, extending the lifecycle in continuous 24/7 operations. This unit is a direct replacement part for high-density cabinet cooling where Technical Compatibility and Original Engineering standards are required to maintain system warranties and safety certifications. Lead Time is optimized for critical MRO supply chains.

Key Attributes
Voltage: 230V
Mounting type: Free Standing
Type: Axial Cooling Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Plastic
Bearing type: Ball Bearing
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: Germany
Brand name: Ebmpapst
Model number: 4850Z
Type: Tubeaxial fan
Voltage: 230V
Air flow: 58.9 CFM
Speed: 1700RPM
Bearing Type: Sleeve
Noise: 26 DBA
Power Rating: 13W
Housing Material: Aluminum
IP Rating: IP20
Size: 120*120*38mm

Packaging and Delivery
Selling Units: Single item
Single package size: 21X21X11 cm
Single gross weight: 0.800 kg

4850Z ebmpapst 120x120x38mm 230V Cabinet AC Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
