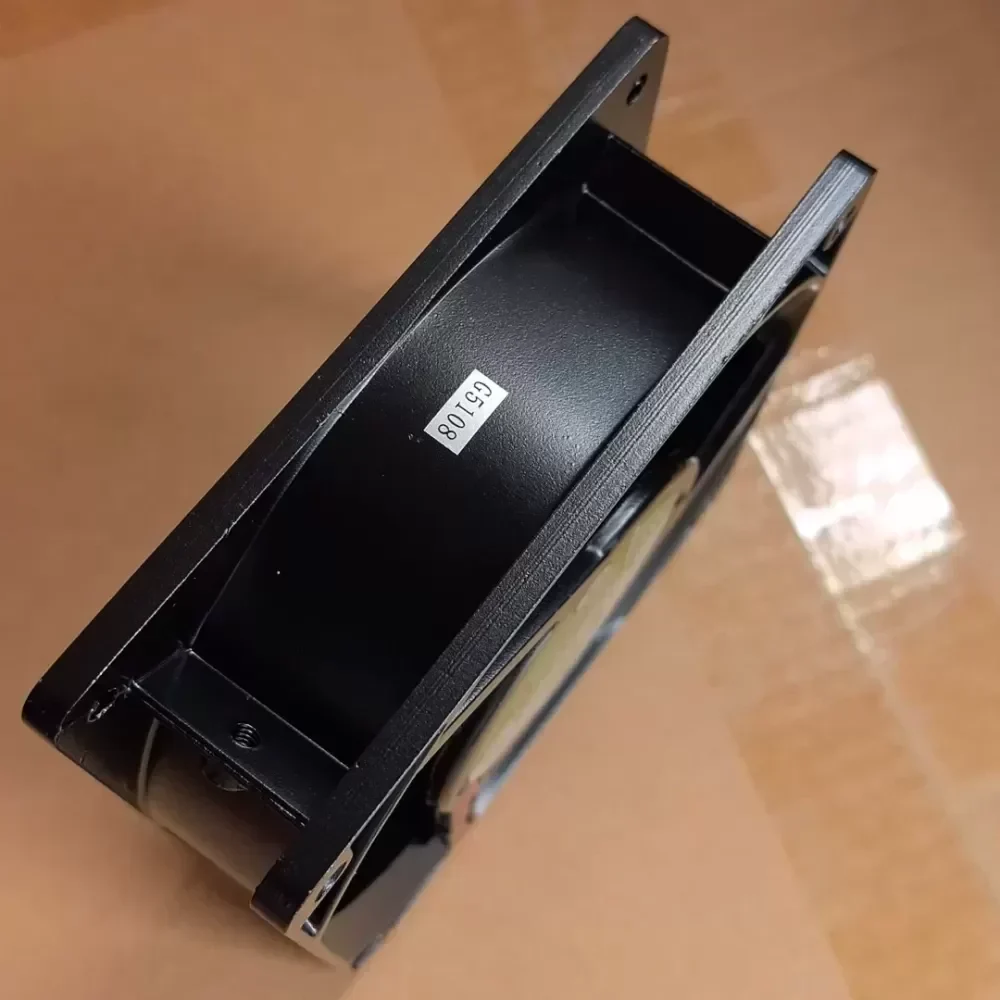

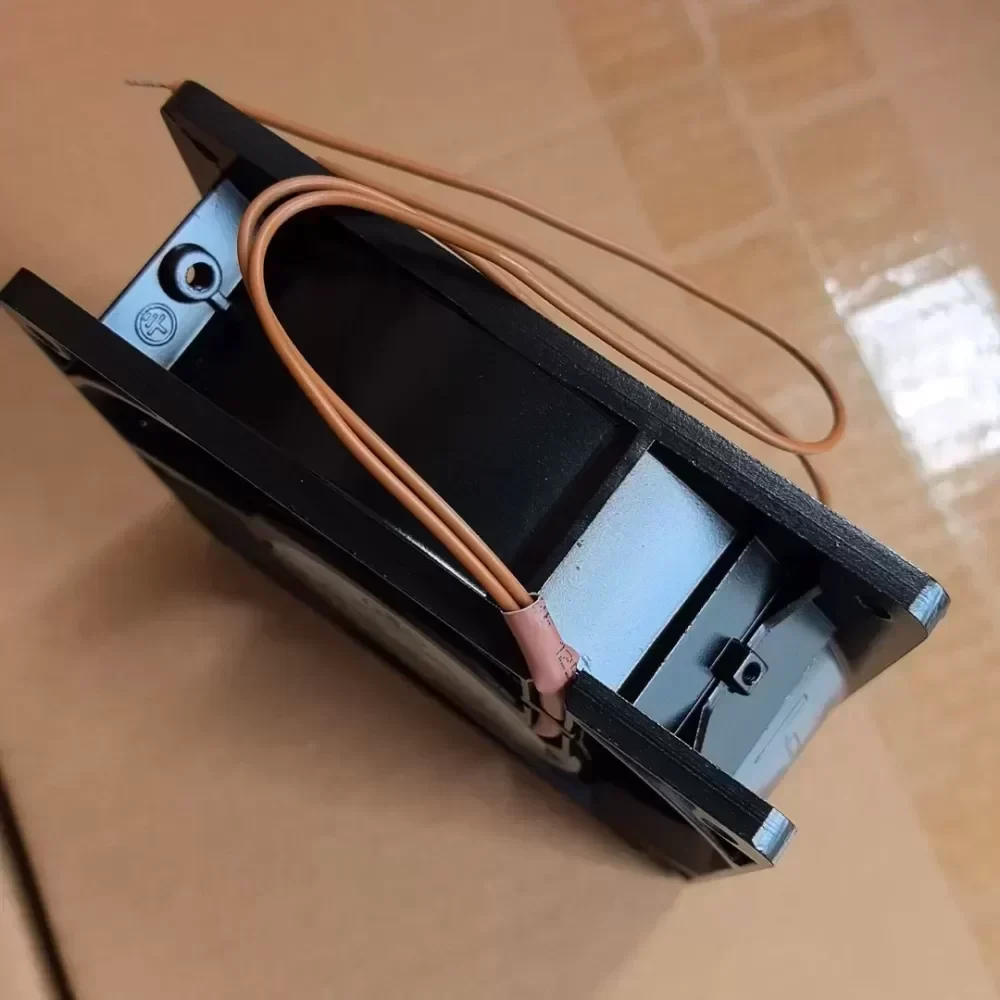

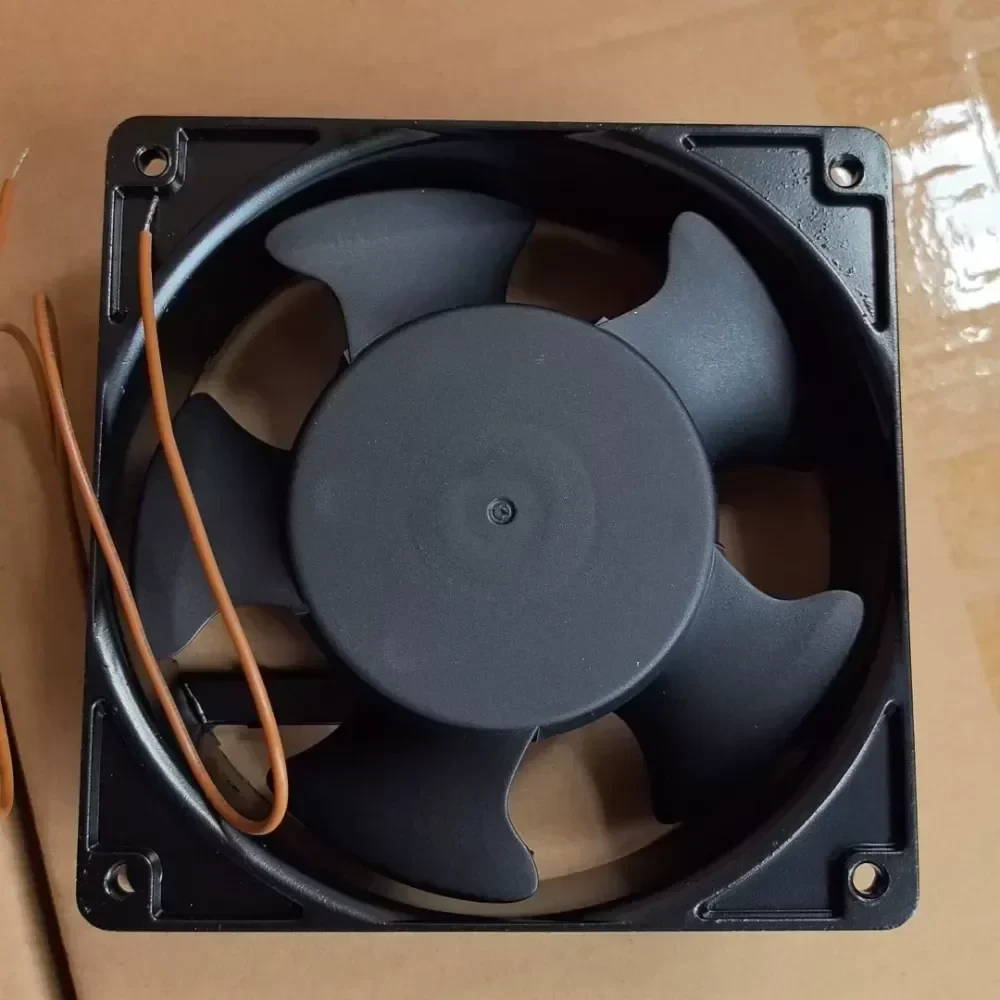

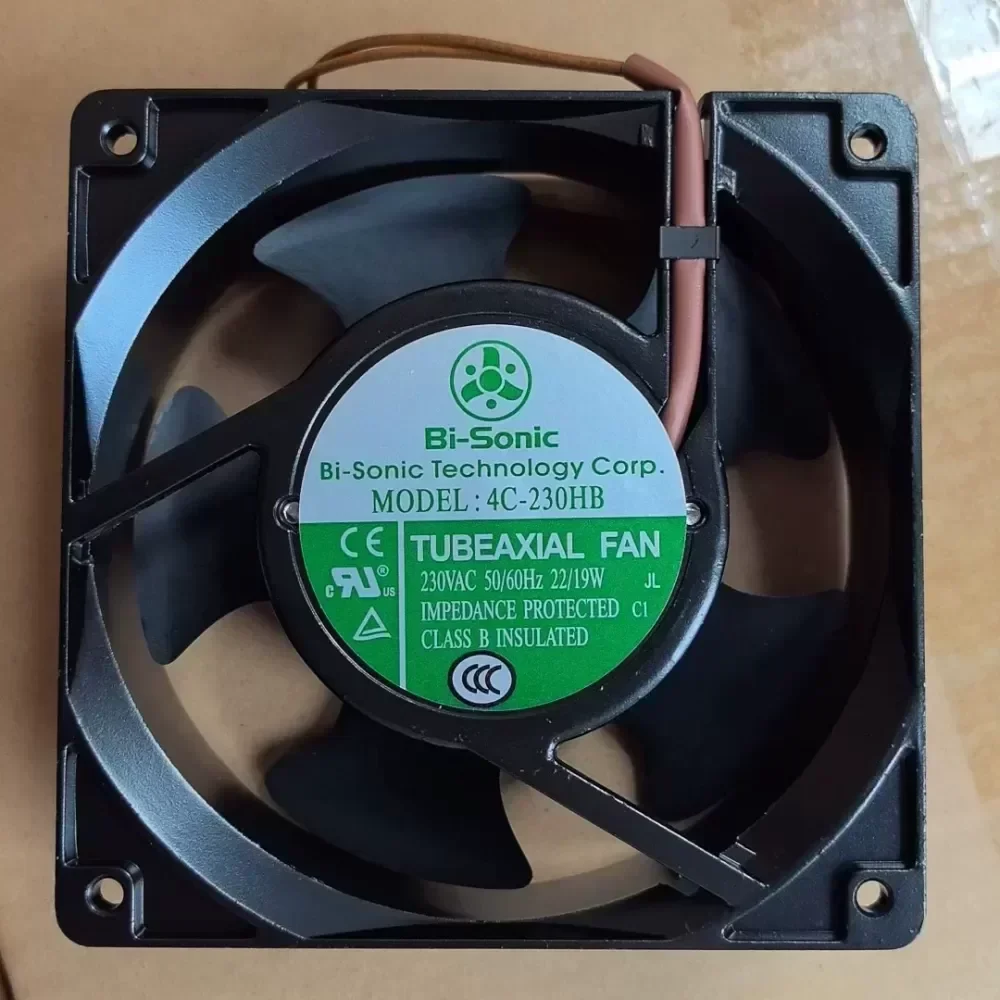

4C-230HB Bi-Sonic fan

Name: 4C-230HB Bi-Sonic fan
Brand: Bi-Sonic
SKU: 912107513830
Availability: InStock
Rating: 5 (4 reviews)

$7.43

SKU: 912107513830 Brand: Bi-Sonic

Description
Reviews (0)

Description

The Bi-Sonic 4C-230HB is a robust AC axial fan designed for critical thermal management in industrial electronics and automation systems. Manufactured with a die-cast aluminum alloy frame and a pure copper coil shaded pole motor, this unit offers exceptional durability and heat resistance. The inclusion of a high-grade dual ball bearing system ensures a prolonged service life and stable operation in both vertical and horizontal mounting positions. Operating at 230V AC, the 4C-230HB delivers consistent airflow performance, making it a standard component for maintaining thermal equilibrium in enclosed chassis environments. Its impedance-protected motor design prevents burnout during locked rotor conditions, enhancing system safety.

Technical Specifications:
Manufacturer: Bi-Sonic Technology
Model: 4C-230HB
Device Type: AC Axial Fan
Frame Dimensions: 120mm x 120mm x 38mm
Rated Voltage: 220V-240V AC
Frequency: 50/60 Hz
Input Power: 22W (50Hz) / 19W (60Hz)
Rated Current: 0.14A / 0.11A
Speed: 2600 / 2900 RPM
Max Airflow: 95 / 115 CFM
Static Pressure: 6.5 / 8.0 mmH2O
Noise Level: 44 / 48 dBA
Bearing Type: Dual Ball Bearing
Frame Material: Aluminum Alloy
Impeller Material: PBT Thermoplastic (UL94V-0)
Motor Construction: Pure Copper Coil, Shaded Pole
Operating Temperature: -10°C to +70°C
Insulation Class: Class B
Weight: 540g

Industrial Application:
This cooling unit is engineered for high-duty cycles in server cabinets, CNC machinery control panels, and telecommunication instrumentation. The aluminum housing acts as a heatsink for the motor while providing mechanical rigidity against vibration. The 4C-230HB is essential for preventing thermal throttling in power supplies and rectifiers. By adhering to Original Engineering standards, this fan guarantees Technical Compatibility with existing chassis cutouts and electrical interfaces. Availability of this specific model ensures reduced Lead Time for maintenance teams requiring immediate replacement of legacy cooling components.

4C-230HB Bi-Sonic fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
