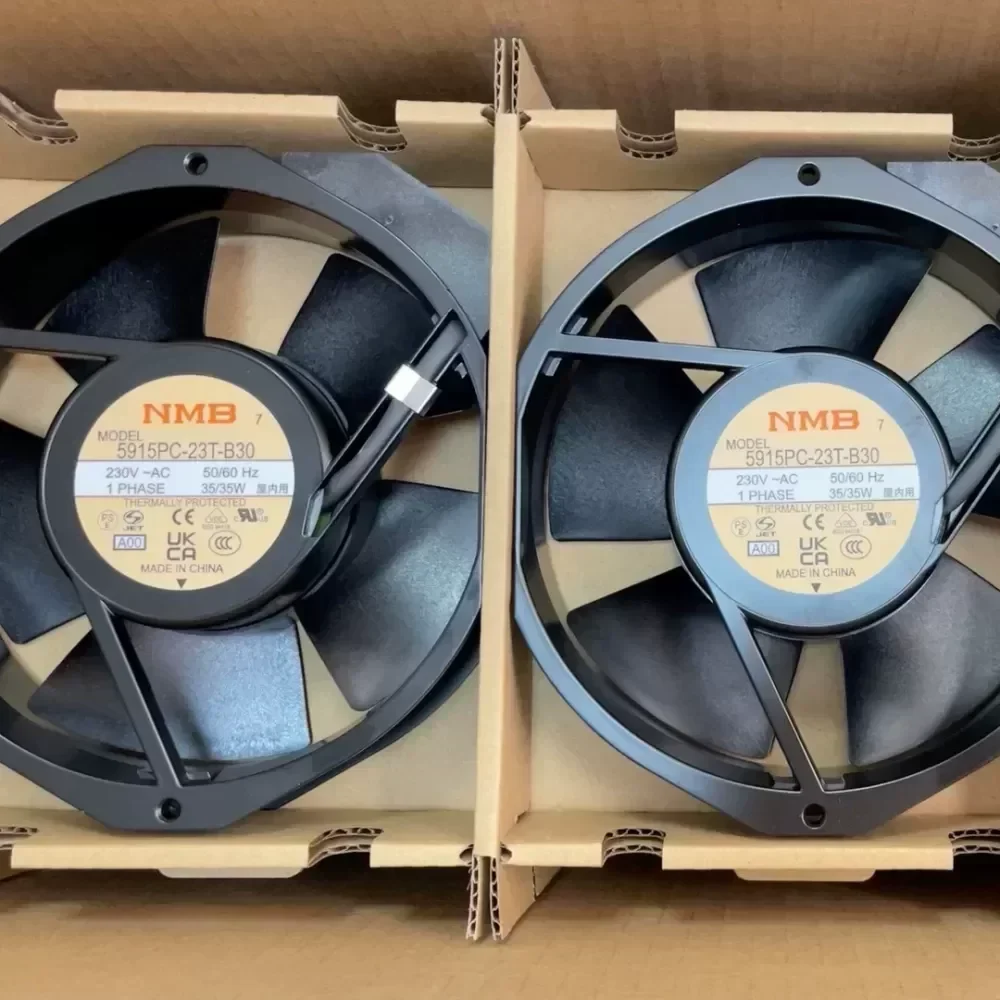

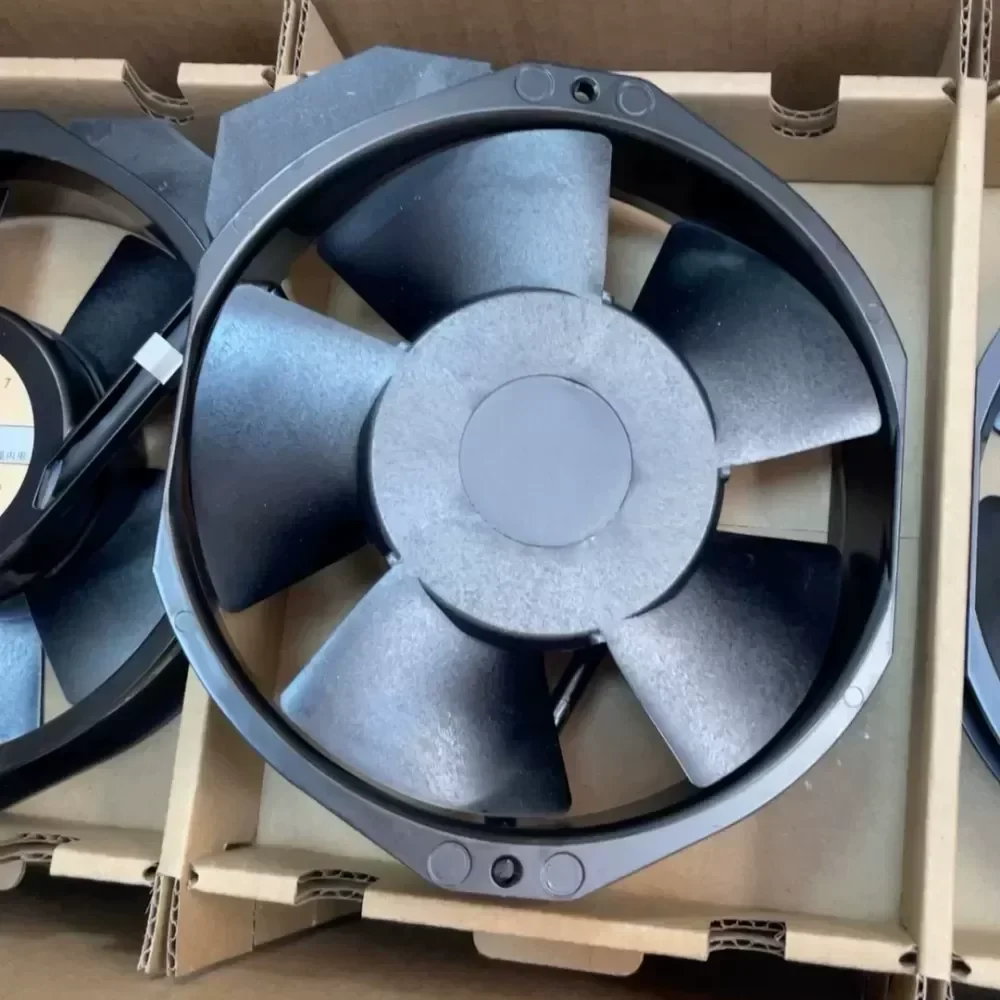

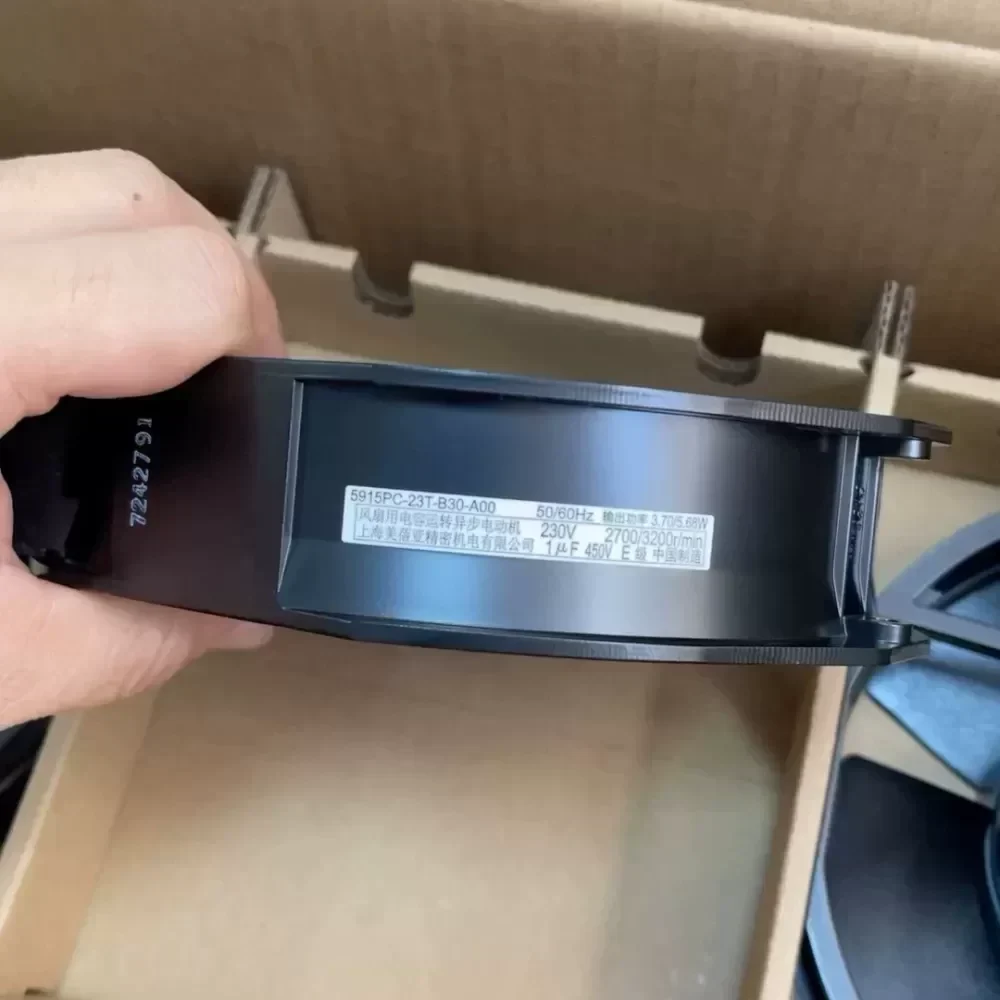

5915PC-23T-B30 NMB 230V fan

Name: 5915PC-23T-B30 NMB 230V fan
Brand: NMB
SKU: 917681842853
Availability: InStock
Rating: 5 (4 reviews)

$22.14

SKU: 917681842853 Brand: NMB

Description
Reviews (0)

Description

The NMB Technologies 5915PC-23T-B30 is a high-performance AC axial fan engineered for critical thermal management in industrial enclosures and power systems. This unit features Original Engineering from MinebeaMitsumi, utilizing a shaded pole induction motor and precision ball bearings to ensure longevity under continuous operation. The specific B30 speed classification delivers a high volumetric airflow to static pressure ratio, making it essential for overcoming system impedance in densely packed server racks and UPS chassis.

Technical Specifications:
Manufacturer: NMB Technologies (MinebeaMitsumi)
Model Number: 5915PC-23T-B30
Component Type: AC Axial Cooling Fan
Frame Dimensions: 172 mm x 150 mm x 38 mm
Rated Voltage: 230 V AC
Frequency: 50/60 Hz
Input Power: 35.0 W
Rated Current: 0.18 A
Rotational Speed: 2700 RPM
Maximum Airflow: 212 CFM (6.00 m³/min)
Maximum Static Pressure: 166.7 Pa (0.67 inH2O)
Noise Level: 56 dB(A)
Bearing System: Dual Ball Bearing

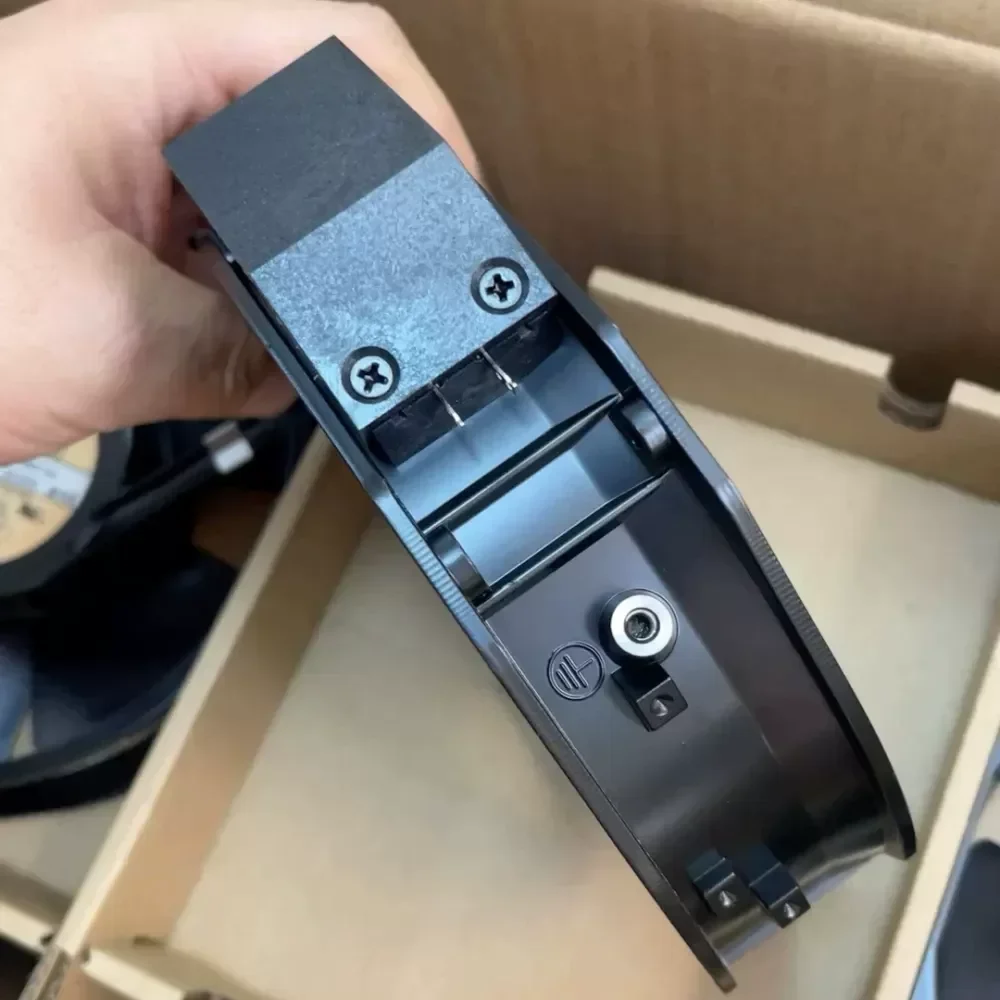

Termination Style: Terminal (Faston #110)
Frame Material: Aluminum Die-Cast (Black)
Impeller Material: Polycarbonate (UL94V-0)
Operating Temperature Range: -10°C to +70°C
Motor Protection: Impedance Protected
Insulation Resistance: 10 MΩ minimum at 500 V DC
Dielectric Strength: 1500 V AC for 1 Minute
Life Expectancy: 50,000 Hours (L10 at 25°C)
Weight: 800 g

Industrial Application:
This 172mm fan is specifically calibrated for high-reliability environments such as Uninterruptible Power Supply (UPS) inverter cooling and telecommunications cabinet ventilation. The 5915PC-23T-B30 provides the necessary thermal dissipation to prevent semiconductor derating in 230V infrastructure. Its terminal connection type facilitates rapid maintenance and Technical Compatibility with existing wiring harnesses in legacy and modern control panels. Contact us to verify current Lead Time and bulk availability for maintenance schedules.

5915PC-23T-B30 NMB 230V fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
