614N/2GHH ebmpapast 12V DC Axial Cooling Refrigeration Fan

614N/2GHH ebmpapast 12V DC Axial Cooling Refrigeration Fan

Name: 614N/2GHH ebmpapast 12V DC Axial Cooling Refrigeration Fan
Brand: ebmpapst
SKU: 1601585463498
Availability: InStock
Rating: 5 (4 reviews)

$20.70

SKU: 1601585463498 Brand: ebmpapst

Description
Reviews (0)

Description

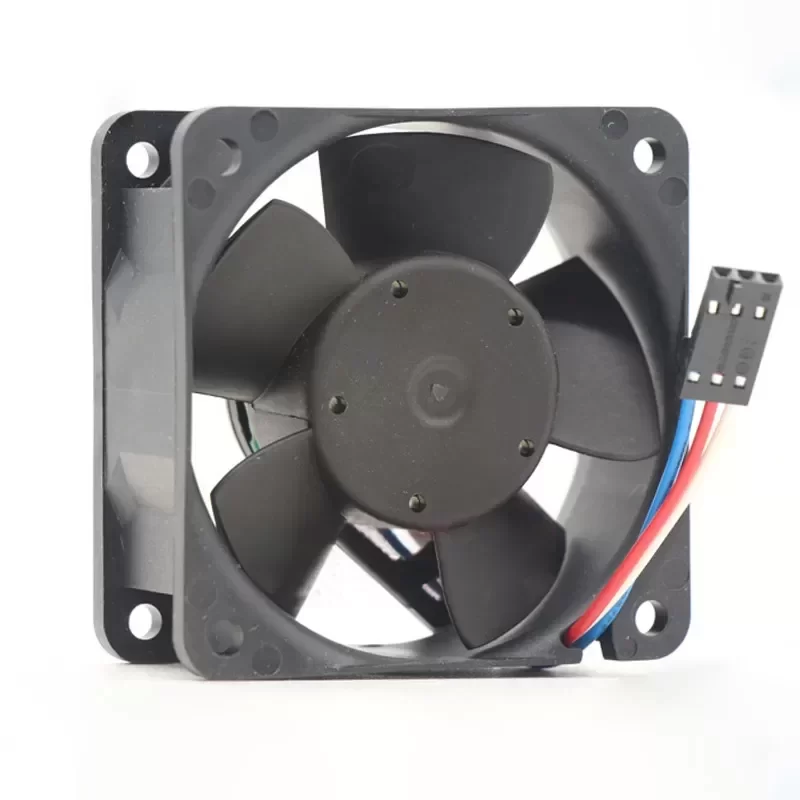

The ebmpapst 614N/2GHH is a high-performance compact axial fan engineered for critical thermal management in space-constrained industrial electronics. This 24V DC unit utilizes an advanced aerodynamic impeller design housed within a glass-fiber reinforced PBT casing, delivering superior airflow relative to its compact 60mm footprint. The /2GHH designation identifies this unit as a high-speed variant equipped with a three-wire configuration, providing a dedicated tachometer (Hall IC) signal output for real-time speed monitoring and fan failure detection. Featuring a precision ball bearing system, this model offers exceptional longevity and stability, making it suitable for continuous duty cycles in harsh environments. This component ensures Original Engineering performance standards are met for maintenance and OEM integration.

Manufacturer: ebmpapst
Model Number: 614N/2GHH
Nominal Voltage: 24 V DC
Operating Voltage Range: 18 V to 28 V DC
Power Consumption: 3.6 W
Current Draw: 150 mA
Nominal Speed: 6800 RPM
Max Airflow: 56 m³/h (33 CFM)
Noise Level: 41 dB(A)
Dimensions: 60 mm x 60 mm x 25 mm
Bearing Type: Ball Bearing
Signal Output: 3-Wire (Tachometer/Speed Sensor)
Impeller Material: PA Plastic (Glass-fiber reinforced)
Housing Material: PBT Plastic (Glass-fiber reinforced)
Operating Temperature: -20°C to +70°C
Service Life L10: 70,000 hours at 40°C
Weight: 0.066 kg
Direction of Rotation: Clockwise (viewed toward rotor)
Airflow Direction: Exhaust over struts

Industrial Application:
This specific model is optimized for high-density server power supply units (PSUs), telecommunications rack cooling, and variable frequency drive (VFD) ventilation where Technical Compatibility with active monitoring systems is mandatory. The integrated speed signal allows the host controller to dynamically adjust cooling profiles or trigger alarms, preventing thermal shutdown in mission-critical infrastructure. Contact us for current Lead Time and bulk availability.

Key Attributes
Voltage: 12 V
Mounting type: Free Standing
Type: DC fan
Warranty: 1 Year
Power Source: Electric
Blade material: Plastic
Bearing type: Ball Bearing
Customized support: OEM, ODM, OBM
After-sales service provided: Online support
Place of origin: Guangdong, China
Model number: 614N/2GHH

Packaging and Delivery
Selling Units: Single item

614N/2GHH ebmpapast 12V DC Axial Cooling Refrigeration Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
