7114N ebmpapst 17238/24V Fan

Name: 7114N ebmpapst 17238/24V Fan
Brand: ebmpapst
SKU: 719608712961
Availability: InStock
Rating: 5 (4 reviews)

$71.43

SKU: 719608712961 Brand: ebmpapst

Description
Reviews (0)

Description

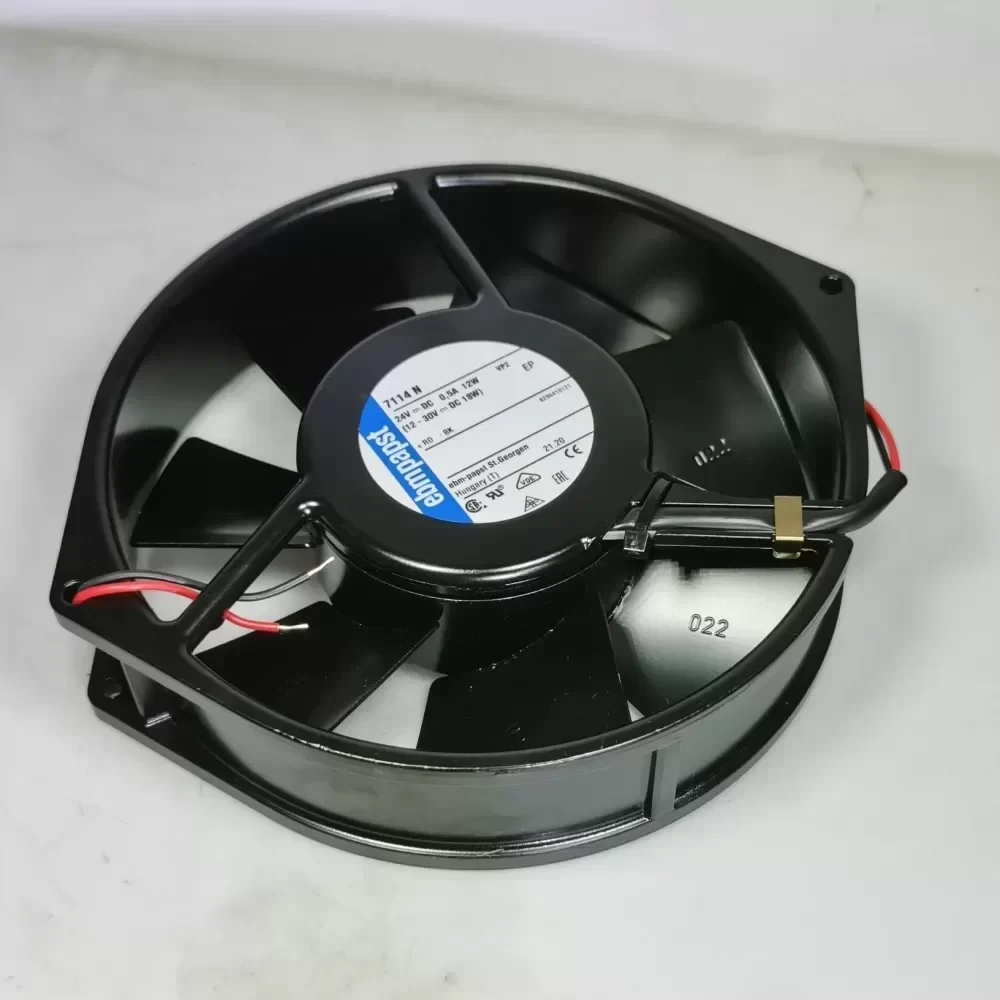

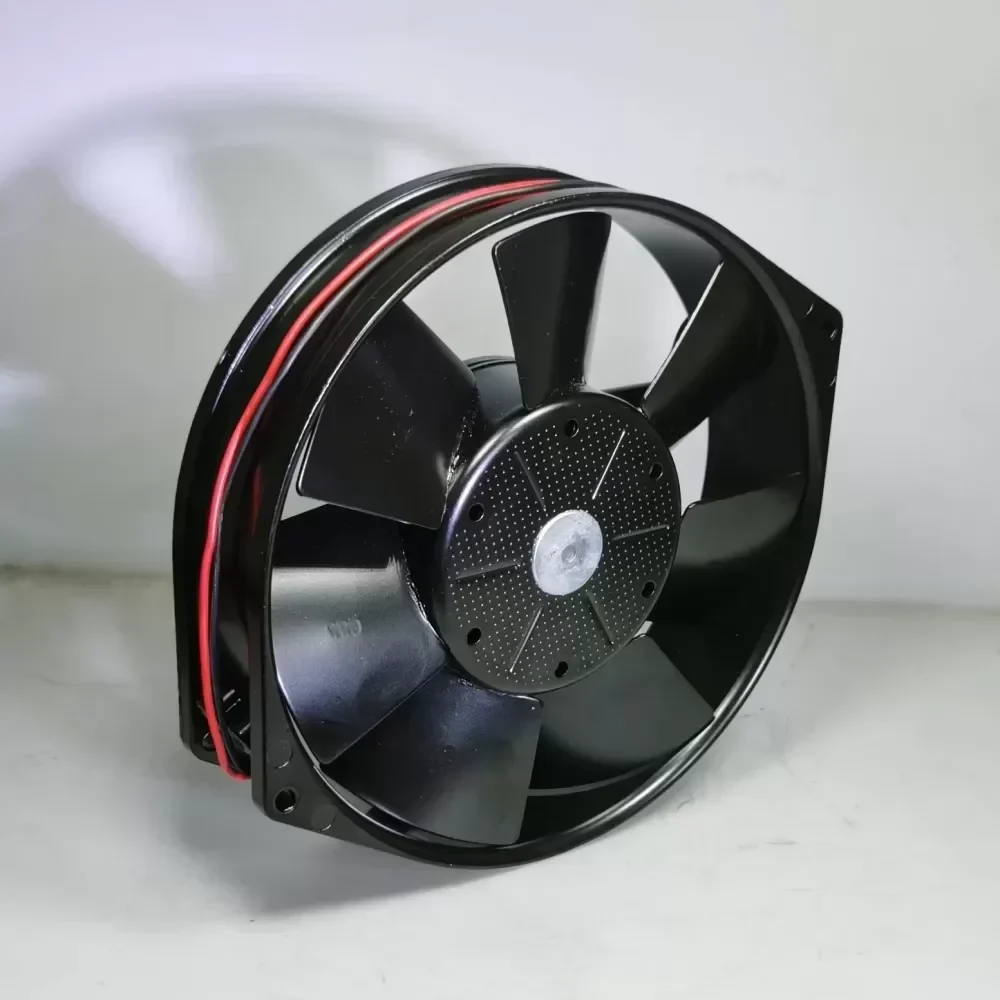

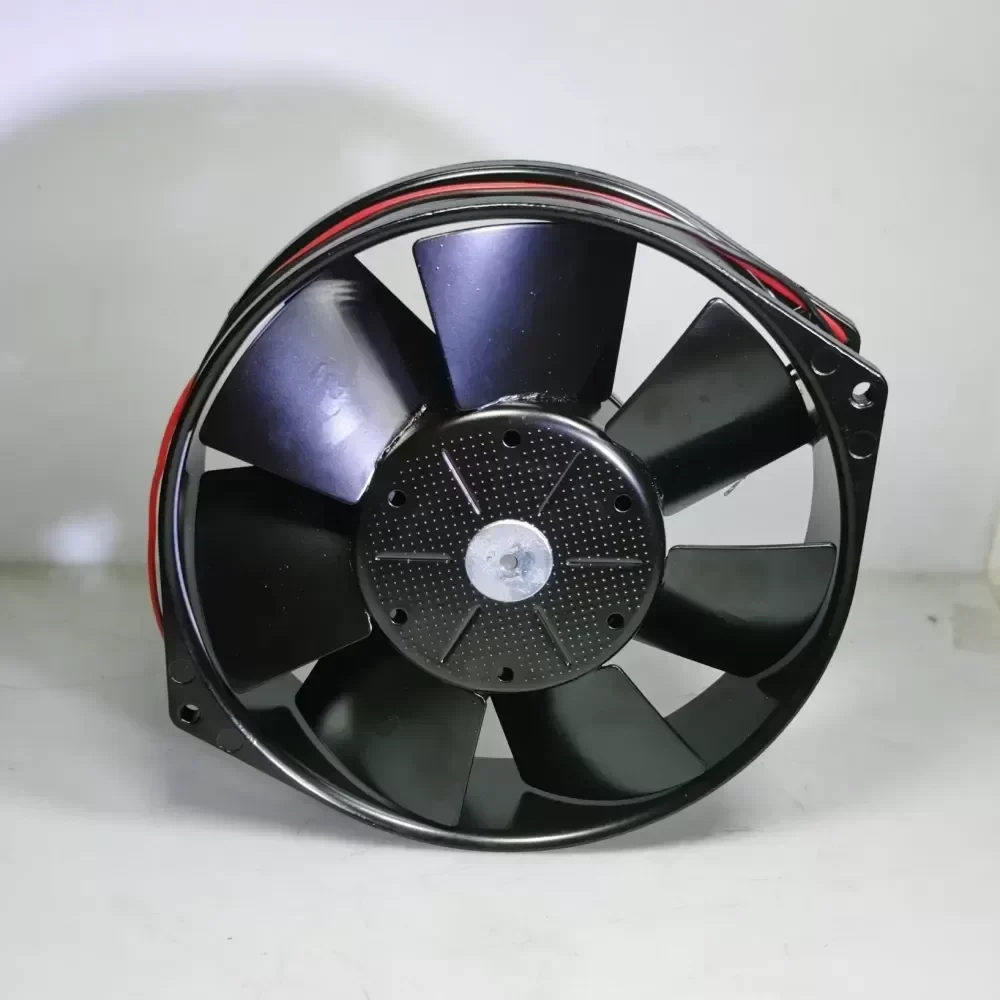

The ebmpapst 7114N is a precision-engineered DC Axial Fan designed for inverter cooling and industrial thermal management. This high-performance ventilation unit offers robust performance in critical automation environments, specifically engineered to withstand high temperatures with its rugged all-metal construction.

7114N Key Features

Industrial Grade: Features a robust die-cast aluminum housing and sheet steel impeller for maximum durability in harsh conditions.
High Performance: Delivers exceptional airflow (CFM) with an electronically commutated external rotor motor.
Connectivity: Standardized 2-wire lead connection for seamless integration into existing power systems.
Reliability: Maintenance-free ball bearing system ensures a long service life (L10) even at elevated temperatures.

Technical Specifications for 7114N

Comprehensive engineering data for verification:

Part Number	7114N
Manufacturer	ebmpapst
Product Type	DC Axial Compact Fan
Nominal Voltage	24 VDC
Voltage Range	12 … 30 VDC
Power Consumption	12.0 W
Current Draw	500 mA
Nominal Speed	2850 RPM
Air Flow	211.9 CFM (360 m³/h)
Noise Level	57 dB(A)
Dimensions	150mm x 172mm x 38mm
Weight	0.90 kg (1.98 lbs)
Bearing System	Ball Bearing
Housing Material	Die-Cast Aluminum
Impeller Material	Sheet Steel, Painted Black
Operating Temperature	-25°C to +72°C
Life Expectancy (L10)	80,000 Hours @ 40°C
Electrical Connection	2 Single Strands AWG 22
Motor Protection	Reverse Polarity / Locked Rotor
Direction of Rotation	Counter-clockwise (viewed on rotor)

Industrial Applications

Frequently deployed in Power Inverters, Solar Energy Systems, and Industrial Control Cabinets. This unit is critical for controlling thermal loads in high-density electronics and machinery.

Installation & Quality Assurance

This 7114N is a genuine spare part. Please refer to the official ebmpapst manual for wiring diagrams and firmware configuration to ensure optimal airflow direction and cooling efficiency.

7114N ebmpapst 17238/24V Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
