Name: 9G0912G104 Sanyo 9cm DC12V 1.1A DC Axial Flow Fan
SKU: 1601084482305
Availability: InStock
Rating: 5 (4 reviews)

$3.00

SKU: 1601084482305

Description
Reviews (0)

Description

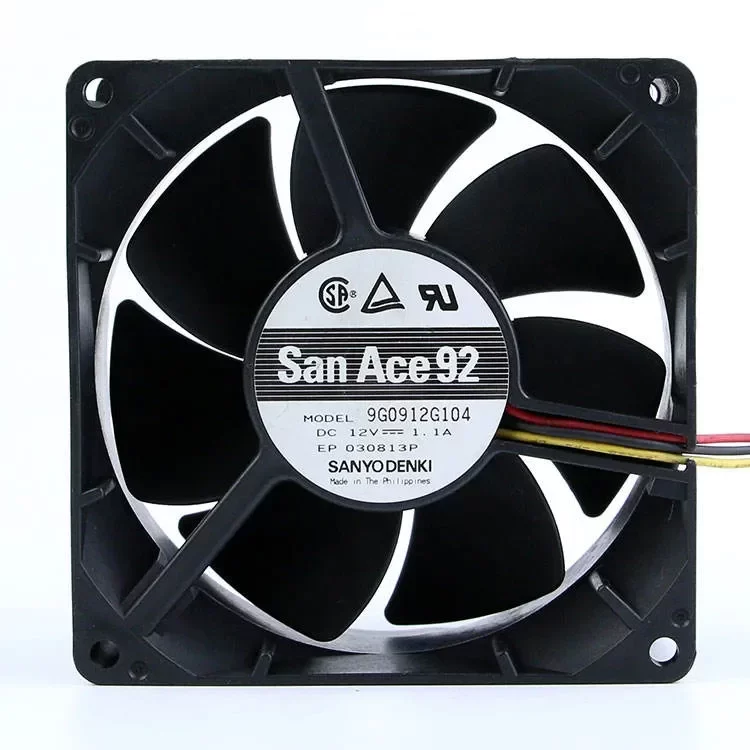

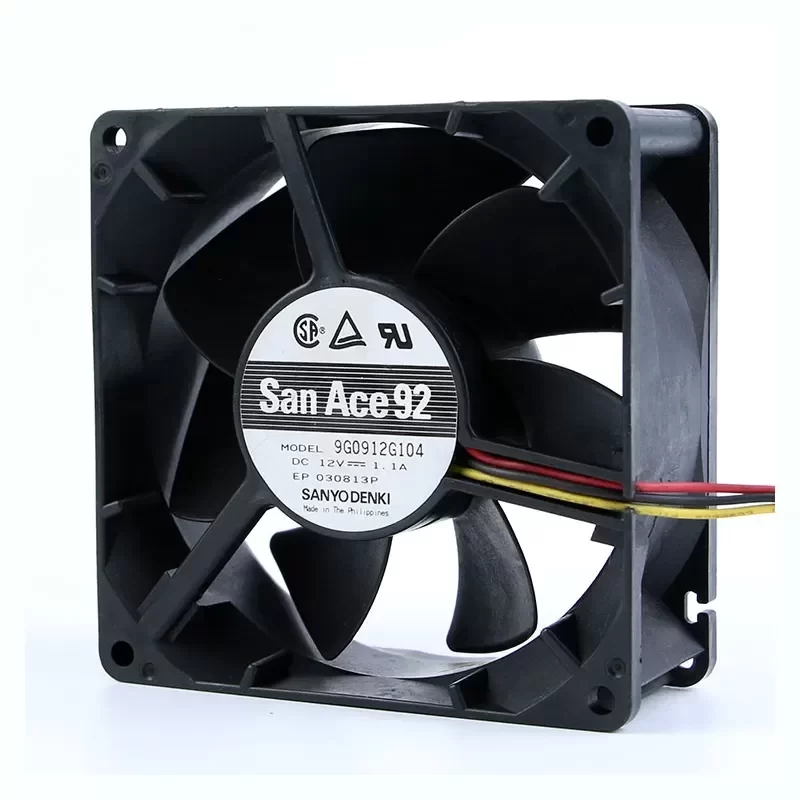

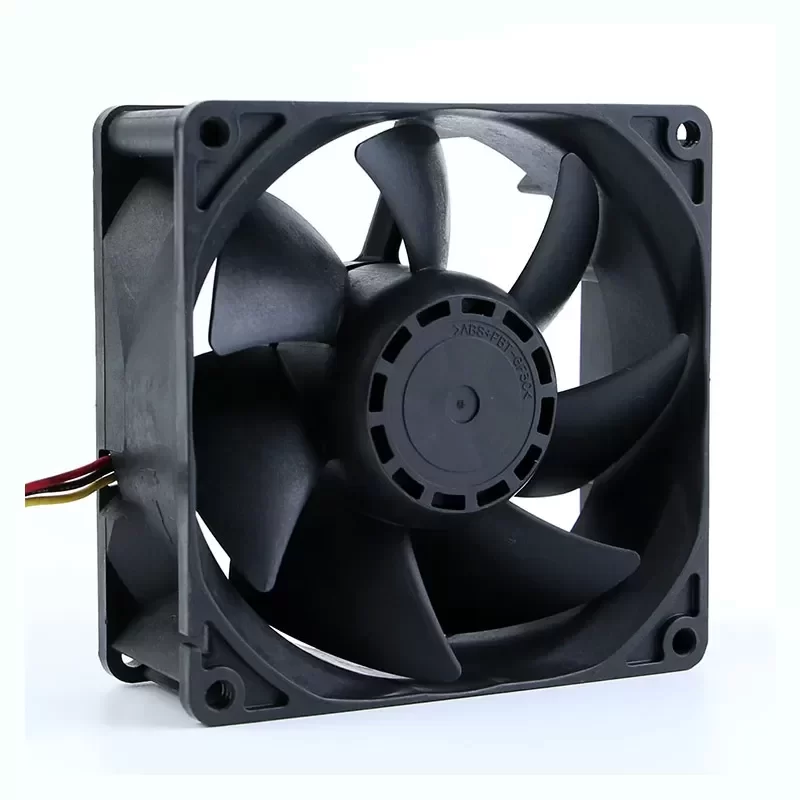

The Sanyo Denki 9G0912G104 is a high-performance thermal management component from the San Ace 92 series, engineered specifically for high-impedance cooling applications. This 92mm x 38mm DC axial fan utilizes a high-torque motor design and optimized impeller geometry to deliver exceptional static pressure and airflow volume relative to its form factor. Constructed with a flame-retardant PBT plastic frame and impeller, the unit houses a precision dual ball bearing system that ensures operational stability and longevity under continuous load. The G-speed profile operates at 5000 RPM with a rated current of 1.1A, providing rapid heat dissipation for dense electronic assemblies. Adherence to Original Engineering standards ensures consistent performance curves, robust locked rotor protection, and reverse polarity safety.

Technical Specifications:
Manufacturer: Sanyo Denki
Series: San Ace 92 (9G Type)
Model Number: 9G0912G104
Rated Voltage: 12V DC
Operating Voltage Range: 10.2V – 13.8V DC
Rated Current: 1.1 A
Rated Input Power: 13.2 W
Rated Speed: 5000 RPM
Maximum Airflow: 3.28 m³/min (116 CFM)
Maximum Static Pressure: 160 Pa (0.64 inchH2O)
Acoustic Noise: 50 dBA

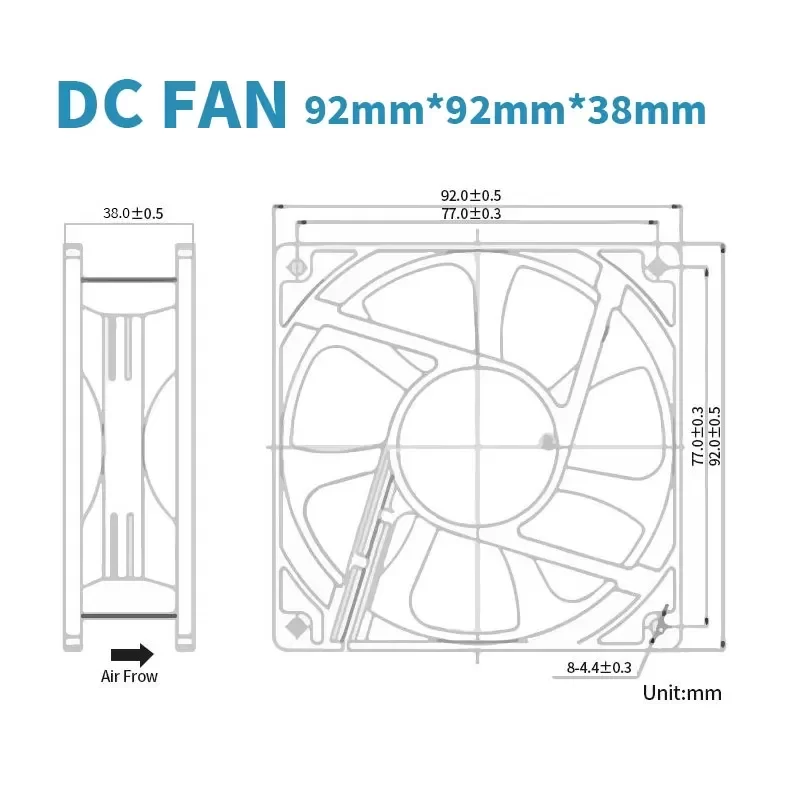

Dimensions: 92mm x 92mm x 38mm
Bearing System: Dual Ball Bearing
Frame Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Expected Life: 40,000 Hours (L10 at 60°C)
Termination: Lead Wire
Weight: 0.300 kg

Industrial Application:
This high-static pressure fan is specifically engineered for server chassis cooling, telecommunications power supplies, and industrial automation control cabinets where component density creates significant airflow resistance. The 9G0912G104 effectively overcomes system impedance to prevent thermal throttling in mission-critical CPUs and power regulators. We verify Technical Compatibility for legacy system maintenance and offer competitive Lead Time for bulk procurement requirements.

Key Attributes
Voltage: 12V
Mounting type: Other
Type: Dc cooling fan
Warranty: Other
Power Source: Electric
Blade material: Plastic
Bearing type: Ball Bearing
Customized support: OEM
After-sales service provided: Online support
Place of origin: Guangdong, China
Model number: 9G0912G104
Fan type: DC Axial Brushless Fan
Electricity: 1.1A
Noise: 50dBA
Speed: 5000RPM
Fan bearing: Double ball bearing
Frame Material: Plastic
Operation Temperture: -10℃ - 70℃
Service Life: 40000H
Type: Axial Flow Fan
Applicable Industries: Building Material Shops

Packaging and Delivery
Selling Units: Single item
Single package size: 12X12X3.8 cm
Single gross weight: 0.300 kg

9G0912G104 Sanyo 9cm DC12V 1.1A DC Axial Flow Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
