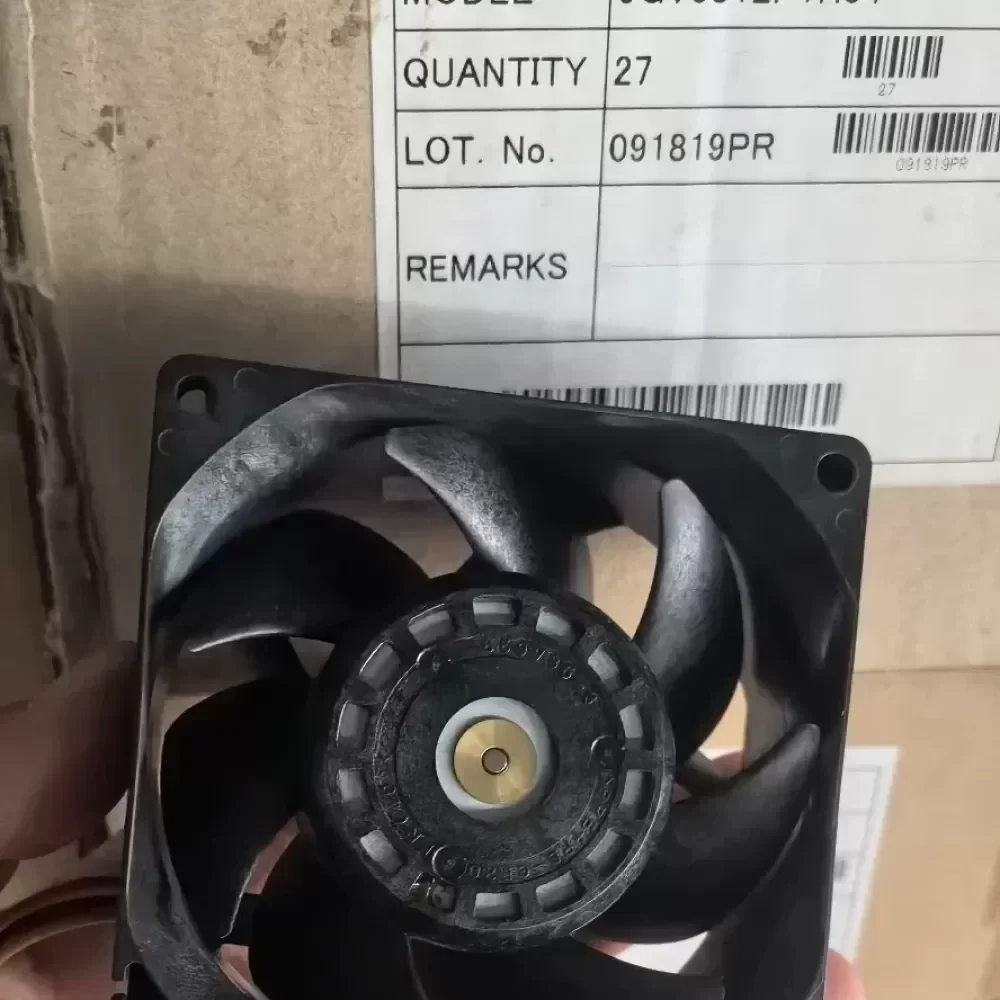

9GV0812P1H04 Sanyo 8038 fan

Name: 9GV0812P1H04 Sanyo 8038 fan
Brand: Sanyo
SKU: 903951247634
Availability: InStock
Rating: 5 (4 reviews)

$6.43

SKU: 903951247634 Brand: Sanyo

Description
Reviews (0)

Description

The Sanyo Denki San Ace 80 GV Model 9GV0812P1H04 is a high-performance DC cooling fan engineered for systems requiring exceptional static pressure and airflow density. This unit utilizes proprietary Guide Vane technology to straighten the exhaust air, significantly reducing turbulence and increasing efficiency in high-impedance environments. Sourcing this specific model ensures Original Engineering performance standards are met for critical thermal regulation.

Technical Specifications:
Manufacturer: Sanyo Denki
Series: San Ace 80 GV (Guide Vane)
Model Number: 9GV0812P1H04
Dimensions: 80mm x 80mm x 38mm
Rated Voltage: 12V DC
Operating Voltage Range: 10.8V to 13.2V DC
Rated Current: 3.0 A
Rated Input Power: 36 W
Speed Control: PWM (Pulse Width Modulation)
Signal Output: Pulse Sensor (Tachometer)
Bearing System: Dual Ball Bearing
Frame Material: Plastics (UL94V-0)
Impeller Material: Plastics (UL94V-0)
Wire Configuration: 4-Wire (Red +, Black -, Yellow Sensor, Brown PWM)
Operating Temperature Range: -10°C to +70°C
Expected Life: 40,000 hours (60°C)
Mounting Type: Ribbed

Industrial Application:
This 80mm x 38mm form factor is critical for 2U server racks, RAID storage arrays, and telecommunications rectifiers where components are densely packed. The 3.0A power rating indicates a high-torque motor capable of maintaining RPM against significant back-pressure, a requirement that standard axial fans cannot meet. Ensure Technical Compatibility with your power supply distribution, as the 36W draw requires a dedicated high-current header. Please verify current Lead Time for maintenance spares or production volume.

9GV0812P1H04 Sanyo 8038 fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
