Description

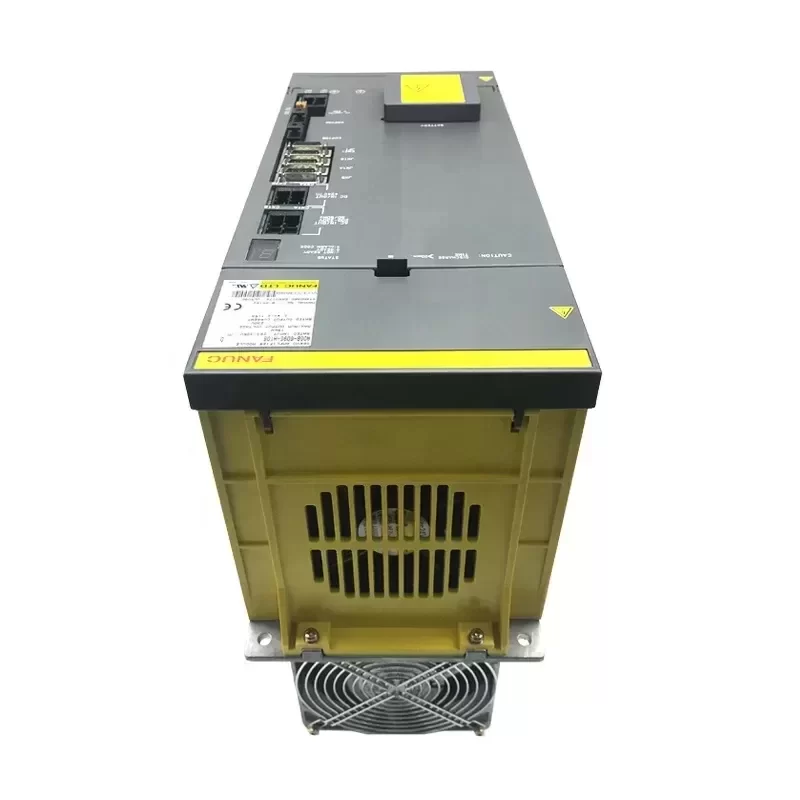

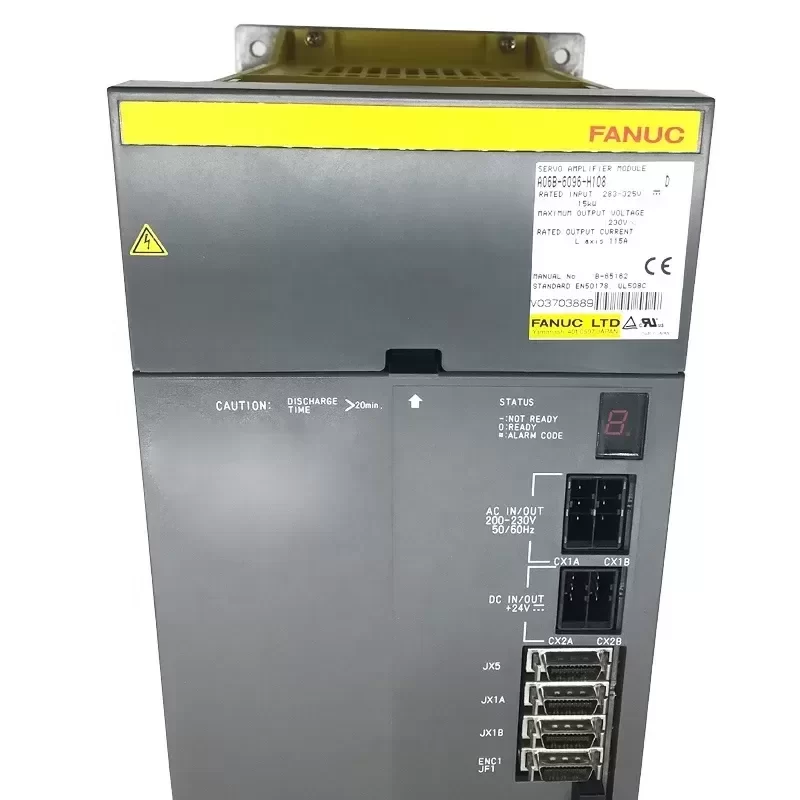

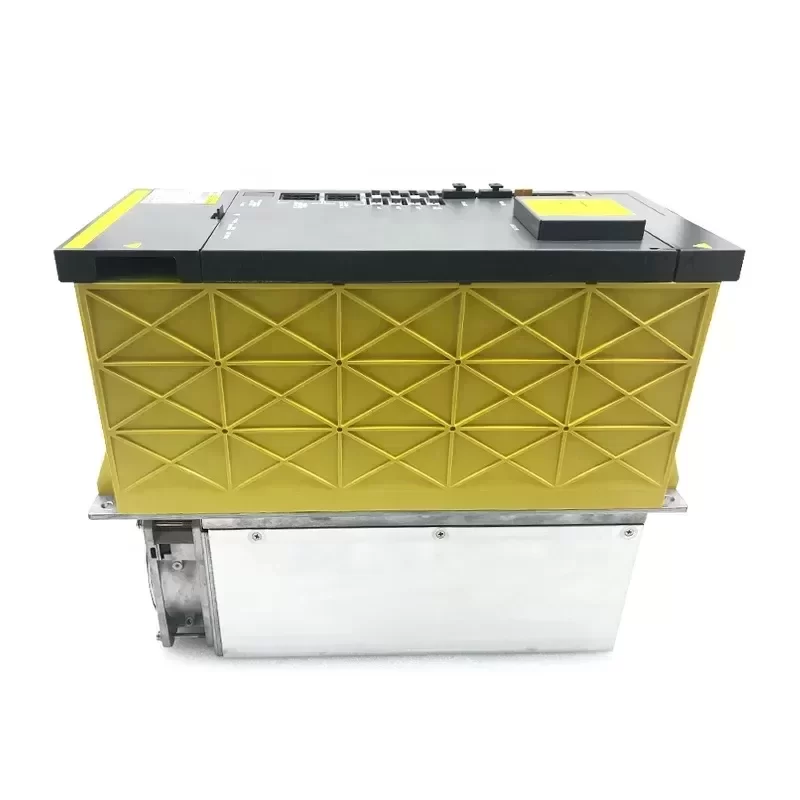

The Fanuc A06B-6096-H108 is a high-performance Alpha Series Servo Amplifier Module (SVM1-80), engineered for precision single-axis control within Fanuc CNC systems. This unit functions as a critical power conversion node, utilizing the DC link voltage supplied by the Power Supply Module (PSM) to generate a variable frequency AC output for driving Alpha series servo motors. The H108 designation specifies a Type 80 current capacity, optimized for medium-inertia motors requiring rapid acceleration and deceleration profiles. It integrates seamlessly via the Fanuc Serial Servo Bus (FSSB), utilizing optical fiber transmission to eliminate electromagnetic interference and ensure real-time synchronization with the CNC controller. This module features advanced PWM switching logic to minimize heat generation while maximizing torque density.
Technical Specifications:
Manufacturer: Fanuc Corporation
Model Number: A06B-6096-H108
Product Series: Alpha Servo Module (SVM)
Module Configuration: SVM1-80 (Single Axis)
Input Power: 283-339 VDC (via DC Link Bus)
Control Power Input: 24 VDC
Rated Output Current: 80A (Peak) / 18.7A (Continuous)
Communication Interface: FSSB (Optical Fiber)
Compatible Motor Series: Alpha a12, a22, a30
Cooling System: Internal Forced Air with Heat Sink
Mounting Orientation: Vertical Panel Mount
Ambient Operating Temperature: 0°C to 55°C
Protection Rating: IP00
Net Weight: 5.60 kg
Gross Weight: 8.00 kg
Package Dimensions: 40 cm x 40 cm x 30 cm
Origin: Japan
Industrial Application:
This amplifier is essential for the precise actuation of primary feed axes (X, Y, or Z) in CNC milling machines and turning centers running Fanuc 16i, 18i, or 21i control architectures. It is specifically designed to maintain torque stability during high-load machining cycles. Installing this unit restores Original Engineering performance parameters, ensuring the machine meets factory tolerances for surface finish and positional accuracy. Available with immediate Lead Time, this module offers verified Technical Compatibility for maintenance teams replacing failed SVM1-80 units in mission-critical production lines.
Key Attributes
Application: Cnc Machine
Motor Type: Servo
Place of Origin: Japan
Model Number: A06B-6096-H108
Brand Name: Fanuc
Product Name: Fanuc Amplifier
Payment Method: Western Union&T/T& Paypal
Quality: Original New
Payment Term: All terms are accepted
Warranty: 3 Months for Used and 12 Months for New
Service: One-stop Service
Port of Export: ShenZhen
MOQ: 1 Piece
Lead Time: In Stock
Package: With Carton Package
Packaging and Delivery
Selling Units: Single item
Single package size: 40X40X30 cm
Single gross weight: 8.000 kg
