Description

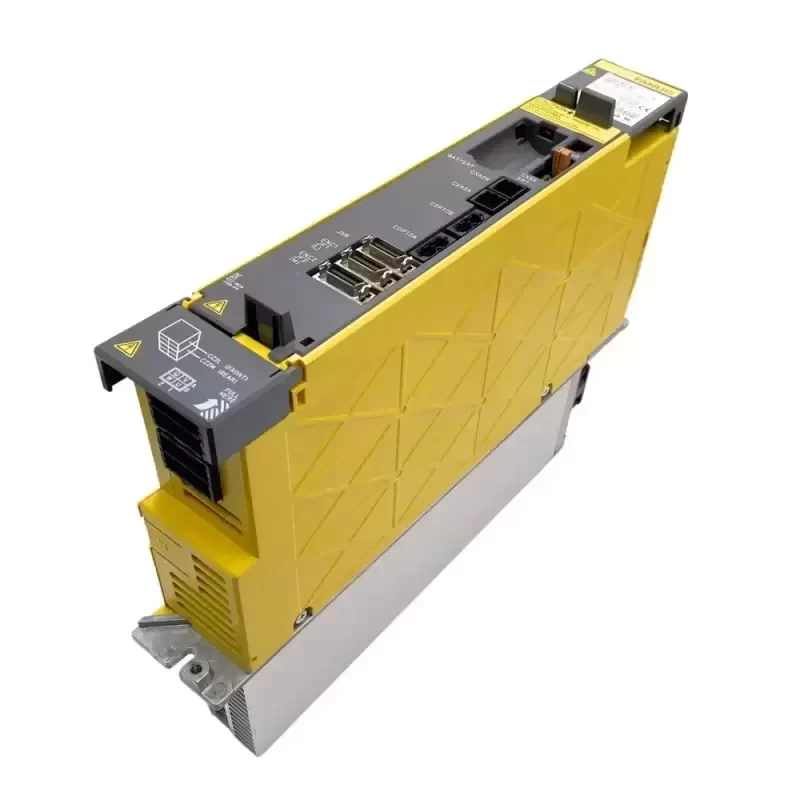

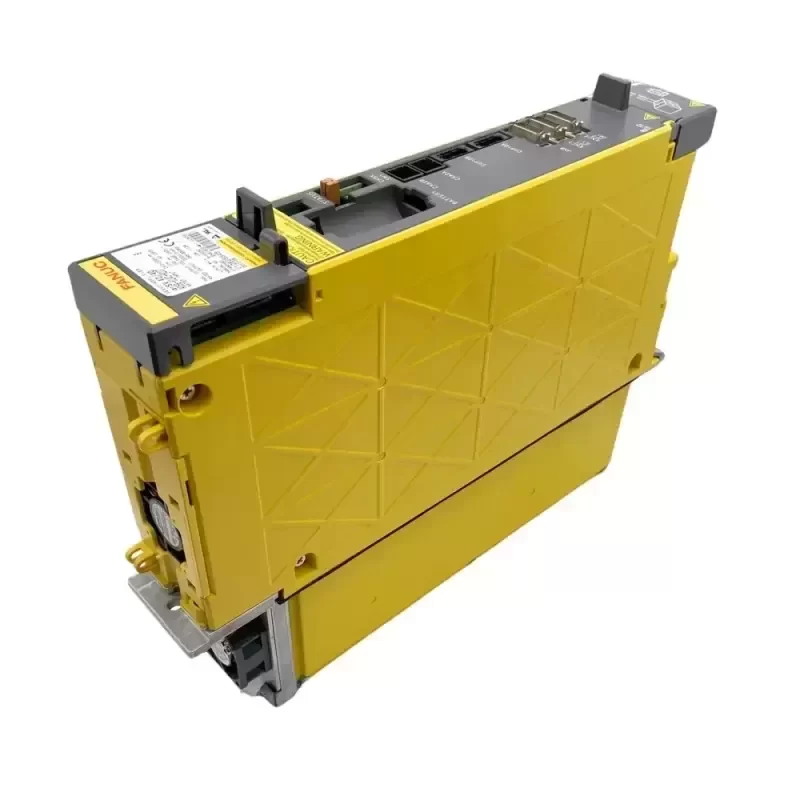

The FANUC A06B-6240-H207 is a high-performance dual-axis Servo Amplifier Module (SVM) belonging to the advanced Alpha i Series, engineered specifically for precision motion control in complex CNC architectures. Identified technically as the SVM2-40/40i, this unit provides synchronized drive power for two independent servo axes, utilizing the proprietary Fanuc Serial Servo Bus (FSSB) for ultra-fast optical communication with the CNC controller. The module operates on a shared DC link architecture, receiving rectified power from a central Power Supply Module (PSM), which optimizes energy regeneration and reduces the overall electrical footprint of the control cabinet. Featuring High Response Vector (HRV) control, this amplifier ensures superior dynamic response and surface finish quality. Sourcing this unit ensures Original Engineering integrity, guaranteeing seamless integration with existing Alpha i servo motors and CNC systems.
Technical Specifications:
Manufacturer: FANUC Corporation
Country of Origin: Japan
Model Number: A06B-6240-H207
Series: Alpha i Servo Amplifier Module (SVM-i)
Module Type: SVM2-40/40i (Dual Axis)
Input Voltage: 283-339 VDC (DC Link)
Control Power Input: 24 VDC
Rated Output Current (L-Axis): 12.5A Continuous / 40A Peak
Rated Output Current (M-Axis): 12.5A Continuous / 40A Peak
Communication Interface: FSSB (Optical Fiber)
Compatible Motor Series: Alpha i Series (e.g., Alpha 8/3000i)
Cooling System: Forced Air Cooling (Internal Fan)
Mounting Configuration: Panel / Rack Mount
Dimensions (H x W x D): 380mm x 60mm x 307mm
Weight: 4.7 kg
Operating Ambient Temperature: 0°C to 55°C
Humidity: 95% RH or less (non-condensing)
Protection Class: IP20
Condition: Original New
Warranty: 12 Months
Industrial Application:
This dual-axis amplifier is critical for compact, high-speed CNC Lathes and Vertical Machining Centers requiring simultaneous control of feed axes, such as the X and Z axes. The A06B-6240-H207 is specifically designed to handle the rapid acceleration and deceleration cycles typical in automotive and aerospace component manufacturing. By maintaining precise current loops via the FSSB interface, it eliminates following errors during complex interpolation and threading operations. Ensuring Technical Compatibility with the machine’s existing PSM and Spindle Amplifier is vital for system stability. We provide this component with an expedited Lead Time to support urgent maintenance schedules and minimize costly production downtime.
Key Attributes
Place of Origin: Japan
Model Number: A06B-6240-H207
Brand Name: FANUC
Product name: A06B-6240-H207
Condition: Original new
Warranty: 12 Months
Stock: Available
Shipping terms: All terms are accepted
Payment terms: All terms are accepted
Lead Time: 1-2 Days
Delivery Time: 3-5 Days
Package: Carton packing
MOQ: 1 Piece
Packaging and Delivery
Selling Units: Single item
