Description

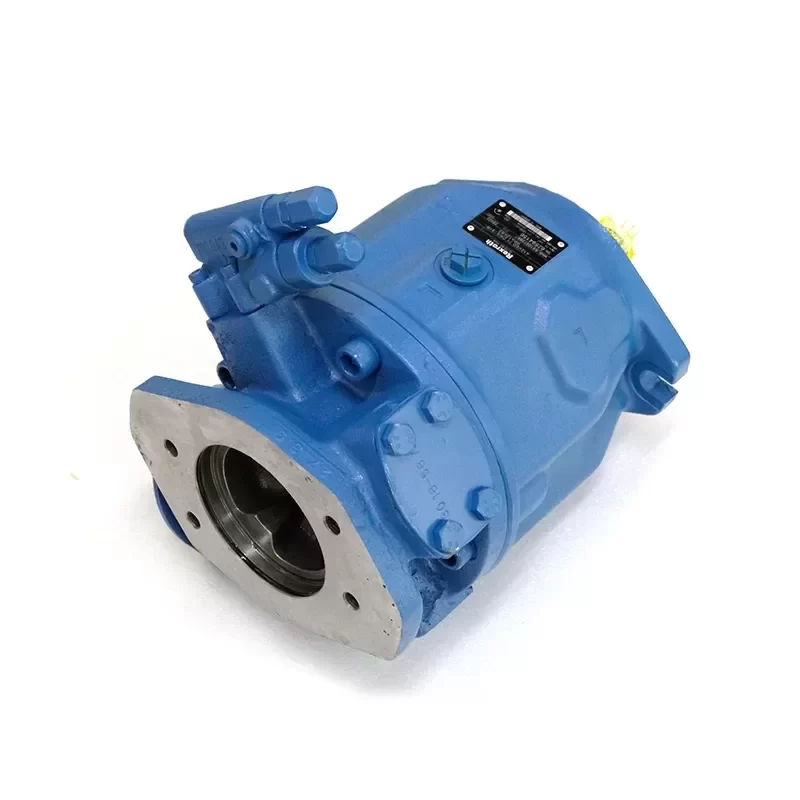

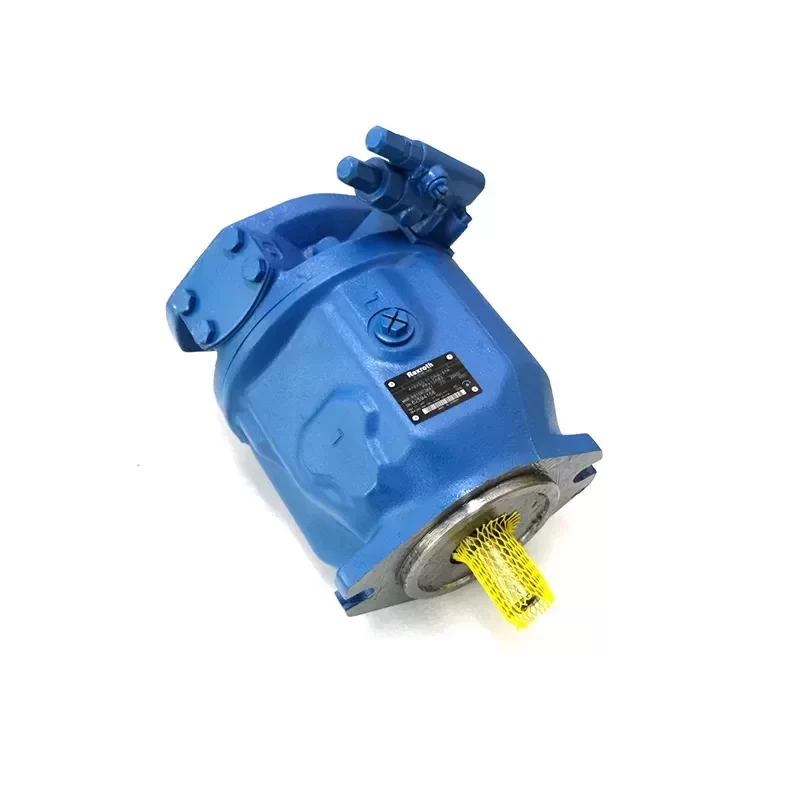

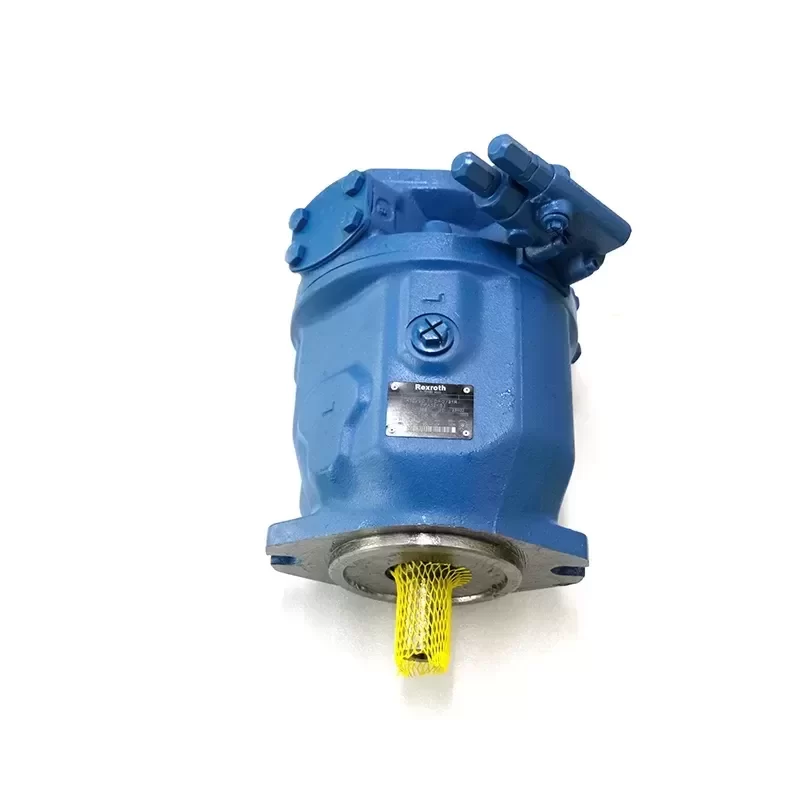

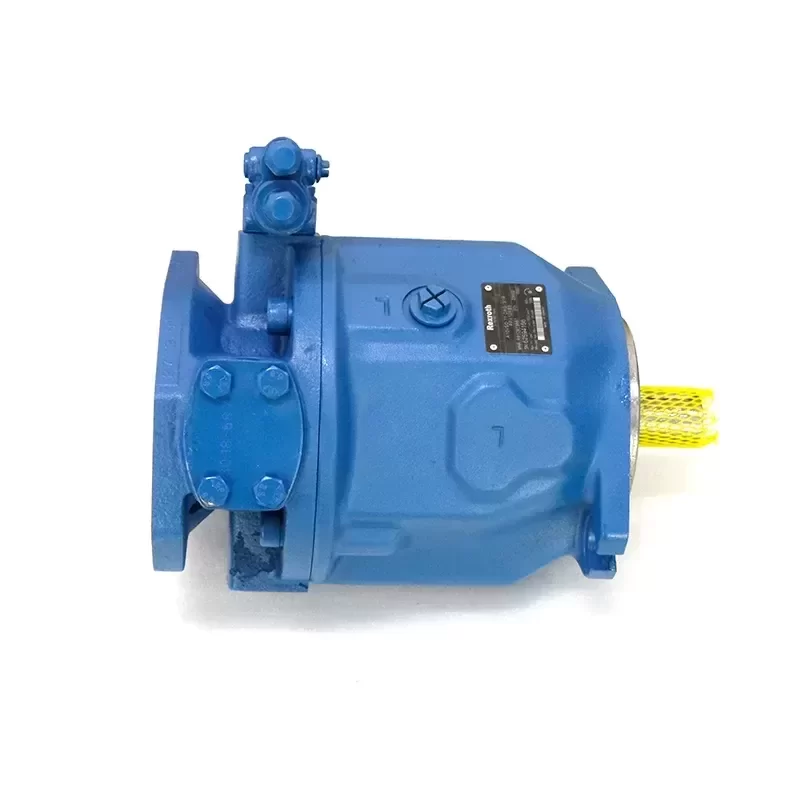

The Bosch Rexroth A10VSO71DRG/31R-PPA12KB3 is a premium variable displacement axial piston pump engineered for open circuit hydraulic systems. Utilizing a swashplate design, this component offers infinite flow adjustment proportional to drive speed and displacement. The specific DRG control architecture facilitates remote pressure regulation via an external pilot valve, optimizing energy efficiency in variable load cycles. This unit represents Original Engineering quality, ensuring long lifecycle performance and exact Technical Compatibility with Series 31 installations.
Technical Specifications:
Manufacturer: Bosch Rexroth

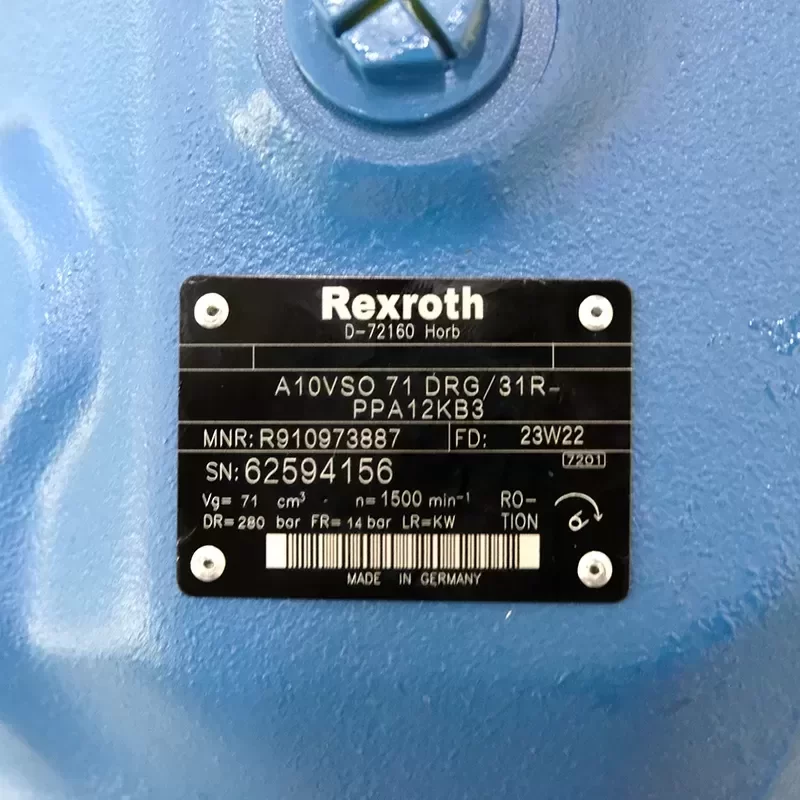

Model Number: A10VSO71DRG/31R-PPA12KB3
Product Type: Axial Piston Variable Pump
Displacement Size: 71 cm³/rev
Control Type: DRG (Remote Pressure Control)
Nominal Pressure: 280 bar
Peak Pressure: 350 bar
Max Speed (Self-priming): 2200 rpm
Flow Rate (at 1500 rpm): 107 L/min
Direction of Rotation: Clockwise
Shaft Type: Parallel Keyed Shaft (DIN 6885)
Mounting Flange: ISO 2-Hole
Port Connections: SAE Flange (Metric Threads)
Seals: NBR/FKM (Standard)
Through Drive: None (Standard)
Fluid Compatibility: Mineral Oil (HL, HLP)
Viscosity Range: 16 to 100 mm²/s (Optimal)
Fluid Temperature Range: -25°C to +90°C
Gross Weight: 8.00 kg
Packaging Dimensions: 47 x 17 x 28 cm
Industrial Application:
This pump is specifically designed for stationary industrial applications such as hydraulic power packs for machine tools, marine winches, and die-casting machinery. The DRG control is essential for systems requiring multi-stage pressure holding cycles controlled by a central PLC, allowing the pump to standby at low pressure when high force is not required, thereby reducing thermal load. Immediate Lead Time is available for critical maintenance requirements.
Key Attributes
Place of Origin: Germany
Model Number: A10VSO71DRG 31R-PPA12KB3
Brand Name: REXROTH
Product name: REXROTH Pump
Payment method: Western Union & T/T & Paypal
Quality: Original new
Payment term: All terms are accepted
Warranty: 3 Months for Used and 12 Months for New
Service: One-stop Service
Port of export: ShenZhen
MOQ: 1 Piece
Lead time: In stock
Package: With Carton Package
Packaging and Delivery
Selling Units: Single item
Single package size: 47X17X28 cm
Single gross weight: 8.000 kg
