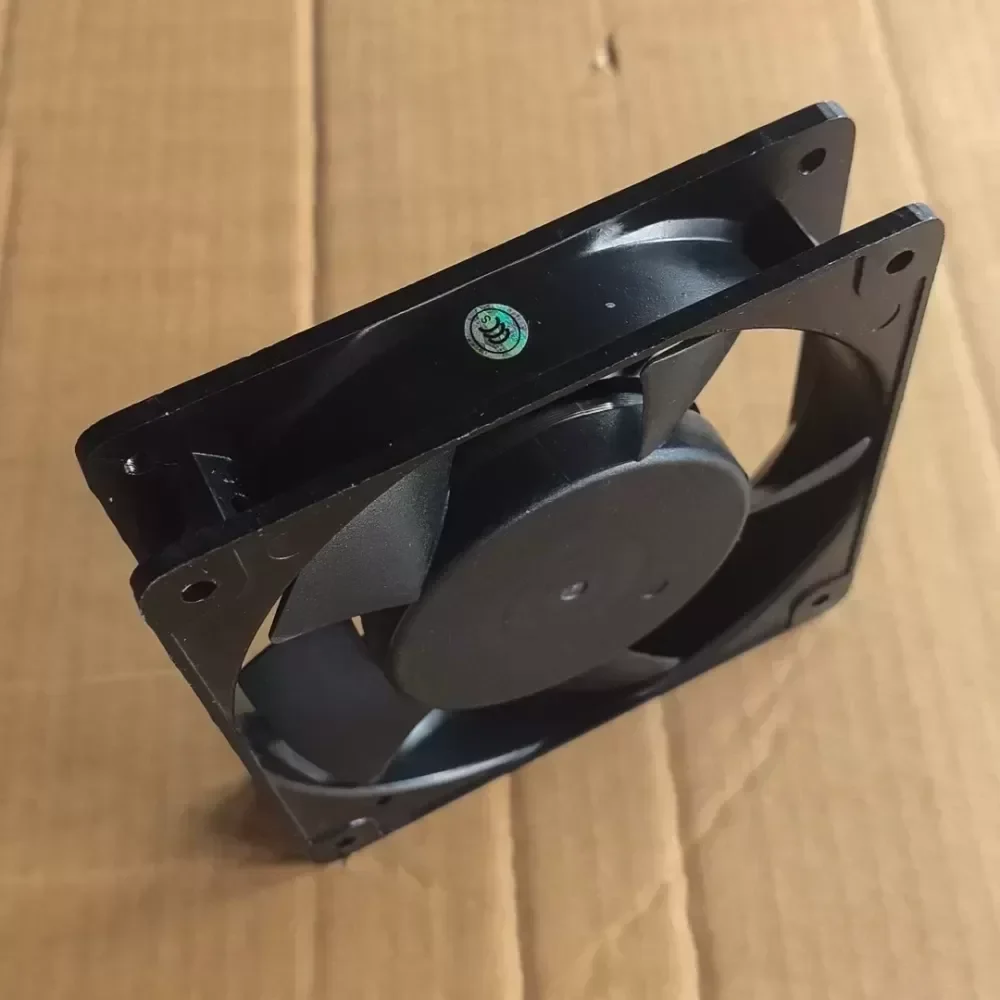

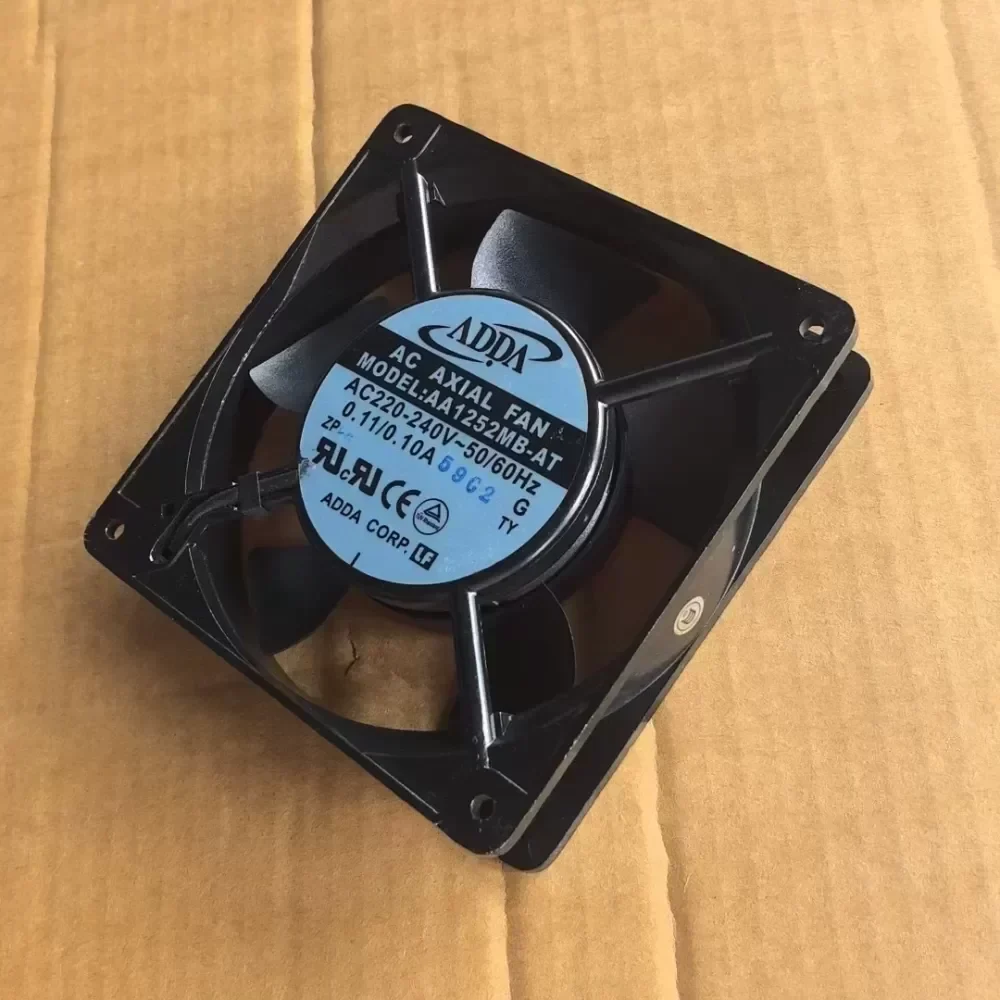

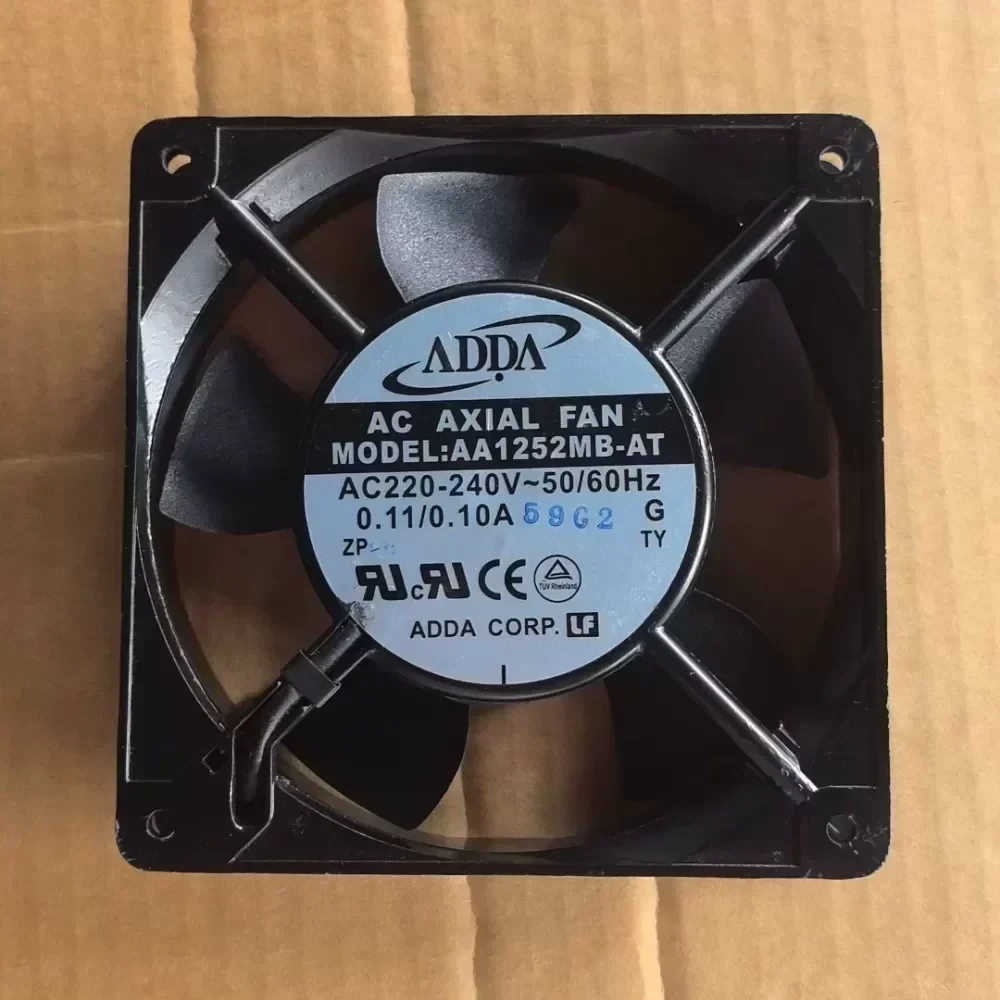

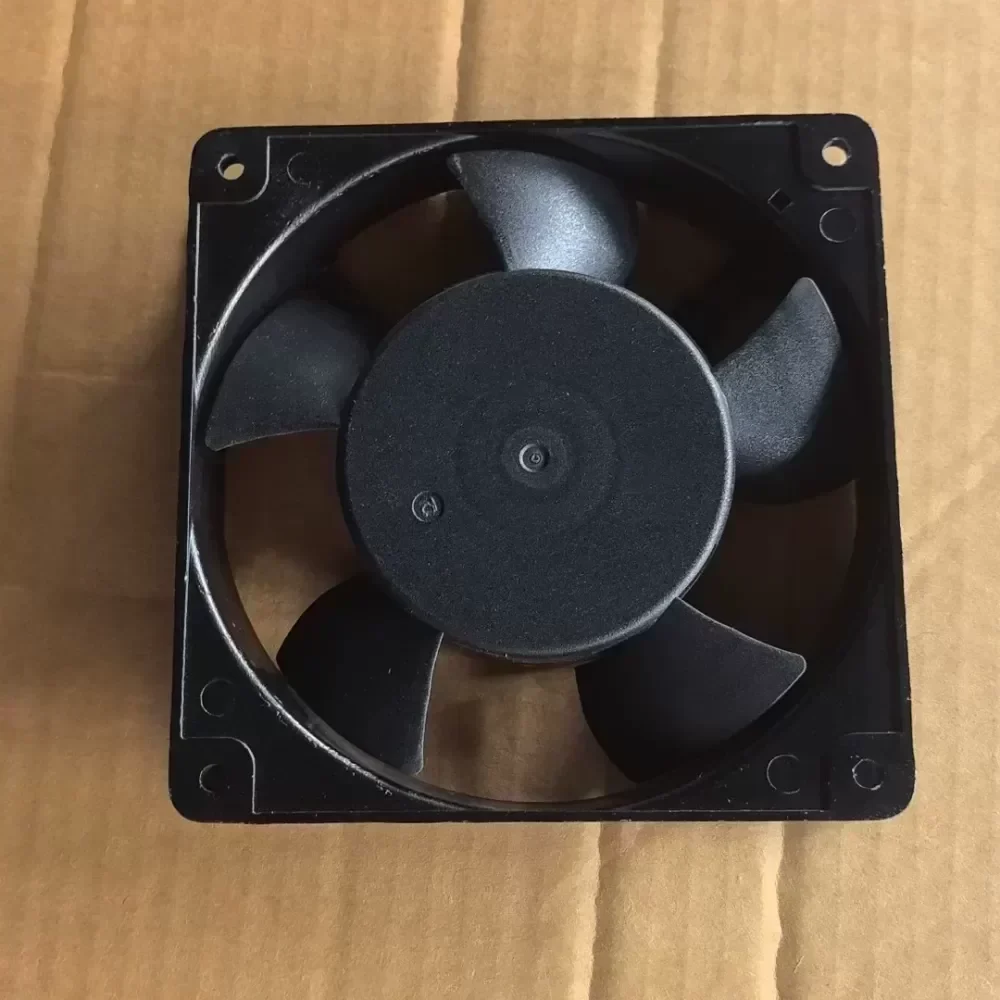

AA1252MB-AT ADDA fan

Name: AA1252MB-AT ADDA fan
Brand: ADDA
SKU: 919143567672
Availability: InStock
Rating: 5 (4 reviews)

$5.71

SKU: 919143567672 Brand: ADDA

Description
Reviews (0)

Description

The ADDA AA1252MB-AT is a high-reliability AC axial fan designed for rigorous thermal management in industrial and computing environments. Engineered by ADDA Corporation, this unit features a robust aluminum die-cast frame and a UL94V-0 rated PBT impeller, ensuring structural integrity under continuous operation. The model utilizes a dual ball bearing system, significantly extending the Mean Time Between Failures (MTBF) compared to sleeve bearing alternatives. This specific configuration operates on a standard 220-240V AC input with impedance protection to prevent motor burnout during locked rotor conditions. The 120x120x25mm form factor (12025) combined with terminal-style connections allows for rapid integration and maintenance.

Technical Specifications:
Manufacturer: ADDA Corporation
Model Number: AA1252MB-AT
Product Type: AC Axial Fan
Frame Dimensions: 120mm x 120mm x 25mm
Rated Voltage: 220-240 VAC
Frequency: 50/60 Hz
Input Current: 0.11 A (50Hz) / 0.10 A (60Hz)
Input Power: 19W / 18W
Rated Speed: 2400 RPM (50Hz) / 2600 RPM (60Hz)
Airflow: 76.0 CFM (approximate)
Static Pressure: 0.23 Inch H2O
Noise Level: 39.0 dB(A)
Bearing Type: Dual Ball Bearing
Frame Material: Aluminum Alloy Die-Cast
Impeller Material: PBT (Black) UL94V-0

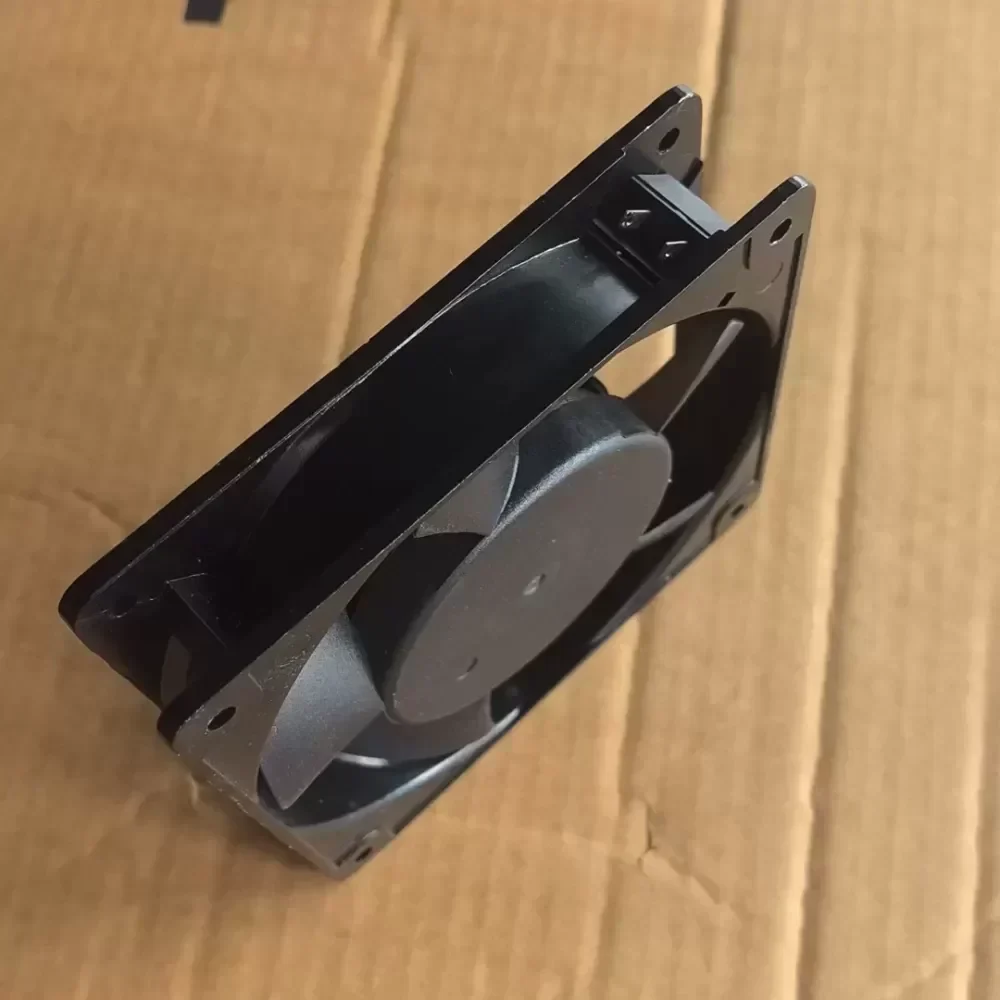

Termination Style: Terminal (Plug-in Blade)
Motor Protection: Impedance Protected
Operating Temperature: -10°C to +70°C
Weight: 330g
Certifications: UL, CUL, TUV, CE

Industrial Application:
This Original Engineering component is specifically optimized for server cabinet ventilation and industrial control panel cooling where space constraints require a slim 25mm profile without compromising airflow volume. The AA1252MB-AT is critical for maintaining thermal equilibrium in 24/7 operational power supply units and CNC machinery control boxes. Its Technical Compatibility with standard 120mm cutouts and terminal connection ensures minimal downtime during replacement. We offer competitive Lead Time for this essential spare part to support your maintenance schedules.

AA1252MB-AT ADDA fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
