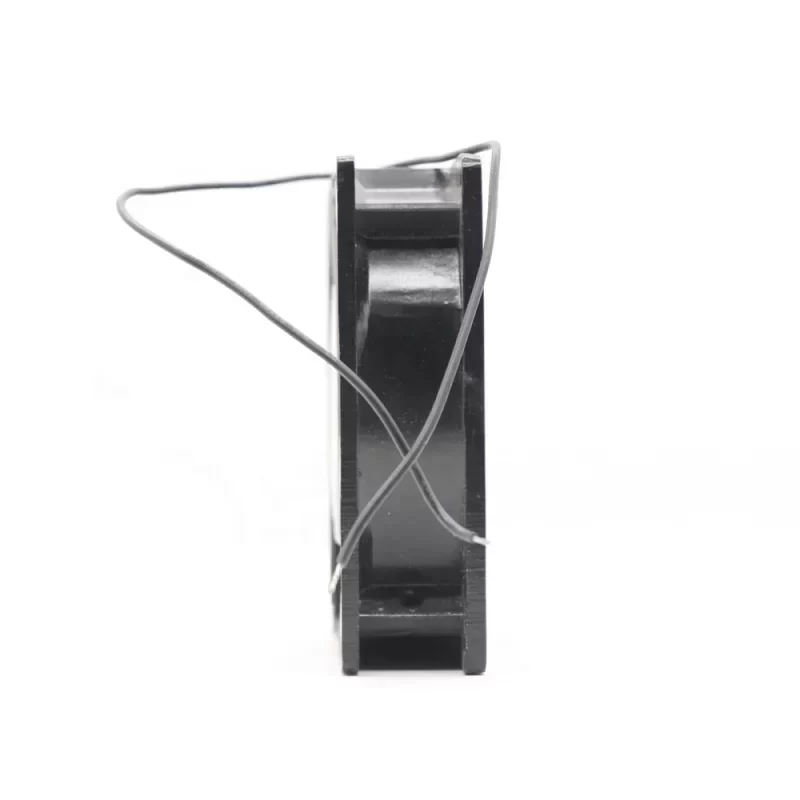

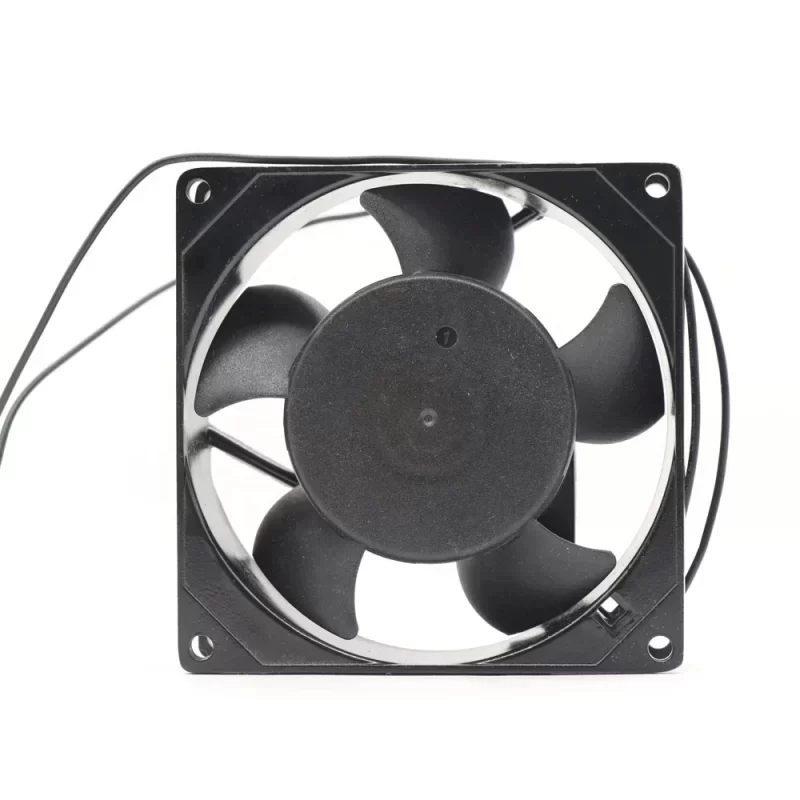

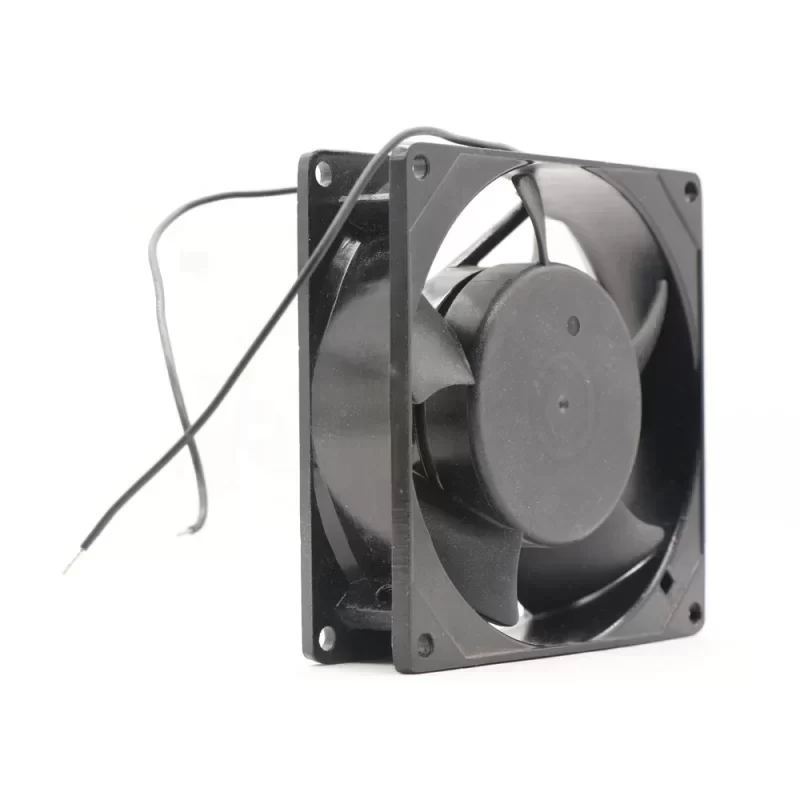

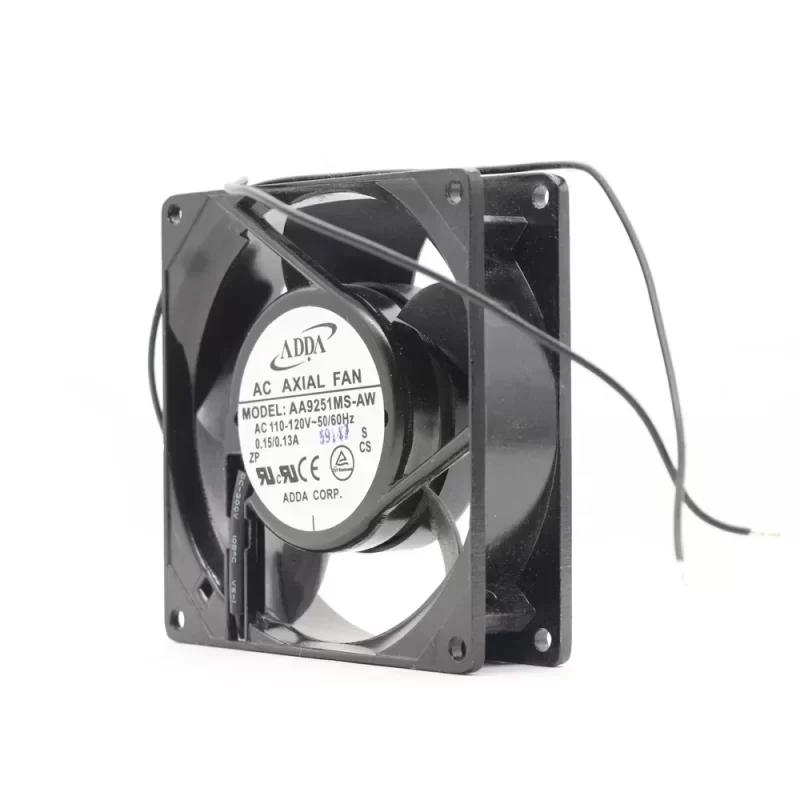

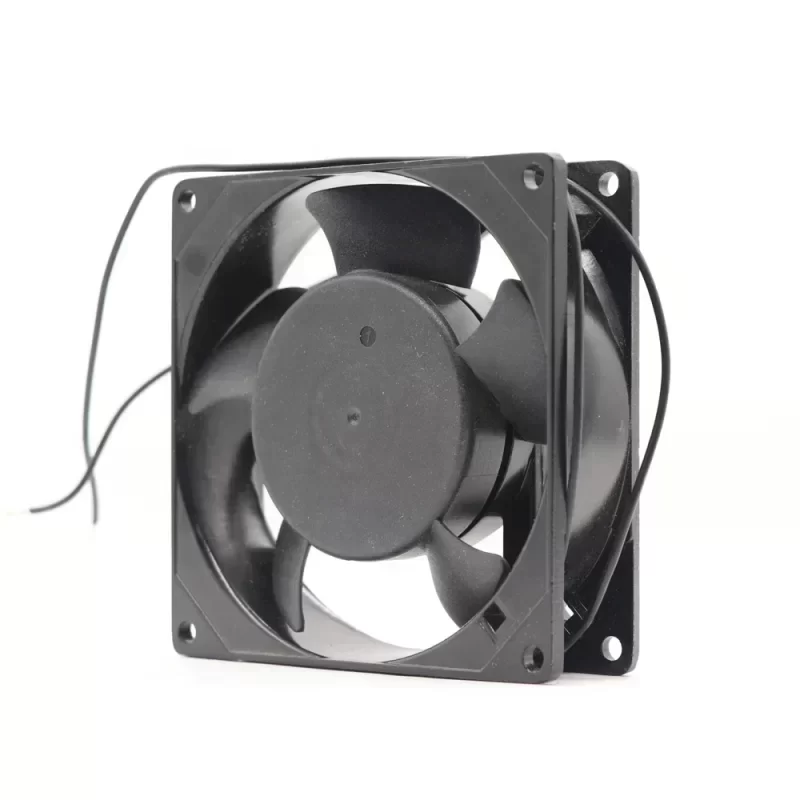

AA9251MS-AW ADDA 110V AC 9025 9cm 0.96W 0.09A Axial Fan

AA9251MS-AW ADDA 110V AC 9025 9cm 0.96W 0.09A Axial Fan

Name: AA9251MS-AW ADDA 110V AC 9025 9cm 0.96W 0.09A Axial Fan
Brand: ADDA
SKU: 62088163646
Availability: InStock
Rating: 5 (4 reviews)

$4.12

SKU: 62088163646 Brand: ADDA

Description
Reviews (0)

Description

The ADDA AA9251MS-AW is a high-performance AC axial cooling fan engineered for precision thermal regulation in industrial environments. This unit utilizes Original Engineering to deliver consistent airflow within a compact 92mm footprint, ensuring optimal heat dissipation for sensitive electronic components.

Technical Specifications:
Manufacturer: ADDA Corporation
Model Number: AA9251MS-AW
Frame Dimensions: 92 x 92 x 25 mm
Nominal Voltage: 110V AC
Operating Voltage Range: 100V – 120V AC
Frequency: 50/60 Hz
Rated Current: 0.09 A
Power Consumption: 0.96 W
Rotational Speed: 2430 RPM
Airflow Volume: 28.362 CFM
Static Pressure: 3.05 mmH2O
Acoustic Noise: 32.0 dB(A)
Bearing System: Dual Ball Bearing
Motor Type: Shaded Pole Induction Motor
Frame Material: Die-Cast Aluminum Alloy
Impeller Material: UL 94V-0 Reinforced Thermoplastic
Insulation Class: Class A
Dielectric Strength: 1500V AC / 1 min
Insulation Resistance: 100M Ohm at 500V DC
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +80°C
Service Life: 50,000 Hours at 40°C
Termination: Lead Wires
Weight: 280g
Safety Certifications: UL, CUL, TUV, CE, RoHS

Industrial Application and Technical Compatibility:
The AA9251MS-AW is optimized for integration into electrical distribution cabinets, CNC machine control units, and medical diagnostic equipment. Its dual ball bearing architecture allows for multi-axis mounting without compromising the 50,000-hour MTBF, ensuring high Technical Compatibility with diverse chassis designs. In scenarios where equipment uptime is paramount, the low power consumption of 0.96W minimizes the total thermal load on the system power supply. We maintain optimized inventory levels to ensure competitive Lead Time for critical maintenance and OEM production schedules.

Key Attributes
Voltage: 110(V)
Mounting type: Free Standing
Type: Axial Cooling Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Plastic
Bearing type: Ball Bearing
Customized support: OEM
After-sales service provided: Online support
Place of origin: China.Taiwan
Brand name: ADDA
Model number: AA9251MS-AW
Type: Axial Fan
Nominal voltage: 110V
Bearing Type: Ball Bearing
Power consumption: 0.96(w)
Current: 0.09(A)
Speed: 2430 r/min

Packaging and Delivery
Selling Units: Single item
Single package size: 21X21X12 cm
Single gross weight: 1.000 kg

AA9251MS-AW ADDA 110V AC 9025 9cm 0.96W 0.09A Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
