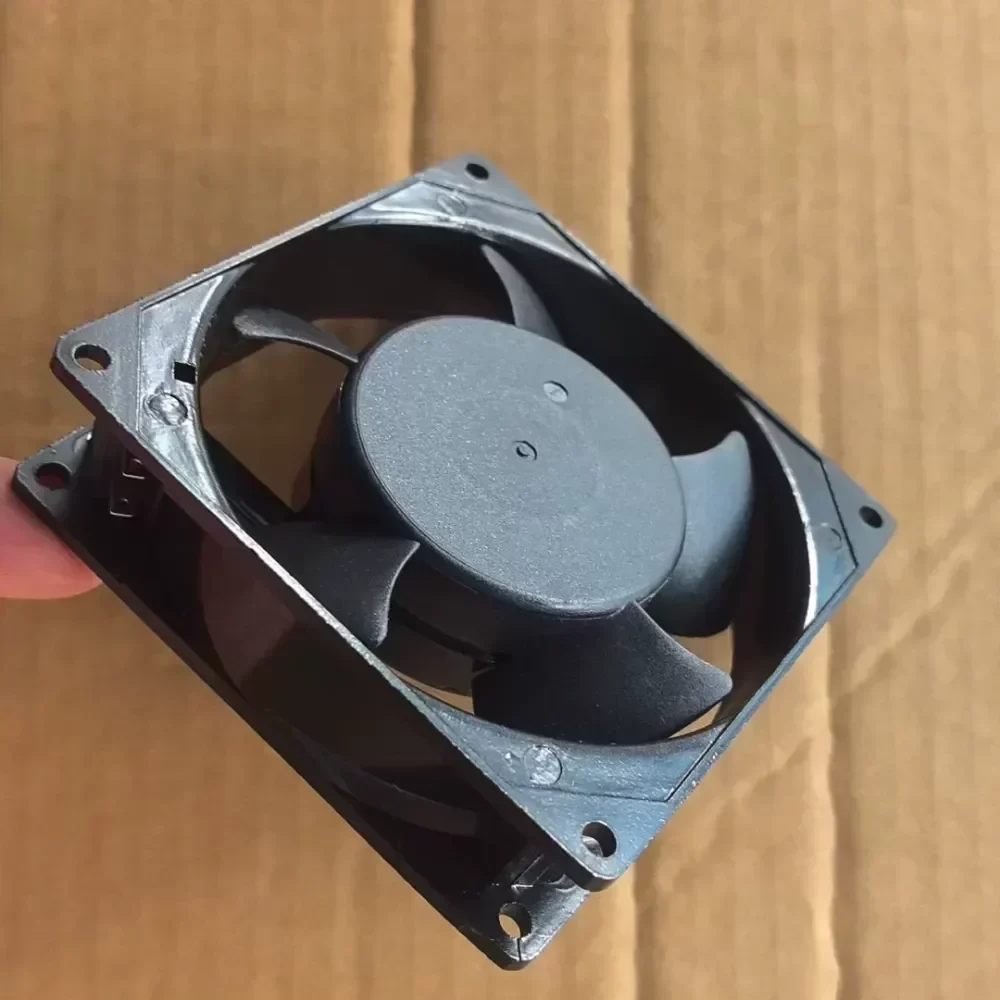

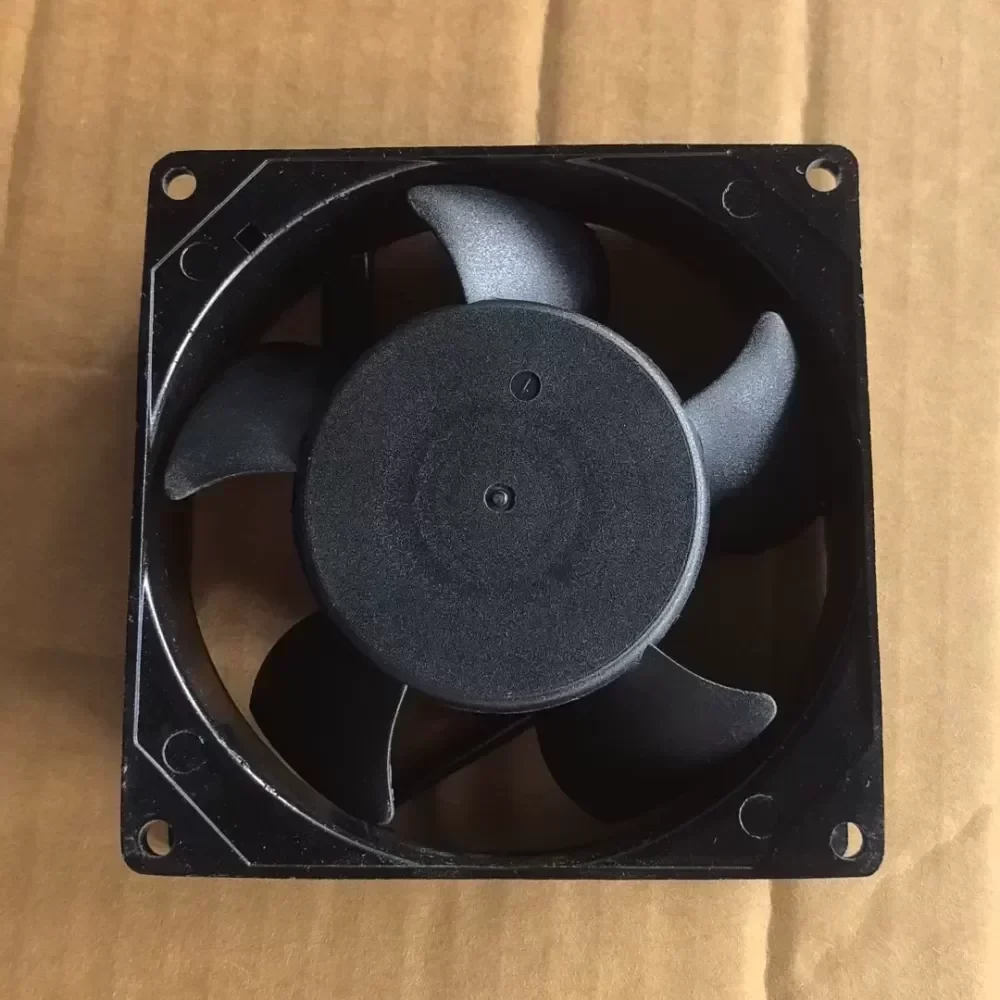

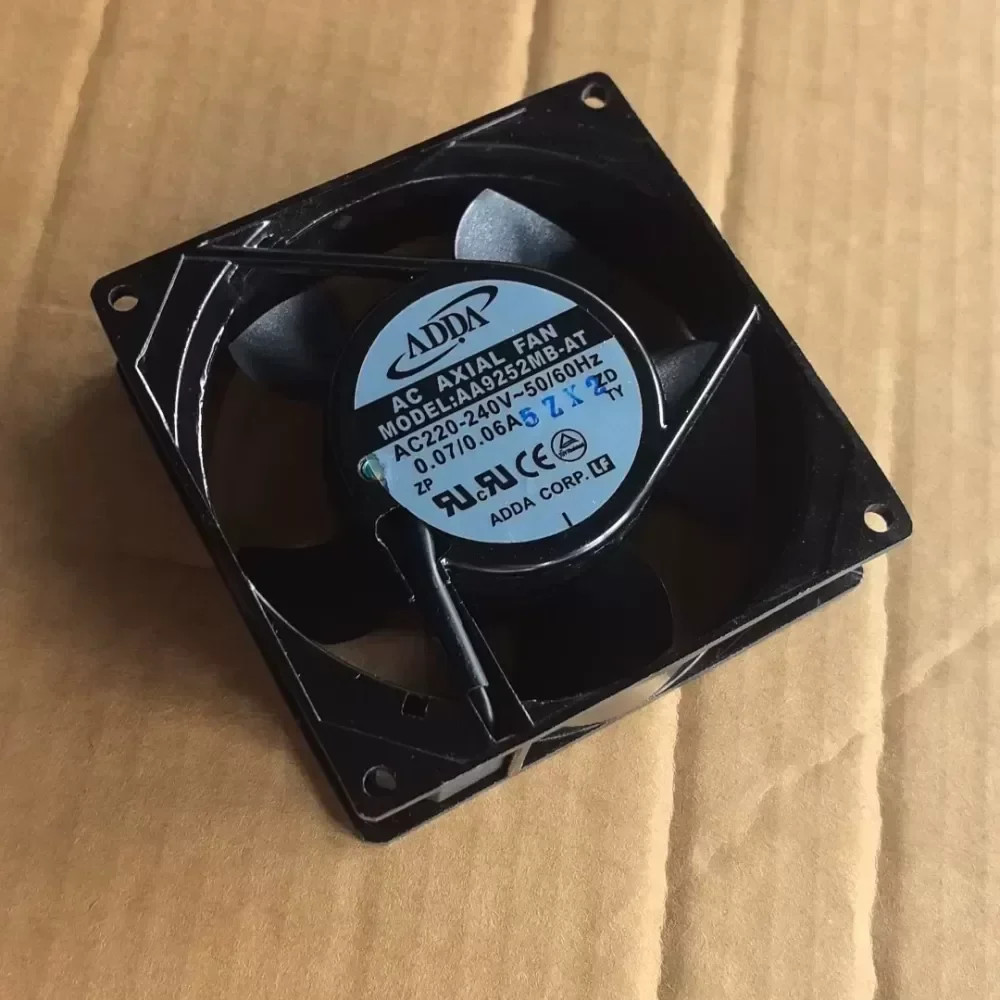

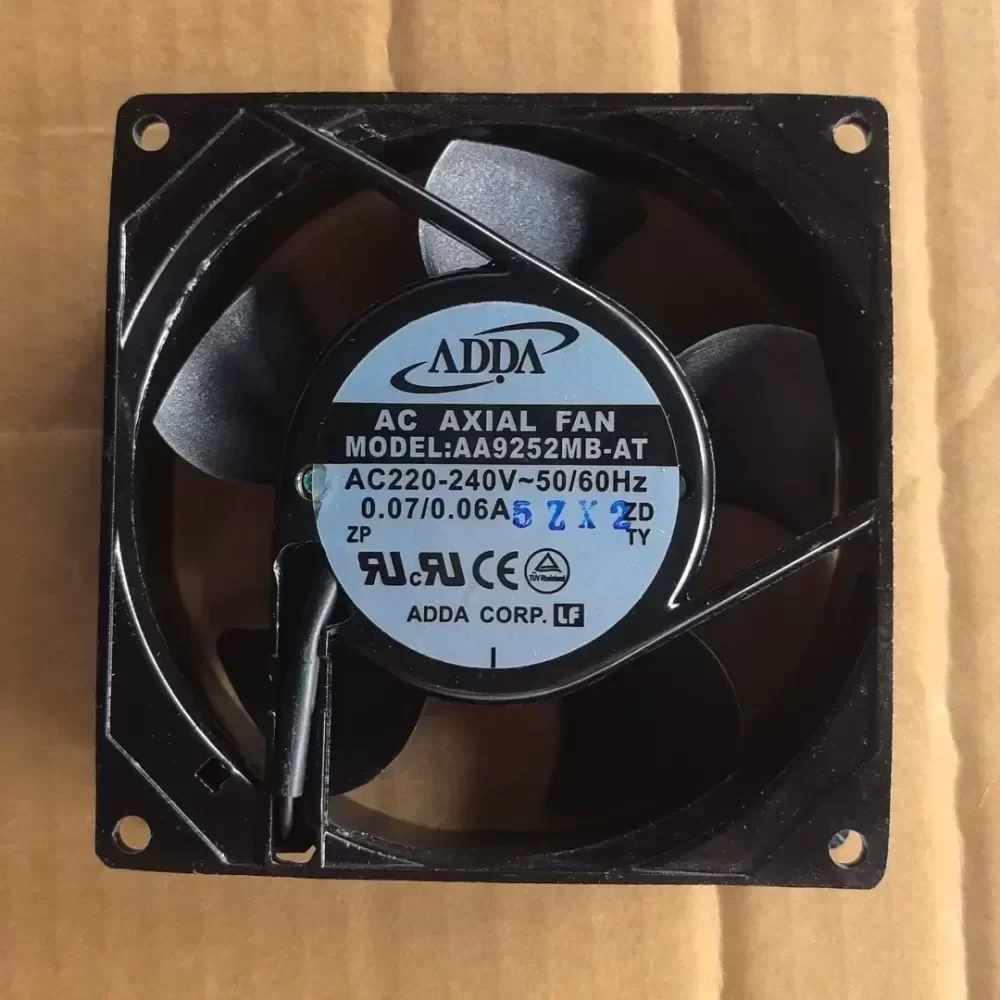

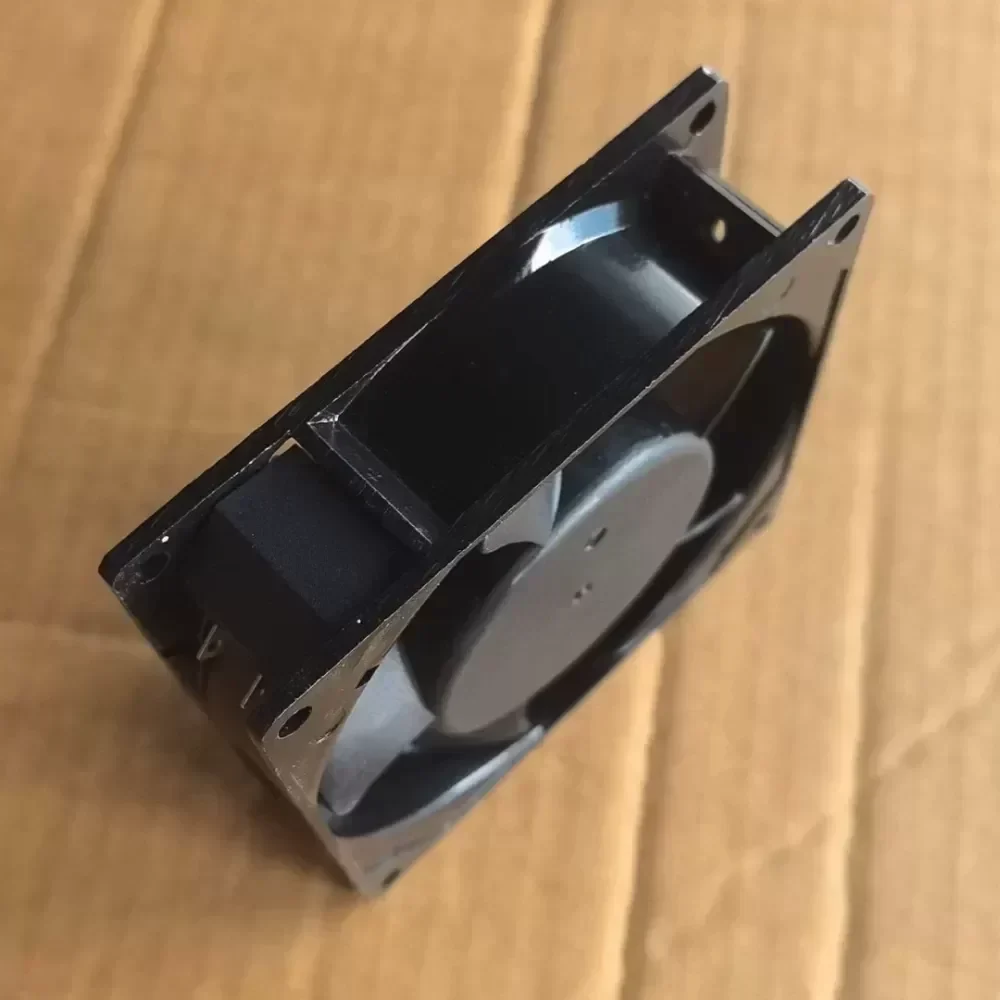

AA9252MB-AT ADDA axial fan

Name: AA9252MB-AT ADDA axial fan
Brand: ADDA
SKU: 920476592966
Availability: InStock
Rating: 5 (4 reviews)

$5.14

SKU: 920476592966 Brand: ADDA

Description
Reviews (0)

Description

The ADDA AA9252MB-AT is a high-efficiency AC axial fan engineered for thermal management in compact industrial enclosures and power supply units. This model features a robust Dual Ball Bearing system, which provides superior durability and allows for flexible mounting orientations compared to sleeve bearing alternatives. The unit is designed with a Medium speed profile, optimizing the balance between airflow volume and acoustic output, making it an ideal solution for environments requiring silent cooling operation. Sourced directly to ensure Original Engineering specifications, this fan maintains system integrity through precise aerodynamic performance.

TECHNICAL SPECIFICATIONS
Manufacturer: ADDA Corporation
Model Number: AA9252MB-AT
Product Series: AA Series
Component Type: AC Axial Flow Fan
Dimensions: 92mm x 92mm x 25mm
Rated Voltage: 220-240 V AC
Frequency: 50/60 Hz
Input Current: 0.07 A (50Hz) / 0.06 A (60Hz)
Input Power: 13.0 W / 11.0 W
Rated Speed: 2300 RPM (50Hz) / 2700 RPM (60Hz)
Maximum Airflow: 29.0 CFM (0.82 m³/min) / 35.0 CFM (0.99 m³/min)
Static Pressure: 0.13 Inch H2O / 0.18 Inch H2O
Noise Level: 32.0 dB-A / 36.0 dB-A
Bearing System: Precision Ball Bearing
Frame Material: Aluminum Alloy (Black Paint)
Impeller Material: Reinforced Plastic PBT (UL94V-0)

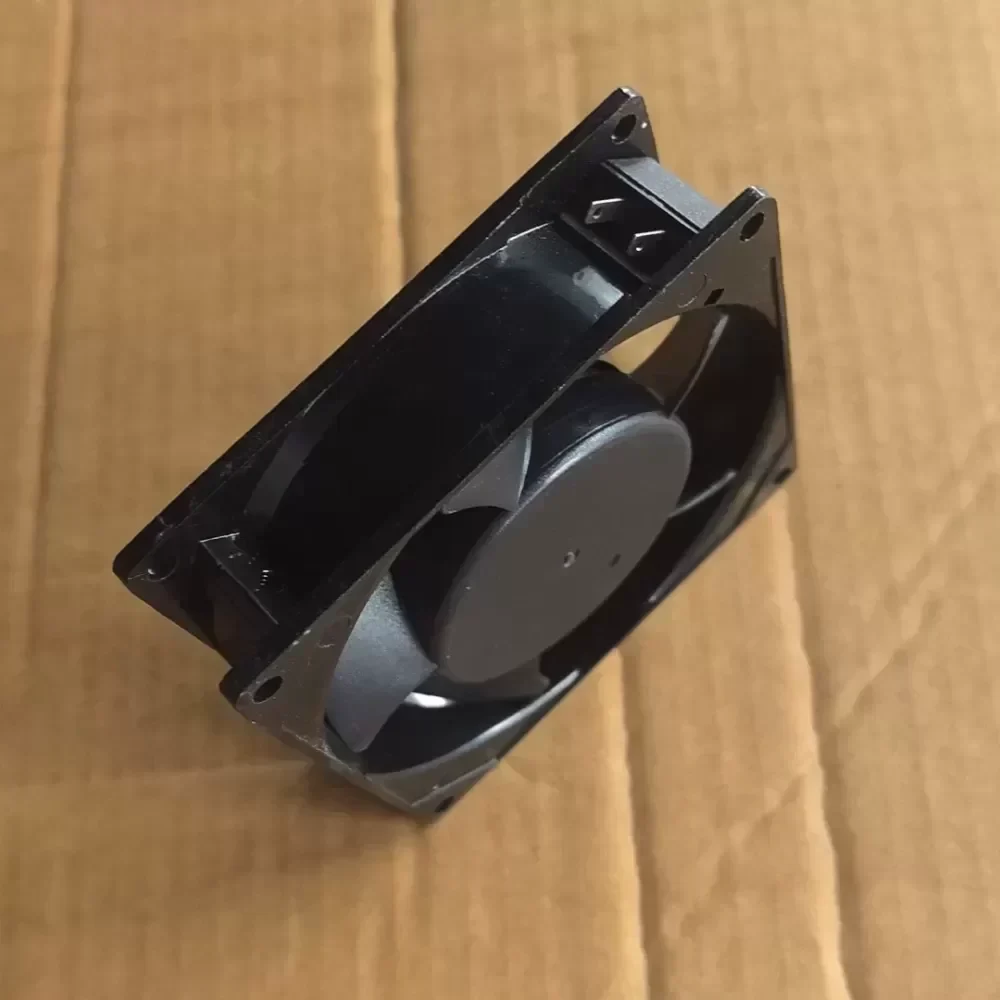

Termination: Terminal Type
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Life Expectancy: 50,000 Hours at 25°C
Safety Approvals: UL, cUL, TUV, CE
Weight: 280 g

INDUSTRIAL APPLICATION
This specific model is critical for the ventilation of rack-mounted server chassis, instrumentation cabinets, and telecommunications equipment where direct AC line voltage is utilized. Its compact 92mm footprint allows for integration into limited-space power supply units (PSUs) and control panels. The ball bearing construction ensures reliable operation in 24/7 continuous duty cycles, effectively preventing thermal throttling of sensitive electronic components. Please verify Technical Compatibility with your existing mounting interface. Contact us for current Lead Time on this authentic ADDA component.

AA9252MB-AT ADDA axial fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
