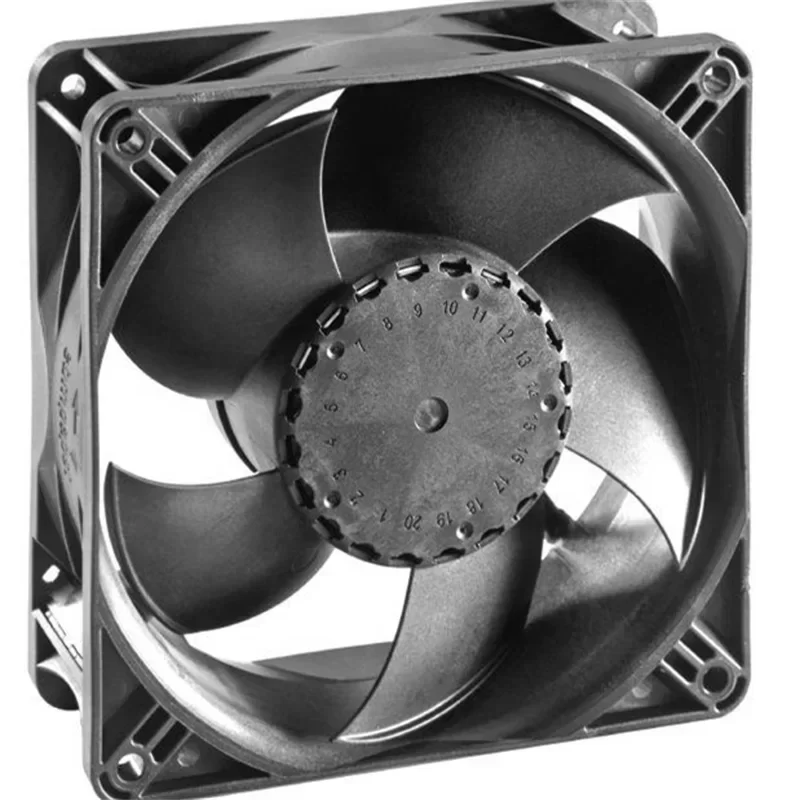

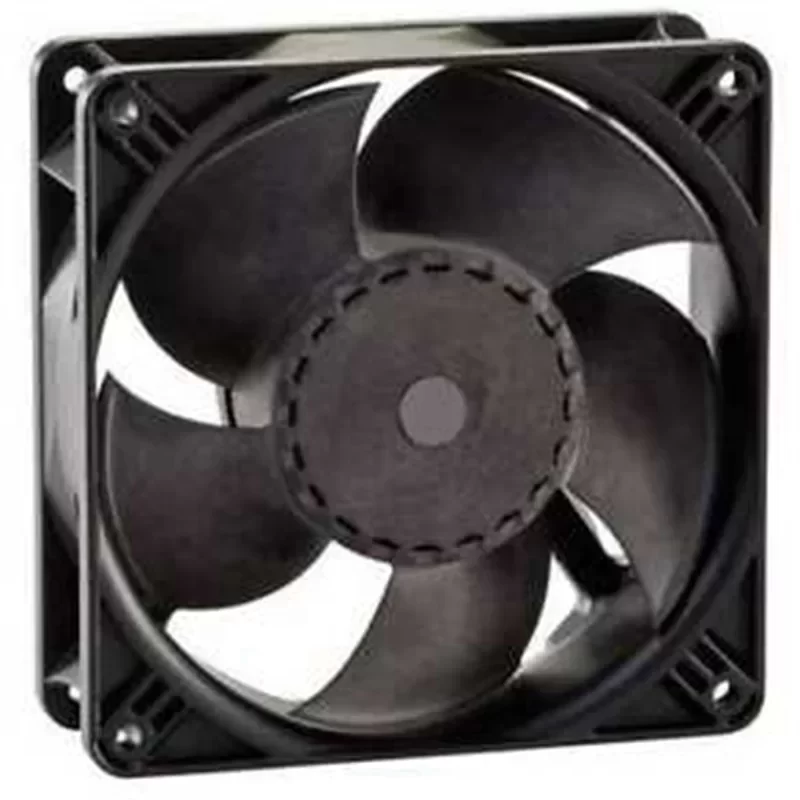

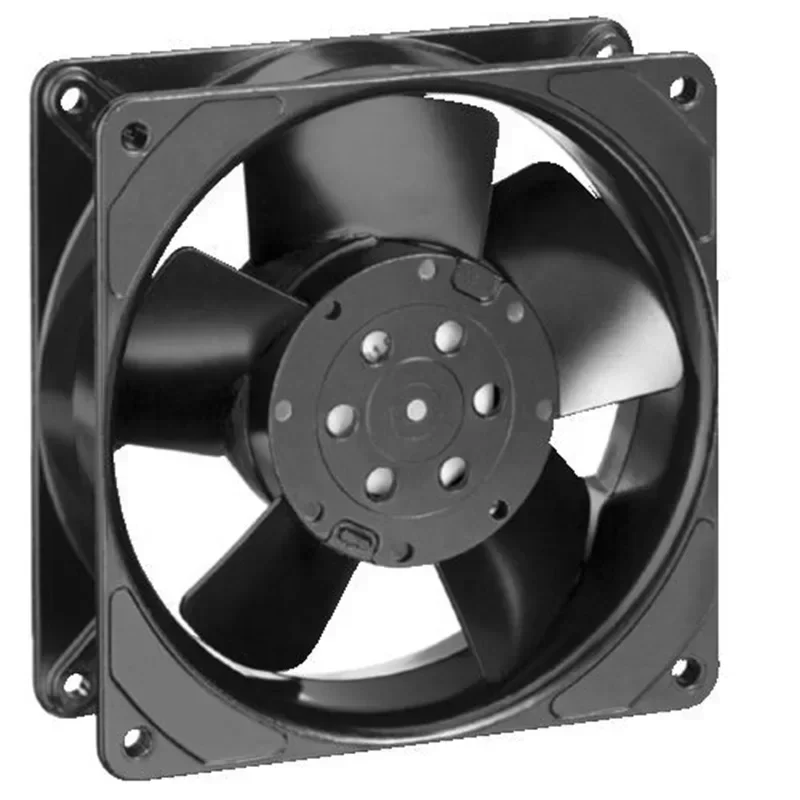

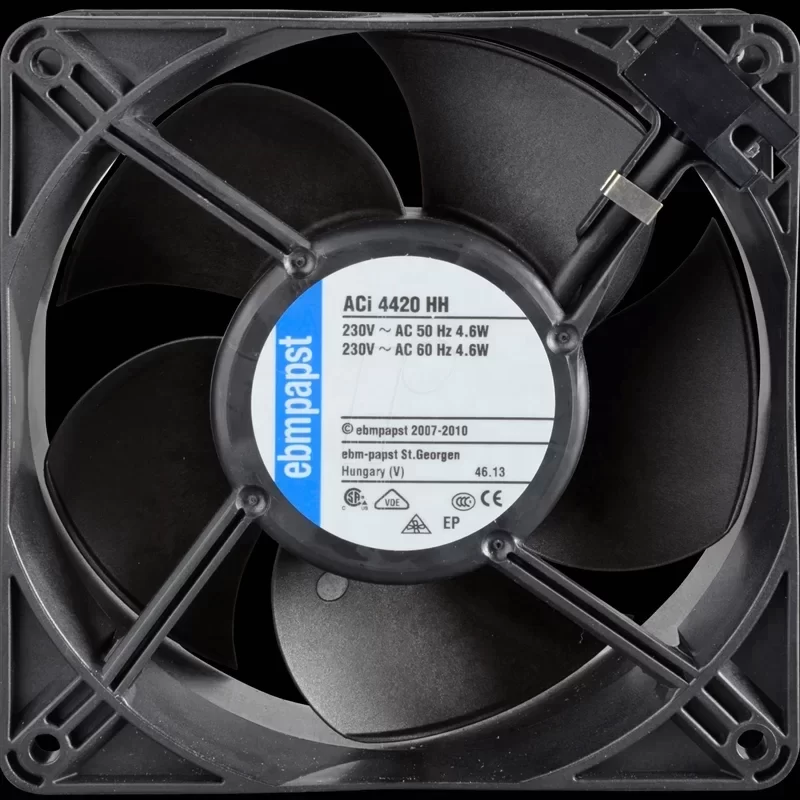

ACI4420HH Ebmpapst 230V AC 120x120x38mm Cabinet Axial Fan

ACI4420HH Ebmpapst 230V AC 120x120x38mm Cabinet Axial Fan

Name: ACI4420HH Ebmpapst 230V AC 120x120x38mm Cabinet Axial Fan
Brand: ebmpapst
SKU: 1600348117307
Availability: InStock
Rating: 5 (4 reviews)

$39.30

SKU: 1600348117307 Brand: ebmpapst

Description
Reviews (0)

Description

The Ebmpapst ACI4420HH represents the pinnacle of Original Engineering in thermal management, utilizing GreenTech EC technology to provide high-performance cooling with minimal energy consumption. This 120mm axial fan is specifically designed for continuous operation in industrial control cabinets and electronic enclosures where Technical Compatibility with 230V AC systems is required. Unlike standard AC fans, the ACI4420HH integrates an electronic commutation system that optimizes motor efficiency and extends the service life to 65,000 hours.

Technical Specifications:
Manufacturer: Ebmpapst
Model: ACI4420HH
Origin: Germany
Motor Type: EC motor with integrated electronics
Nominal Voltage: 230 VAC
Voltage Range: 195 to 265 VAC
Frequency: 50/60 Hz
Power Input: 4.4 W
Speed: 3300 RPM
Air Flow: 175 m³/h
Sound Pressure Level: 42 dB(A)
Bearing Type: Dual Ball Bearing
Service Life L10: 65000 h at 40 °C
Housing Material: Fiberglass-reinforced plastic (PBT)
Impeller Material: Fiberglass-reinforced plastic (PA)
Dimensions: 119 x 119 x 38 mm
Weight: 250 g
Airflow Direction: Exhaust over struts
Rotation Direction: Clockwise
Electrical Connection: 2 flat plugs 2.8 x 0.5 mm
Insulation Class: B
Protection Rating: IP20
Certifications: VDE, UL, CSA, CE

Industrial Application:
The ACI4420HH is engineered for high-density electronic environments such as frequency converters, telecommunications racks, and automated control panels. Its ability to maintain consistent airflow under varying load conditions ensures optimal thermal stability for sensitive components. For procurement teams, Lead Time and availability are prioritized to support maintenance cycles and OEM production schedules.

Key Attributes
Voltage: Complete certification
Mounting type: Free Standing
Type: Axial Cooling Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Plastic
Bearing type: Ball Bearing
Customized support: OEM
After-sales service provided: Online support
Place of origin: Germany
Brand name: Ebmpapst
Model number: ACI4420HH
Type: Axial Cooling Fan
Voltage: 230VAC
Size: 120*120*38mm
Power: 4.4W
Speed: 3300RPM
Air flow: 175m3/h
Bearing type: Ball Bearing
Service life L10 at 40 °C: 65000 h
Airflow direction: Exhaust over struts
Weight: 250g

Packaging and Delivery
Selling Units: Single item

ACI4420HH Ebmpapst 230V AC 120x120x38mm Cabinet Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
