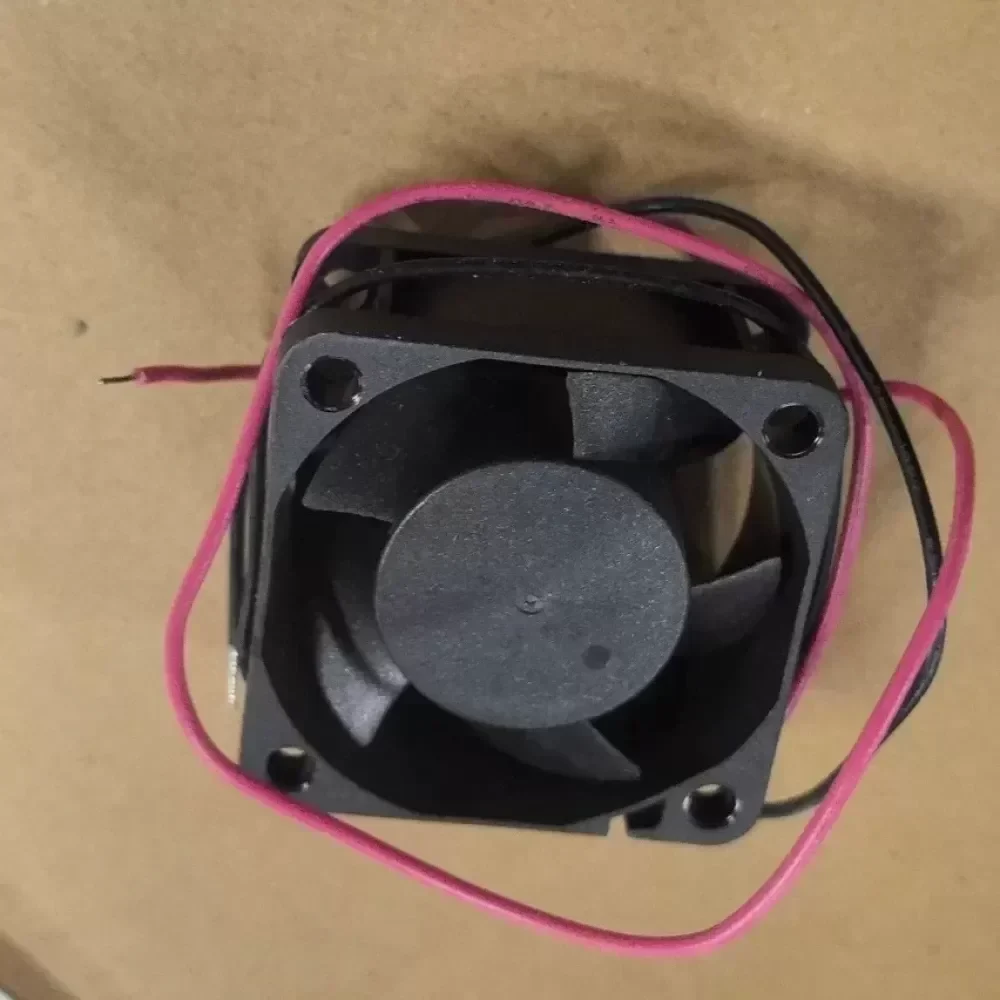

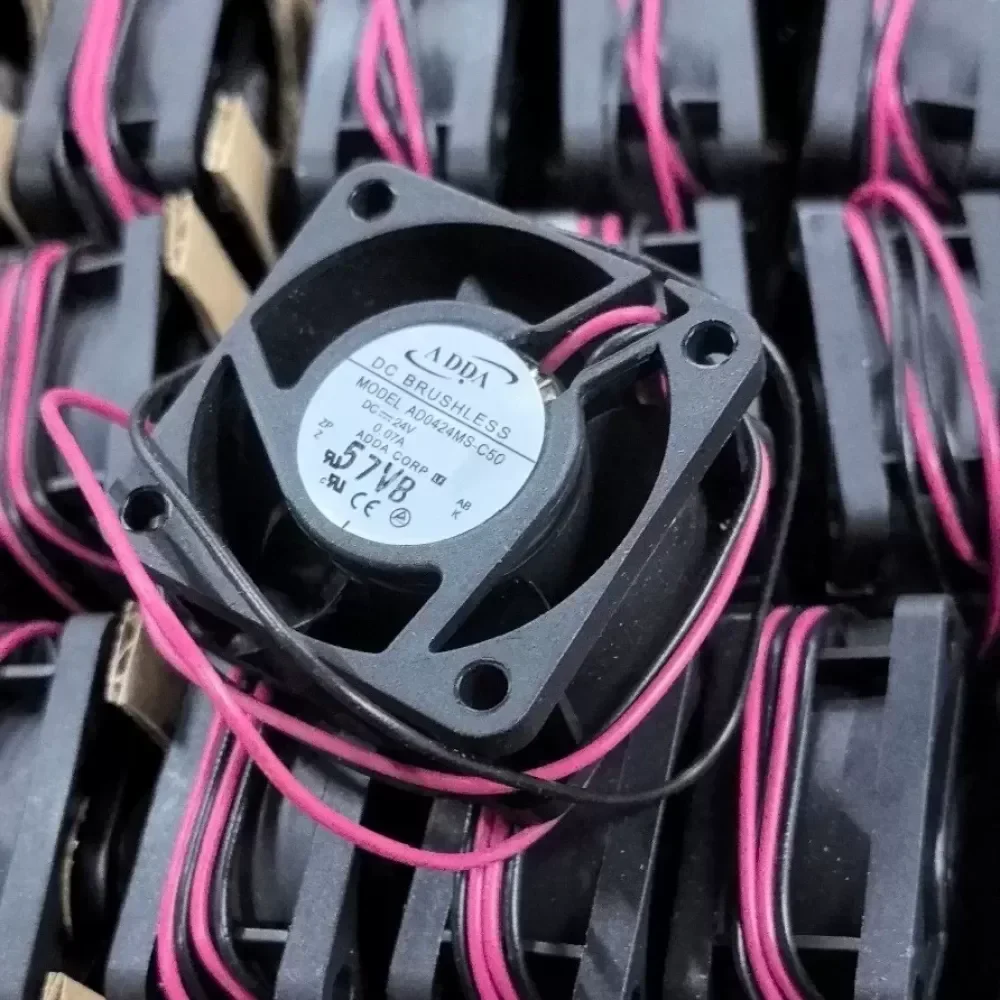

AD0424MS-C50 ADDA 40mm micro fan

Name: AD0424MS-C50 ADDA 40mm micro fan
Brand: ADDA
SKU: 900008813944
Availability: InStock
Rating: 5 (4 reviews)

$1.43

SKU: 900008813944 Brand: ADDA

Description
Reviews (0)

Description

The ADDA AD0424MS-C50 is a precision-engineered DC brushless axial fan designed for high-density industrial electronics cooling. Sourced to ensure Original Engineering standards, this 40mm component utilizes a specialized Sleeve Bearing system optimized for continuous operation in stable environments. The model string decodes to a 24V DC nominal input (indicated by the ’24’ designator), ensuring Technical Compatibility with 24V industrial control buses and power supply units, distinct from standard 5V consumer variants. The ‘M’ classification denotes a Medium speed profile, balancing airflow efficiency with acoustic performance, making it suitable for noise-sensitive telecommunications racks. Immediate availability reduces Lead Time for critical maintenance and OEM production lines.

SPECIFICATIONS
Manufacturer: ADDA Corporation
Model Number: AD0424MS-C50
Component Type: DC Brushless Axial Fan
Frame Dimensions: 40mm x 40mm
Depth: 20mm (Standard C-Series Profile)
Nominal Voltage: 24V DC
Operating Voltage Range: 21.6V – 26.4V DC
Input Current: 0.07 A
Input Power: 1.68 W
Rated Speed: 5800 RPM ±10%
Airflow: 7.2 CFM (Cubic Feet per Minute)
Static Pressure: 0.16 In H2O
Noise Level: 29.0 dB(A)
Bearing Type: Sleeve Bearing
Frame Material: Glass Fiber Reinforced PBT (UL94V-0)
Impeller Material: Glass Fiber Reinforced PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Life Expectancy: 30,000 Hours at 40°C
Termination: Wire Leads
Safety Certifications: UL, CUL, TUV, CE

INDUSTRIAL APPLICATION
This specific thermal management solution is engineered for integration into 1U server chassis, compact industrial power supplies (PSUs), and network switchgear. Its compact 40mm footprint allows for direct mounting onto heatsinks within variable frequency drives (VFDs) or PLC enclosures where internal clearance is restricted. The medium-speed profile provides sufficient static pressure to overcome impedance in densely packed PCB layouts without introducing excessive vibration, ensuring longevity for sensitive adjacent components.

AD0424MS-C50 ADDA 40mm micro fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
