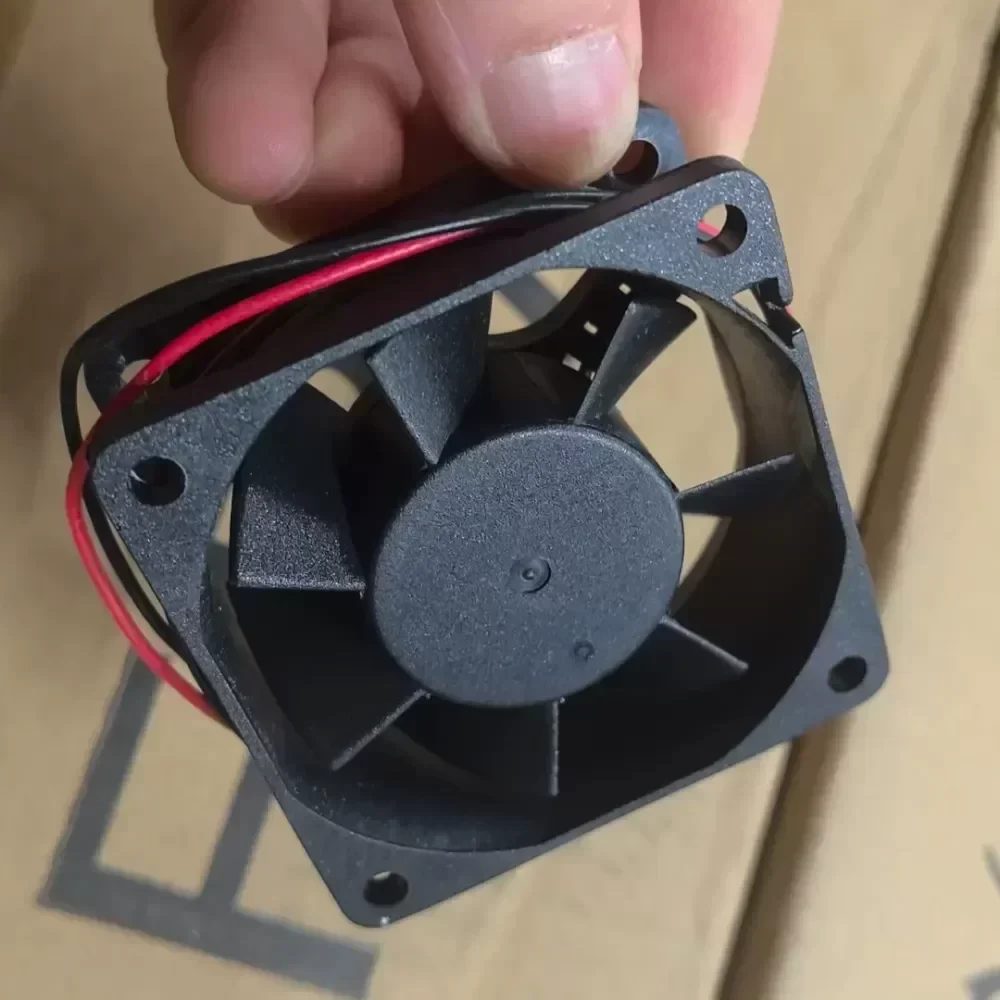

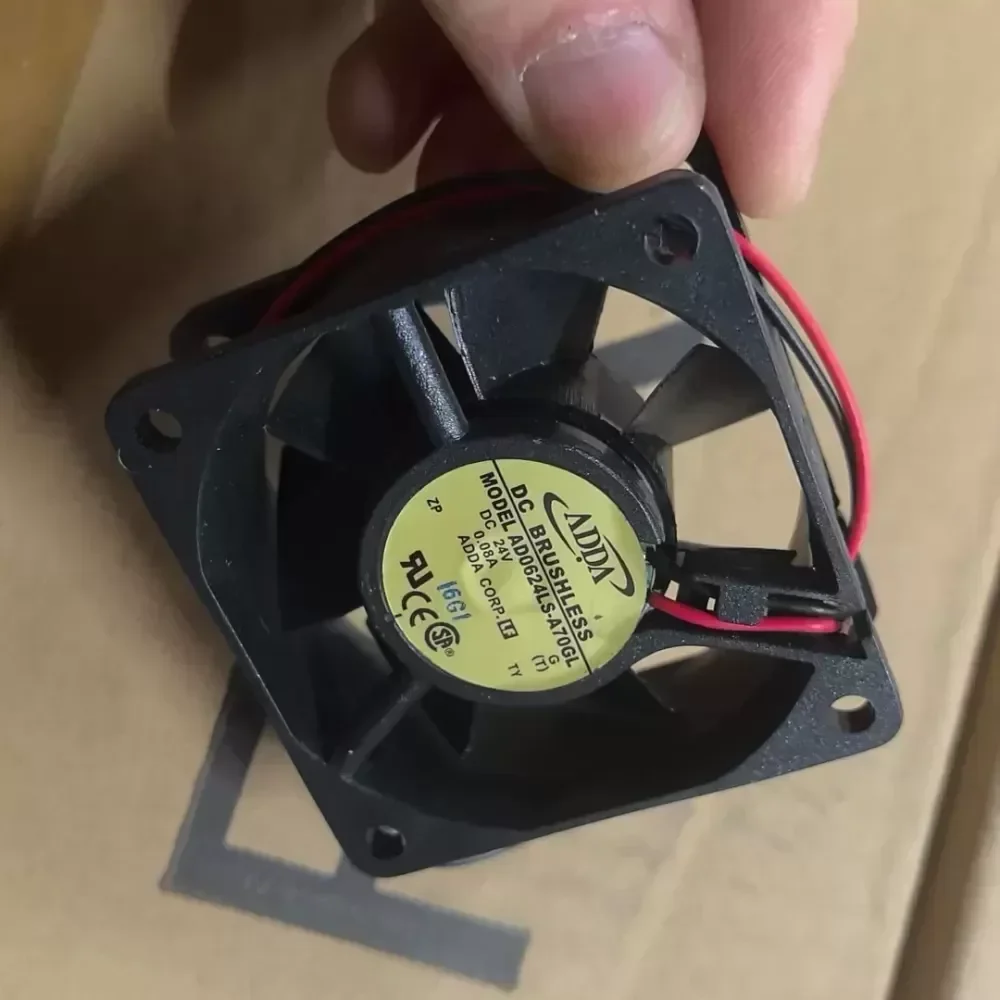

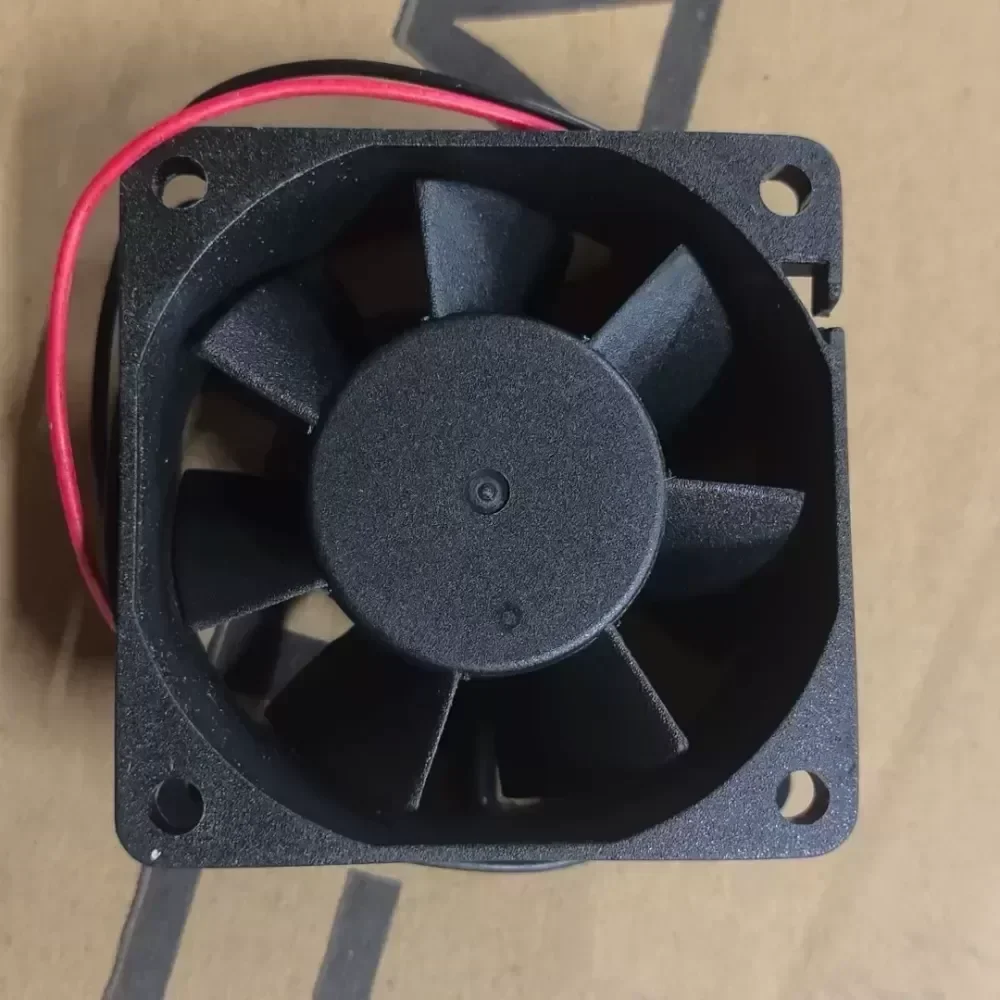

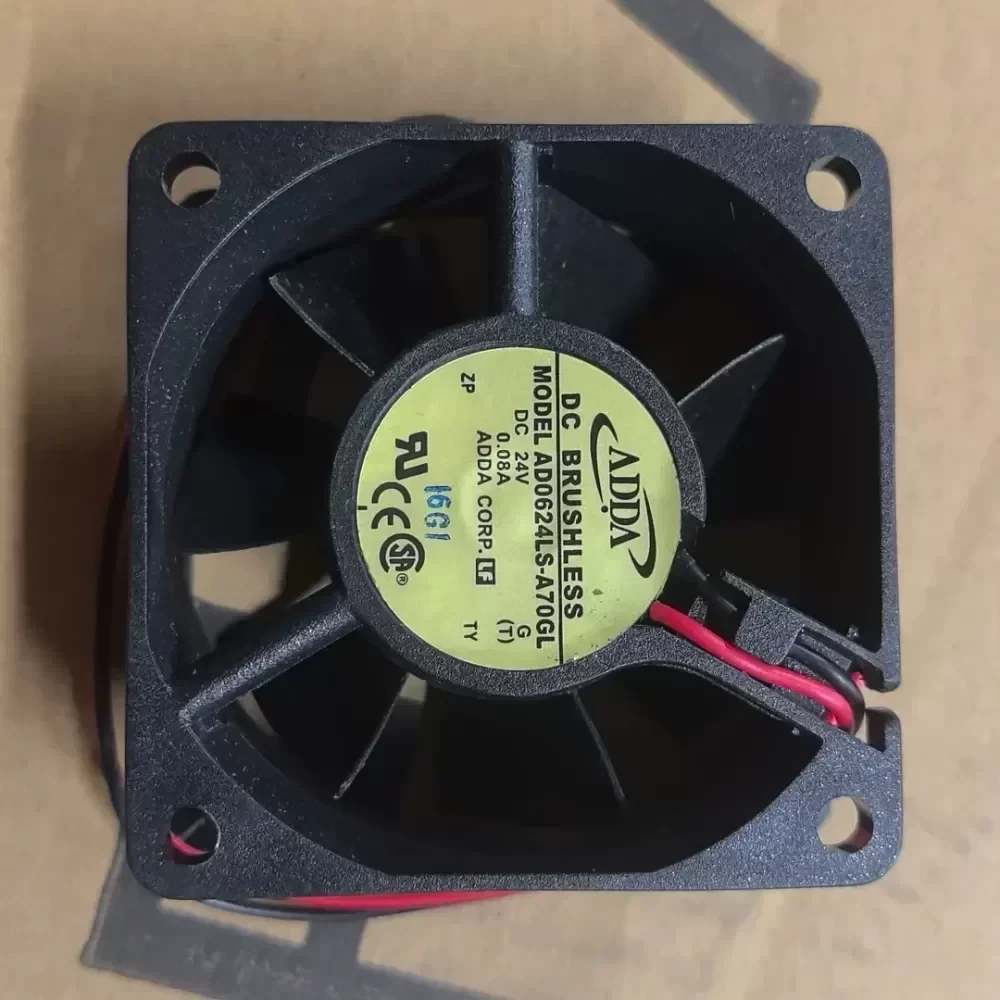

AD0624LS-A70G ADDA DC brushless fan

Name: AD0624LS-A70G ADDA DC brushless fan
Brand: ADDA
SKU: 898093171343
Availability: InStock
Rating: 5 (4 reviews)

$1.43

SKU: 898093171343 Brand: ADDA

Description
Reviews (0)

Description

The ADDA AD0624LS-A70GL is a precision-engineered DC brushless axial fan designed for critical thermal management in compact electronic enclosures and industrial instrumentation. This unit features Original Engineering from ADDA Corporation, utilizing a specialized Sleeve Bearing system optimized for low-noise operation and extended service life in stable mounting environments. The model string decoding identifies this as a 60mm frame unit operating at a nominal 24V DC, specifically calibrated for low-speed, high-efficiency airflow. With a current draw of 0.08 A, this component balances cooling performance with acoustic silence, making it a preferred choice for noise-sensitive industrial environments. The construction employs UL94V-0 rated PBT thermoplastic for both the frame and impeller, ensuring fire resistance and structural integrity under thermal stress. This specific model ensures Technical Compatibility with legacy and modern heat dissipation systems, including computer radiators, power supply units, and server rack ventilation modules.

Manufacturer: ADDA Corporation
Model Number: AD0624LS-A70GL
Product Type: DC Brushless Axial Fan
Frame Dimensions: 60mm x 60mm x 25mm
Rated Voltage: 24V DC
Operating Voltage Range: 21.6V – 26.4V DC
Rated Current: 0.08 A
Input Power: 1.92 W
Speed Classification: Low Speed (L)
Bearing Type: Sleeve Bearing (S)
Estimated Airflow: 13.2 CFM
Estimated Static Pressure: 0.09 Inch H2O
Noise Level: ~25.0 dB(A)
Housing Material: Glass Fiber Reinforced PBT (UL94V-0)
Impeller Material: Glass Fiber Reinforced PBT (UL94V-0)
Termination: 2-Wire Leads
Direction of Rotation: Counter-clockwise
Operating Temperature: -10°C to +70°C
Weight: 58g

Application Analysis:
This fan is specifically calibrated for applications requiring continuous, silent air movement rather than high-pressure forced induction. It is the optimal solution for cooling sensitive electronic components within 24V DC power grids, such as PLC cabinets, medical diagnostic equipment, and network switches where acoustic dampening is a priority. The maintenance-free brushless design ensures reliability, reducing downtime and securing the operational lifecycle of the host equipment. Please verify current Lead Time for bulk procurement.

AD0624LS-A70G ADDA DC brushless fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
