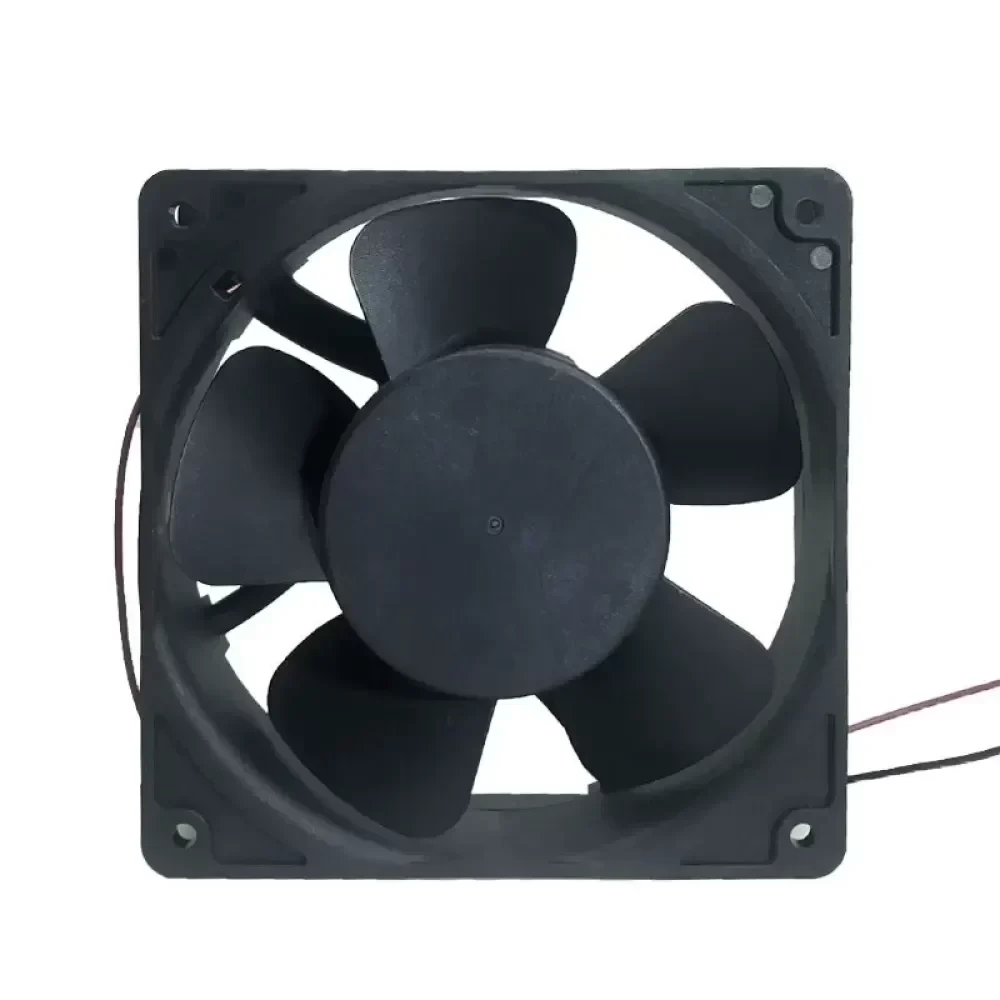

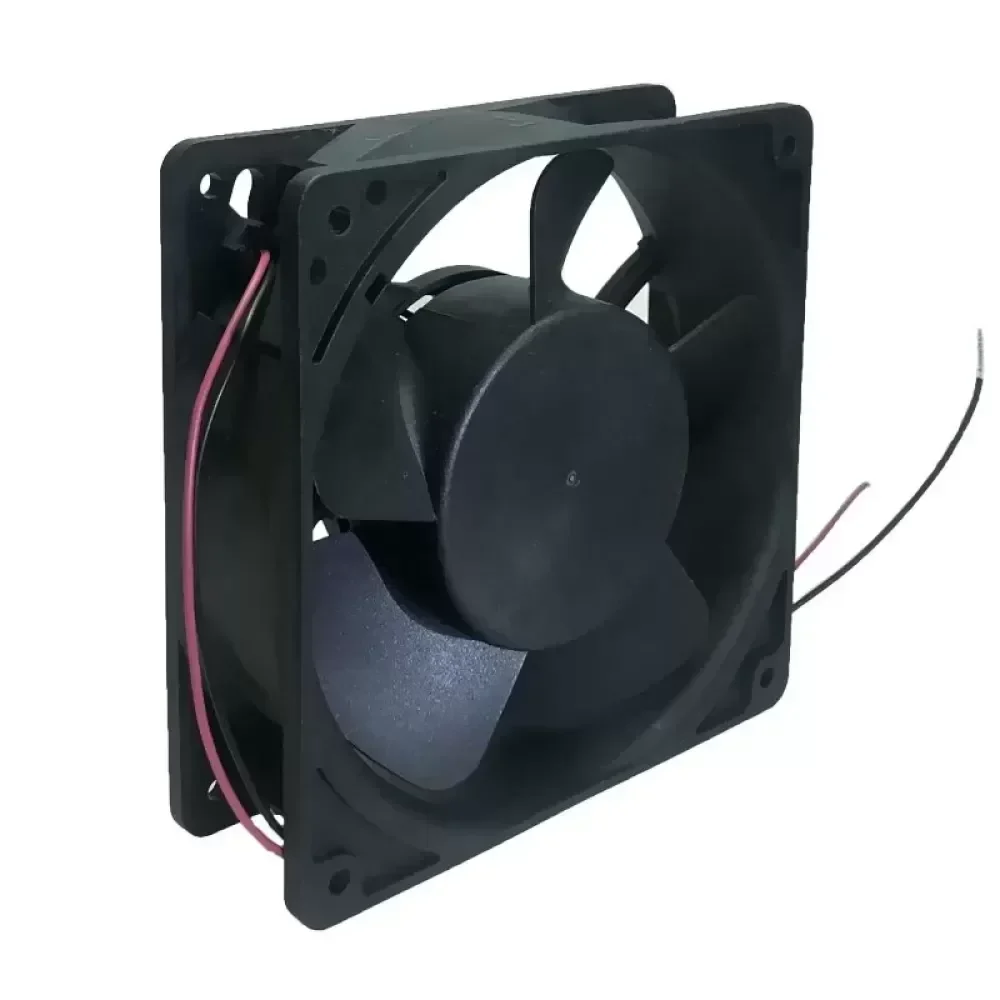

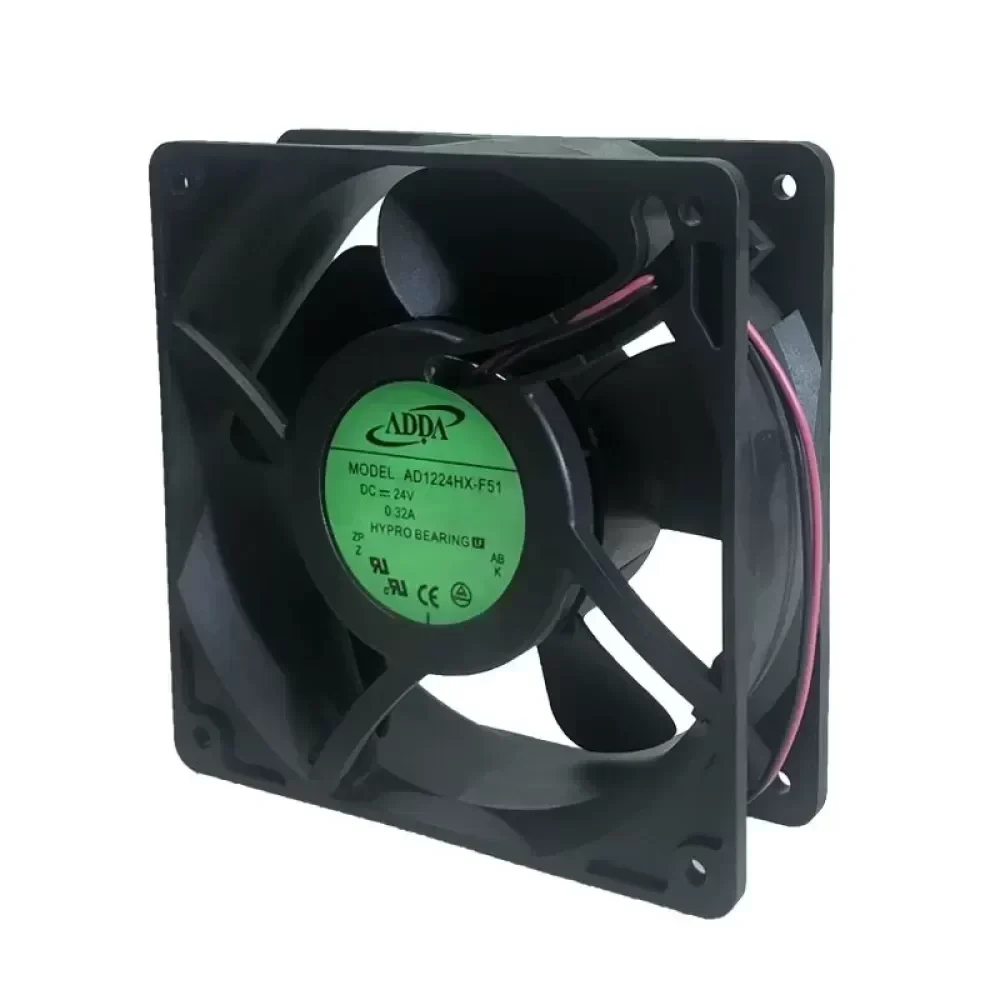

AD1224HX-F51 ADDA 12038/24V chassis fan

Name: AD1224HX-F51 ADDA 12038/24V chassis fan
Brand: ADDA
SKU: 677655166226
Availability: InStock
Rating: 5 (4 reviews)

$6.00

SKU: 677655166226 Brand: ADDA

Description
Reviews (0)

Description

The ADDA AD1224HX-F51 is a high-performance DC axial fan engineered for demanding industrial cooling applications. As an original engineering component from ADDA, this 120 x 120 x 38 mm unit provides critical thermal regulation for high-density electronic environments, including power inverters, server chassis, and industrial control cabinets. The integration of a dual ball bearing system ensures a service life of 50000 hours at 40 °C, making it a reliable choice for continuous operation cycles. With a rotational speed of 3500 RPM, the fan delivers a significant airflow of 238.0 m³/h, essential for maintaining optimal operating temperatures and preventing component failure.

Technical Specifications:
Manufacturer: ADDA
Model: AD1224HX-F51
Nominal Voltage: 24 VDC
Voltage Range: 14 – 27.6 VDC
Rated Current: 0.32 A
Power Consumption: 7.68 W
Dimensions: 120 x 120 x 38 mm
Airflow: 238.0 m³/h (140.0 CFM)
Static Pressure: 124.5 Pa (0.50 inAq)
Noise Level: 53.0 dB(A)
Bearing Type: Ball Bearing
Housing and Impeller: Thermoplastic PBT (UL94V-0)
Motor Protection: Locked Rotor Protection, Auto-Restart
Operating Temperature: -10 °C to 70 °C
Weight: 0.230 kg
Certifications: UL, TUV, CE

This model features locked rotor protection and auto-restart functionality to safeguard the brushless DC motor against electrical irregularities. In industrial scenarios, the AD1224HX-F51 is frequently deployed in frequency converters and telecommunications infrastructure where high static pressure is required to overcome internal resistance. Procurement of authentic ADDA hardware ensures compatibility with existing mounting configurations and adheres to strict safety standards. Contact us for specific lead time information and bulk availability.

AD1224HX-F51 ADDA 12038/24V chassis fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
