ADDA AA1281US-AW 115V AC 120x120x38mm Cabinet Axial Fan

ADDA AA1281US-AW 115V AC 120x120x38mm Cabinet Axial Fan

Name: ADDA AA1281US-AW 115V AC 120x120x38mm Cabinet Axial Fan
Brand: ADDA
SKU: 62086476755
Availability: InStock
Rating: 5 (4 reviews)

$5.76

SKU: 62086476755 Brand: ADDA

Description
Reviews (0)

Description

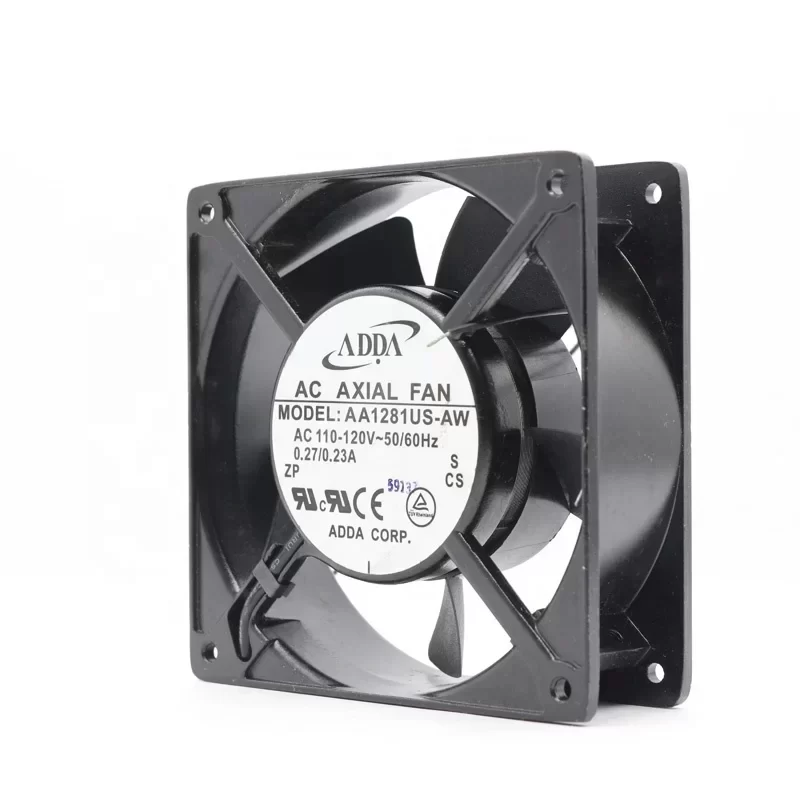

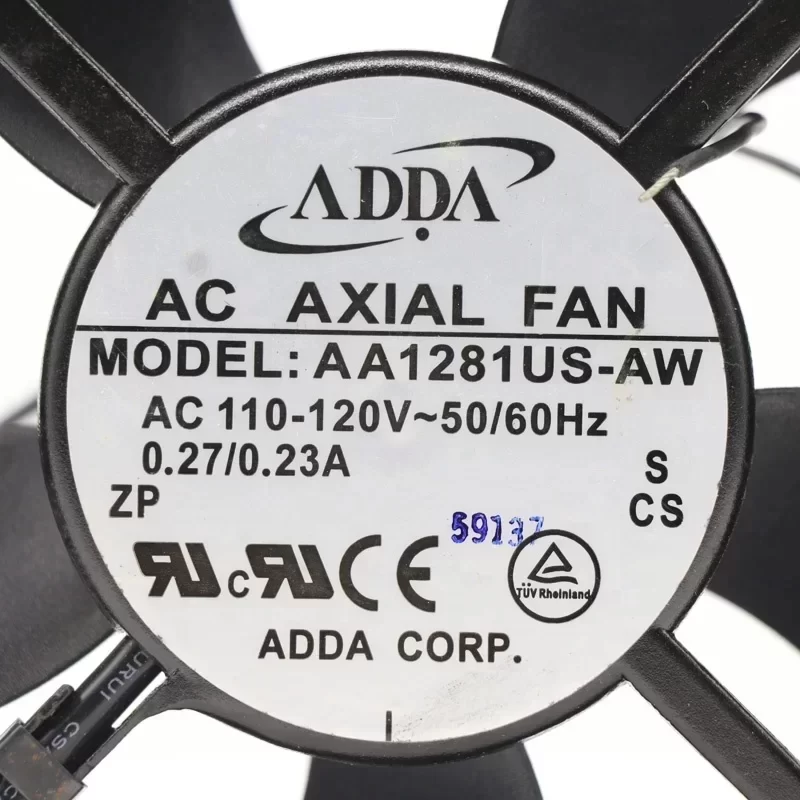

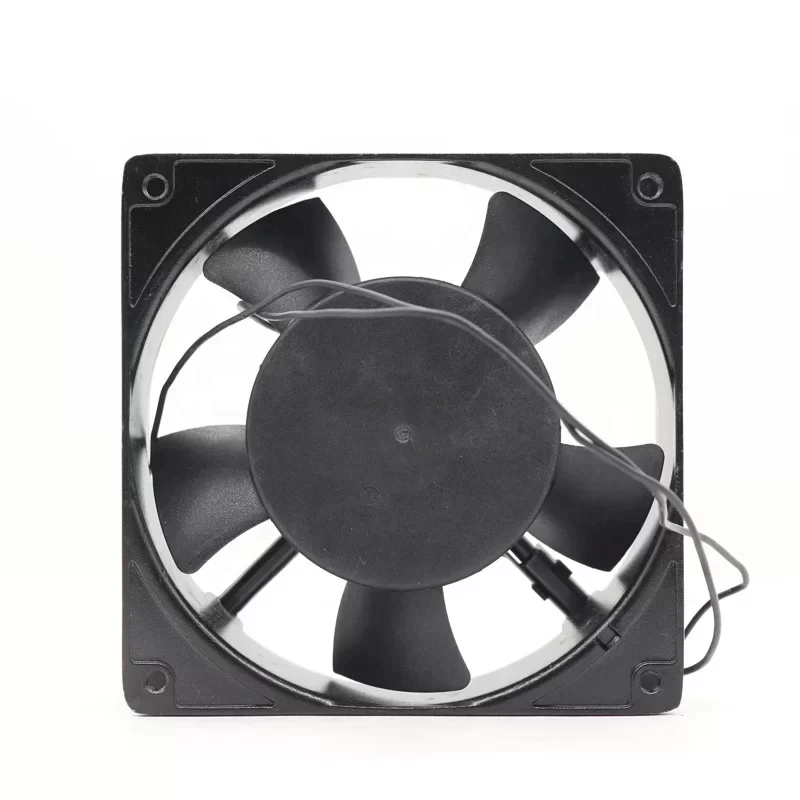

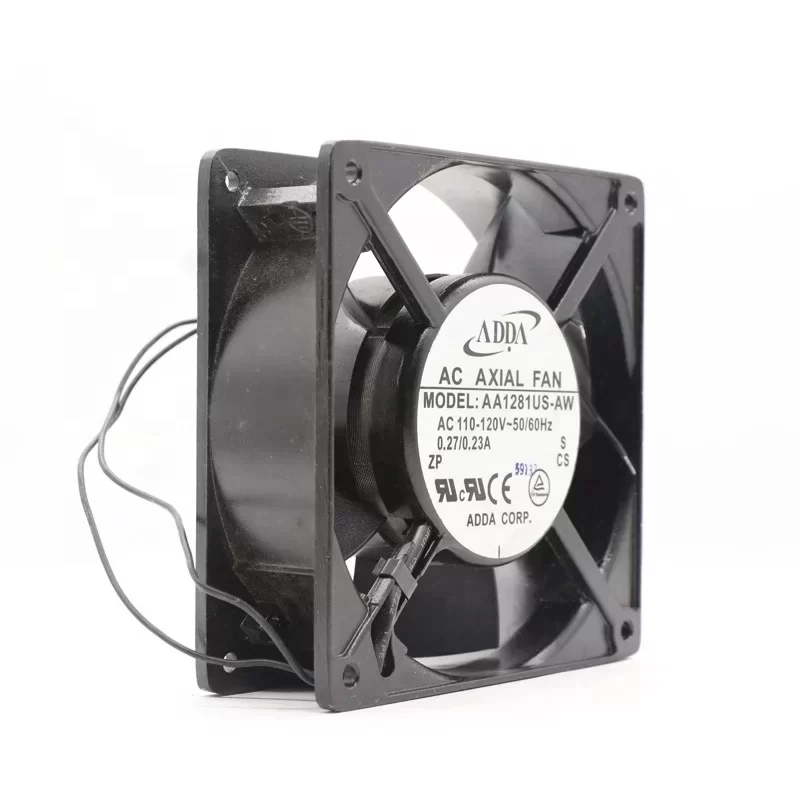

The ADDA AA1281US-AW is a high-performance industrial axial cooling fan engineered for reliable thermal management in heavy-duty applications. This 120 x 120 x 38 mm unit operates on a 115 VAC power source, drawing 0.27 A to deliver a robust airflow of 96 CFM. Designed with a dual ball bearing system, the AA1281US-AW offers superior durability and a significantly longer service life compared to sleeve bearing alternatives, making it ideal for continuous 24/7 operation in critical environments.

Technical Specifications:
Brand: ADDA
Model: AA1281US-AW
Dimensions: 120 x 120 x 38 mm
Input Voltage: 115 VAC
Operating Current: 0.27 A
Rotational Speed: 2700 RPM
Airflow Capacity: 96 CFM
Noise Level: 45.8 dBA
Bearing Type: Dual Ball Bearing
Blade Material: Reinforced Plastic
Mounting Type: Free Standing / Internal Mount
Weight: 1.000 kg (Gross)

Industrial Application:
The AA1281US-AW is specifically utilized in industrial control cabinets, server enclosures, and power distribution units where heat accumulation can compromise sensitive electronics. Its high static pressure and airflow efficiency make it a critical component for maintaining optimal operating temperatures in CNC machinery, medical equipment, and telecommunications infrastructure. This original engineering solution ensures minimal downtime and protects high-value assets from thermal failure. Lead time and availability are optimized for industrial procurement cycles.

Key Attributes
Voltage: 115(V)
Mounting type: Free Standing
Type: Axial Cooling Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Plastic
Bearing type: Ball Bearing
Customized support: OEM
After-sales service provided: Online support
Place of origin: China.Taiwan
Brand name: ADDA
Model number: AA1281US-AW
Type: Axial Fan
Nominal voltage: 115V
Bearing Type: Ball Bearing
Current: 0.27(A)
Speed: 2700 r/min
Noise: 45.8DBA

Packaging and Delivery
Selling Units: Single item
Single package size: 21X21X12 cm
Single gross weight: 1.000 kg

ADDA AA1281US-AW 115V AC 120x120x38mm Cabinet Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
