ADDA AA1282UB-AW 120x120x38mm 220-240V AC Axial Fan

ADDA AA1282UB-AW 120x120x38mm 220-240V AC Axial Fan

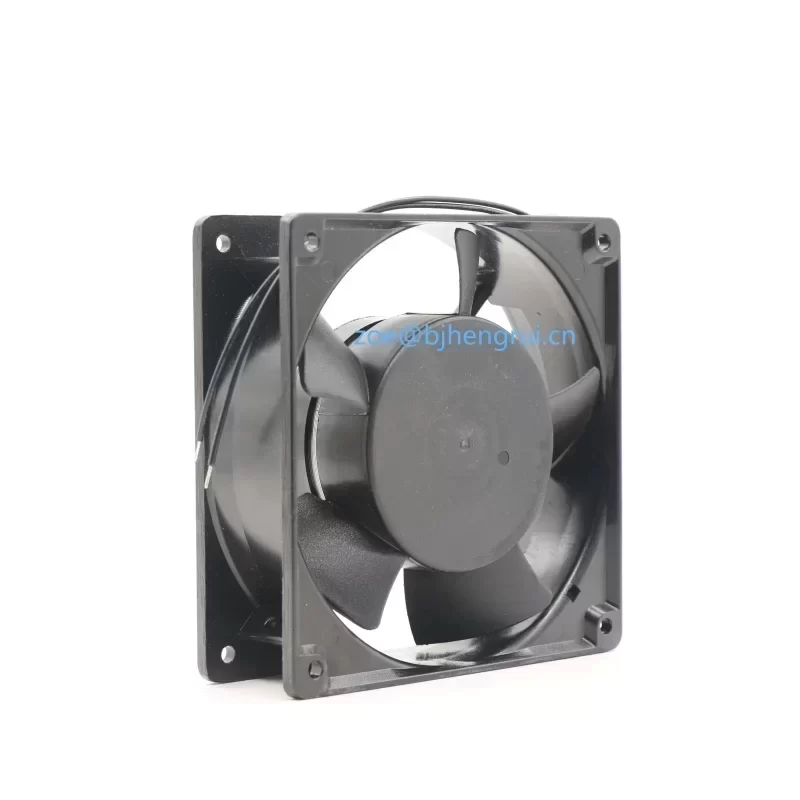

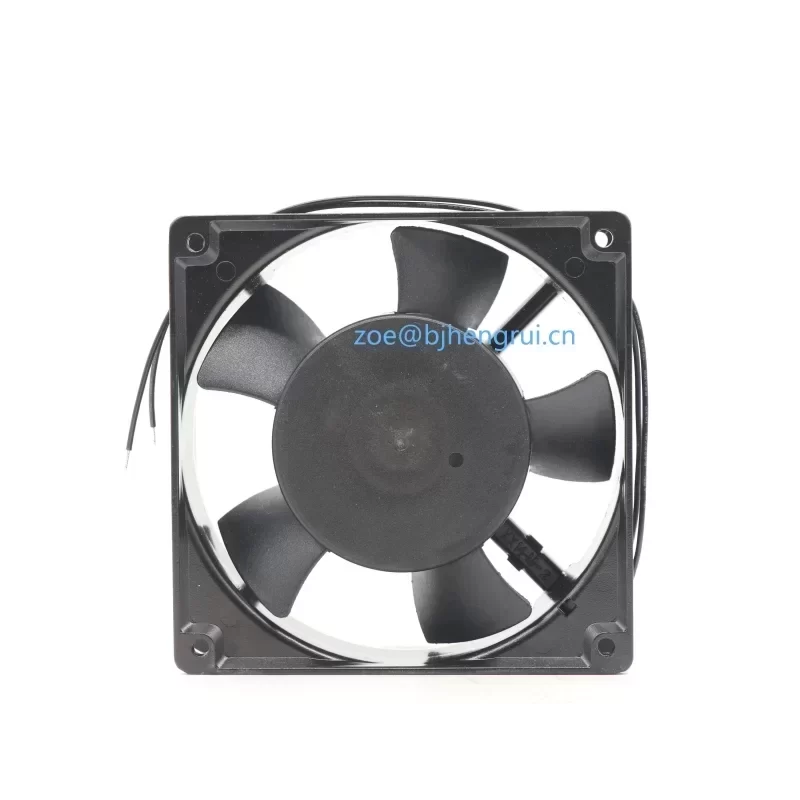

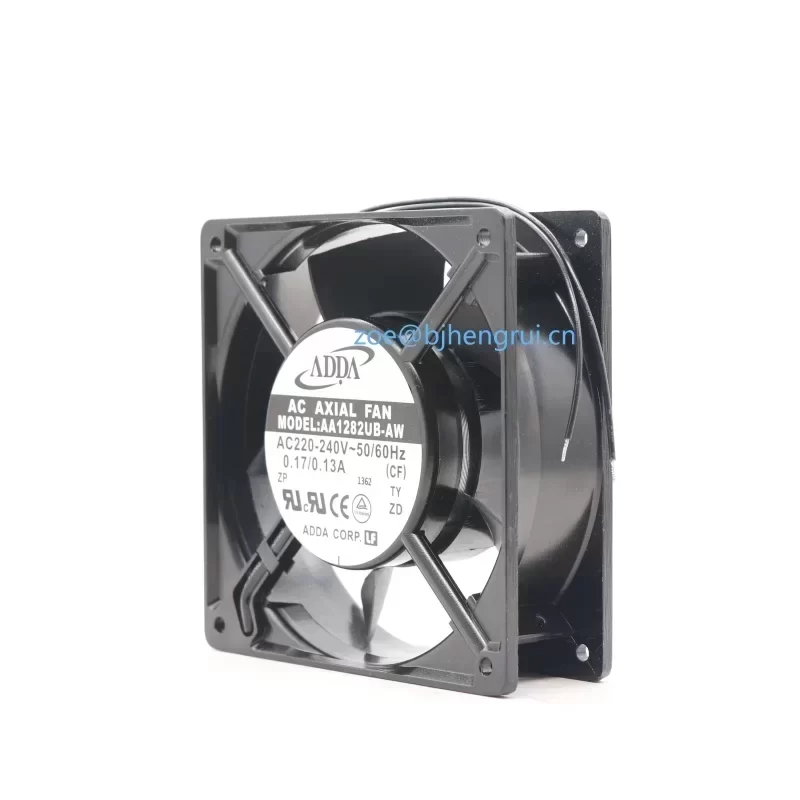

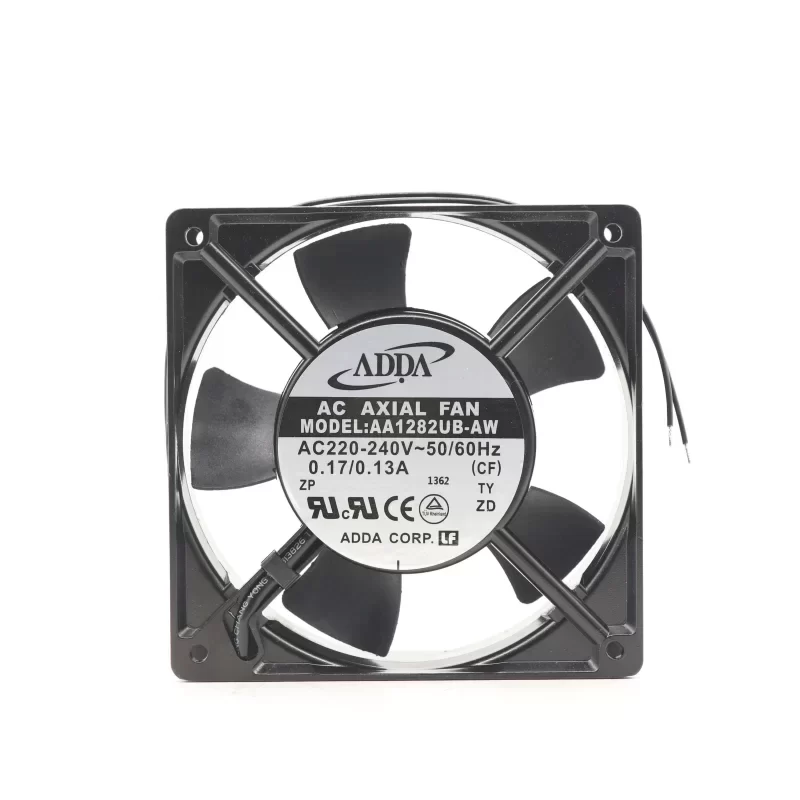

Name: ADDA AA1282UB-AW 120x120x38mm 220-240V AC Axial Fan
Brand: ADDA
SKU: 1600219438452
Availability: InStock
Rating: 5 (4 reviews)

$5.66

SKU: 1600219438452 Brand: ADDA

Description
Reviews (0)

Description

The ADDA AA1282UB-AW is a high-performance industrial axial cooling fan engineered for critical thermal management in high-density electronic environments. This 120 x 120 x 38 mm tubeaxial fan is specifically designed to operate within a 220 – 240 VAC power range, drawing 170mA with a power consumption of 25.3W. Utilizing a precision dual ball bearing system, the AA1282UB-AW ensures extended service life and reliable performance under continuous duty cycles, making it a standard component for elevator inverter systems and industrial control cabinets.

Technical Specifications:
Brand: ADDA
Model Number: AA1282UB-AW
Dimensions: 120 x 120 x 38 mm
Input Voltage: 220 – 240 VAC
Rated Current: 170mA
Power Input: 25.3W
Airflow Capacity: 107 CFM (2.83 m³/min)
Noise Level: 45.8 dBA
Bearing Type: Dual Ball Bearing
Connection: 2 Lead Wires
Frame Material: Reinforced industrial-grade housing
Weight: 1.000 kg

Industrial Applications:
The AA1282UB-AW is optimized for high-impedance applications where consistent airflow is mandatory to prevent component failure. It is widely deployed in elevator inverter cooling, server rack ventilation, and CNC machine control panels. Its robust construction allows for reliable operation in environments requiring high static pressure and efficient heat dissipation. This original engineering component is designed for free-standing or integrated mounting in heavy-duty electrical enclosures.

Procurement Information:
This product is available for global distribution with standard lead time schedules. Each unit is manufactured to meet rigorous industrial quality standards, ensuring compatibility with OEM specifications for maintenance and repair operations.

Key Attributes
Voltage: 220-240V
Mounting type: Free Standing
Type: Axial Cooling Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Plastic
Bearing type: Ball Bearing
Customized support: OEM
After-sales service provided: Online support
Place of origin: China
Brand name: ADDA
Model number: AA1282UB-AW
Type: Tubeaxial Fan
Dimension: 120x120x38mm
Air flow: 107 CFM
Current Rating: 170mA
Power Rating: 25.3W
Bearing Type: BALL
Noise Rating: 45.8dBA
Flow Rate: 2.83m³/min
Power Connection Type: 2 Lead Wires
Fan Frame Size: 120mm

Packaging and Delivery
Selling Units: Single item
Single package size: 21X21X12 cm
Single gross weight: 1.000 kg

ADDA AA1282UB-AW 120x120x38mm 220-240V AC Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
