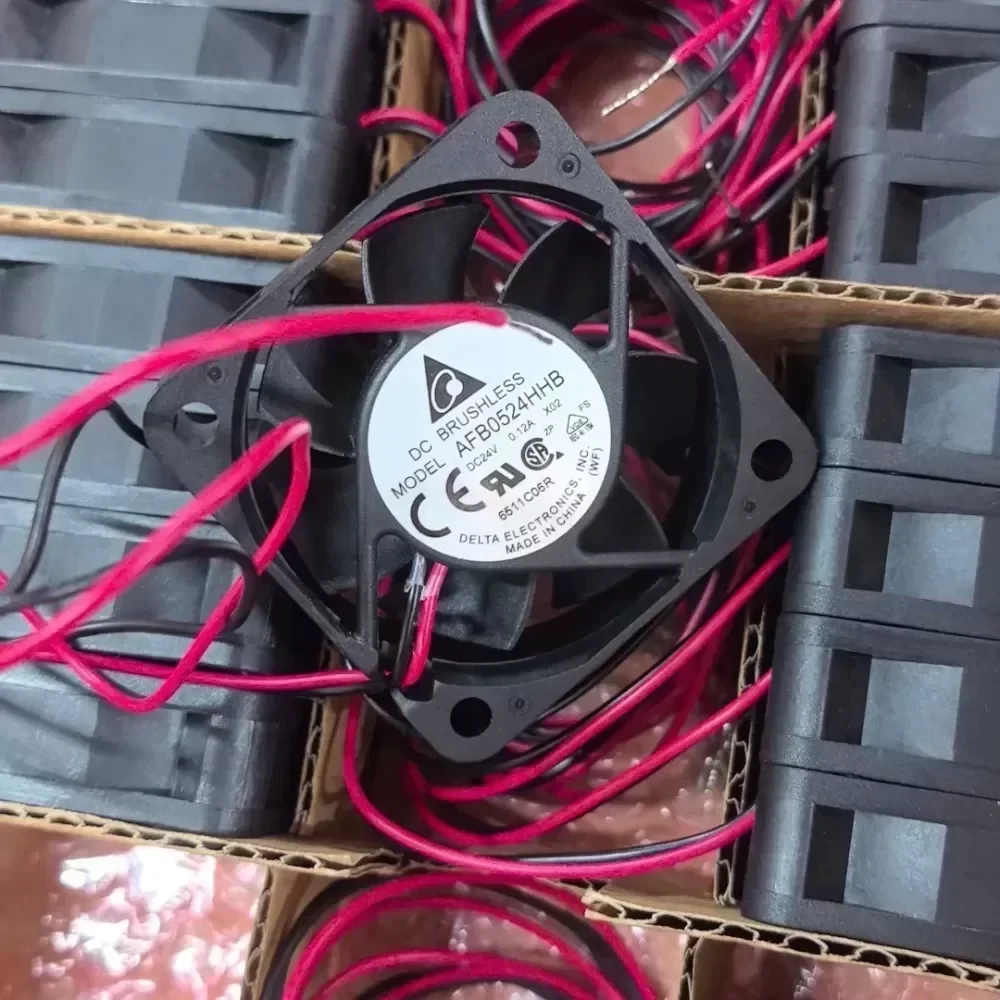

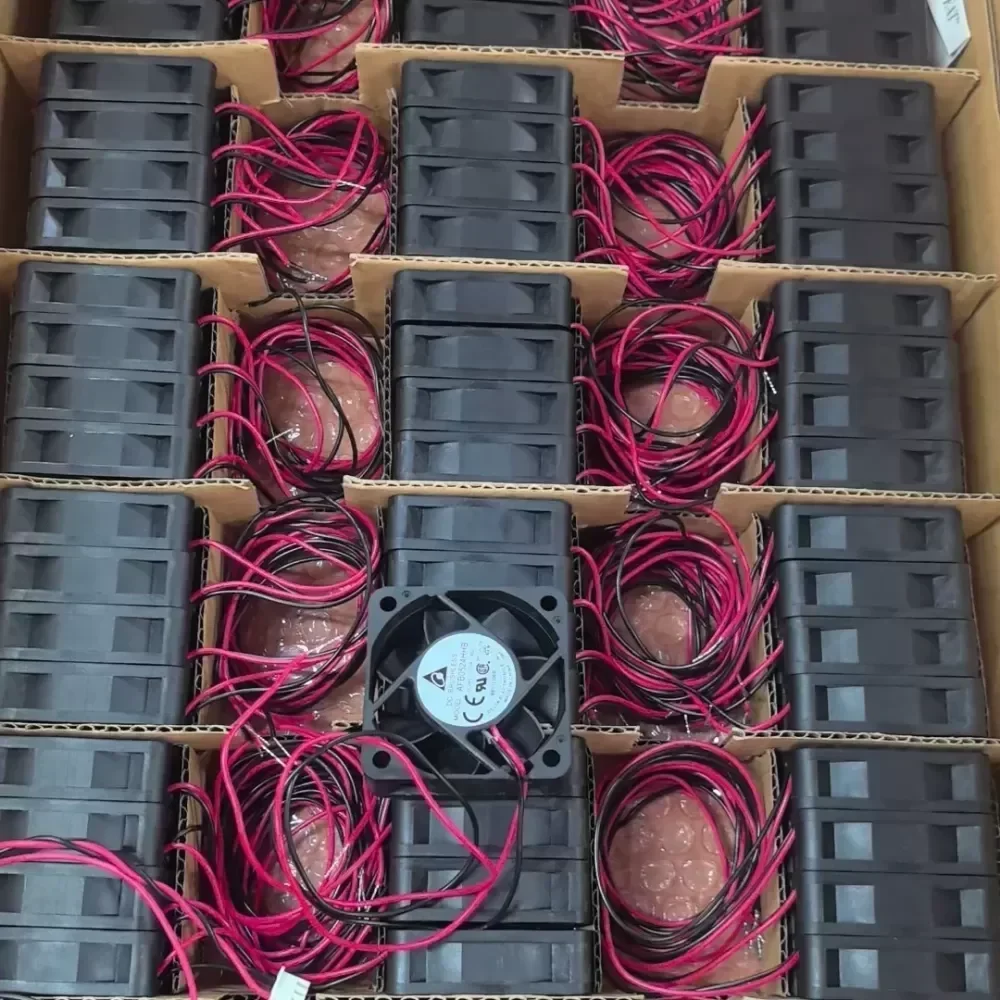

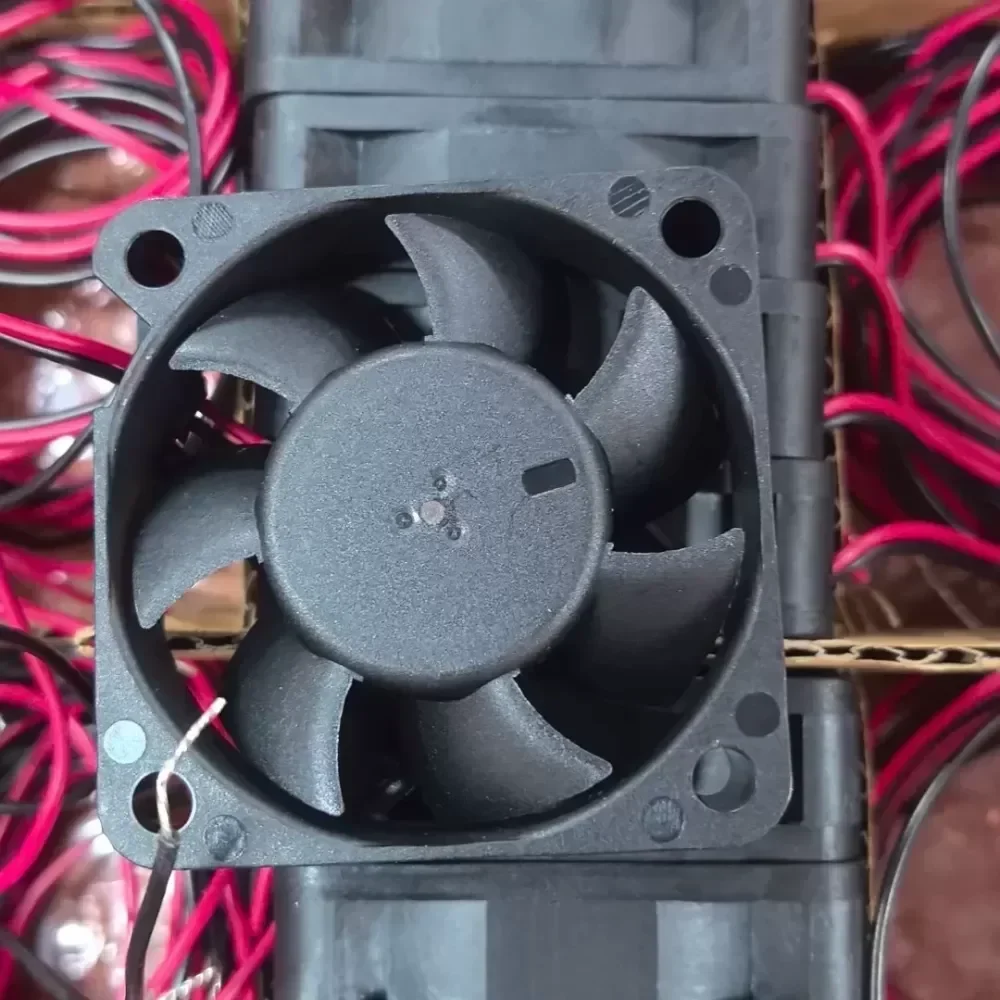

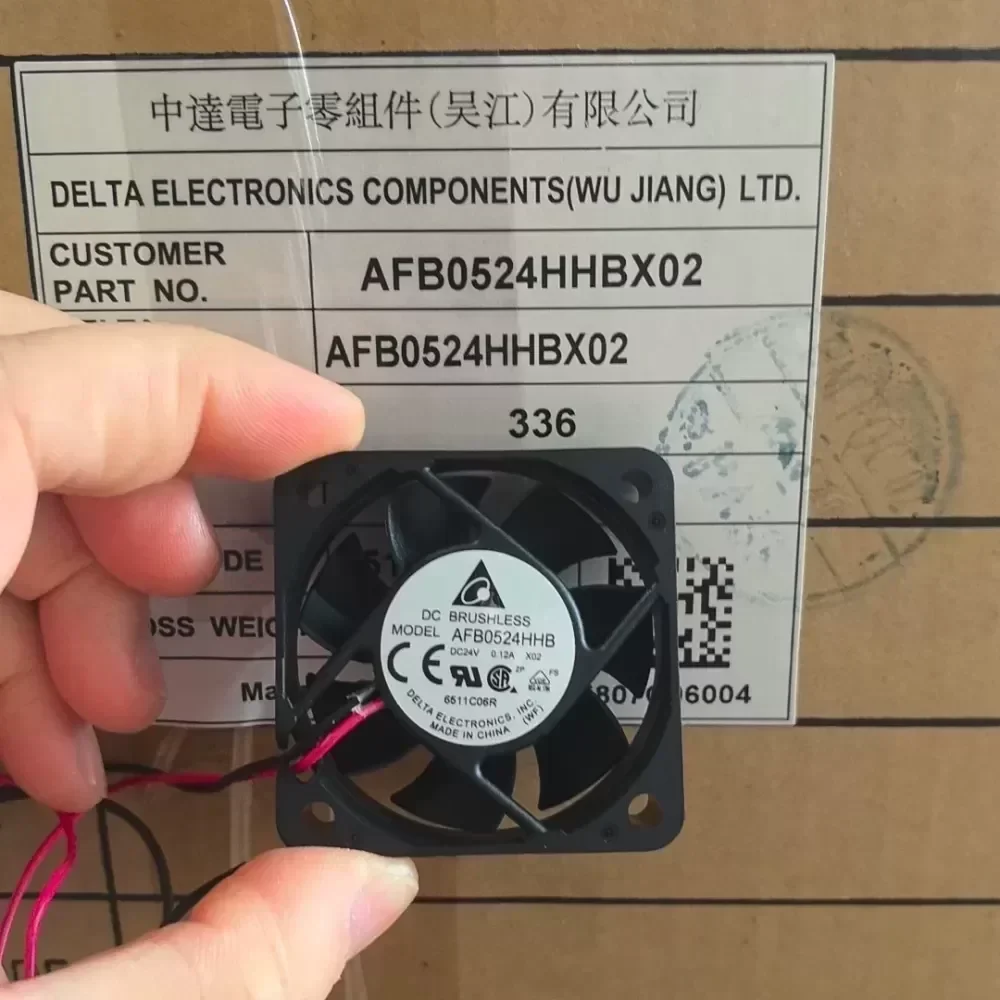

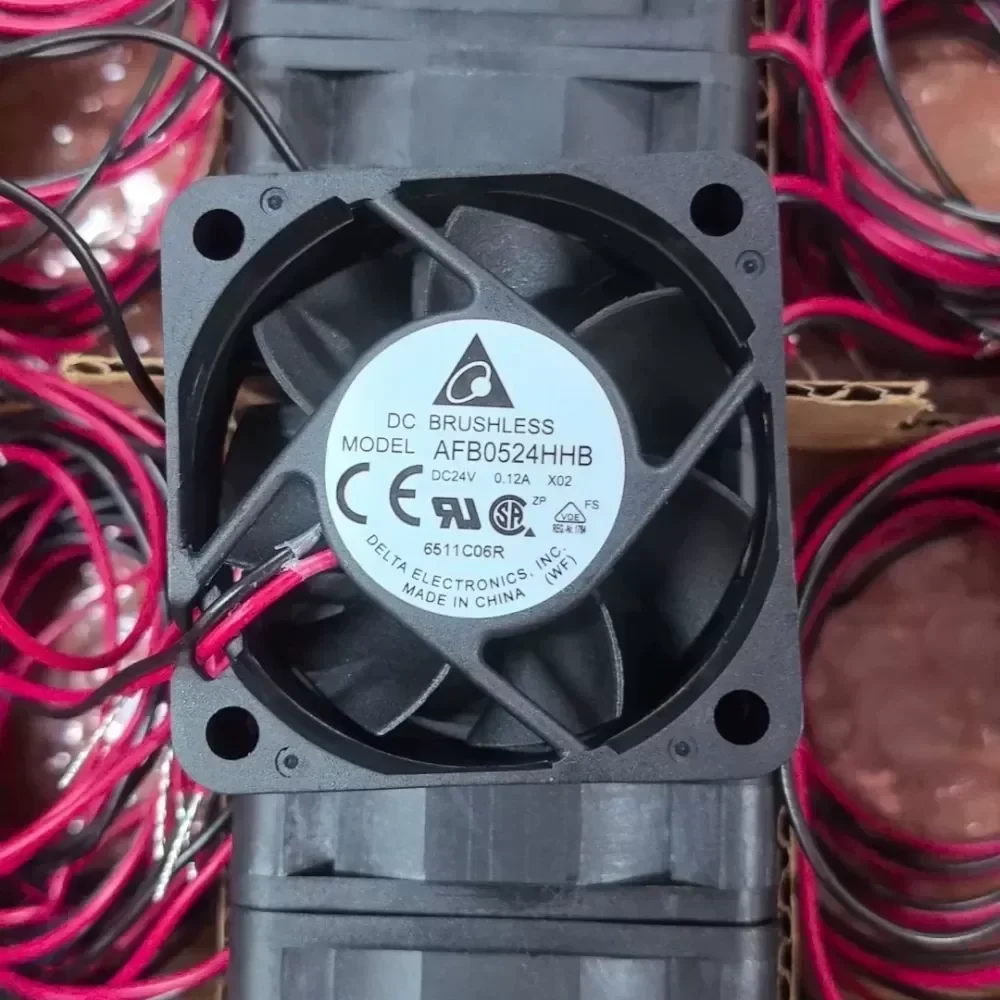

AFB0524HHB Delta 5CM fan

Name: AFB0524HHB Delta 5CM fan
Brand: Delta
SKU: 899935139468
Availability: InStock
Rating: 5 (4 reviews)

$3.57

SKU: 899935139468 Brand: Delta

Description
Reviews (0)

Description

This component represents Original Engineering from Delta Electronics, specifically designed for high-reliability thermal management in industrial inverters and compact electronic assemblies. The AFB0524HHB utilizes a precision dual ball bearing system to ensure longevity under continuous operation, offering superior Technical Compatibility with variable frequency drives (VFDs), server power supplies, and automation control modules requiring a standard 50mm form factor. Its high-static pressure design ensures effective cooling even in restricted airflow environments common in industrial enclosures.

TECHNICAL SPECIFICATIONS
Manufacturer: Delta Electronics
Model Series: AFB
Part Number: AFB0524HHB
Dimensions: 50mm x 50mm x 15mm
Rated Voltage: 24V DC
Operating Voltage Range: 14.0V to 27.6V DC
Rated Current: 0.12 A
Input Power: 2.88 W
Nominal Speed: 6400 RPM
Maximum Airflow: 16.24 CFM (0.46 m³/min)
Maximum Static Pressure: 7.65 mmH2O (0.301 inH2O)
Acoustic Noise: 36.0 dB-A
Bearing Type: Maintenance-Free Dual Ball Bearing
Housing Material: Glass Fiber Reinforced PBT (UL 94V-0)
Impeller Material: Glass Fiber Reinforced PBT (UL 94V-0)
Operating Temperature: -10°C to +70°C
Life Expectancy: 70,000 Hours (at 40°C)
Termination: Lead Wire UL 1007 AWG #24
Safety Certifications: UL, cUL, TUV, CE

INDUSTRIAL APPLICATION
The AFB0524HHB is specifically engineered to mitigate thermal saturation in high-density control cabinets and frequency inverters where high static pressure is required to overcome system impedance. Its high-speed (HHB) profile delivers concentrated airflow through dense heatsink fins, preventing thermal throttling in critical automation equipment. Please verify your specific connector requirements to ensure immediate integration. Contact our team for current Lead Time and volume availability.

AFB0524HHB Delta 5CM fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
