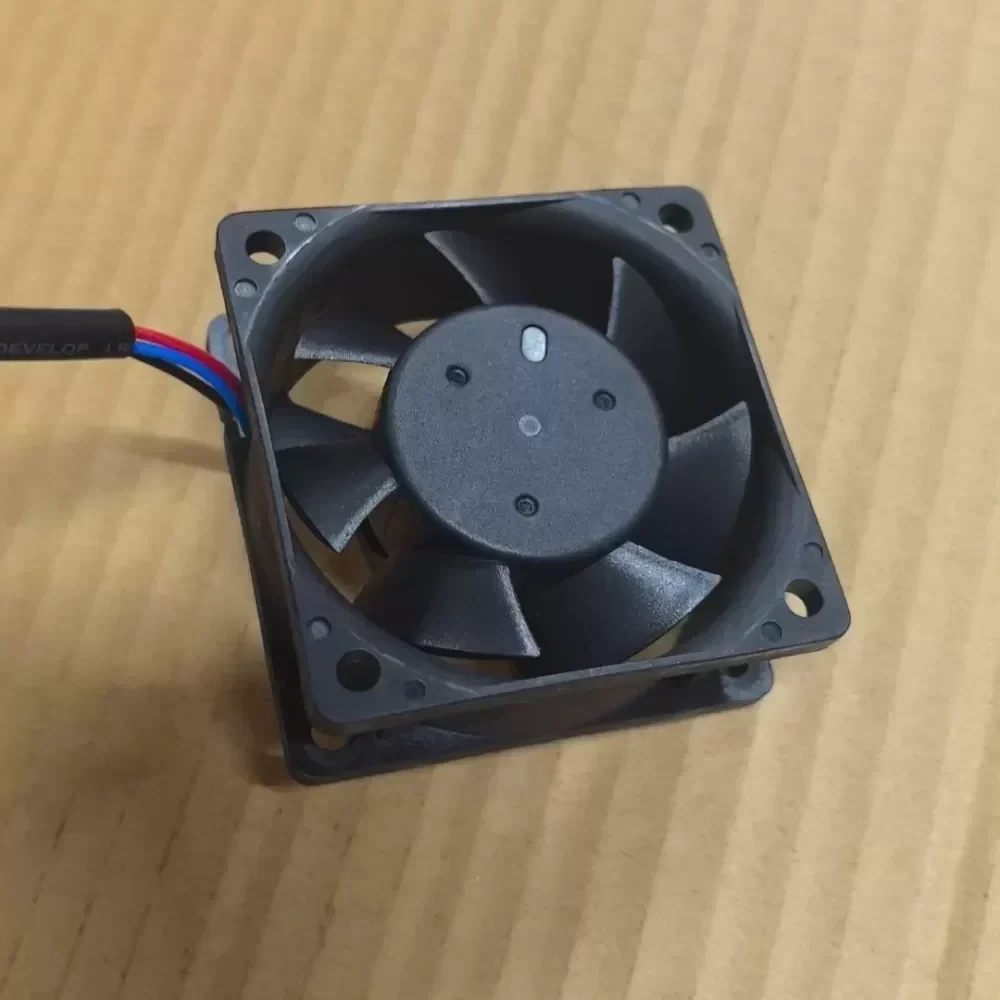

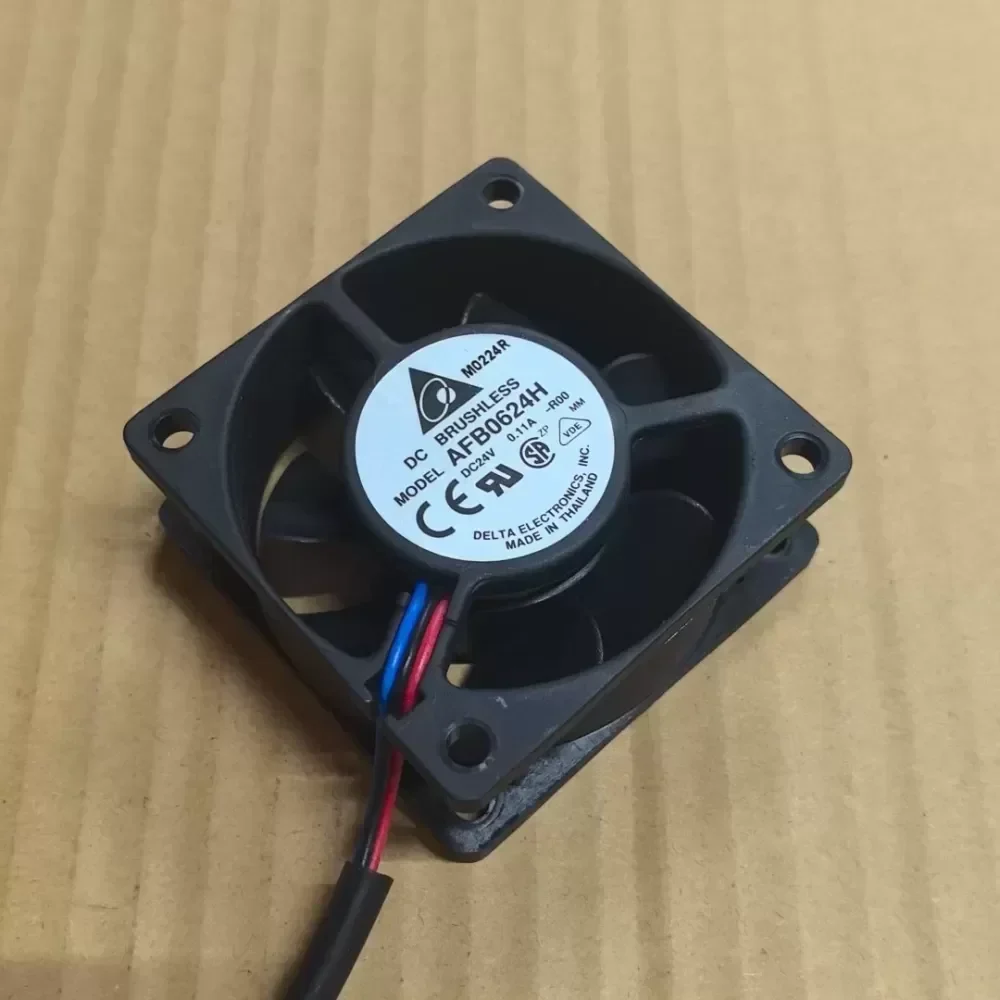

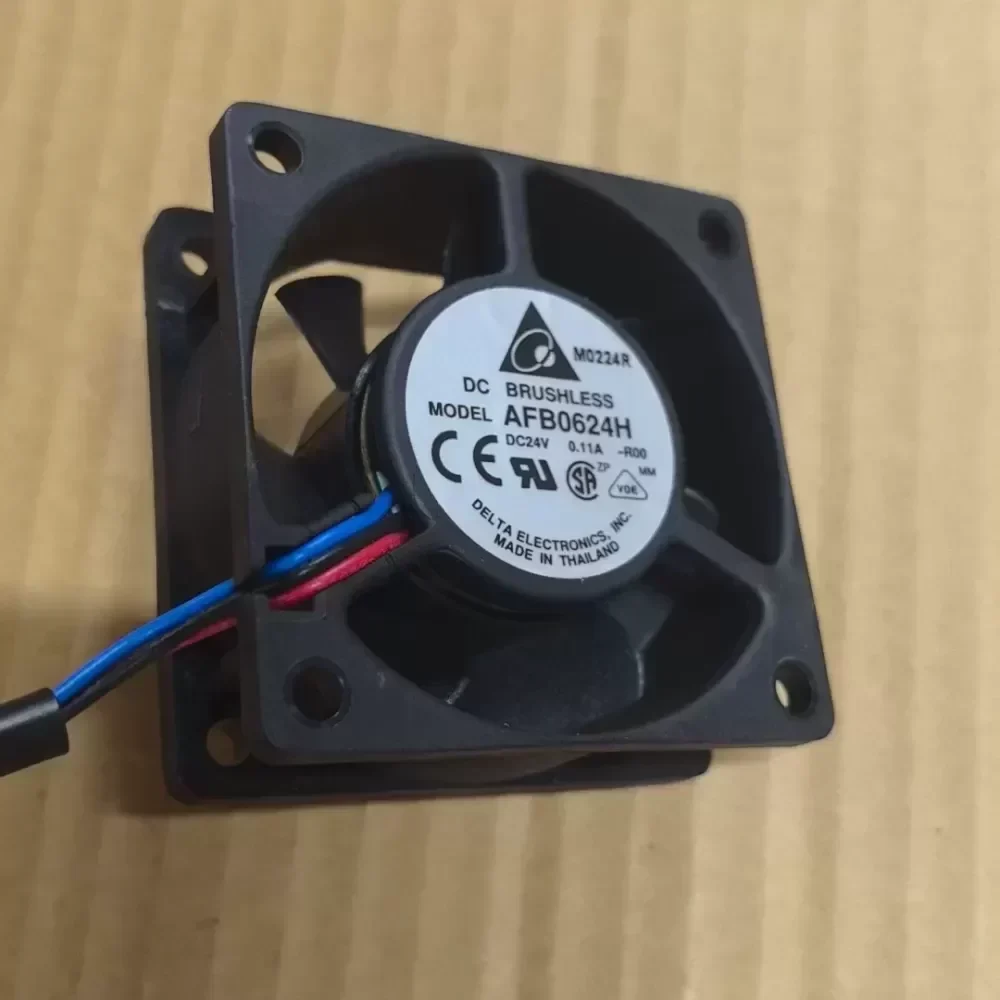

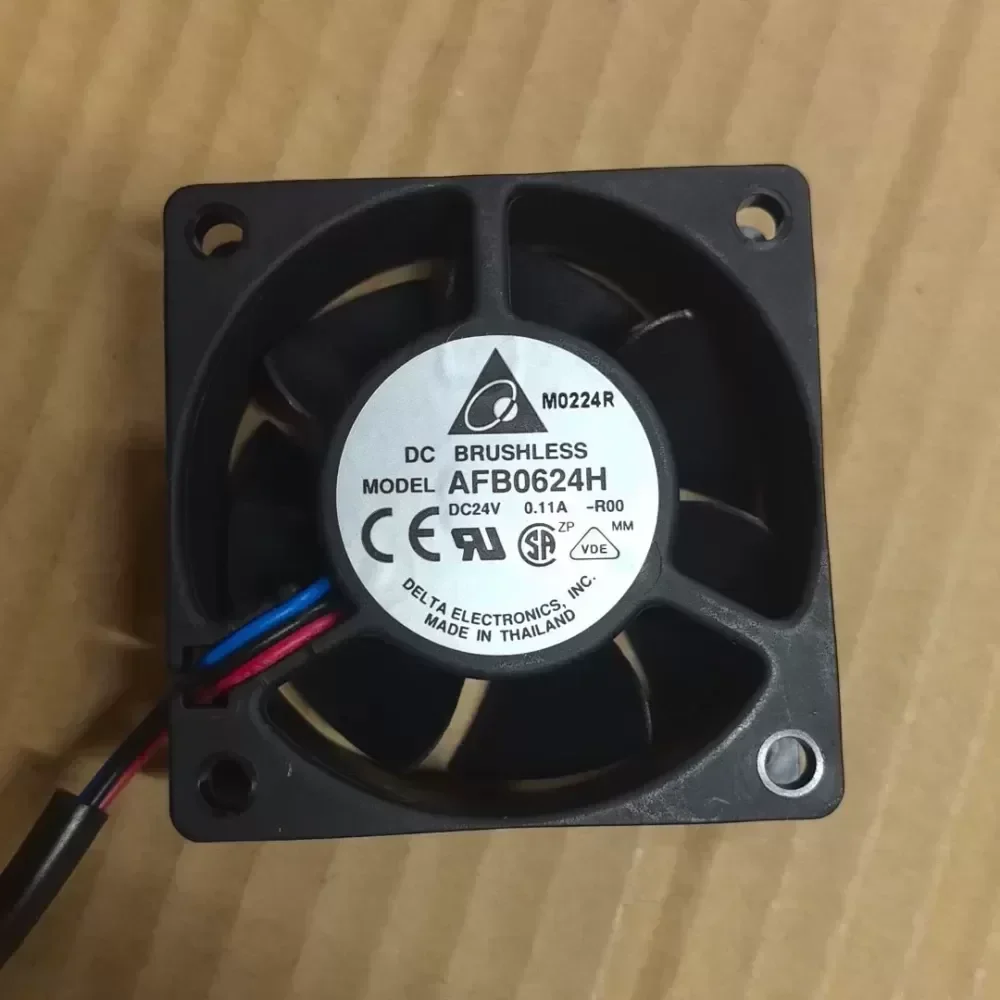

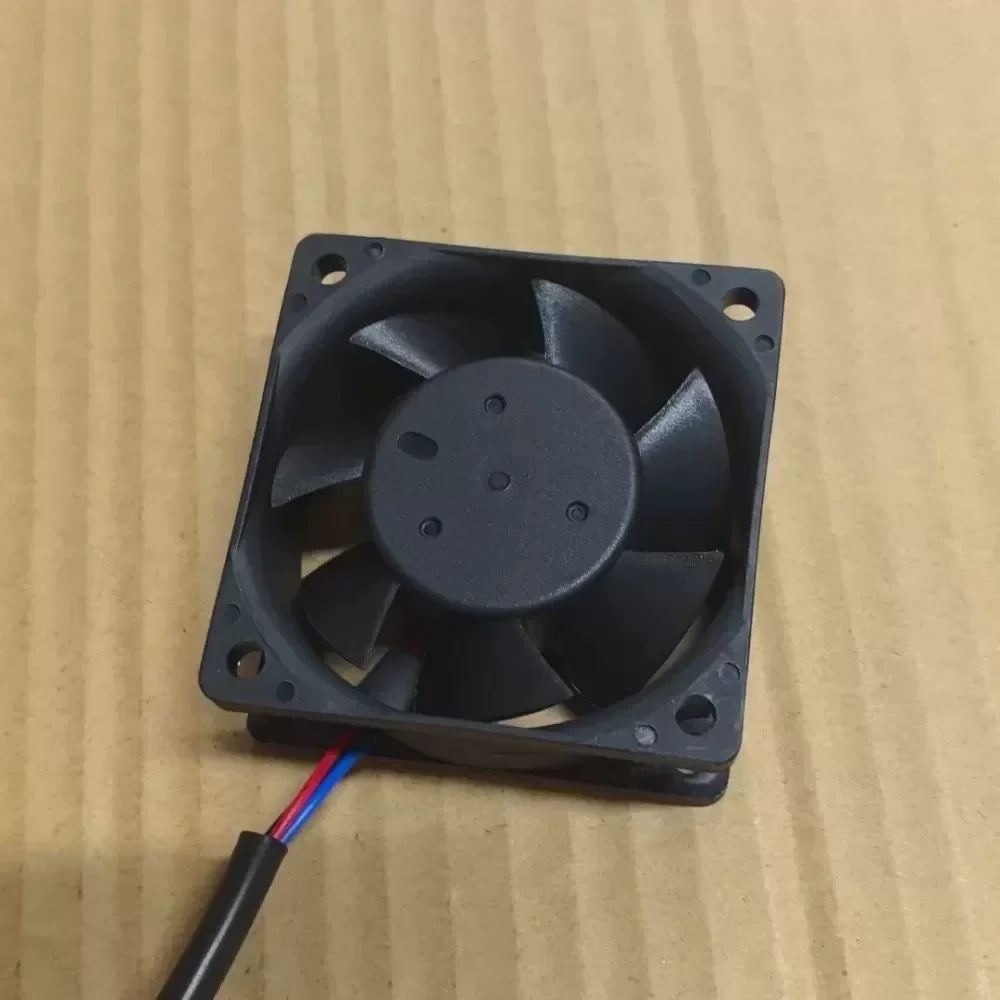

AFB0624H-R00 Delta 6025 fan

Name: AFB0624H-R00 Delta 6025 fan
Brand: Delta
SKU: 912777393103
Availability: InStock
Rating: 5 (4 reviews)

$3.14

SKU: 912777393103 Brand: Delta

Description
Reviews (0)

Description

The Delta Electronics AFB0624H-R00 is a precision-engineered DC axial fan belonging to the AFB series, designed specifically for high-reliability thermal management in industrial enclosures and server architectures. This unit utilizes Original Engineering standards to deliver consistent airflow with a specialized Rotation Detector (R00) output signal, ensuring immediate system feedback during fan failure or locked rotor conditions. The construction features a dual ball bearing system, significantly extending the operational lifecycle compared to sleeve bearing alternatives, ensuring long-term Technical Compatibility with continuous-duty equipment.

Manufacturer: Delta Electronics
Model Number: AFB0624H-R00
Component Type: DC Axial Fan
Dimensions: 60 x 60 x 25 mm
Rated Voltage: 24V DC
Operating Voltage Range: 14.0 to 27.6 VDC
Rated Current: 0.11 A
Input Power: 2.64 W
Nominal Speed: 4250 RPM
Maximum Airflow: 27.55 CFM (0.780 m³/min)
Maximum Static Pressure: 5.35 mmH₂O (0.210 inH₂O)
Acoustic Noise: 34.0 dB-A
Bearing Type: Dual Ball Bearing
Sensor Output: R00 (Rotation Detector / Locked Rotor Signal)
Housing Material: PBT Plastic (UL 94V-0)
Impeller Material: PBT Plastic (UL 94V-0)
Operating Temperature: -10°C to +70°C
Life Expectancy: 70,000 hours (at 40°C)
Weight: 80 g
Termination: 3-Wire Lead

Industrial Application:
This specific cooling module is engineered for deployment in rack-mounted telecommunications equipment and industrial automation control panels where active cooling redundancy is critical. The integrated R00 sensor signal interfaces directly with logic controllers to trigger alarms or shutdown sequences if the impeller rotation ceases, preventing catastrophic thermal damage to sensitive power supply units (PSUs) or FPGA arrays. Contact us to verify current Lead Time and bulk availability for maintenance schedules.

AFB0624H-R00 Delta 6025 fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
