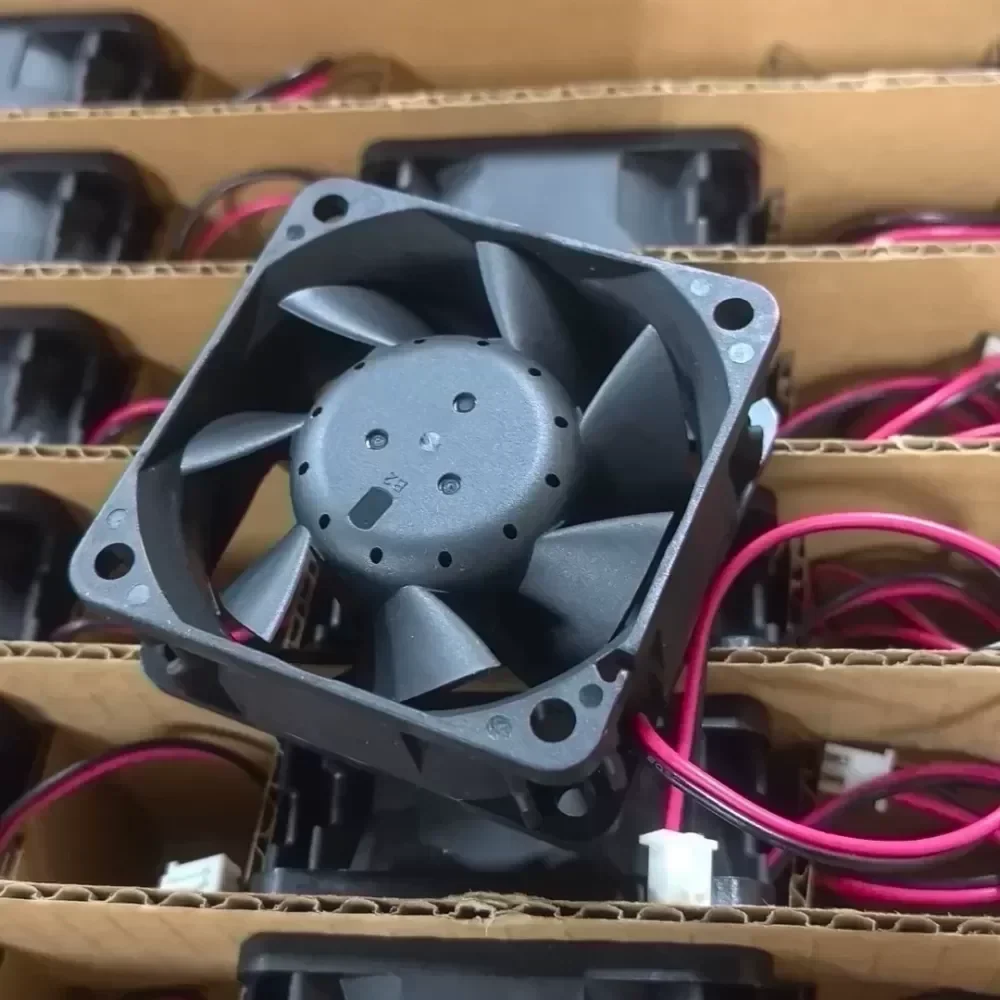

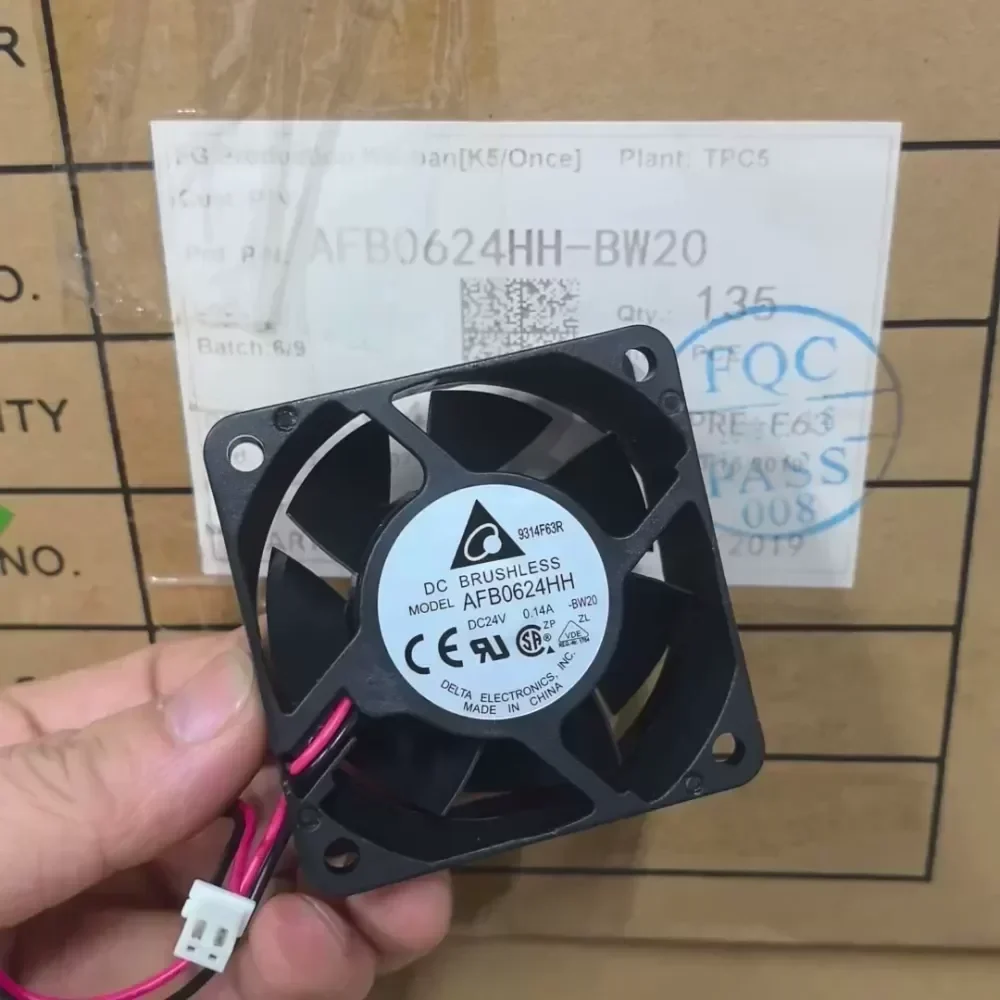

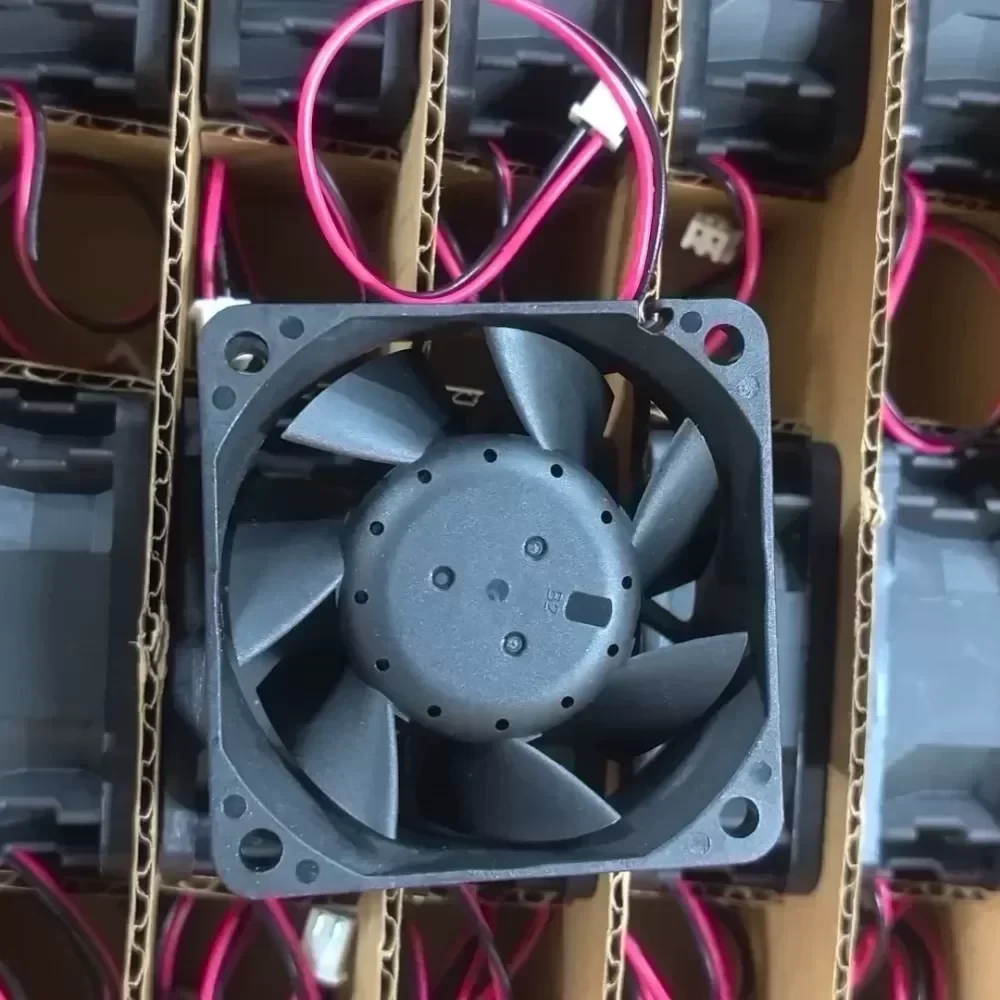

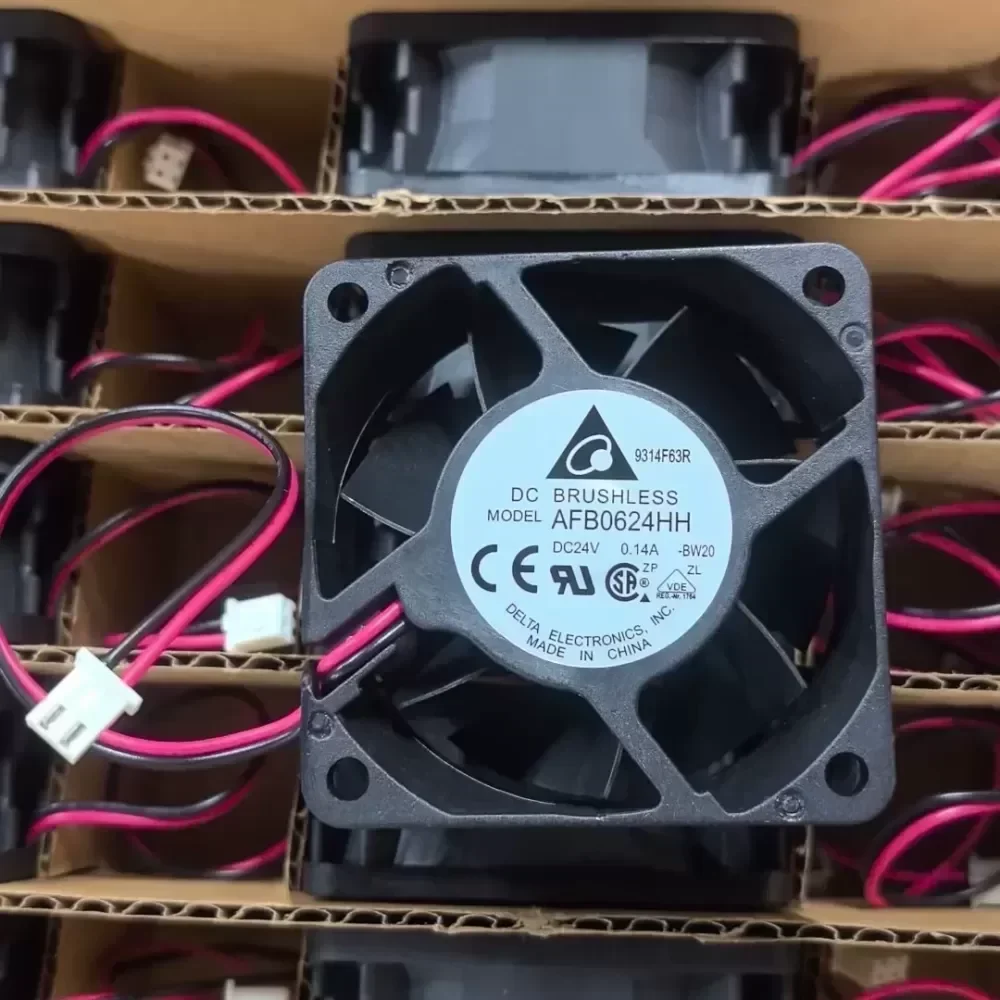

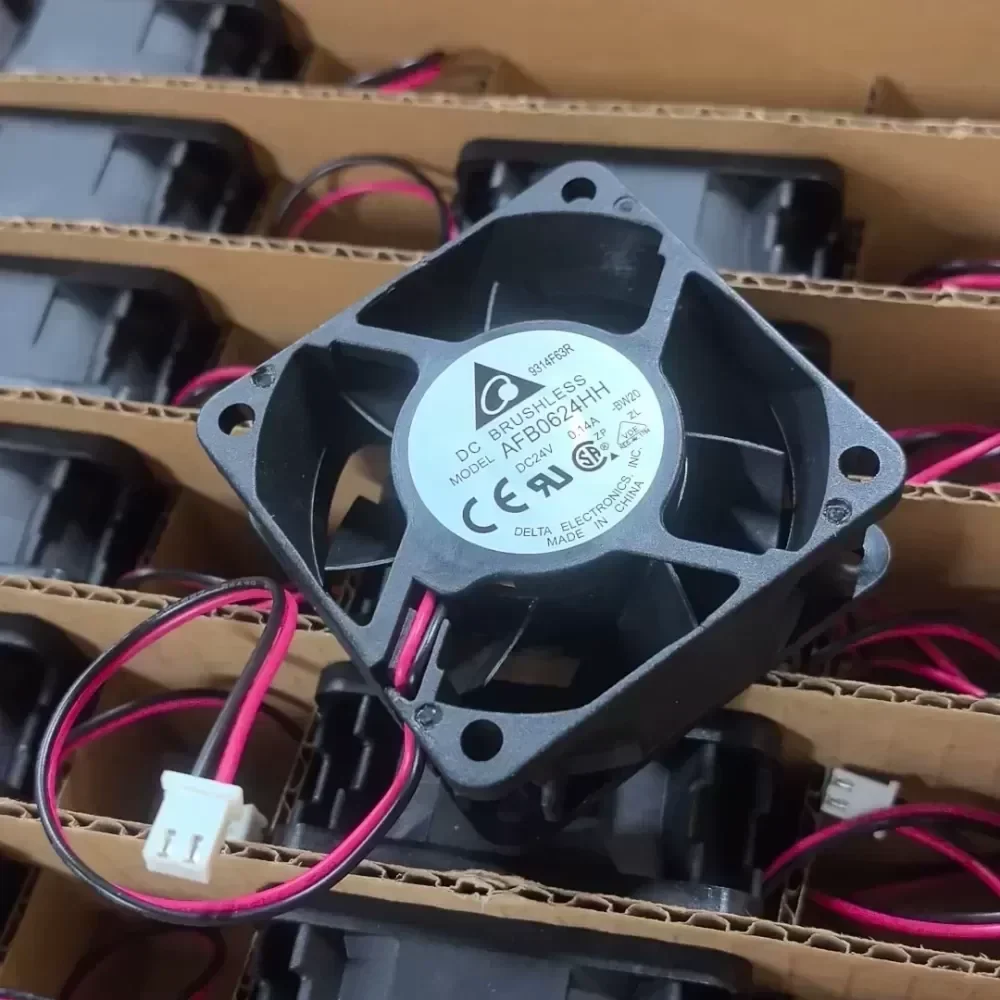

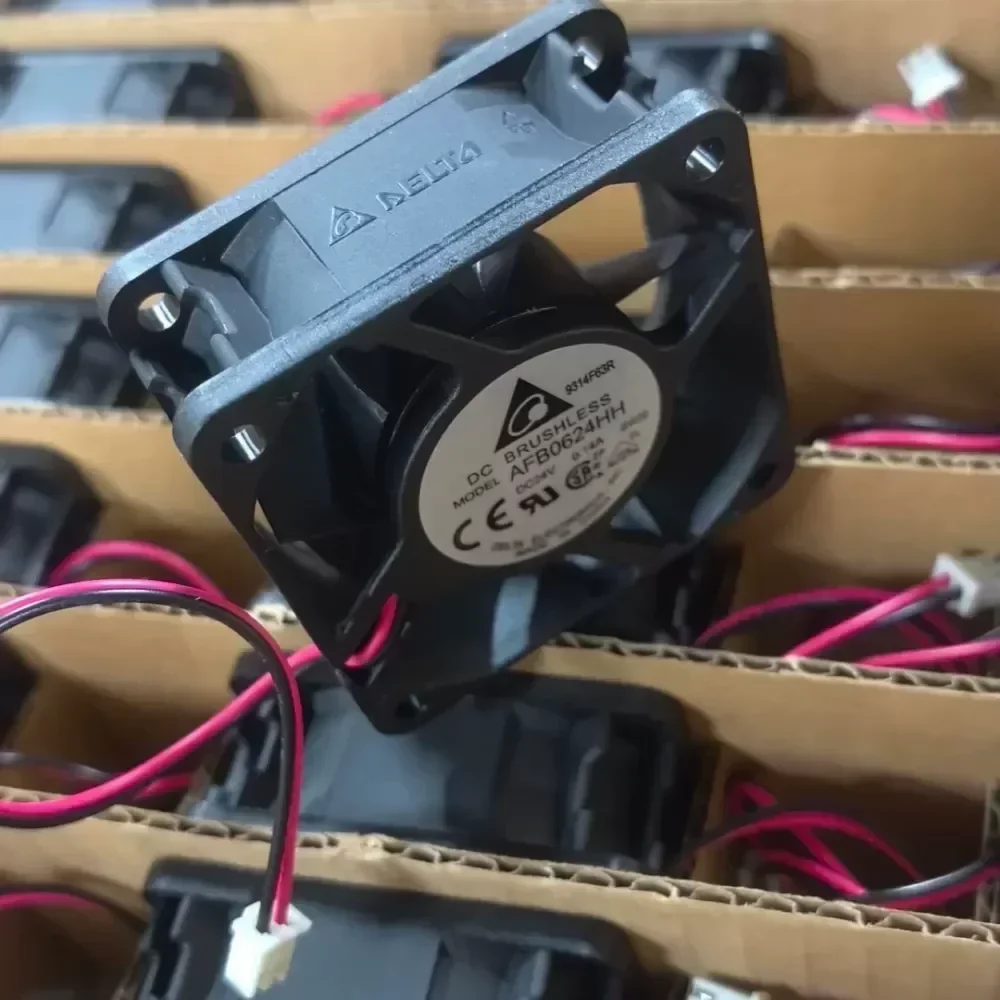

AFB0624HH Delta 6025/24V ball fan

Name: AFB0624HH Delta 6025/24V ball fan
Brand: Delta
SKU: 903747956463
Availability: InStock
Rating: 5 (4 reviews)

$3.57

SKU: 903747956463 Brand: Delta

Description
Reviews (0)

Description

The Delta Electronics AFB0624HH is a high-performance 60mm axial DC fan designed for critical thermal management in industrial automation and telecommunications infrastructure. Representing Original Engineering from the AFB series, this unit utilizes a precision Dual Ball Bearing system to maximize lifecycle value and minimize frictional wear under continuous operation. The model suffix ‘HH’ denotes a high-speed configuration, delivering optimized airflow-to-noise ratios suitable for high-density electronic enclosures. This component ensures Technical Compatibility with standard 24V DC cooling circuits found in server racks, power inverters, and CNC control panels.

Technical Specifications:
Manufacturer: Delta Electronics
Model: AFB0624HH
Component Type: DC Axial Fan
Dimensions: 60mm x 60mm x 25mm
Rated Voltage: 24V DC
Operating Voltage Range: 14.0V – 27.6V DC
Rated Current: 0.14A
Input Power: 3.36W
Rotational Speed: 5000 RPM ±10%
Maximum Airflow: 27.55 CFM (0.78 m³/min)
Static Pressure: 7.68 mmH₂O (0.302 inH₂O)
Acoustical Noise: 40.0 dB-A
Bearing System: 2-Ball Bearing
Life Expectancy: 70,000 Hours at 40°C
Frame Material: PBT Thermoplastic (UL 94V-0)
Impeller Material: PBT Thermoplastic (UL 94V-0)
Lead Wire: UL 1007 AWG #24
Safety Approvals: UL, cUL, TUV, VDE

Application Analysis:
The AFB0624HH is specifically engineered for applications requiring high static pressure to push air through restricted spaces, such as 1U/2U server chassis or tightly packed industrial power supplies. Its 24V architecture and compact 6025 form factor provide a drop-in replacement solution for legacy cooling systems, preventing thermal shutdowns in mission-critical hardware. Please verify current Lead Time for bulk procurement.

AFB0624HH Delta 6025/24V ball fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
