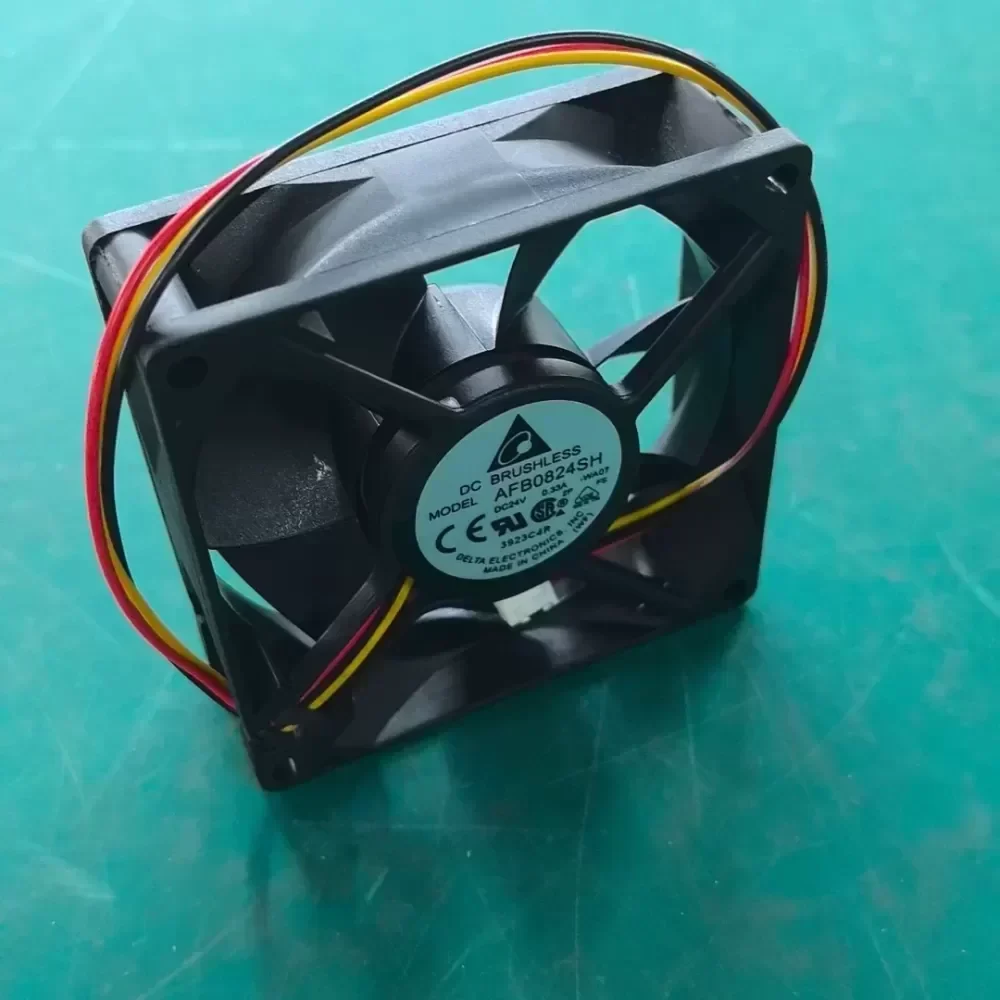

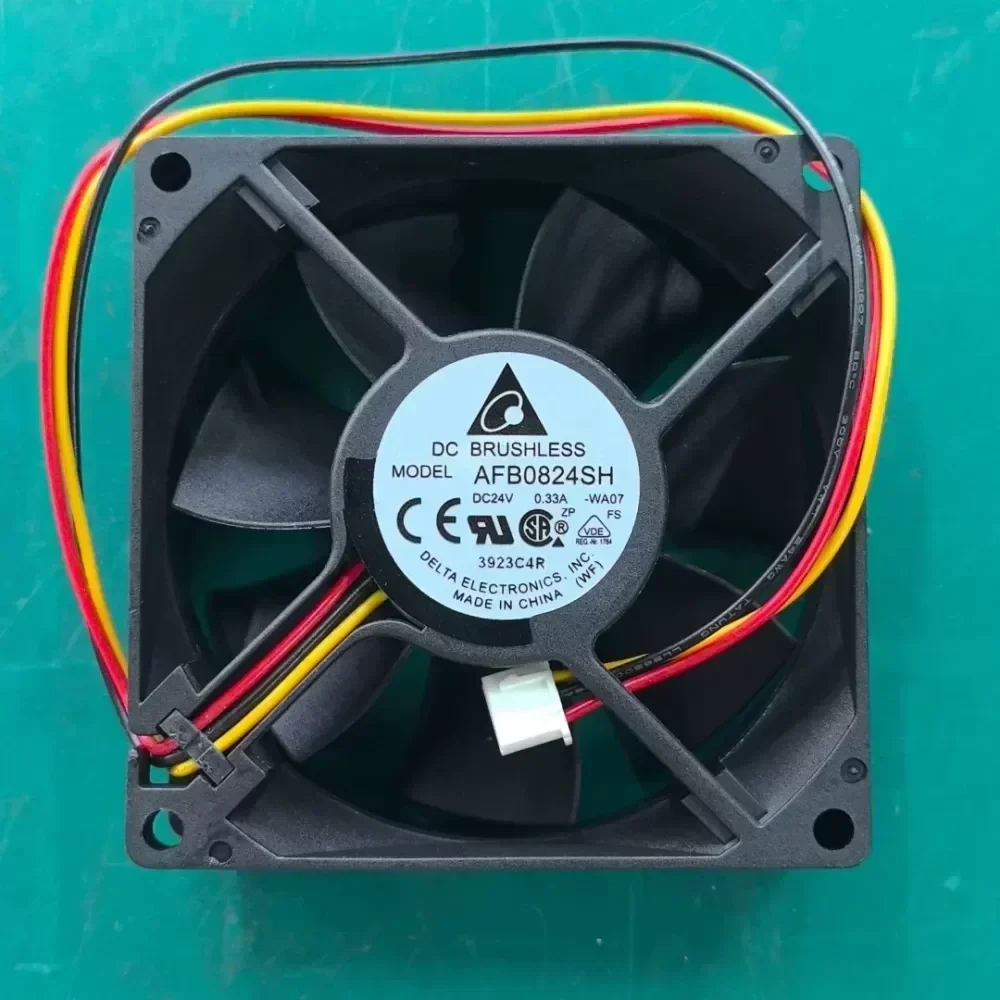

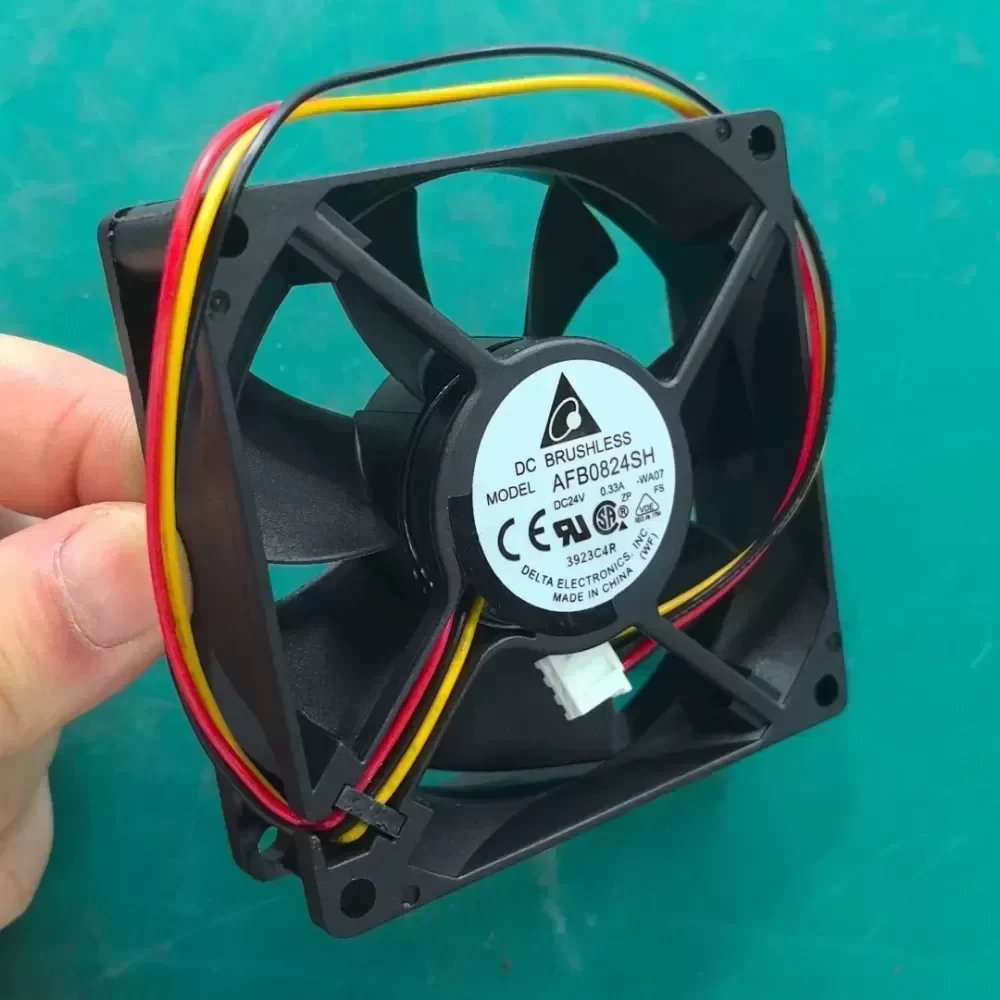

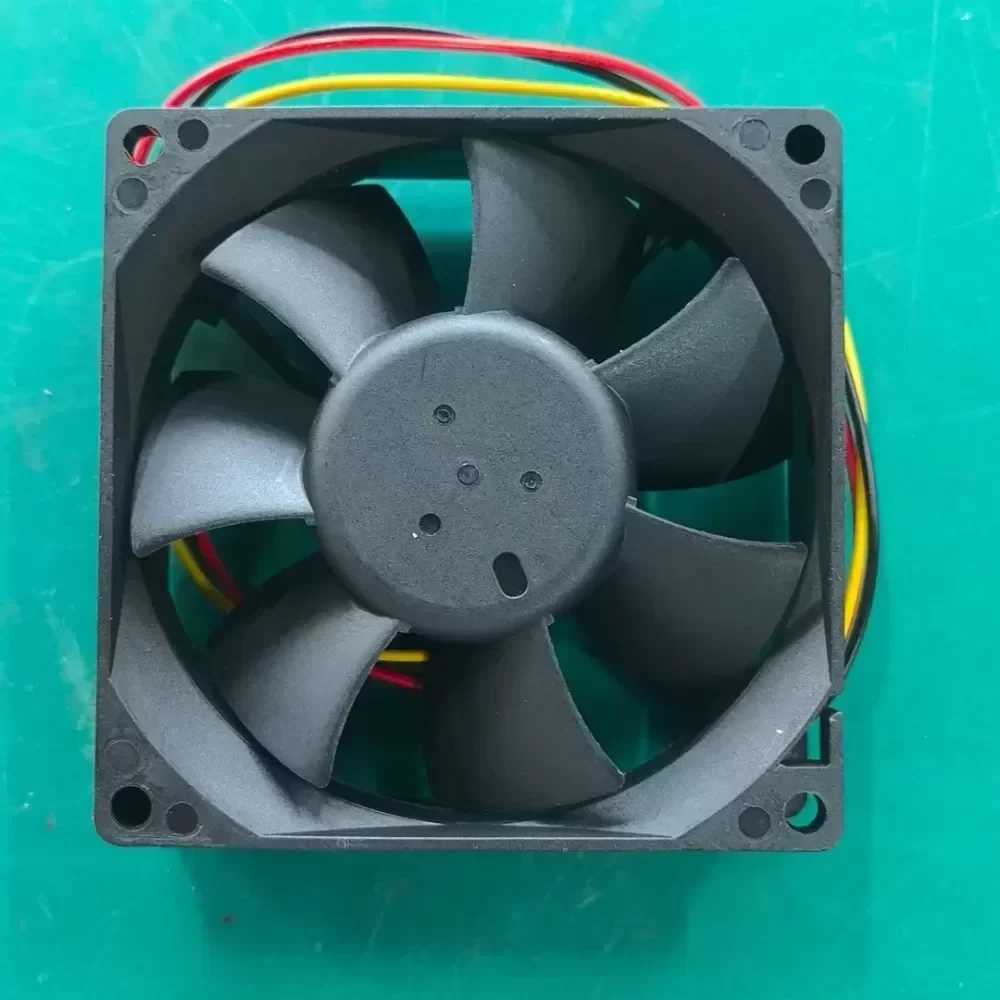

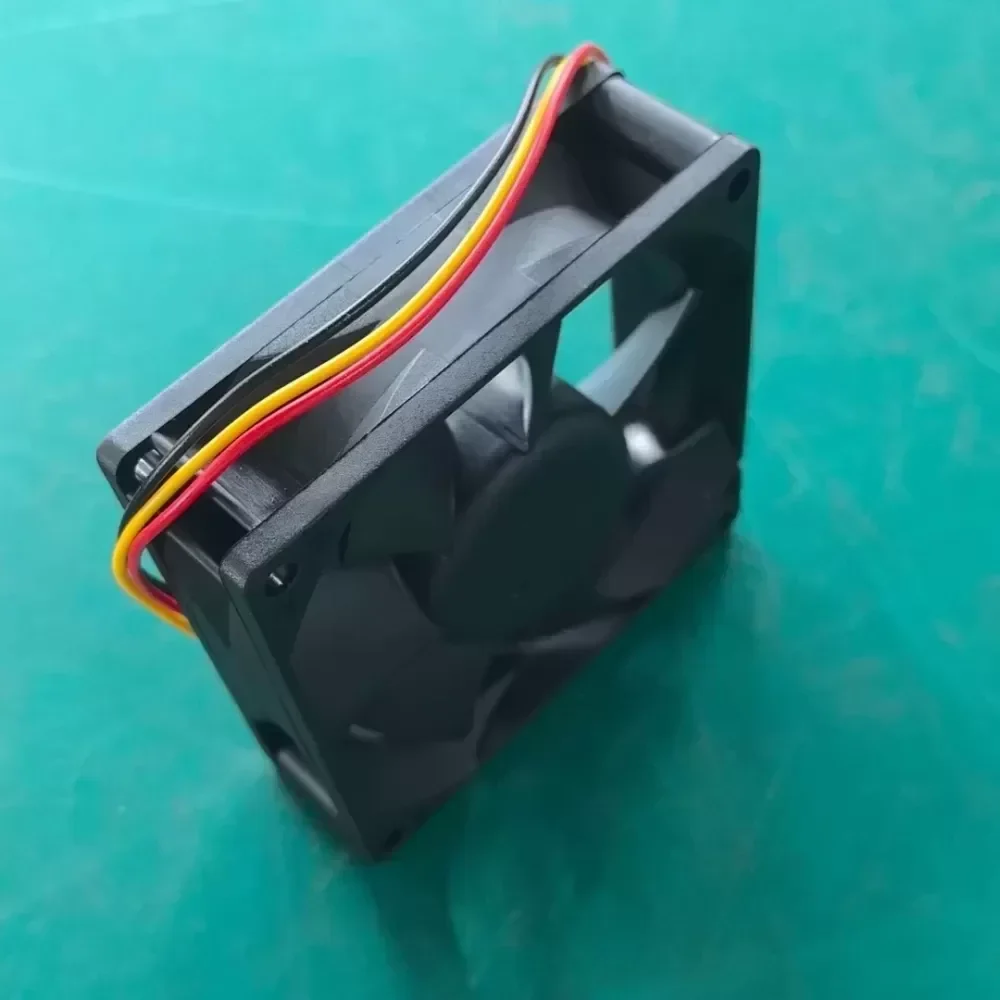

AFB0824SH Delta 24V 0.33A fan

Name: AFB0824SH Delta 24V 0.33A fan
Brand: Delta
SKU: 931473974933
Availability: InStock
Rating: 5 (4 reviews)

$4.00

SKU: 931473974933 Brand: Delta

Description
Reviews (0)

Description

The Delta AFB0824SH is a high-performance 80mm axial cooling fan designed for critical thermal management in industrial automation and telecommunications infrastructure. This unit utilizes a dual ball bearing system to ensure mechanical stability and extended lifecycle performance in continuous 24/7 operations. Engineered for high-density electronic enclosures, the AFB0824SH maintains Technical Compatibility with original engineering specifications for power inverters and frequency converters.

Technical Specifications:
Manufacturer: Delta Electronics
Model Number: AFB0824SH
Frame Size: 80 x 80 x 25 mm
Nominal Voltage: 24 VDC
Operating Voltage Range: 14.0 to 27.6 VDC
Rated Current: 0.33 A
Input Power: 7.92 W
Rated Speed: 4000 RPM
Maximum Airflow: 46.62 CFM (1.320 m³/min)
Maximum Static Pressure: 6.78 mmH2O (0.267 inH2O)
Noise Level: 40.0 dB-A
Bearing Type: Dual Ball Bearing
Termination: 3-Wire Lead Wires
Signal Output: Locked Rotor Alarm / Speed Sensor
Frame Material: UL 94V-0 Plastic (PBT)
Impeller Material: UL 94V-0 Plastic (PBT)
Operating Temperature: -10 °C to +70 °C
Storage Temperature: -40 °C to +75 °C
Life Expectancy: 70,000 Hours at 40 °C
Weight: 80 g
Safety Certifications: UL, CUL, TUV, CE
Ingress Protection: Standard Industrial Rating

Industrial Application:
The Delta AFB0824SH is optimized for high-resistance airflow paths where static pressure is vital for heat dissipation. In industrial server chassis and power conversion systems, the integrated 3-wire fault alarm provides real-time monitoring to prevent thermal runaway. This component is a critical spare part for maintaining system integrity, offering reduced Lead Time for maintenance cycles. Its robust construction ensures reliable operation in environments with fluctuating thermal loads, making it the standard for Original Engineering replacements in mission-critical hardware.

AFB0824SH Delta 24V 0.33A fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
