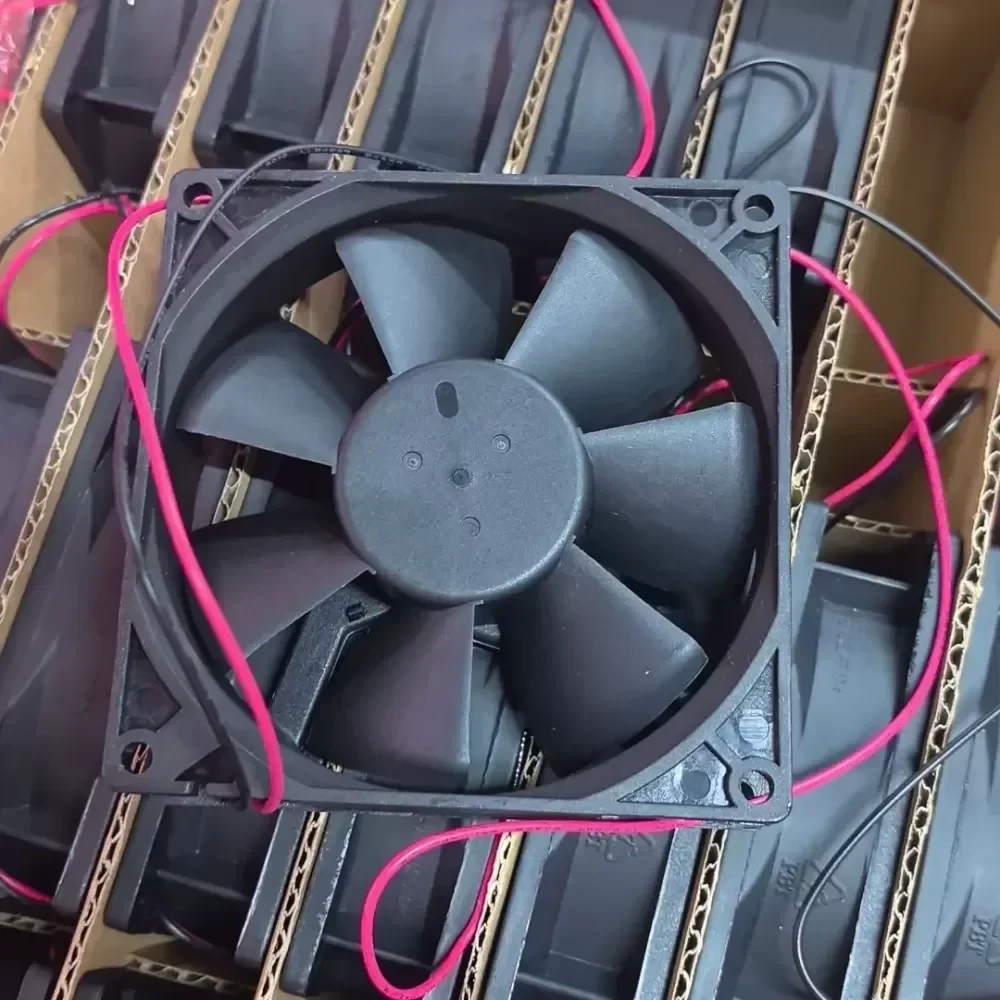

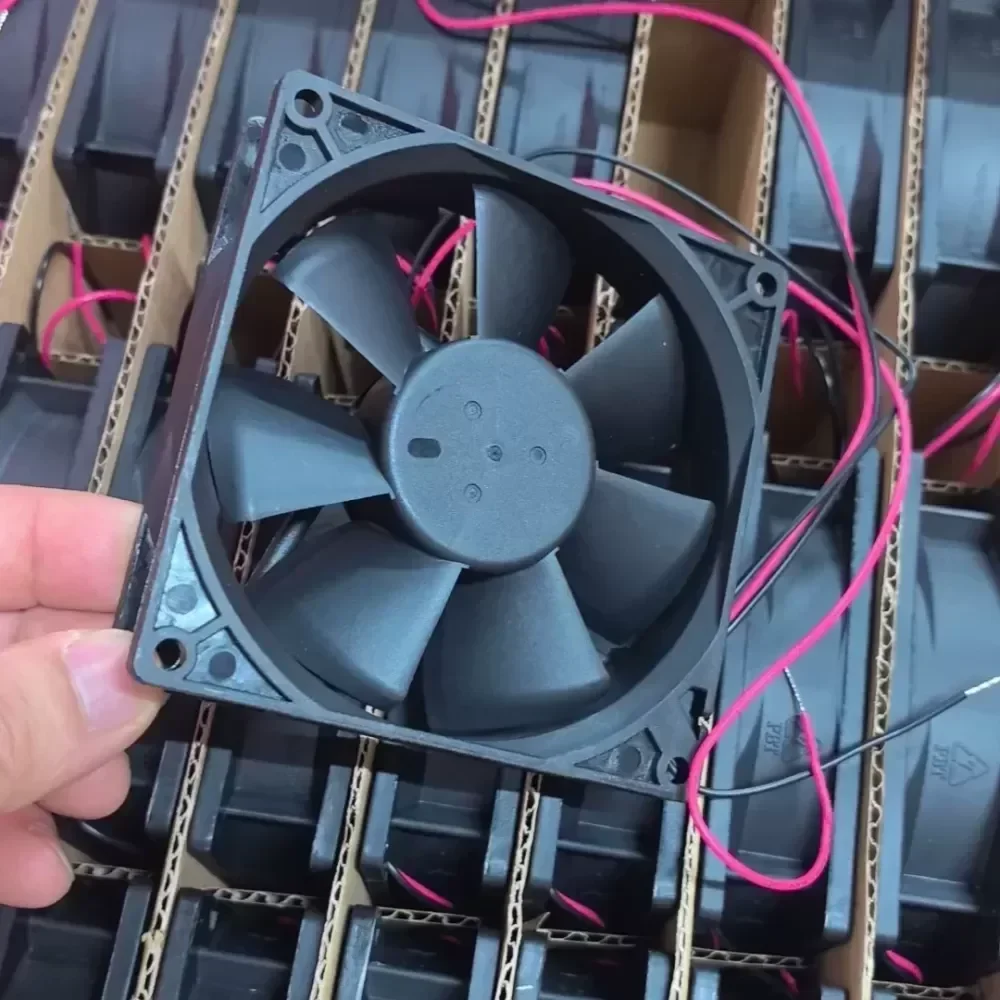

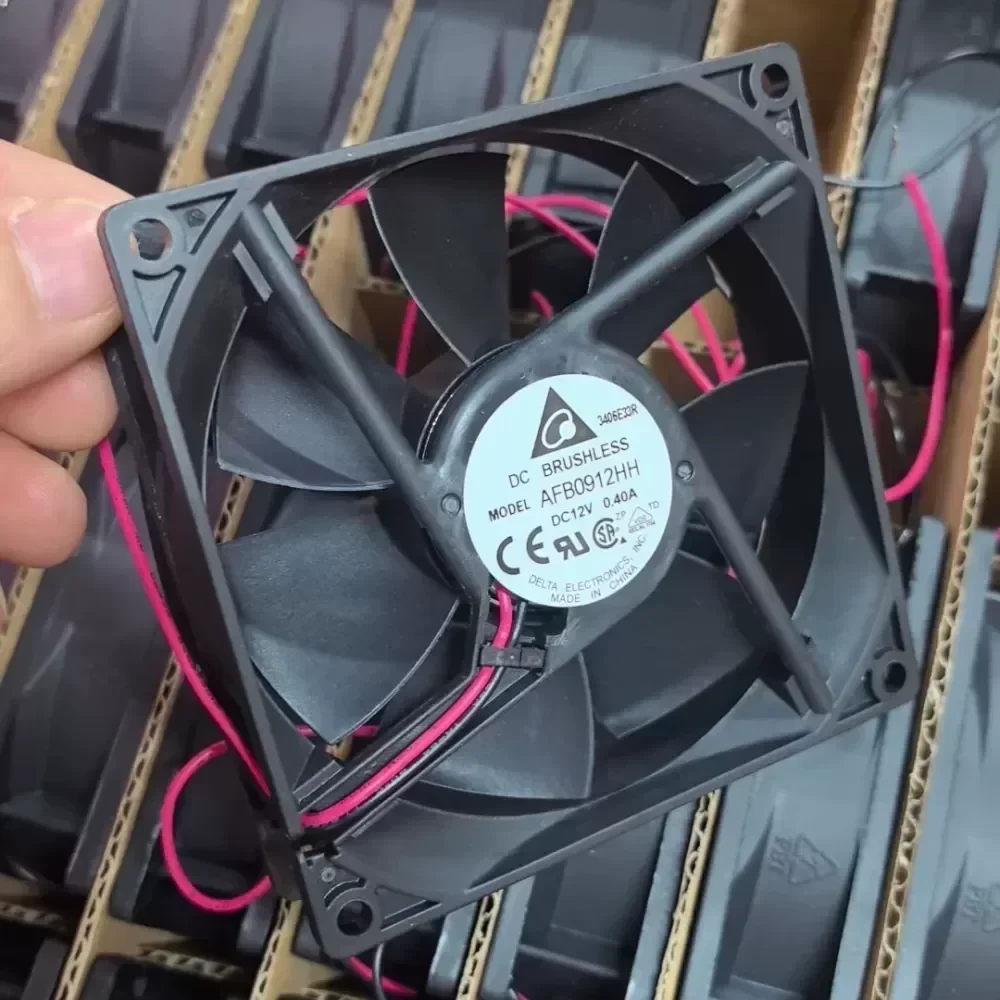

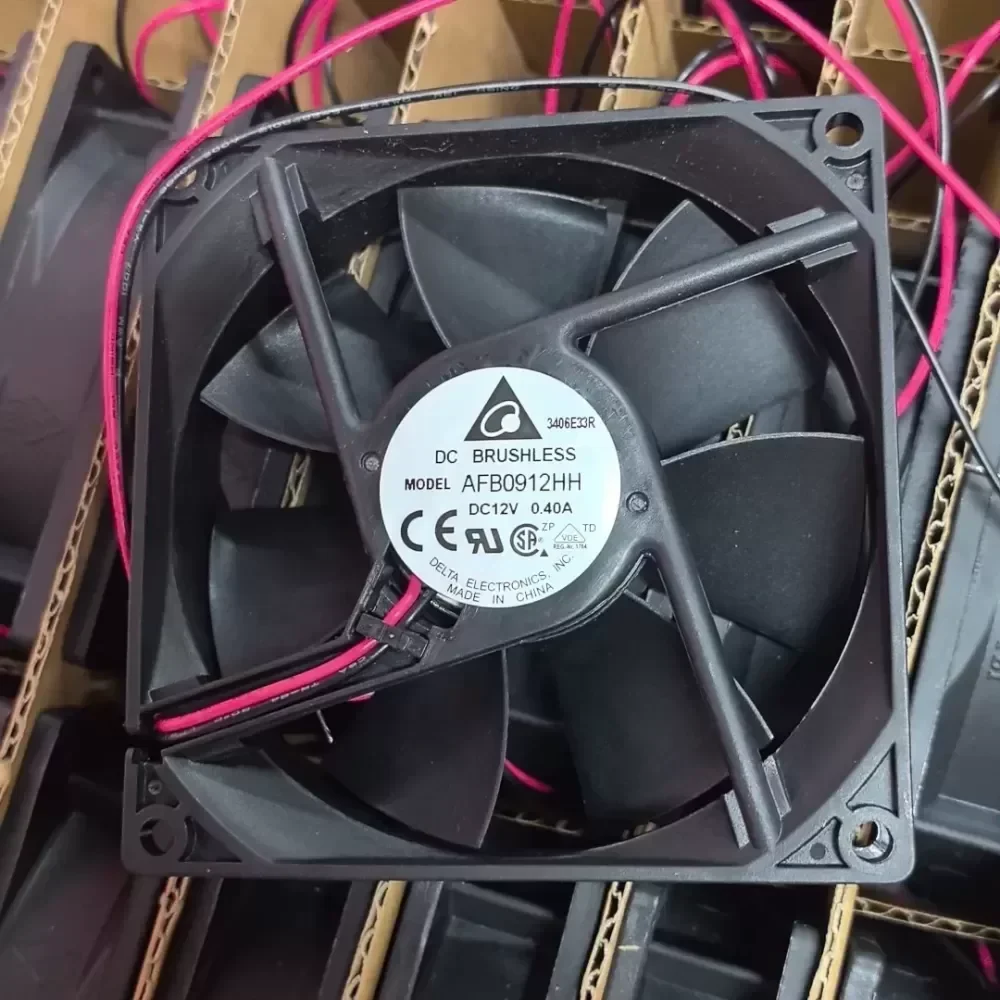

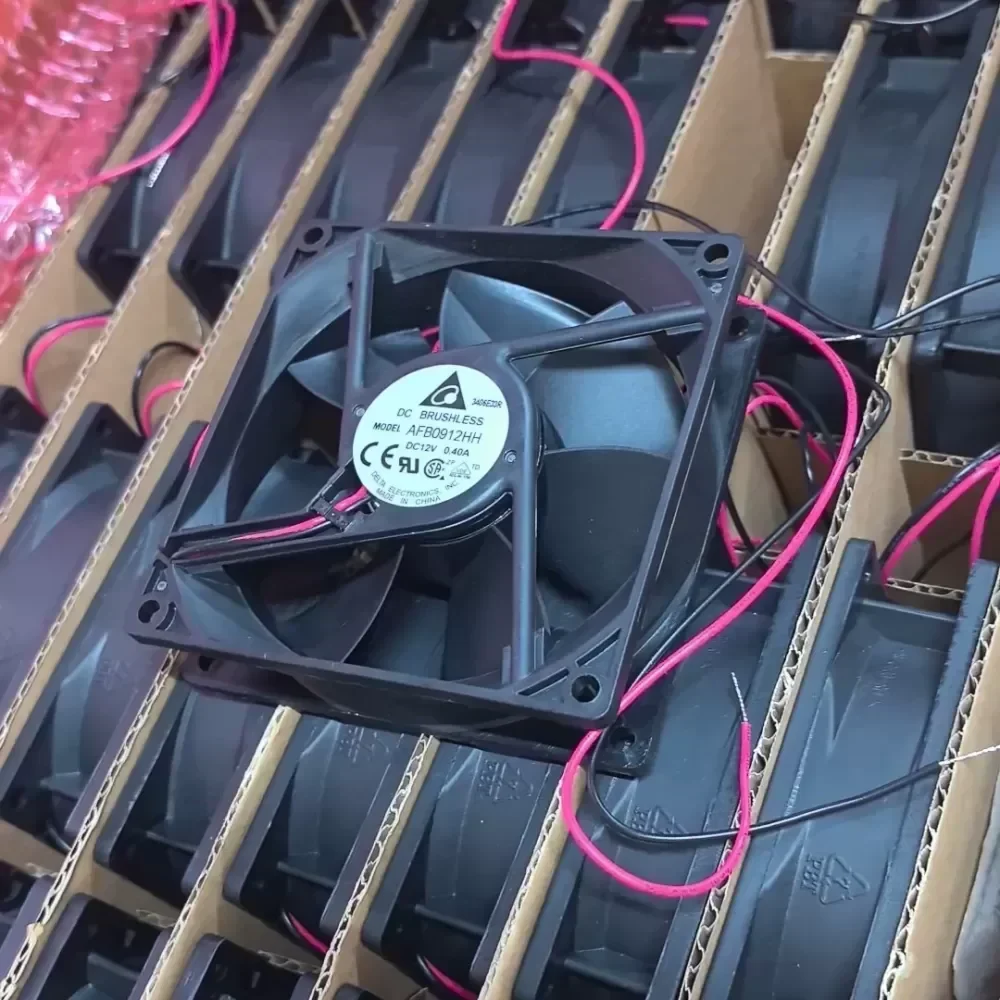

AFB0912HH Delta 12V 0.4A fan

Name: AFB0912HH Delta 12V 0.4A fan
Brand: Delta
SKU: 911956263359
Availability: InStock
Rating: 5 (4 reviews)

$3.29

SKU: 911956263359 Brand: Delta

Description
Reviews (0)

Description

Delta Electronics AFB0912HH High-Performance DC Axial Fan. This industrial-grade cooling solution features the standard 9025 form factor and utilizes a robust Dual Ball Bearing system designed for extended lifecycle applications. The AFB series is engineered for high air pressure and volume, making it suitable for overcoming system impedance in densely packed electronic enclosures. This unit represents Original Engineering from Delta Electronics, ensuring precise Technical Compatibility with existing 92mm mounts.

Manufacturer: Delta Electronics
Model Number: AFB0912HH
Series: AFB
Component Type: DC Axial Fan
Dimensions: 92mm x 92mm x 25.4mm
Rated Voltage: 12V DC
Operating Voltage Range: 7.0V – 13.8V DC
Rated Current: 0.40A
Input Power: 4.80W
Rated Speed: 3200 RPM ±10%
Maximum Air Flow: 57.02 CFM (1.614 m³/min)
Static Pressure: 5.62 mmH2O (0.221 inH2O)
Acoustic Noise: 38.0 dB(A)
Bearing Type: Dual Ball Bearing
Life Expectancy: 70,000 Hours (at 40°C)
Frame Material: PBT Plastic (UL 94V-0)
Impeller Material: PBT Plastic (UL 94V-0)
Operating Temperature: -10°C to +70°C
Termination: 2-Wire / 3-Wire Leads
Weight: 99g

Industrial Application:
The AFB0912HH is specifically optimized for forced-air convection in high-reliability power conversion systems. Its high static pressure curve makes it the ideal replacement or OEM component for industrial switching power supplies, server chassis backplanes, and solar inverters where airflow must be maintained against the resistance of dense heatsink fins. The dual ball bearing architecture ensures stability under high thermal loads, preventing premature failure common in sleeve-bearing alternatives. Immediate stock availability minimizes Lead Time for critical maintenance operations.

AFB0912HH Delta 12V 0.4A fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
