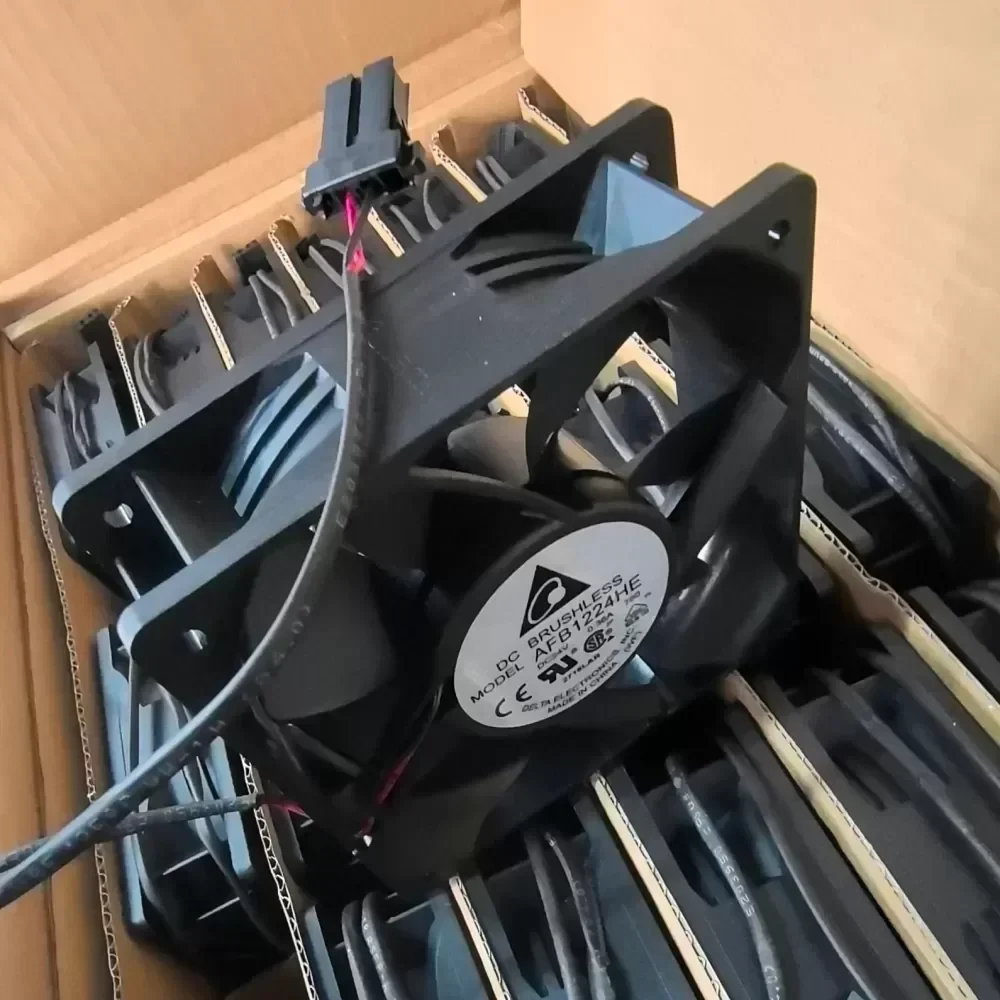

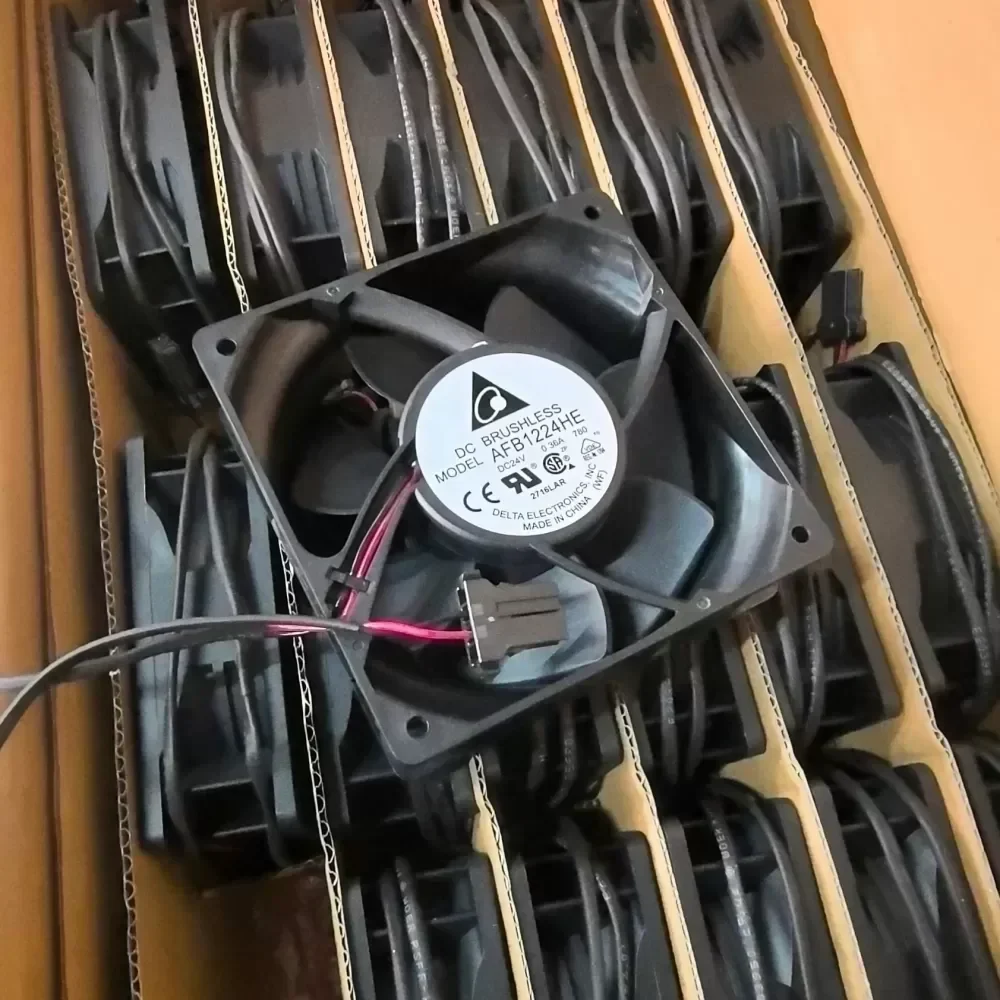

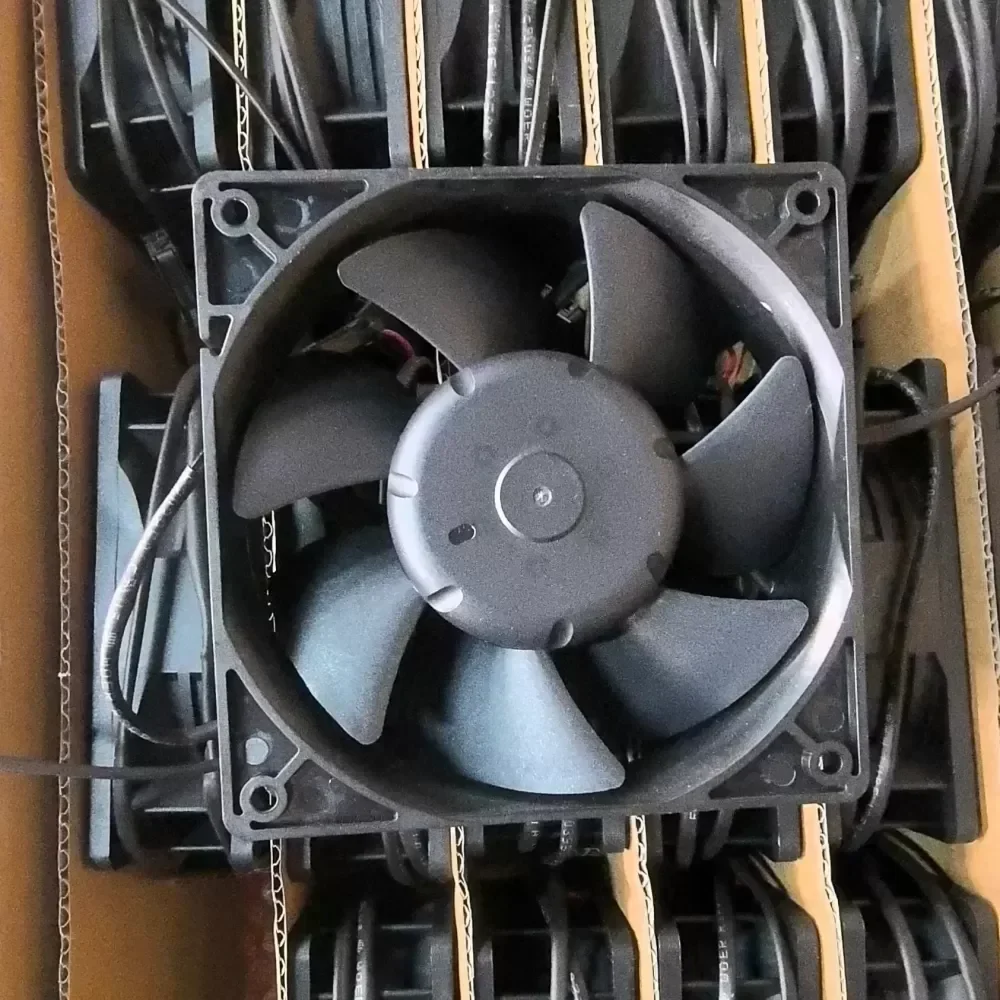

The Delta Electronics AFB1224HE is a high-performance 24 VDC brushless axial fan engineered for rigorous industrial thermal management applications. As a critical component for system reliability, this model is designed to provide consistent airflow in high-density environments such as frequency converters, motor drives, and server chassis. The AFB1224HE utilizes a precision ball bearing system, ensuring extended service life and stable performance under continuous duty cycles.
Technical Specifications:
Manufacturer: Delta Electronics
Model: AFB1224HE
Frame Size: 120 x 120 x 38 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.36 A
Input Power: 8.64 W
Rated Speed: 2600 RPM
Maximum Airflow: 105.94 CFM (3.000 m³/min)
Maximum Static Pressure: 7.60 mmH2O
Noise Level: 41.5 dB-A
Bearing Type: Ball
Weight: 256 g
Operating Temperature: -10 to +70 °C
Industrial Application:
This fan is a standard cooling solution for industrial automation equipment, specifically within Variable Frequency Drives (VFDs) and power supply units where heat dissipation is vital for electronic component longevity. Its high-pressure characteristics make it suitable for pulling air through dense heat sinks and filtered enclosures. This original engineering component is available for immediate procurement to support MRO requirements and minimize system downtime.
Reviews
There are no reviews yet.
Only logged in customers who have purchased this product may leave a review.
Fans Maintenance and upkeep
1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;
2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.
3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;
4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
