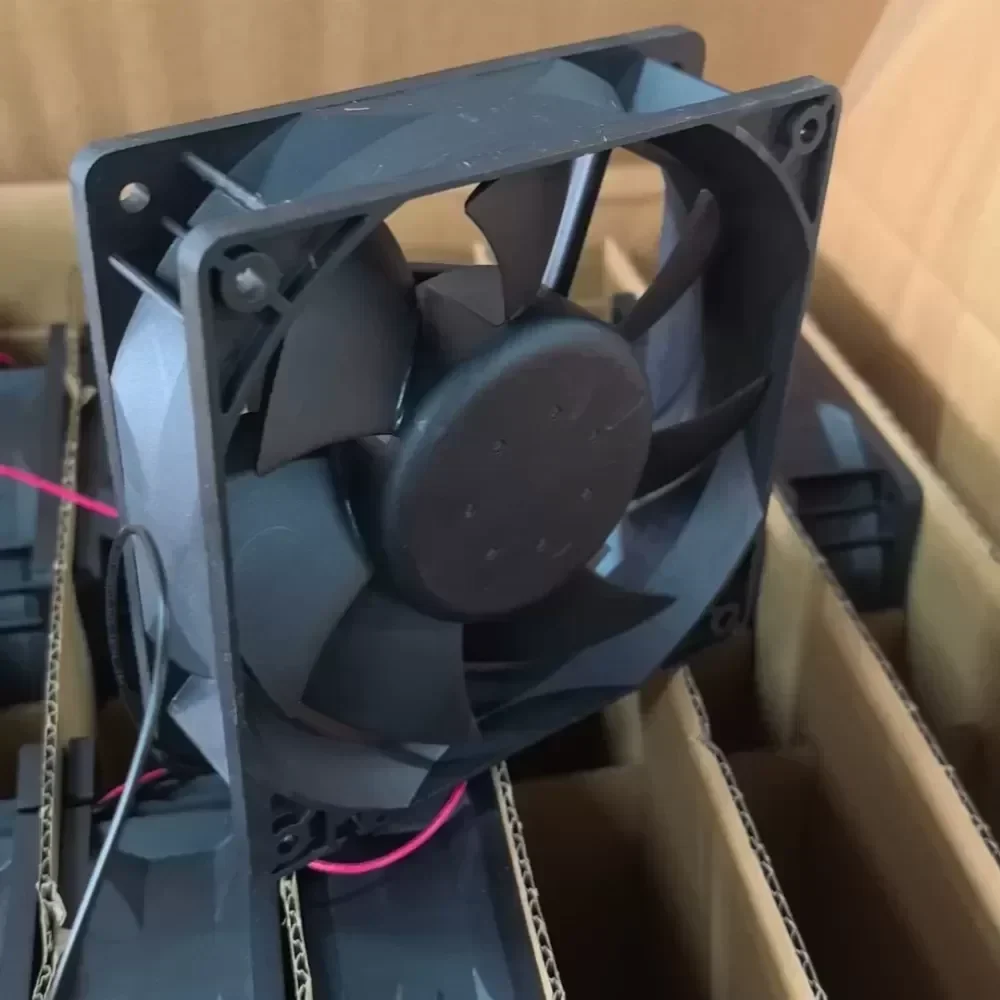

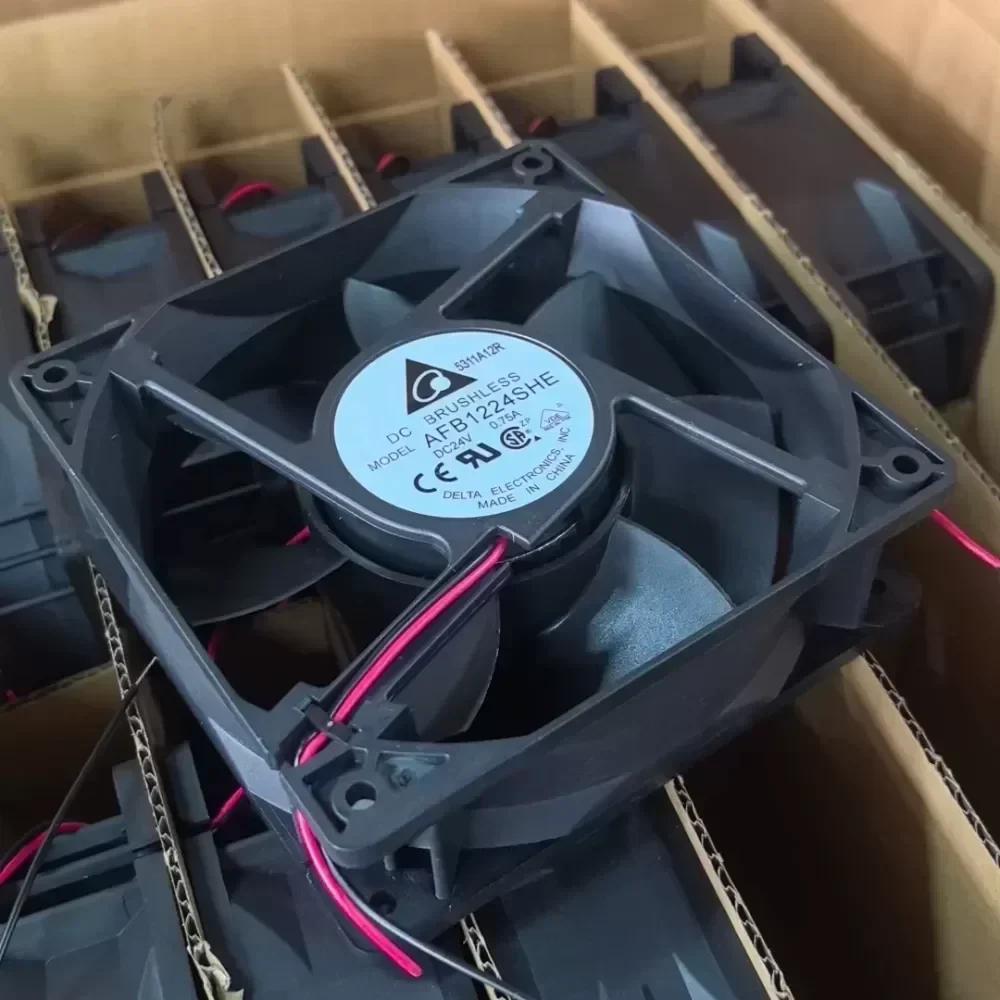

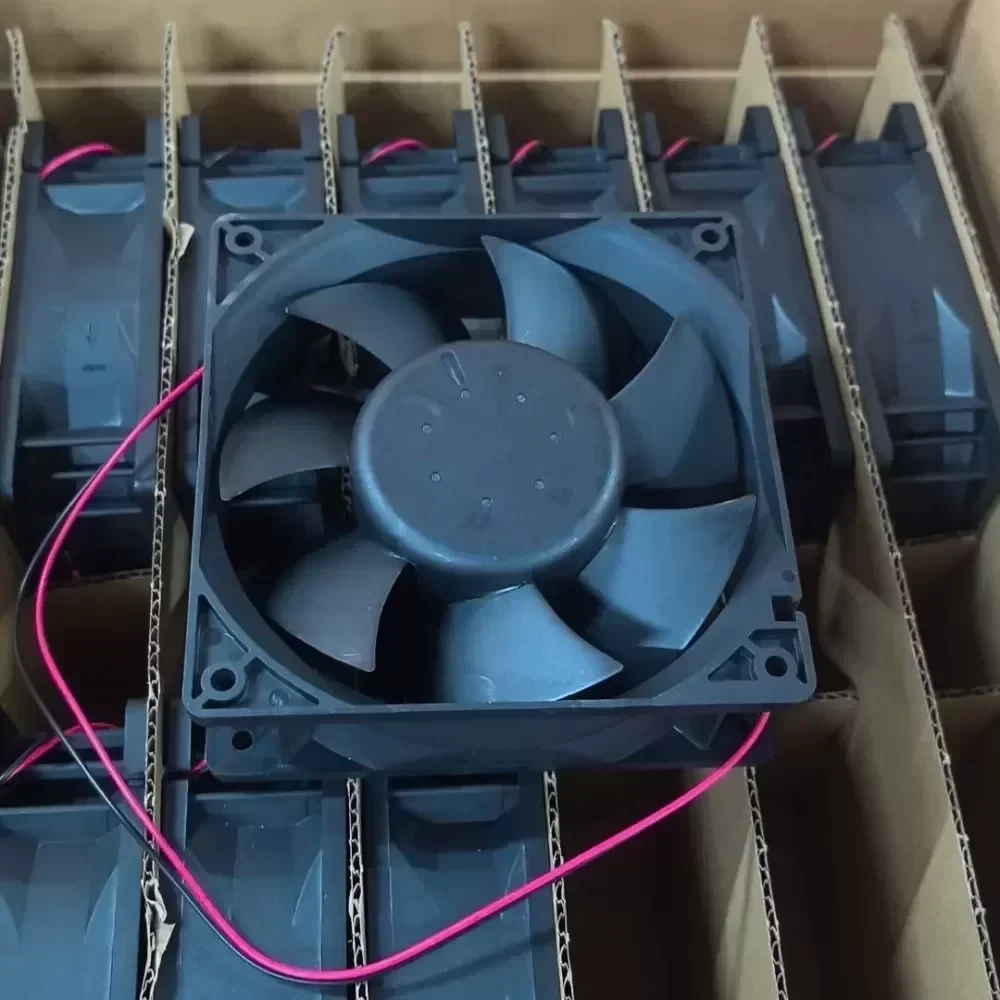

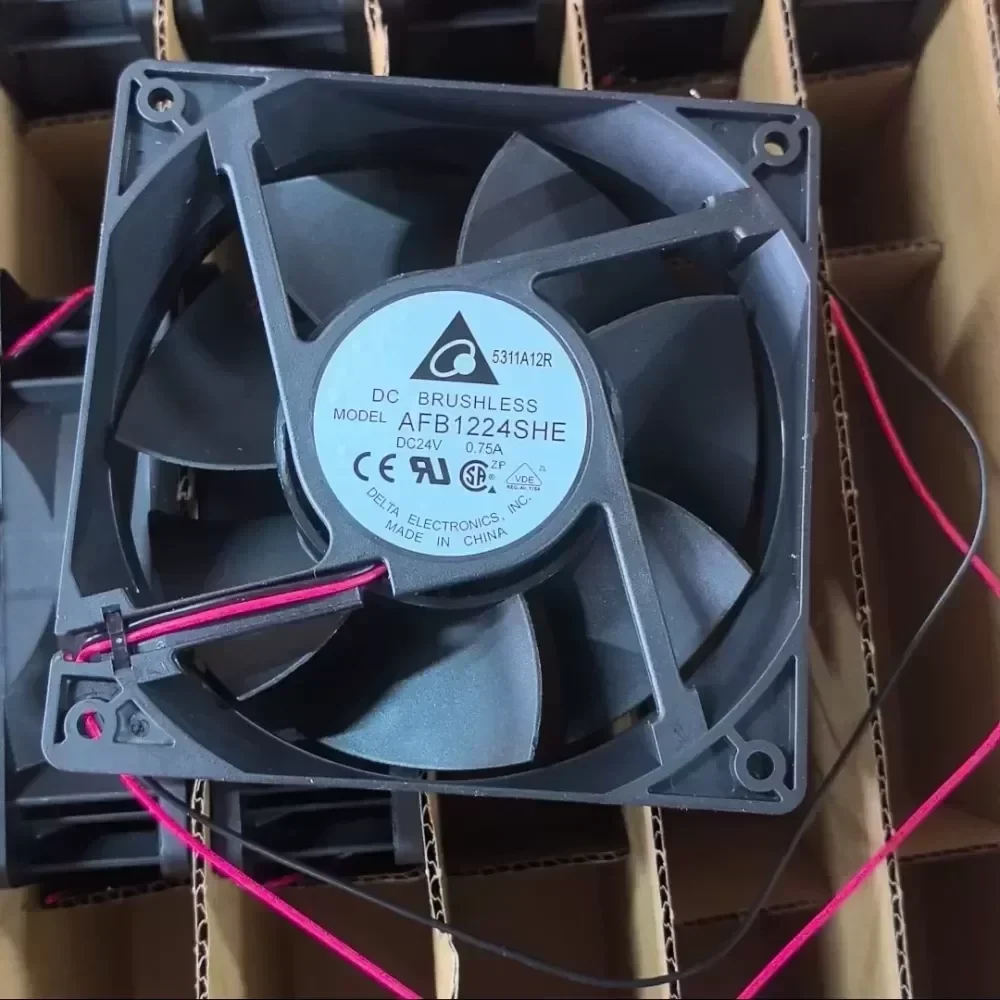

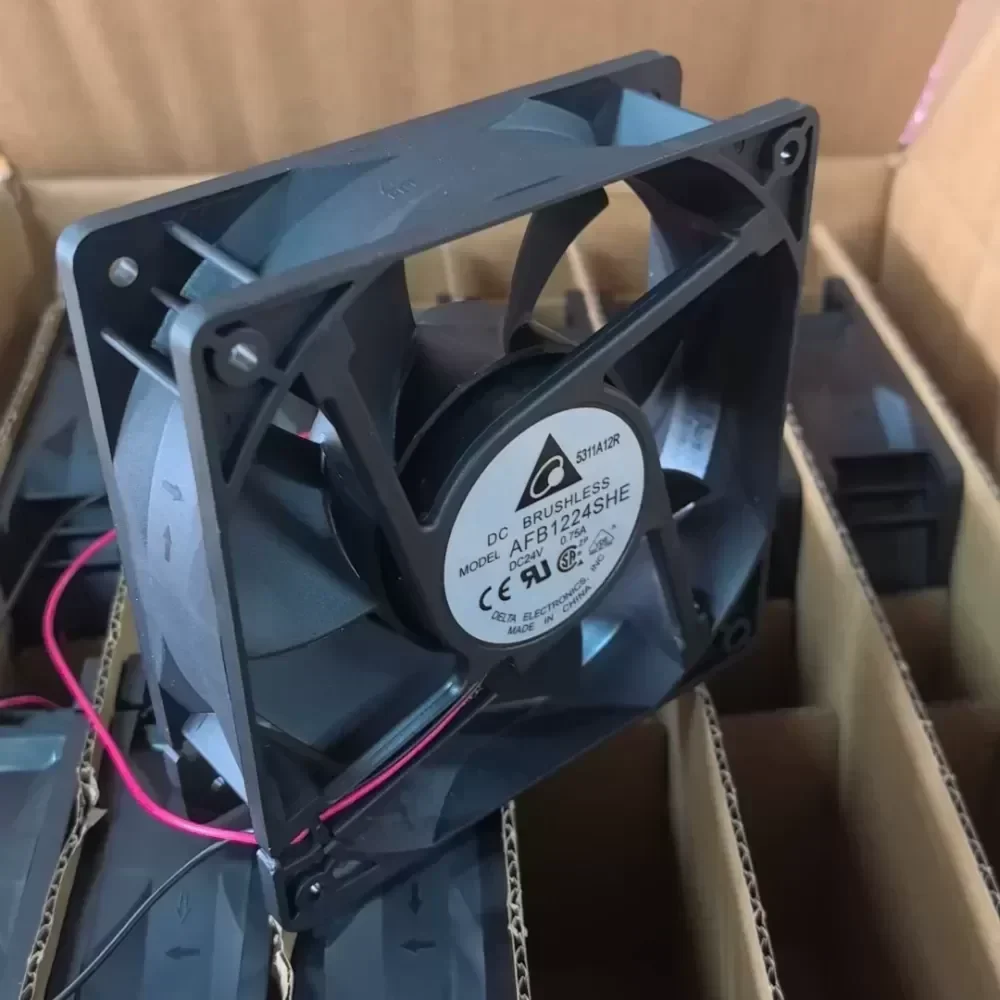

AFB1224SHE Delta 12038/24V fan

Name: AFB1224SHE Delta 12038/24V fan
Brand: Delta
SKU: 904166594038
Availability: InStock
Rating: 5 (4 reviews)

$6.43

SKU: 904166594038 Brand: Delta

Description
Reviews (0)

Description

The Delta Electronics AFB1224SHE is a high-performance DC axial fan engineered specifically for thermal management in high-density industrial electronics, particularly Variable Frequency Drives (VFDs) and heavy-duty power inverters. This unit features Original Engineering design utilizing a dual ball bearing system to ensure longevity under continuous operation. The 120mm x 120mm x 38mm form factor allows for seamless Technical Compatibility with existing ventilation chassis requiring high static pressure to overcome impedance from dense heatsink fins.

Manufacturer: Delta Electronics
Model Number: AFB1224SHE
Series: AFB
Component Type: DC Axial Cooling Fan
Dimensions: 120mm x 120mm x 38mm
Rated Voltage: 24V DC
Operating Voltage Range: 14.0V to 27.6V DC
Rated Current: 0.75 A
Input Power: 18.0 W
Rotational Speed: 3700 RPM
Maximum Airflow: 151.85 CFM (4.30 m³/min)
Static Pressure: 14.50 mmH₂O (0.571 inH₂O)
Acoustic Noise: 53.0 dB-A
Bearing Type: Maintenance-Free Dual Ball Bearing
Frame Material: PBT Plastic (UL 94V-0)
Impeller Material: PBT Plastic (UL 94V-0)
Operating Temperature: -10°C to +70°C
Life Expectancy: 70,000 Hours (at 40°C)
Weight: 256 g
Termination: Lead Wire (UL 1007 AWG #24)

Application Analysis: This specific model is critical for forced convection in 24V control cabinets and solar inverters where thermal loads exceed the capacity of standard flow fans. The AFB1224SHE provides the necessary static pressure to force air through restricted pathways found in server racks and IGBT cooling modules. Utilizing this OEM specification ensures optimal thermal dissipation curves are maintained, preventing thermal throttling of sensitive automation equipment. Contact us to verify current Lead Time and bulk availability.

AFB1224SHE Delta 12038/24V fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
