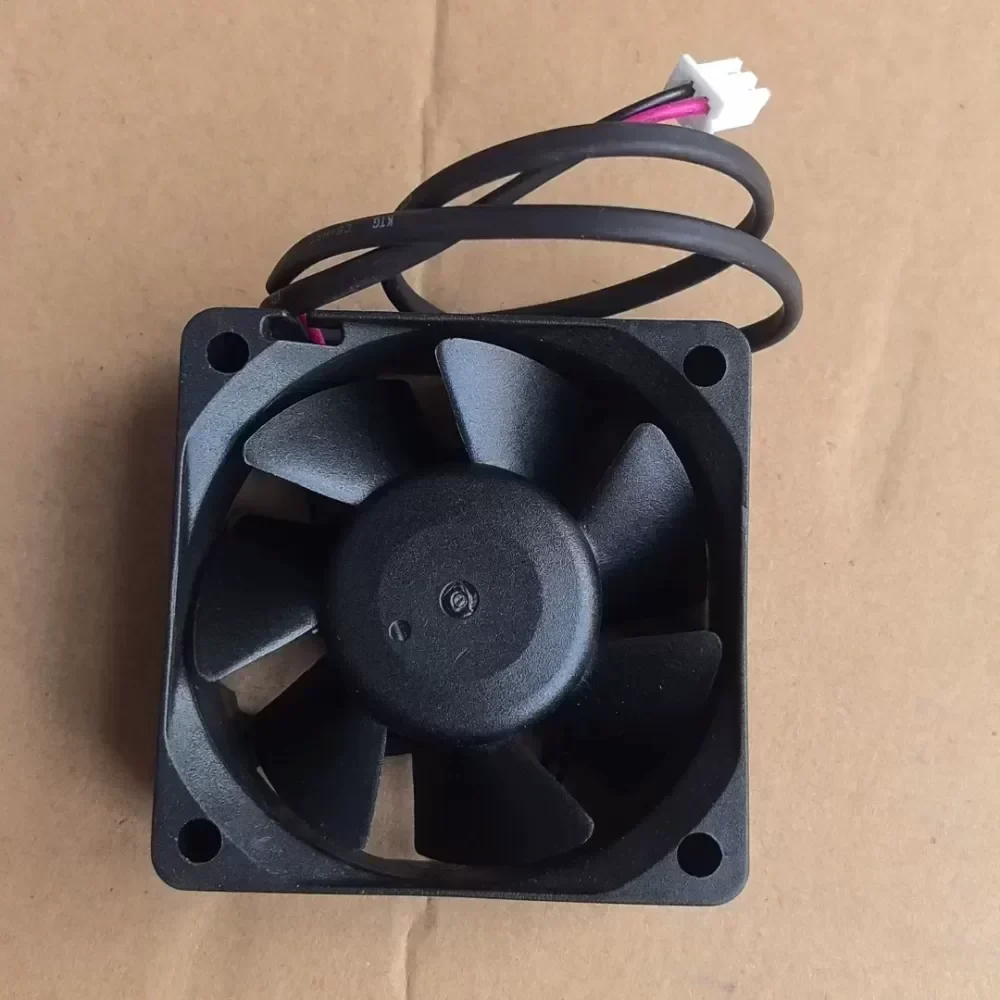

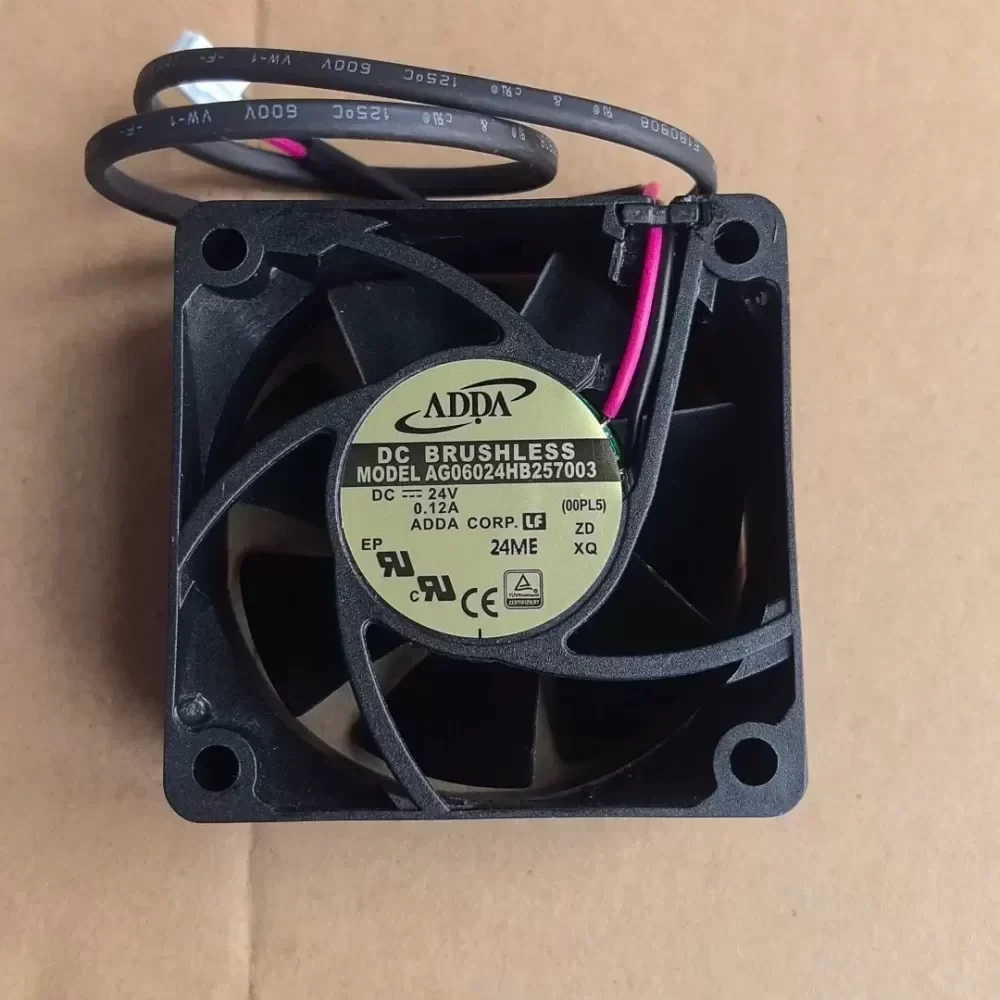

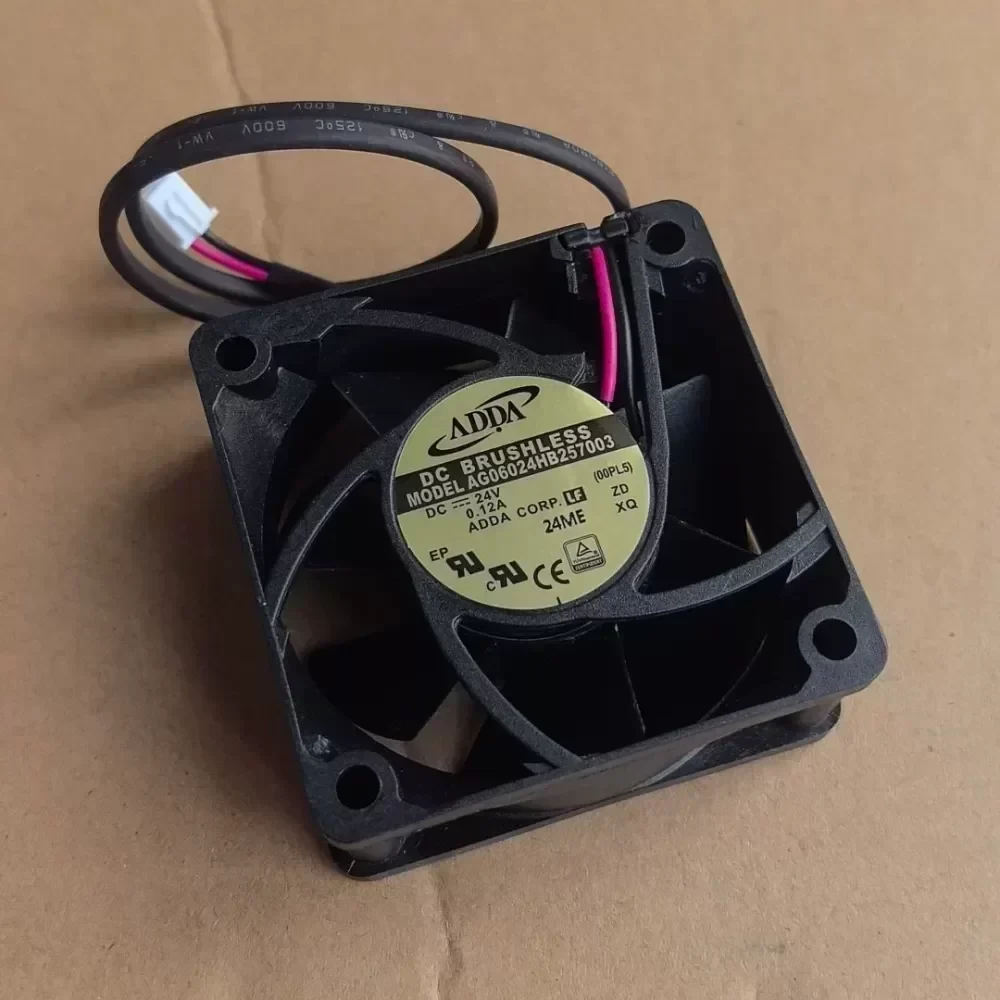

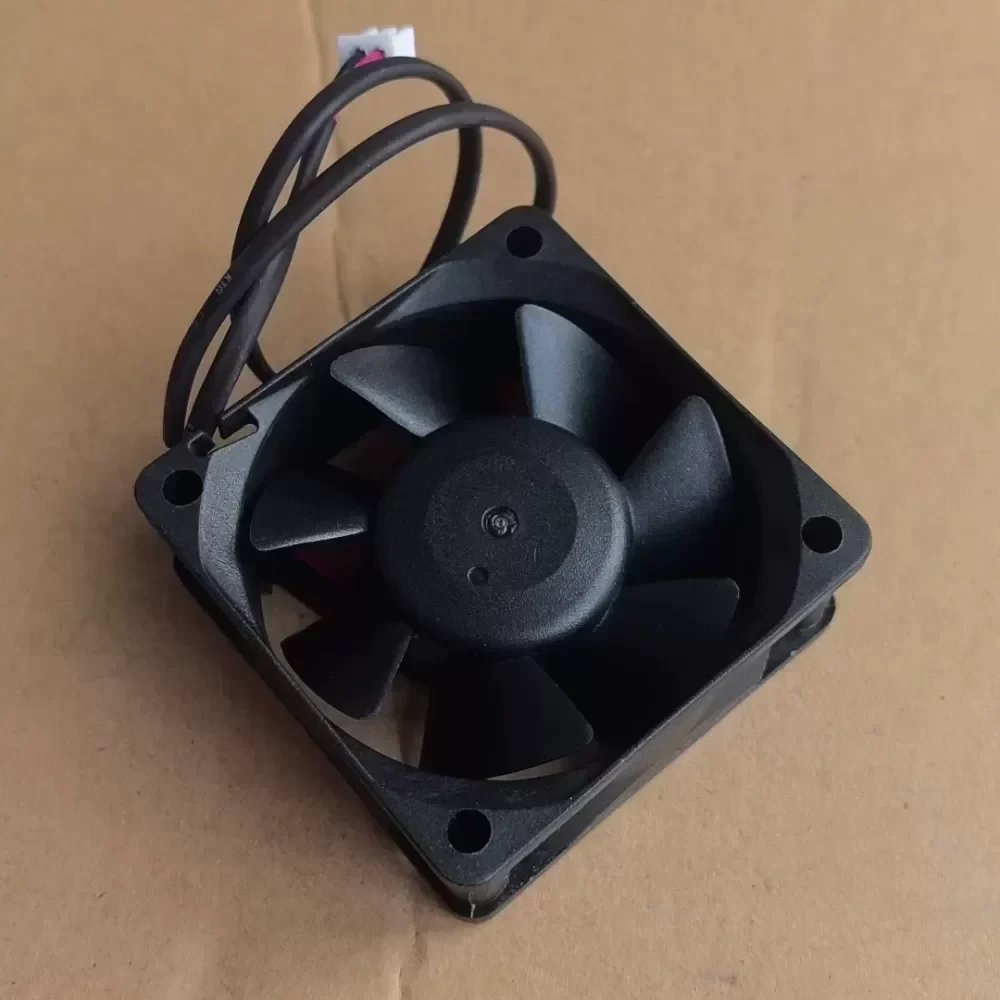

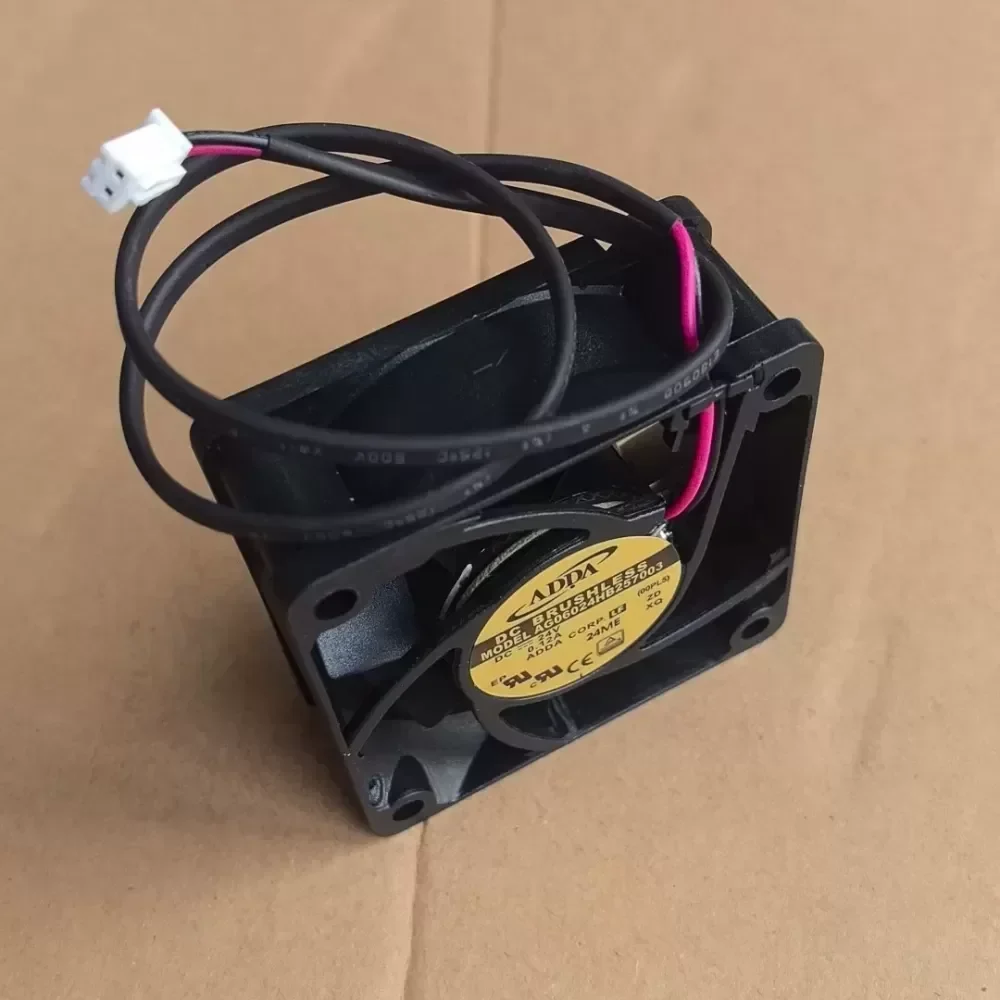

AG06024HB257003 ADDA original fan

Name: AG06024HB257003 ADDA original fan
Brand: ADDA
SKU: 903879091049
Availability: InStock
Rating: 5 (4 reviews)

$2.57

SKU: 903879091049 Brand: ADDA

Description
Reviews (0)

Description

The ADDA AG06024HB257003 is a precision-engineered DC axial fan manufactured by ADDA Corporation, designed specifically for high-reliability thermal management in industrial electronics. This 60mm unit utilizes a robust dual ball bearing system, which offers superior longevity and heat resistance compared to sleeve bearing alternatives, making it critical for continuous-duty applications. The fan is constructed to meet rigorous flammability standards while delivering consistent airflow in high-static pressure environments.

Technical Specifications:
Manufacturer: ADDA Corporation
Model Number: AG06024HB257003
Component Type: DC Brushless Fan
Frame Dimensions: 60mm x 60mm x 25mm
Rated Voltage: 24V DC
Operating Voltage Range: 21.6V – 26.4V DC
Rated Current: 0.12 A
Input Power: 2.88 W
Bearing System: Dual Ball Bearing
Speed Rating: High Speed
Airflow: Approx. 23.0 CFM
Static Pressure: Approx. 0.25 In H2O
Noise Level: 34.0 dB(A)
Frame Material: Glass Fiber Reinforced PBT (UL94V-0)
Impeller Material: Glass Fiber Reinforced PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Life Expectancy: 70,000 Hours at 40°C
Termination: 2-Wire / 3-Wire Lead (Configuration Dependent)
Weight: 56g

Industrial Application:
This cooling unit is specifically calibrated for integration into industrial inverters, variable frequency drives (VFDs), and compact power supply units where a 24V DC bus is standard. The 60x25mm form factor allows for drop-in replacement in standard chassis cutouts, while the ball bearing architecture ensures stability under the vibration and thermal stress common in automation control cabinets. It effectively dissipates heat from power transistors and capacitors, preventing thermal shutdown in critical machinery.

Procurement Data:
We provide Original Engineering components to ensure absolute Technical Compatibility with your existing thermal design. Contact our team to confirm current Lead Time and volume availability for this specific ADDA model.

AG06024HB257003 ADDA original fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
