Description
The Fanuc A06B-0075-B103 is a high-precision AC Servo Motor designed for dynamic CNC Axis Control and industrial automation. This Brushless Rotary Actuator offers robust performance in critical automation environments, specifically engineered for the Fanuc Alpha Series drive systems.
A06B-0075-B103 Key Features
- Industrial Grade: Built with a rugged cast iron frame and Class F insulation to withstand harsh manufacturing conditions.
- High Performance: Features low rotor inertia for rapid acceleration and a rated speed of 3000 RPM.
- Connectivity: Integrated high-resolution Pulse Coder feedback ensures precise closed-loop positioning.
- Reliability: Includes an integral 24VDC holding brake and IP65 sealing against coolants and dust.
Technical Specifications for A06B-0075-B103
Comprehensive engineering data for verification:
| Part Number | A06B-0075-B103 |
| Manufacturer | Fanuc |
| Series | Alpha Series (Model 12/3000) |
| Product Type | AC Servo Motor |
| Rated Voltage | 200-230V AC |
| Rated Output Power | 2.8 kW (Approx. 3.75 HP) |
| Rated Torque | 12 Nm |
| Rated Speed | 3000 RPM |
| Stall Torque | 12 Nm |
| Current (Stall) | 12 A |
| Phase | 3-Phase |

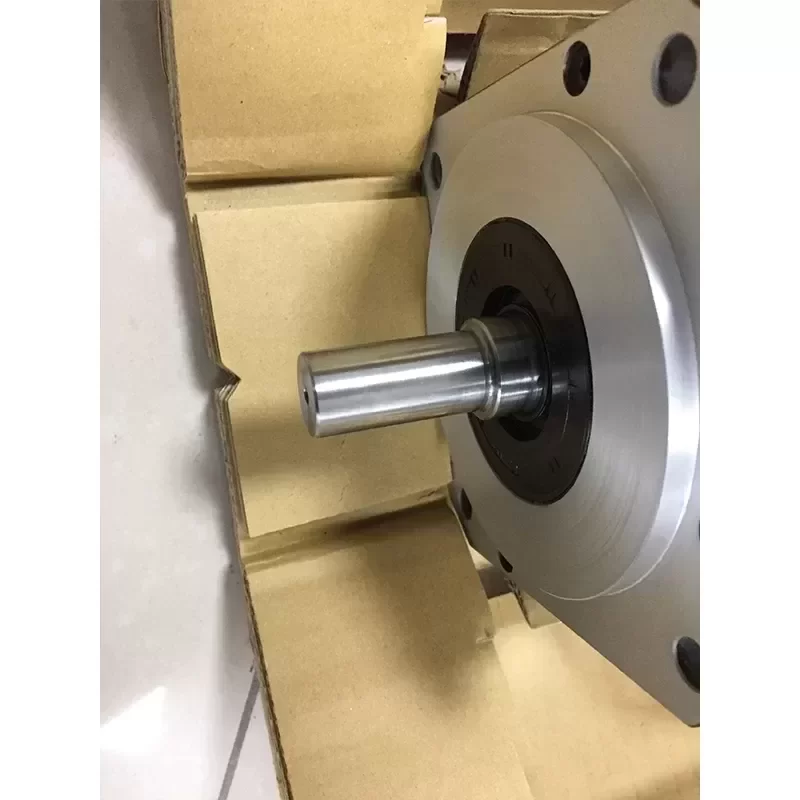

| Shaft Type | Tapered Shaft with Keyway |
| Holding Brake | Yes (24V DC) |

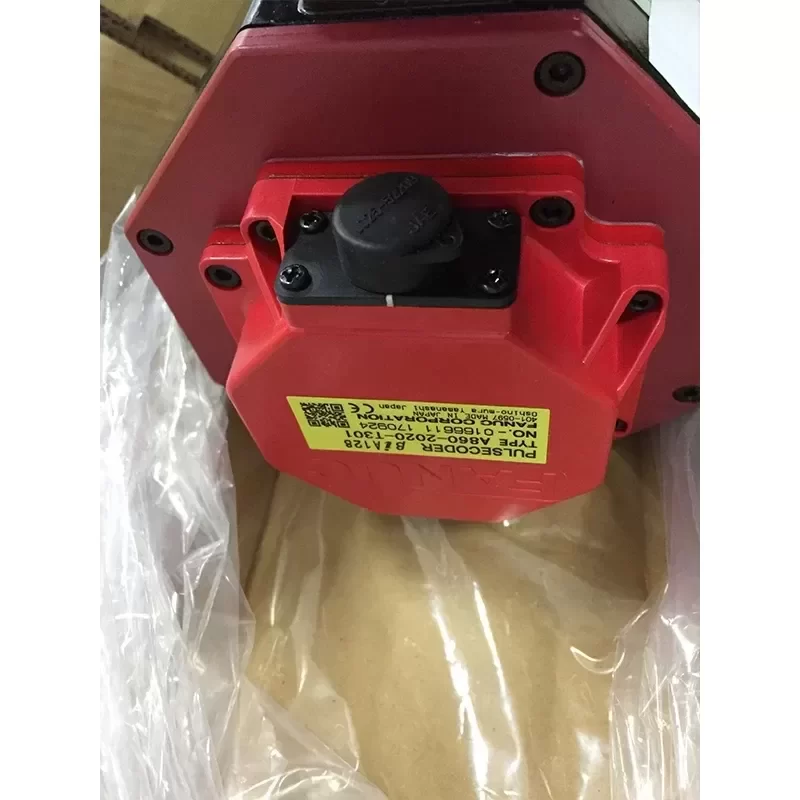

| Feedback System | Pulse Coder Alpha I64 |
| Mounting Type | Flange Mount |
| Net Weight | 23.0 kg |
| Operating Temperature | 0°C to 40°C |
| IP Rating | IP65 (Dust & Water Jet Tight) |
| Country of Origin | Japan |
| Product Status | Active / Legacy Support |
Industrial Applications
Frequently deployed in CNC Machining Centers, Automotive Assembly Lines, and Injection Molding Robotics. This unit is critical for controlling feed axes on lathes and milling machinery requiring high torque at high speeds.
Installation & Quality Assurance
This A06B-0075-B103 is a genuine spare part. Please refer to the official Fanuc Alpha Series Servo Motor manual for specific wiring diagrams, brake release voltage requirements, and amplifier configuration parameters.
Key Attributes
Place of Origin: Japan
Model Number: A06B-0075-B103
Brand Name: FANUC
Product name: A06B-0075-B103
Condition: Original new
Warranty: 12 Months
Stock: Available
Shipping terms: All terms are accepted
Payment terms: All terms are accepted
Lead Time: 1-2 Days
Delivery Time: 3-5 Days
Package: Carton packing
MOQ: 1 Piece
Packaging and Delivery
Selling Units: Single item
