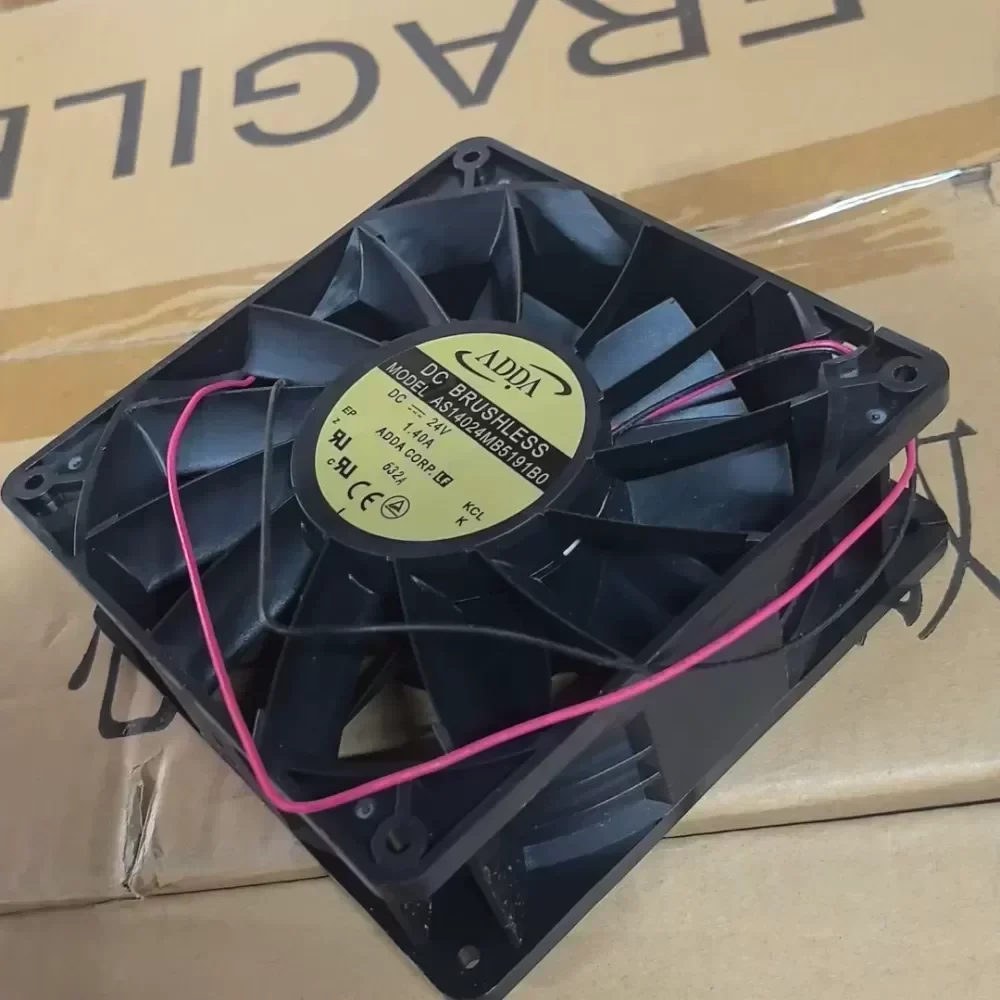

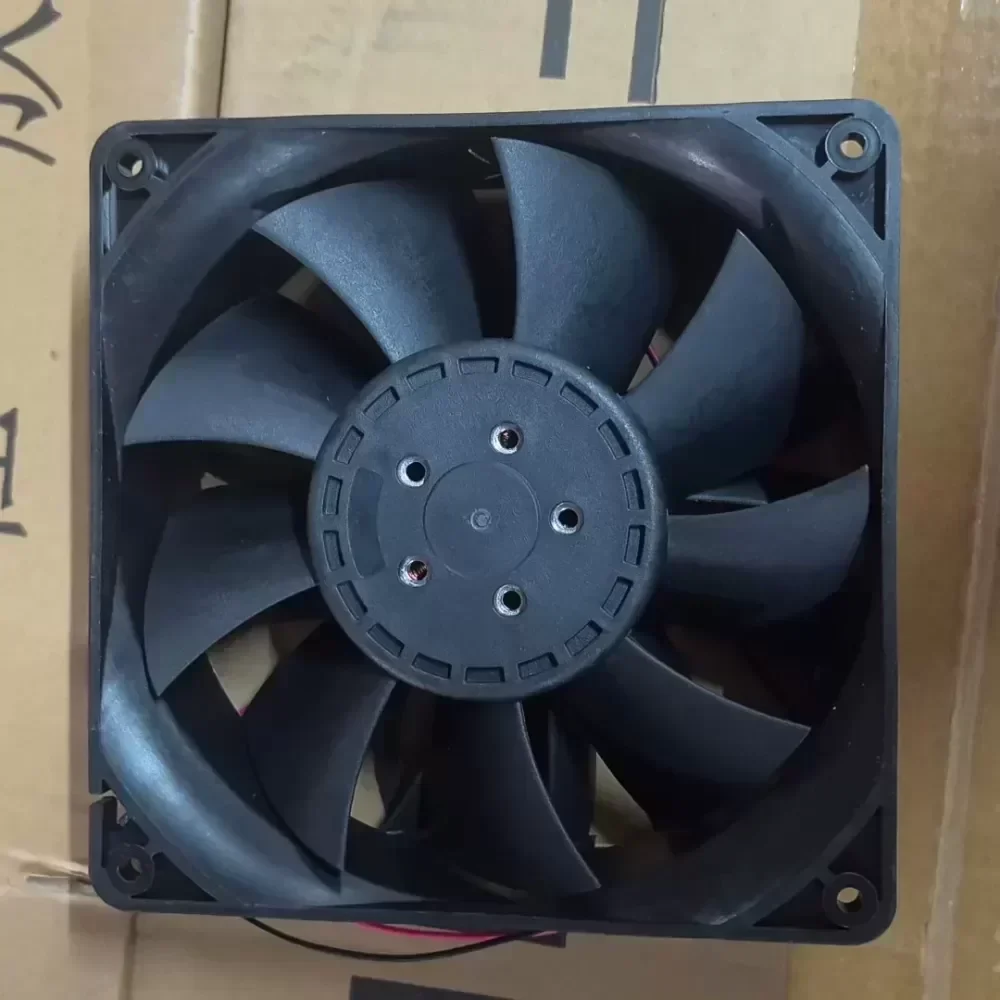

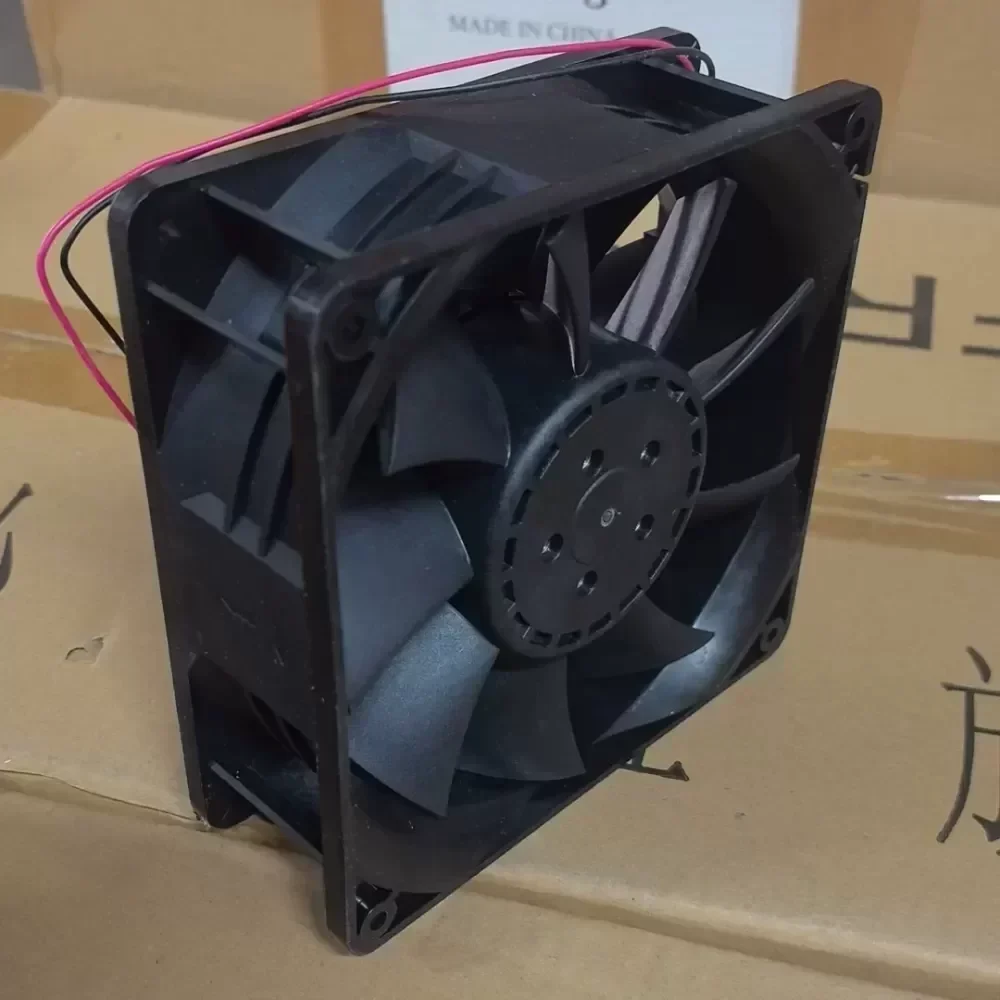

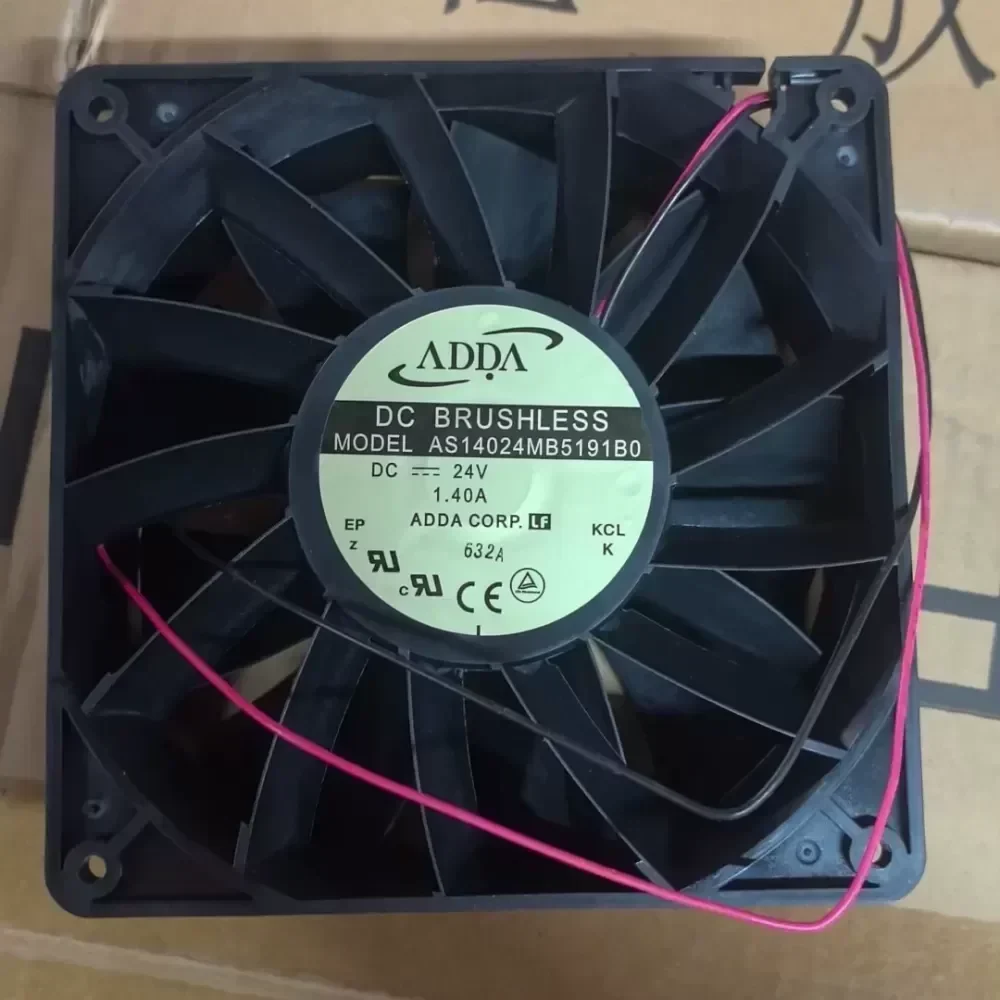

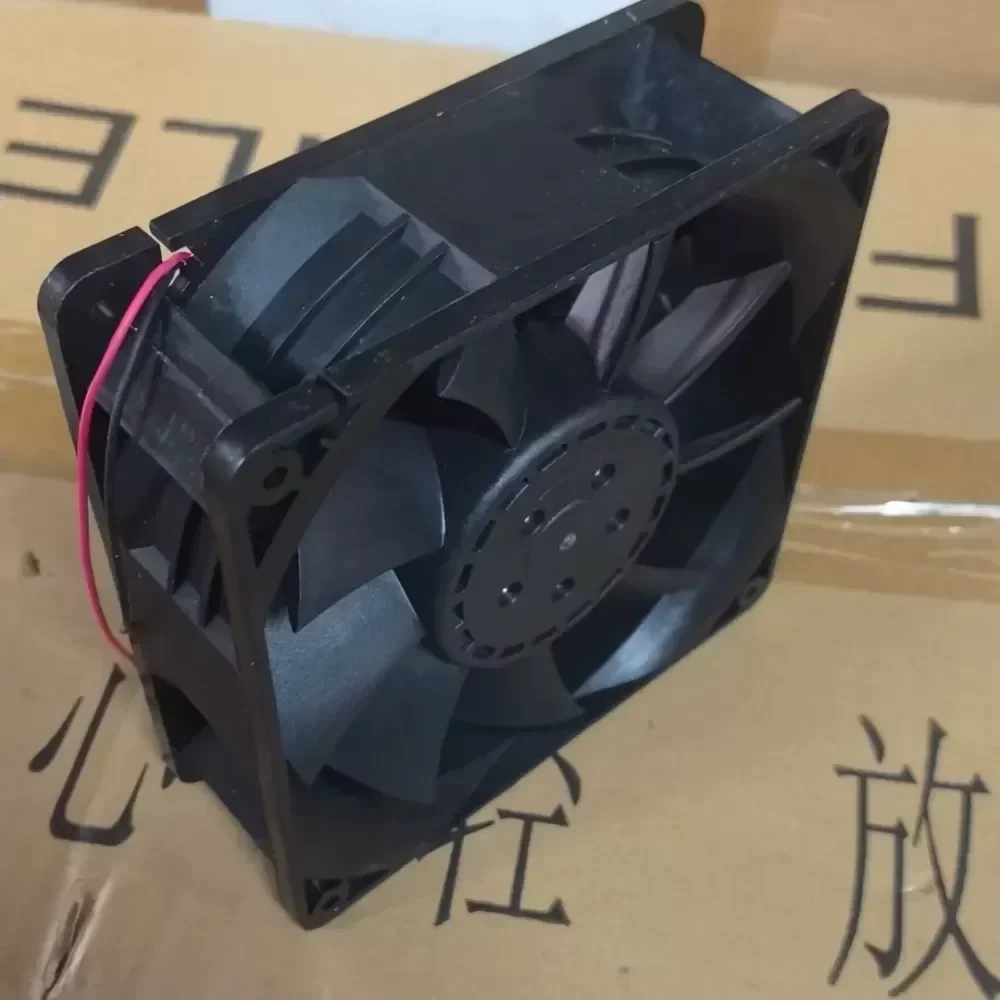

AS14024MB5191B0 ADDA 24V 1.40A fan

Name: AS14024MB5191B0 ADDA 24V 1.40A fan
Brand: ADDA
SKU: 901905564317
Availability: InStock
Rating: 5 (4 reviews)

$13.57

SKU: 901905564317 Brand: ADDA

Description
Reviews (0)

Description

The ADDA AS14024MB5191B0 is a high-performance DC axial fan specifically engineered for thermal regulation in high-impedance industrial systems. This 140mm unit utilizes a deep 51mm frame geometry to generate superior static pressure, making it essential for forcing air through dense heat sinks and restricted enclosures. Built with a precision Dual Ball Bearing system, the fan offers exceptional durability and stability under continuous high-speed operation. The 1.40A current draw at 24V indicates a high-torque motor configuration designed for maximum airflow efficiency in power electronics, ensuring reliable operation in demanding environments.

Technical Specifications:
Manufacturer: ADDA Corporation
Model: AS14024MB5191B0
Product Type: DC Brushless Fan
Frame Dimensions: 140mm x 140mm x 51mm
Rated Voltage: 24V DC
Rated Current: 1.40 A
Power Consumption: 33.6 W
Bearing System: Dual Ball Bearing
Speed Reference: High Speed (~3800 RPM)
Airflow Capacity: High CFM Profile (>230 CFM)
Static Pressure: High Static Pressure
Frame Material: Reinforced Thermoplastic PBT (UL94V-0)
Impeller Material: Reinforced Thermoplastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Life Expectancy: 70,000 Hours (L10 at 40°C)
Connection: Wire Leads
Condition: Single Unit, No Accessories

Industrial Application:
This model is critical for the thermal management of Variable Frequency Drive (VFD) inverters, high-capacity server power supplies, and telecommunications cabinets. Its high-pressure output effectively dissipates heat from dense radiator matrices and IGBT modules, preventing thermal shutdown in automation control systems.

Procurement Notes:
We supply Original Engineering components to ensure exact adherence to manufacturer P-Q curves and electrical tolerances. Verify Technical Compatibility with your specific enclosure requirements regarding airflow direction and mounting hole spacing. Contact our team for current Lead Time information on this specific ADDA thermal solution.

AS14024MB5191B0 ADDA 24V 1.40A fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
