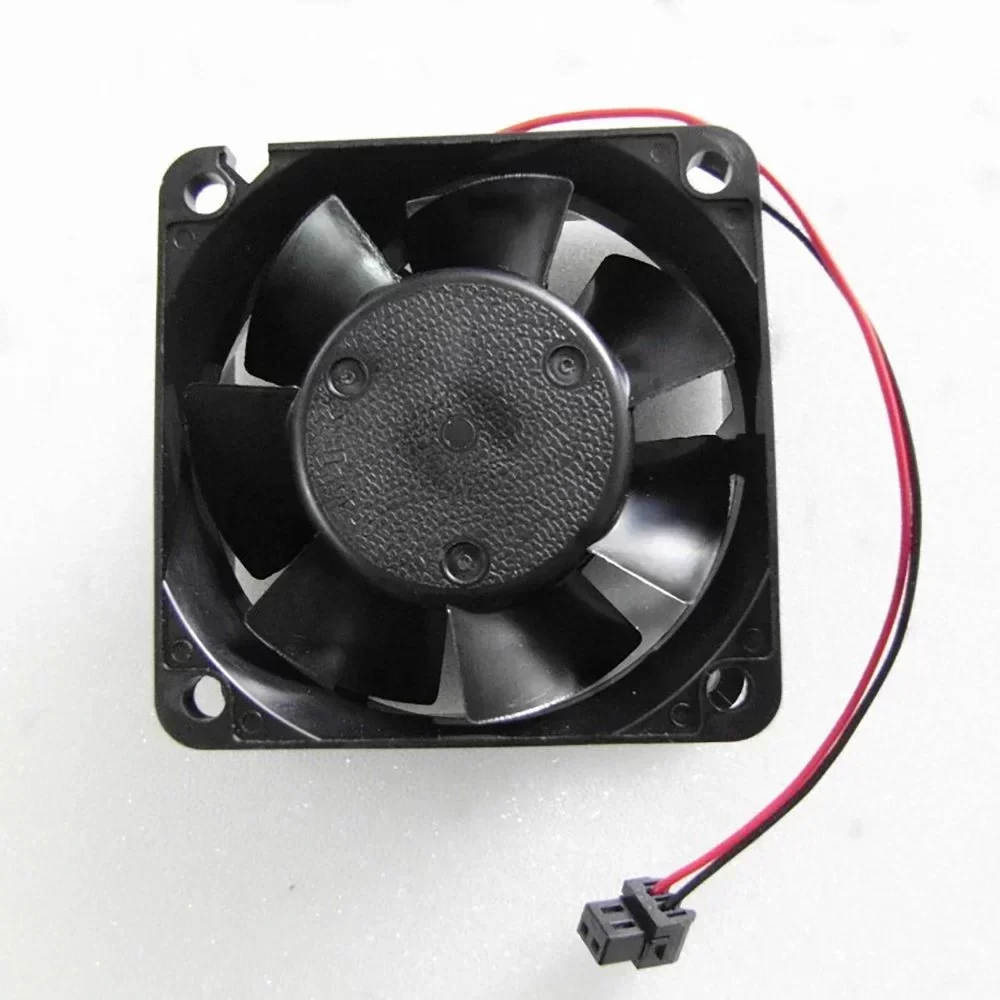

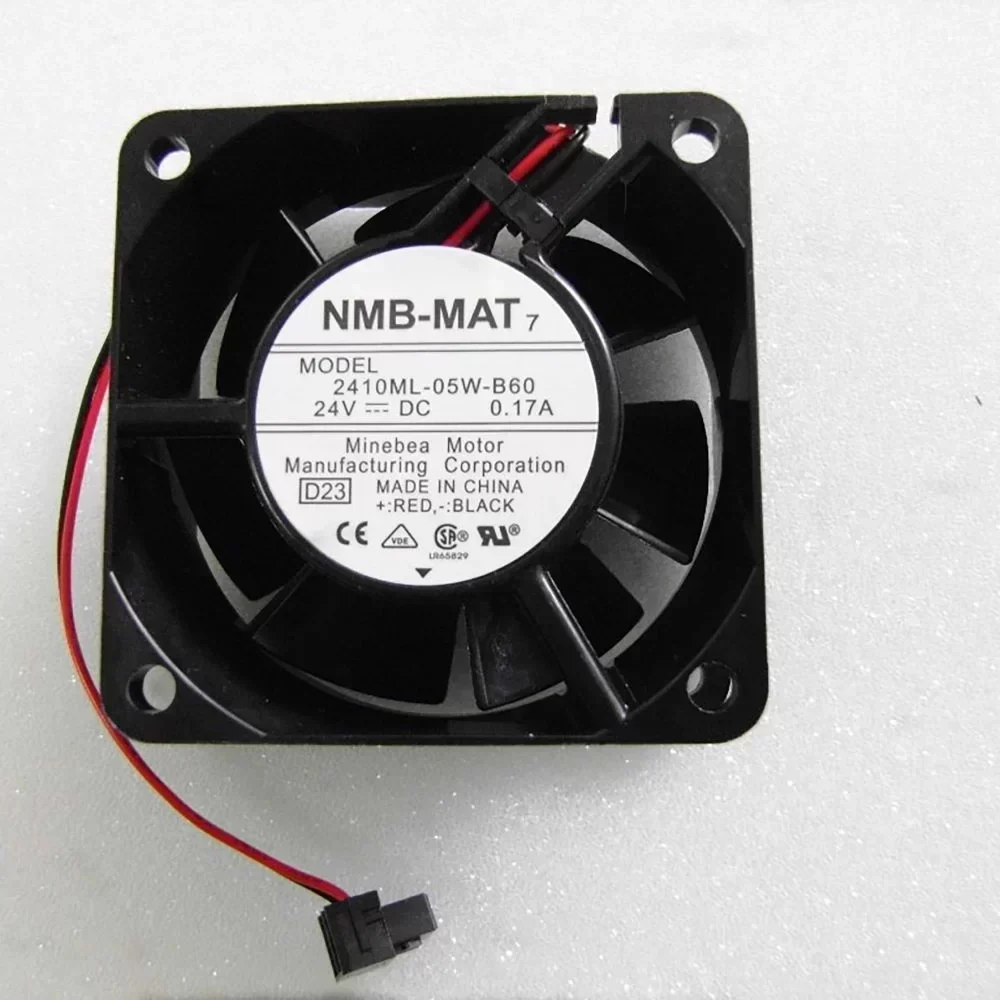

Name: Axial Fan NMB 2410ML-05W-B60 Axial Compact Fan DC FAN 24V
Brand: NMB
SKU: 60837914275
Availability: InStock
Rating: 5 (4 reviews)

$5.00

SKU: 60837914275 Brand: NMB

Description
Reviews (0)

Description

The NMB 2410ML-05W-B60 is a high-performance axial compact fan engineered for precision thermal management in demanding industrial environments. Manufactured by MinebeaMitsumi, this DC brushless fan is recognized for its reliability and long-term operational stability. It features a dual ball bearing system that minimizes friction and wear, ensuring a high Mean Time Between Failure (MTBF) even in continuous 24/7 duty cycles. The 60 x 60 x 25 mm frame and impeller are constructed from UL94V-0 rated reinforced plastic, providing both durability and safety compliance for electronic enclosures.

Technical Specifications:
Brand: NMB (MinebeaMitsumi)
Model Number: 2410ML-05W-B60
Operating Voltage: 24 VDC
Voltage Range: 10.0 – 27.6 VDC
Current: 0.13 A
Input Power: 3.12 W
Dimensions: 60 x 60 x 25 mm
Bearing Type: Dual Ball Bearing
Blade Material: Plastic (UL94V-0)
Termination: Lead Wires
Mounting Orientation: Any
Origin: Shanghai, China

Industrial Application:
This axial fan is a critical component for maintaining optimal operating temperatures in industrial equipment, including CNC machinery, power supply units, and telecommunications racks. Its high static pressure capability makes it particularly effective for cooling dense PCB assemblies and automated control cabinets where airflow resistance is high. By preventing thermal accumulation, the 2410ML-05W-B60 protects sensitive electronics from premature failure and thermal throttling.

Procurement and Quality Assurance:
Condition: New, Original Engineering
Warranty: 1 Year
Support: Online technical after-sales service
Lead Time: Standard industrial shipping applies

Voltage: 24V
Electric current type: DC
Mounting type: Any
Warranty: 1 Year
Blade material: Plastic
After-sales service provided: Online support
Place of origin: Shanghai, China
Brand name: NMB
Model number: 2410ML-05W-B60
Voltage: 12V
Product name: DC Brussless Fan
Application: Industrial Equipment
Selling Units: Single item

Axial Fan NMB 2410ML-05W-B60 Axial Compact Fan DC FAN 24V

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
