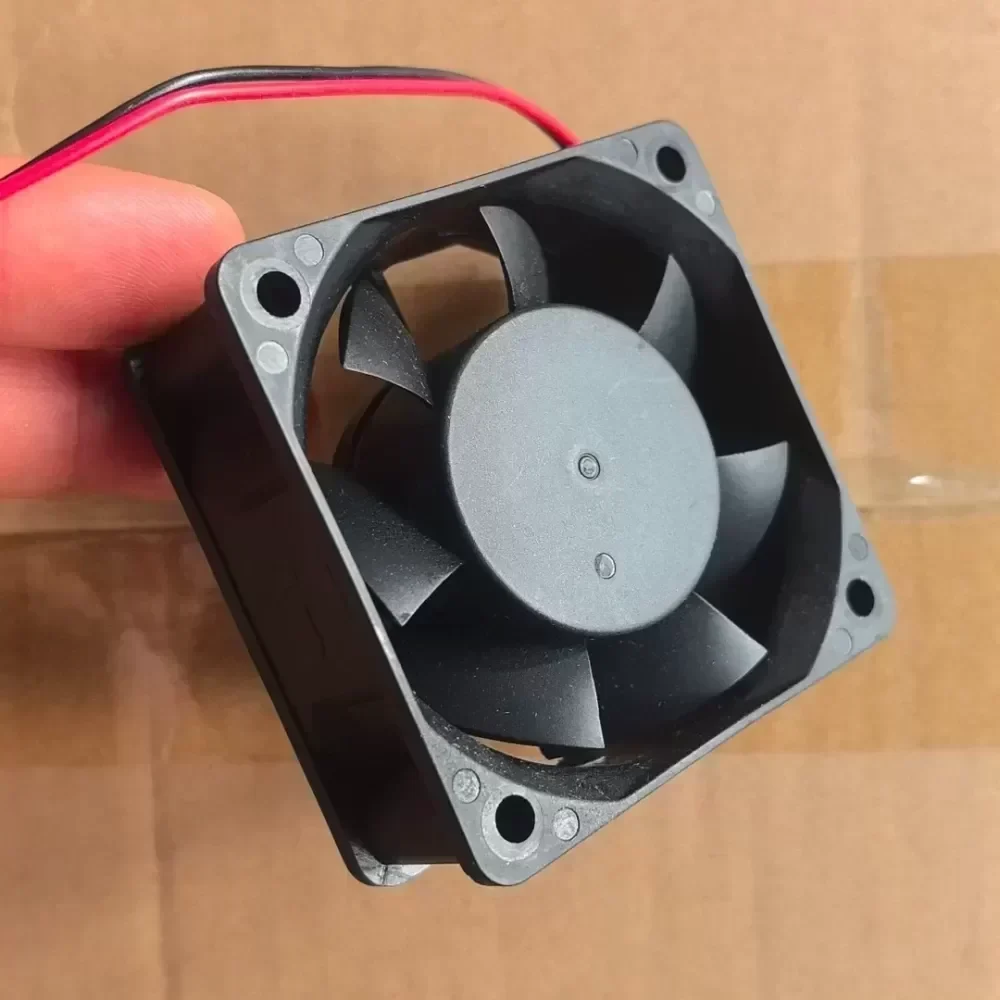

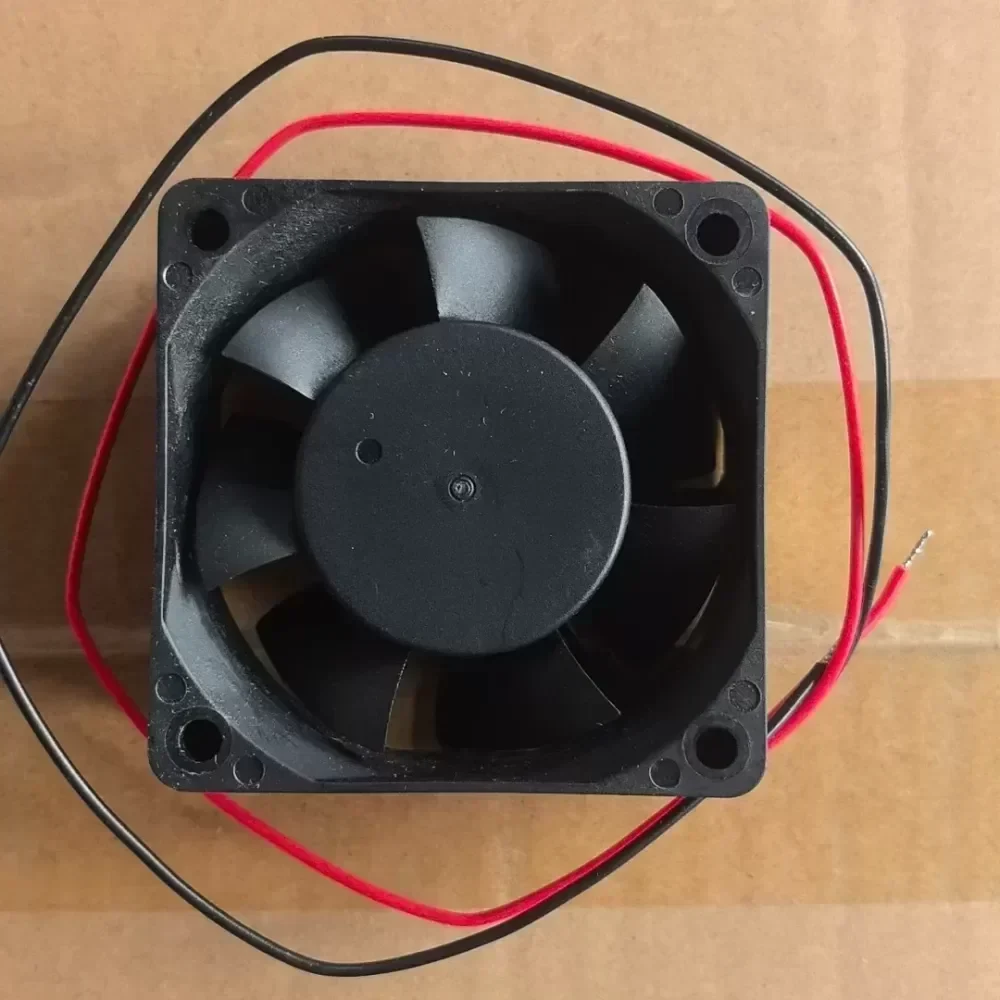

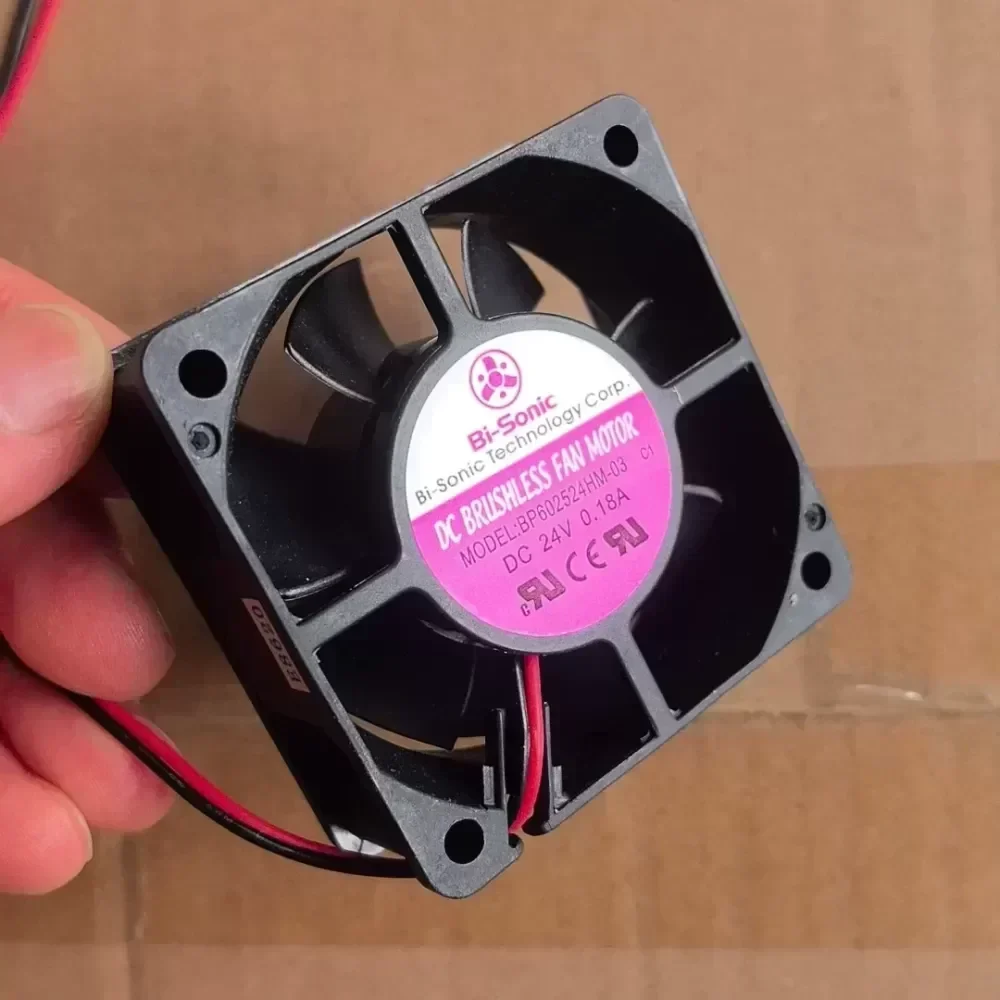

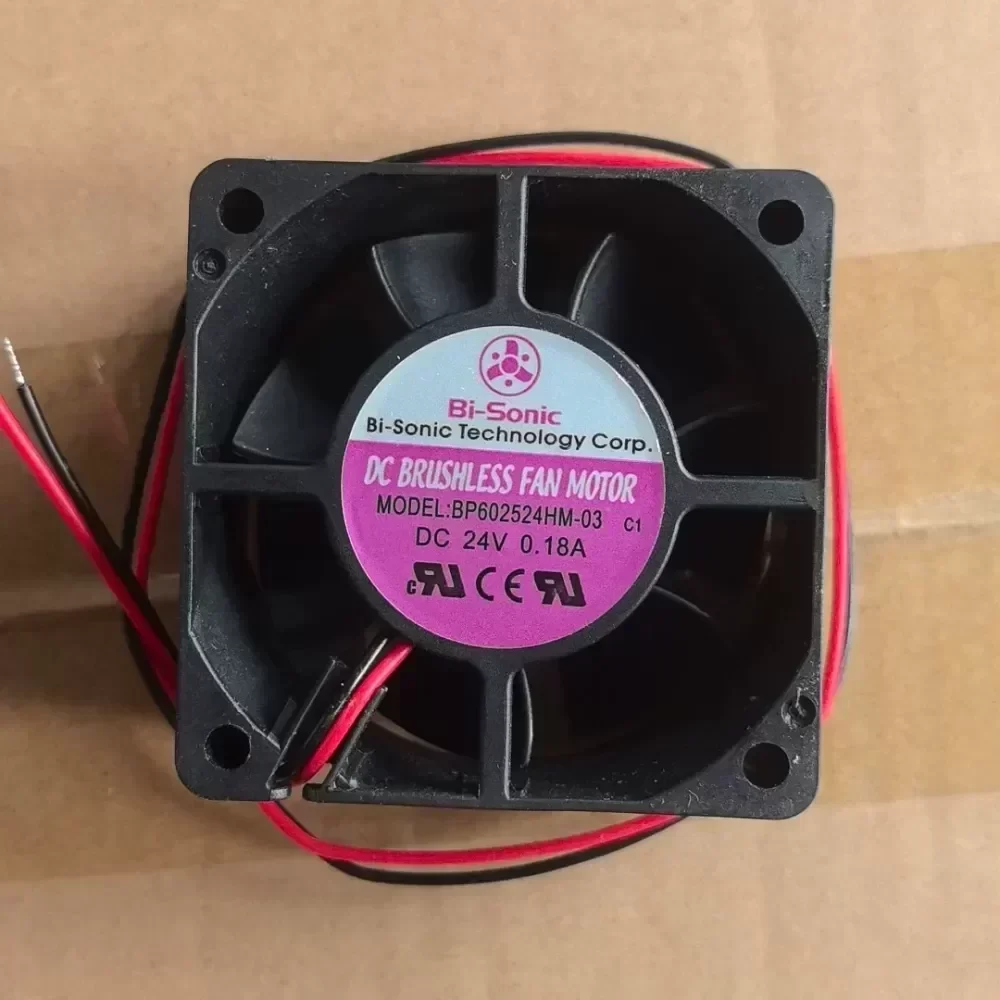

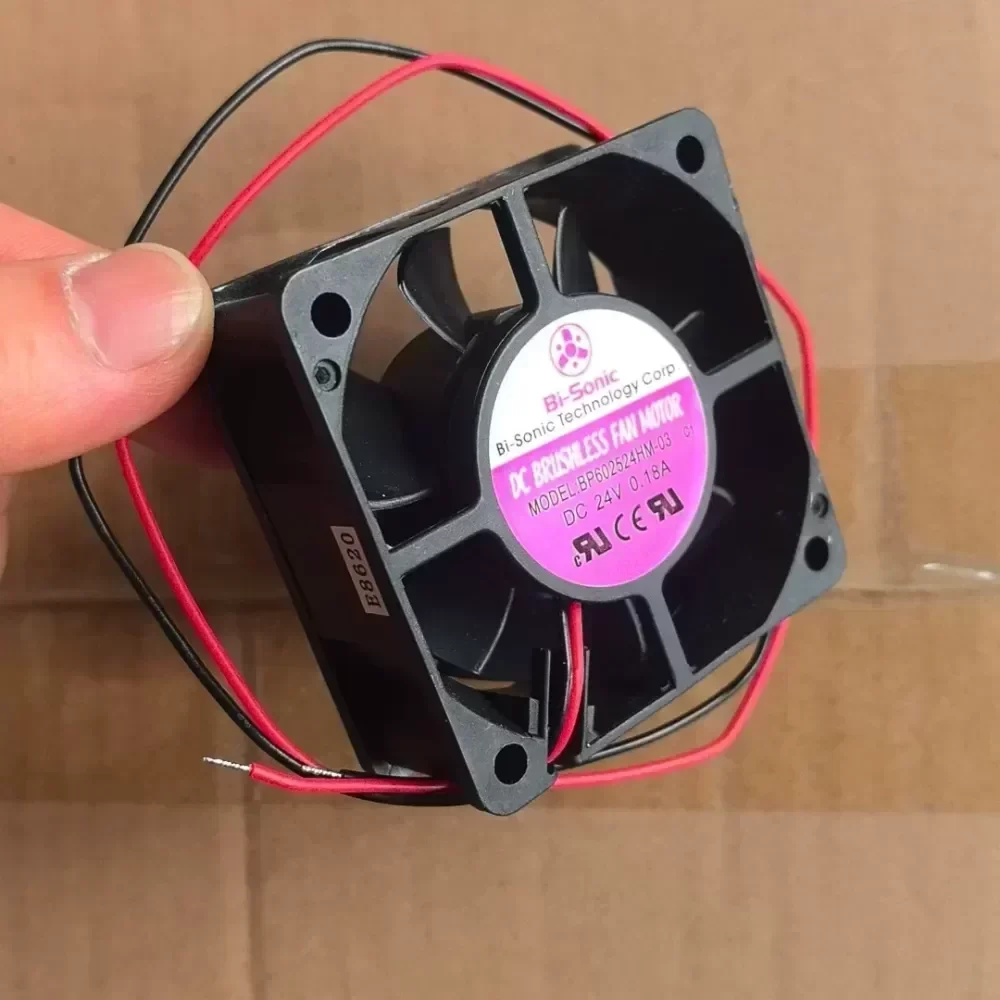

BP602524HM-03 Bi-Sonic 6025 fan

Name: BP602524HM-03 Bi-Sonic 6025 fan
Brand: Bi-Sonic
SKU: 903542962564
Availability: InStock
Rating: 5 (4 reviews)

$3.14

SKU: 903542962564 Brand: Bi-Sonic

Description
Reviews (0)

Description

The Bi-Sonic BP602524HM-03 is a precision-engineered DC axial cooling fan designed specifically for high-reliability thermal management in industrial inverters and power electronics. This 60mm unit features a robust dual ball bearing system, ensuring stable operation and extended service life in continuous-duty applications. The fan is constructed with UL94V-0 rated thermoplastic PBT, providing high resistance to heat and vibration common in automation environments. Its high-speed profile delivers the necessary static pressure to overcome impedance in densely packed electronic enclosures.

Manufacturer: Bi-Sonic Technology Corp (Taiwan Bairui)
Model Number: BP602524HM-03
Component Type: DC Axial Cooling Fan
Dimensions: 60mm x 60mm x 25mm
Rated Voltage: 24V DC
Operating Voltage Range: 12V – 27.6V DC
Input Current: 0.18 A
Input Power: 4.32 W
Rated Speed: 4800 RPM ±10%
Maximum Airflow: 23.5 CFM (0.67 m³/min)
Static Pressure: 5.8 mmH2O (0.23 Inch-H2O)
Noise Level: 34.0 dBA
Bearing Structure: Dual Ball Bearing
Life Expectancy: 50,000 Hours at 25°C
Frame Material: Glass Fiber Reinforced PBT (UL94V-0)
Impeller Material: Glass Fiber Reinforced PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Termination: Lead Wire
Safety Certifications: UL, cUL, TUV, CE

Industrial Application:
This specific model is engineered for forced convection cooling within variable frequency drives (VFDs), solar inverters, and compact server chassis where space is constrained but high static pressure is required. The dual ball bearing configuration allows for flexible mounting orientations—vertical or horizontal—without reducing the lifespan of the rotor. By maintaining optimal operating temperatures, the BP602524HM-03 prevents thermal throttling in power conversion modules. We guarantee Original Engineering standards to ensure full Technical Compatibility with existing maintenance requirements. Please verify current stock levels and Lead Time for critical replacement schedules.

BP602524HM-03 Bi-Sonic 6025 fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
