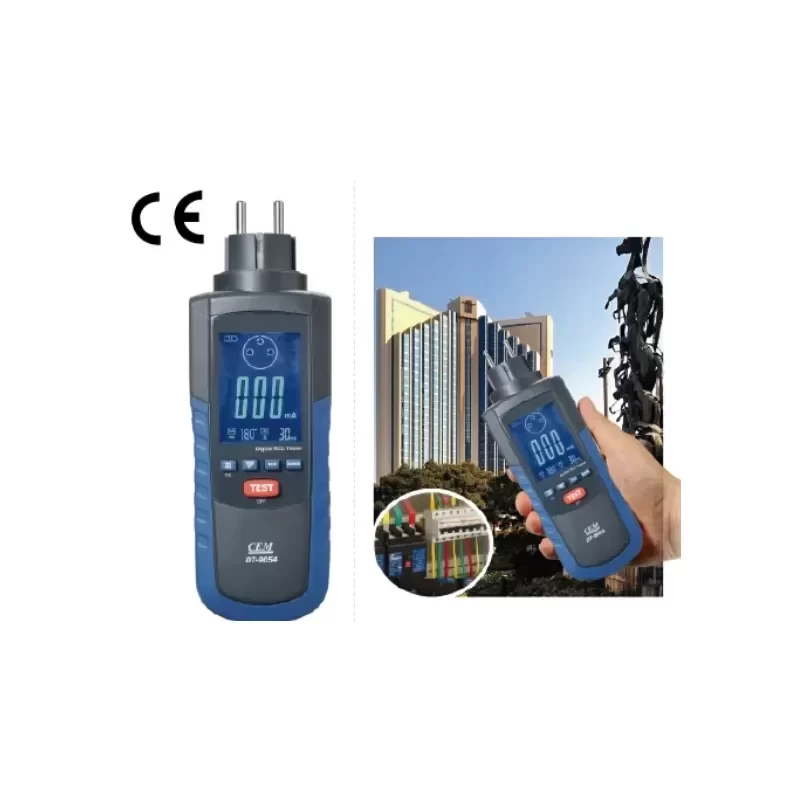

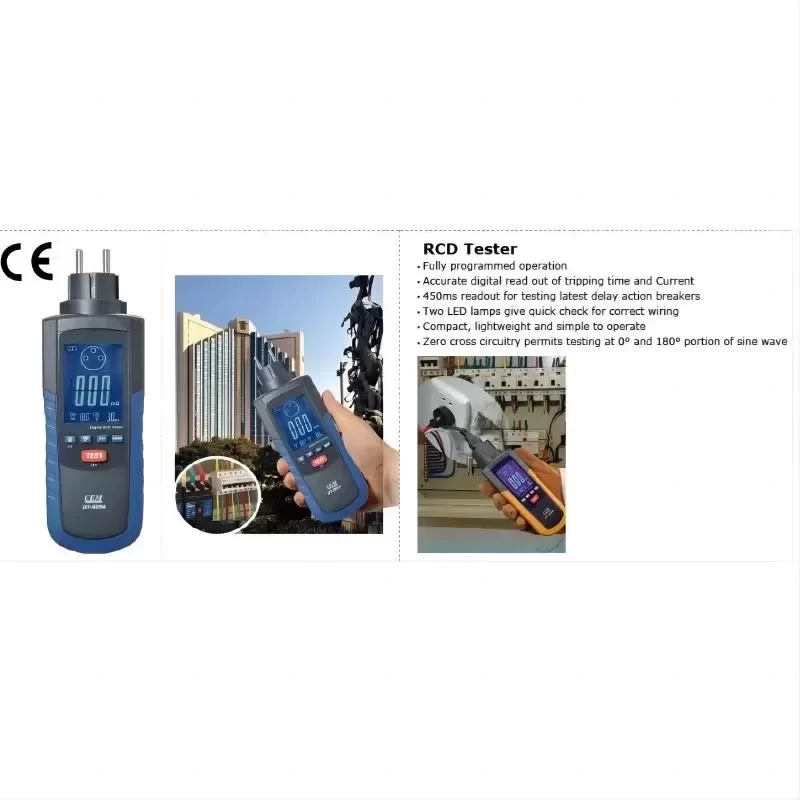

CEM DT-9054 Electrical Instruments RCD Tester and Leakage Switch Tester

Description

CEM DT-9054 Electrical Instruments RCD Tester and Leakage Switch Tester

Key Attributes
Model Number: DT-9054
Place of Origin: China
Accuracy Class: ±5% ±3digits
Measuring Range: 0ms to 300ms
Supply Voltage: 195V - 253V
Brand Name: CEM
Dimensions: 200mm x 70mm x 45mm
Display Type: Digital Only
Operating Temperature: -20°C to 50°C
Weight: 260g
Product Name: CEM
Model: DT-9054
Operational voltage: 195V - 253V /45 - 65Hz
Trip current settings: 10mA, 30mA, 100mA, 300mA, 500mA, 650mA
Trip current measurement accuracy: ±10% ±2digits
Trip time ranges: 0ms to 300ms
Trip time accuracy: ±5% ±3digits
Ramp test: X0.4 to 1.1 times nominal rated current,
Size(HxWxD): 200mm x 70mm x 45mm
Weight: 260g

Packaging and Delivery
Selling Units: Single item
Single package size: 32X22X15 cm
Single gross weight: 2.000 kg
