Description

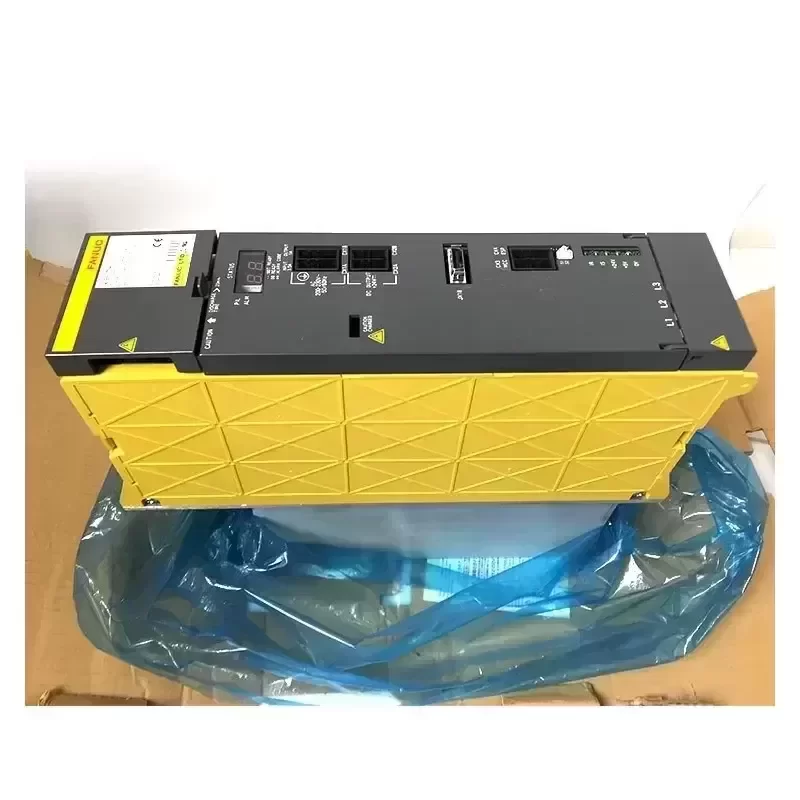

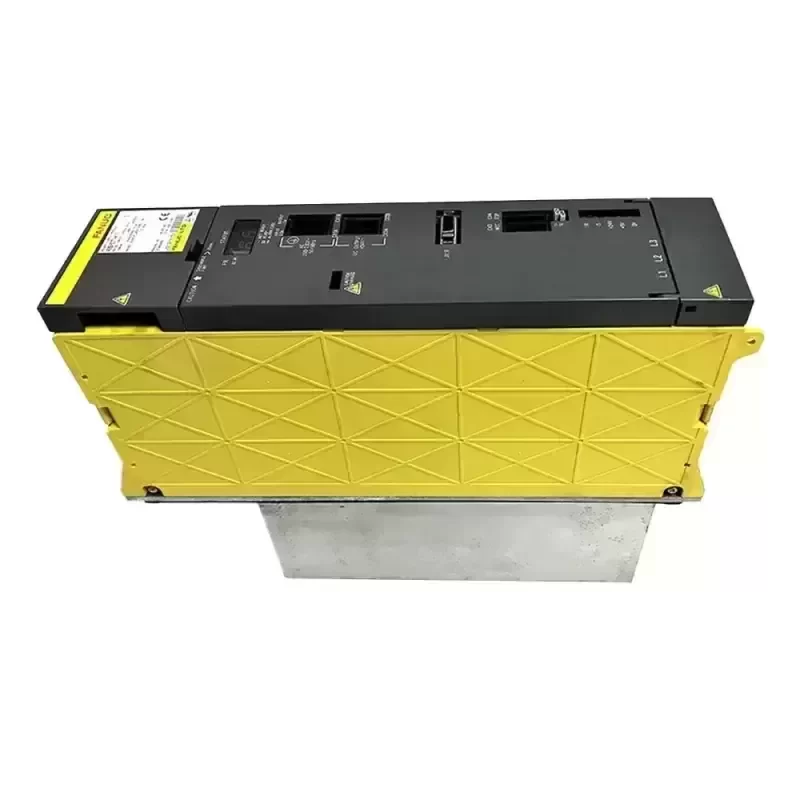

The FANUC A06B-6077-H111 is a dedicated Alpha Series Power Supply Module (PSM-11) engineered to function as the central power rectification unit for high-precision CNC systems. Unlike a standalone servo amplifier, this module is responsible for converting the 3-phase AC mains input into a stable 300V DC link, which is then distributed to downstream Alpha Servo Amplifiers (SVM) and Spindle Amplifier Modules (SPM). Built with Original Engineering standards from FANUC Japan, this unit ensures consistent voltage regulation and manages regenerative energy during motor deceleration, preventing overvoltage faults in multi-axis machining centers. Its robust architecture supports the synchronization of complex motion control profiles by maintaining DC bus integrity under fluctuating load conditions.

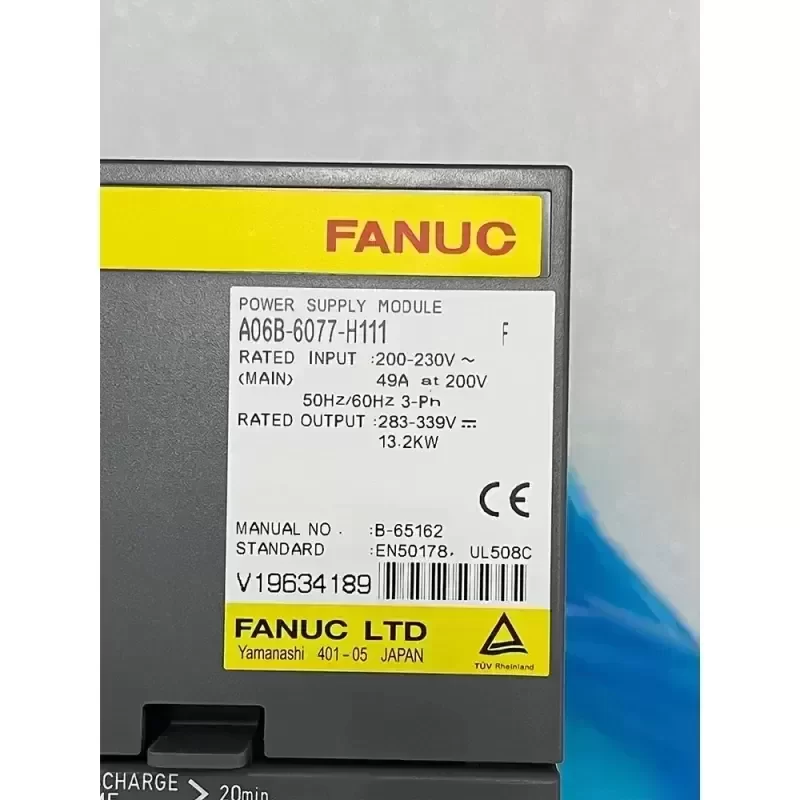

Technical Specifications:
Manufacturer: FANUC Corporation
Model Number: A06B-6077-H111
Module Type: Power Supply Module (PSM-11)
Product Series: Alpha Series (α Series)
Rated Output Capacity: 11 kW
Nominal Input Voltage: 200-230 VAC
Input Phase: 3-Phase
Input Frequency: 50/60 Hz
Rated Output Current: 53 A
DC Link Output Voltage: 283-325 VDC
Control Circuit Voltage: 24 VDC
Regenerative Discharge Method: Internal Resistor / External Option
Cooling System: Forced Air (Internal Fan)
Mounting Interface: Flange / Panel Mount
Approximate Weight: 6.0 kg
Dimensions (H x W x D): 380mm x 150mm x 307mm
Operating Temperature: 0°C to 55°C
Protection Rating: IP00 (Cabinet Installation Required)
Country of Origin: Japan
Industrial Application:
This PSM-11 module is the critical power backbone for mid-sized CNC lathes and milling machines utilizing FANUC Series 16, 18, and 21 controls. It is specifically designed to interface via the Type A or Type B configuration to manage the common power bus for connected drive units. The A06B-6077-H111 is essential in applications requiring rapid acceleration and deceleration cycles, where its internal regenerative discharge circuit dissipates excess energy to protect sensitive electronic components. Verifying Technical Compatibility with your existing amplifier rack configuration is vital to prevent DC link connection errors. Please contact our engineering team to confirm current Lead Time and stock status for this essential power infrastructure component.
Key Attributes
Application: Power Station, Building, Industrial Equipment, Electronic Equipment, Electric Power Transmission, Cnc Machine, Automation
Motor Type: Servo
Place of Origin: Japan
Model Number: A06B-6077-H111
Brand Name: FANUC
Condition: 100% Original
Packaging and Delivery
Selling Units: Single item
