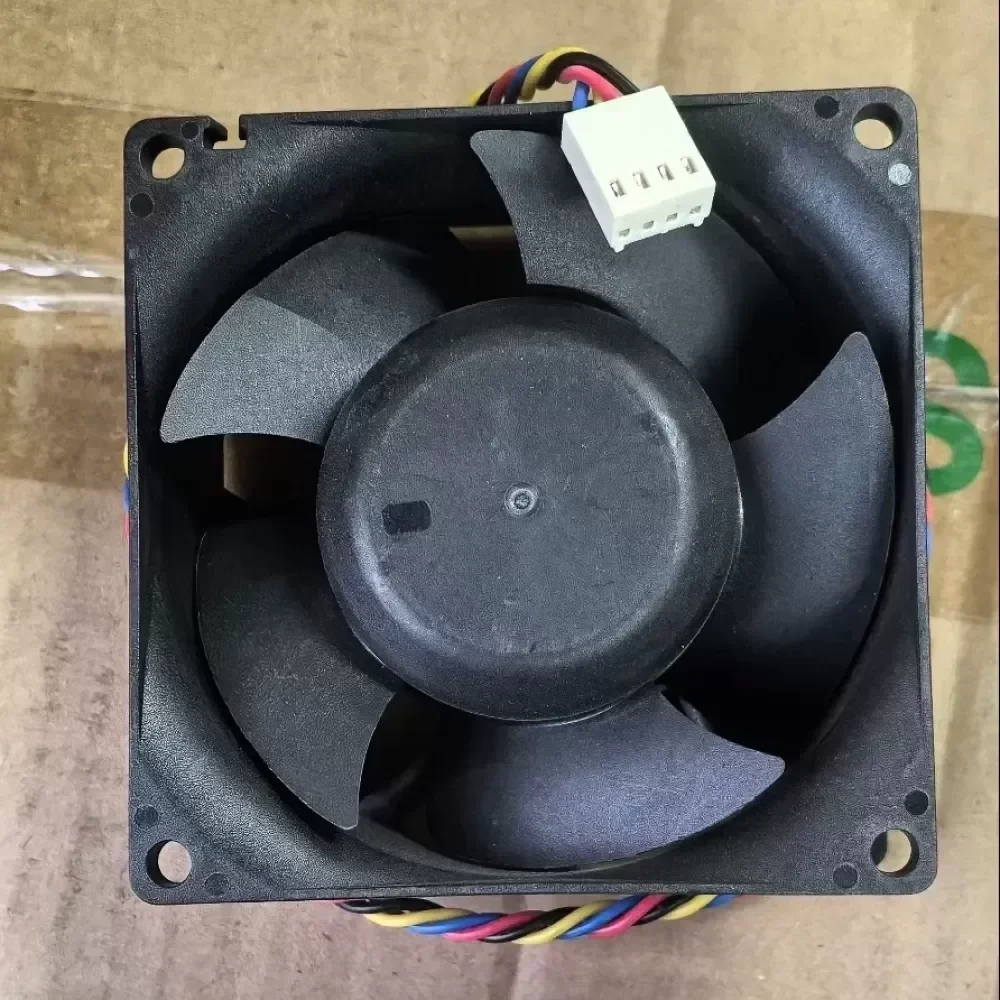

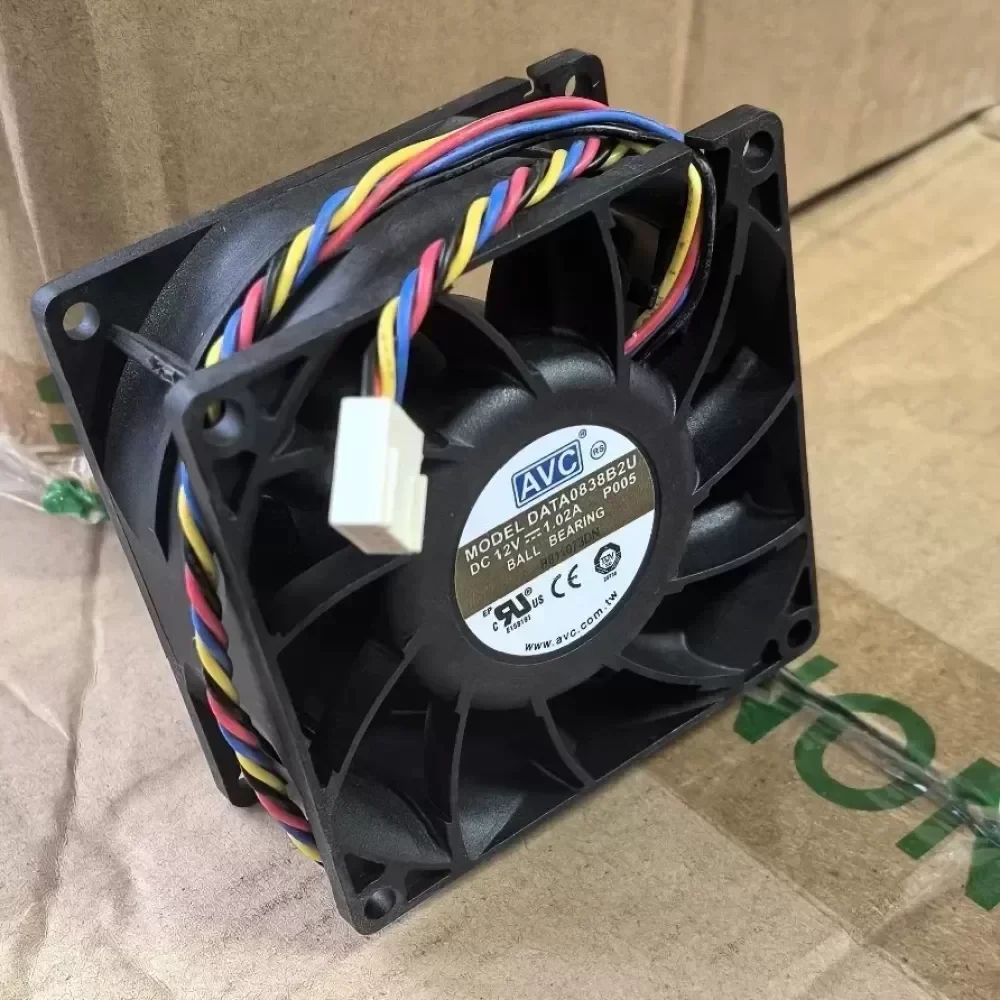

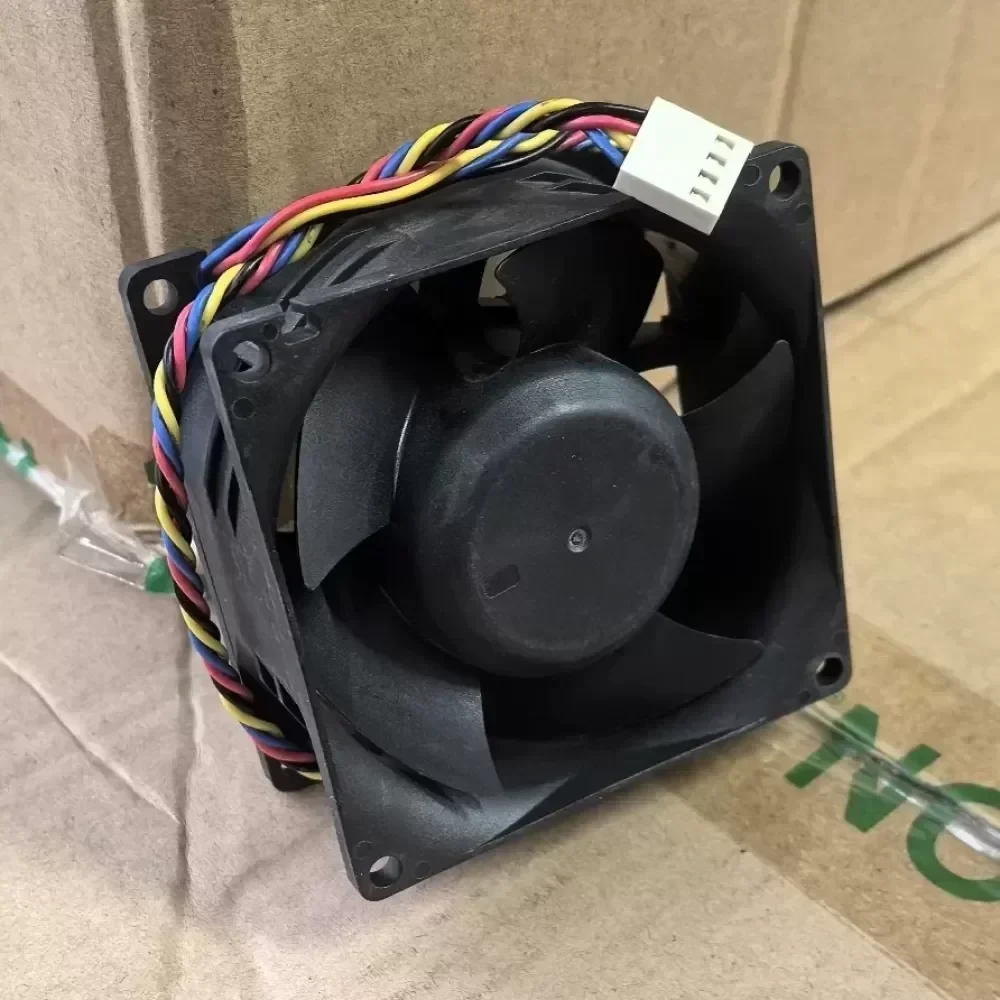

DATA0838B2U AVC 8038 fan

Name: DATA0838B2U AVC 8038 fan
Brand: AVC
SKU: 905122340314
Availability: InStock
Rating: 5 (4 reviews)

$3.29

SKU: 905122340314 Brand: AVC

Description
Reviews (0)

Description

The AVC DATA0838B2U is a high-performance DC axial cooling fan engineered by Asia Vital Components for mission-critical thermal management in server chassis, high-density workstations, and industrial automation equipment. This unit is defined by its high-static pressure capabilities, driven by a powerful 1.02A motor, making it suitable for forcing air through dense heatsink fins and restricted airflow environments where standard fans fail to overcome system impedance.

Manufacturer: AVC (Asia Vital Components)
Model: DATA0838B2U
Component Type: DC Axial Cooling Fan
Dimensions: 80mm x 80mm x 38mm
Rated Voltage: 12V DC
Rated Current: 1.02A
Power Input: Approximately 12.24W
Bearing System: Dual Ball Bearing
Speed Control: PWM (Pulse Width Modulation)
Wire Configuration: 4-Wire (VCC, GND, Tachometer Sensor, PWM Control)
Frame Material: Reinforced Thermoplastic PBT (UL94V-0)
Impeller Material: Reinforced Thermoplastic PBT
Operating Temperature Range: -10°C to +70°C
Life Expectancy: 70,000 Hours at 40°C
Mounting Style: Flange Mount

This specific 8038 form factor fan utilizes a robust dual ball bearing architecture to sustain high rotational speeds and ensure longevity under continuous 24/7 operation. The 4-wire interface provides precise speed regulation via PWM signals, allowing the host system to balance cooling performance with acoustic output dynamically based on real-time thermal loads. The high amperage rating of 1.02A signifies an Ultra-High Speed classification, delivering the substantial airflow (CFM) and static pressure required for 2U rackmount servers and high-wattage power supply units. This Original Engineering component guarantees Technical Compatibility with standard 4-pin industrial fan headers and server backplanes requiring tachometer feedback. Current stock availability ensures minimal Lead Time for critical cooling system repairs and prototype integration.

DATA0838B2U AVC 8038 fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
