Delta AFB0612HB DC12V 6015/0.15A fan

Name: Delta AFB0612HB DC12V 6015/0.15A fan
Brand: Delta
SKU: 910619616825
Availability: InStock
Rating: 5 (4 reviews)

$3.57

SKU: 910619616825 Brand: Delta

Description
Reviews (0)

Description

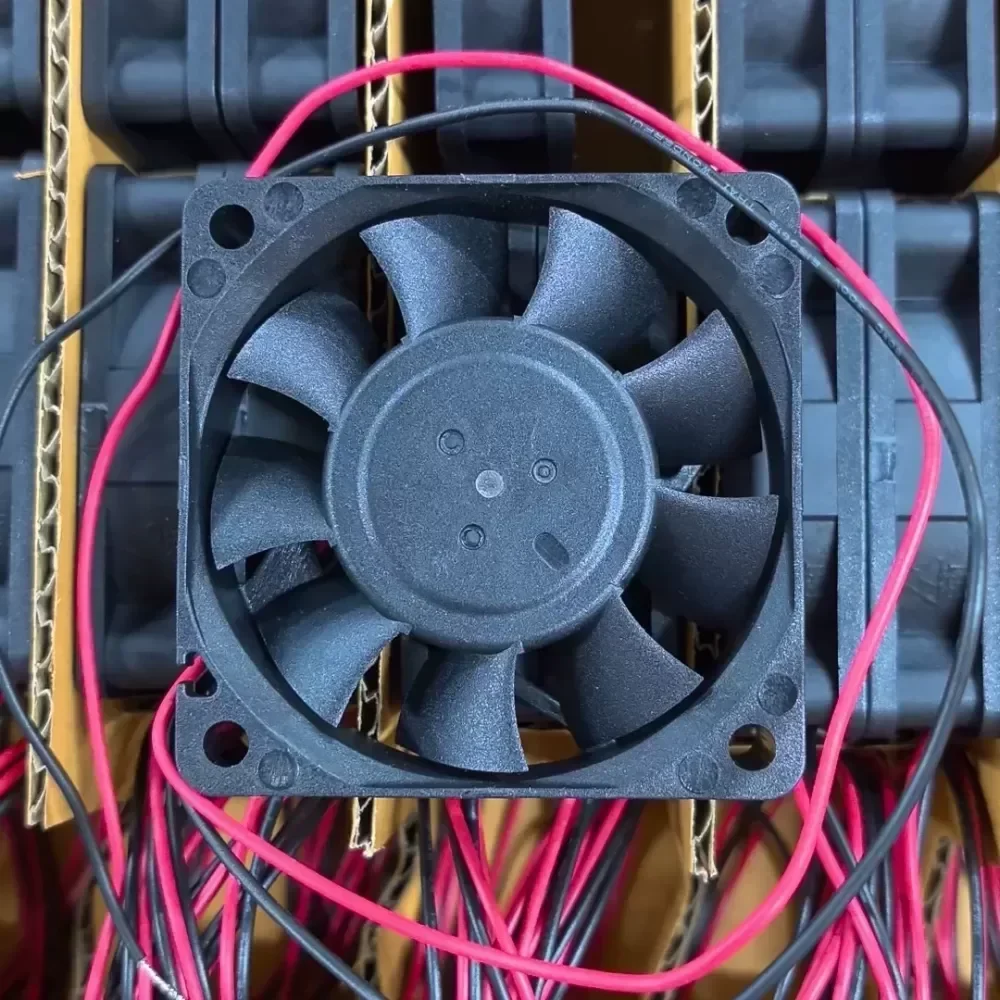

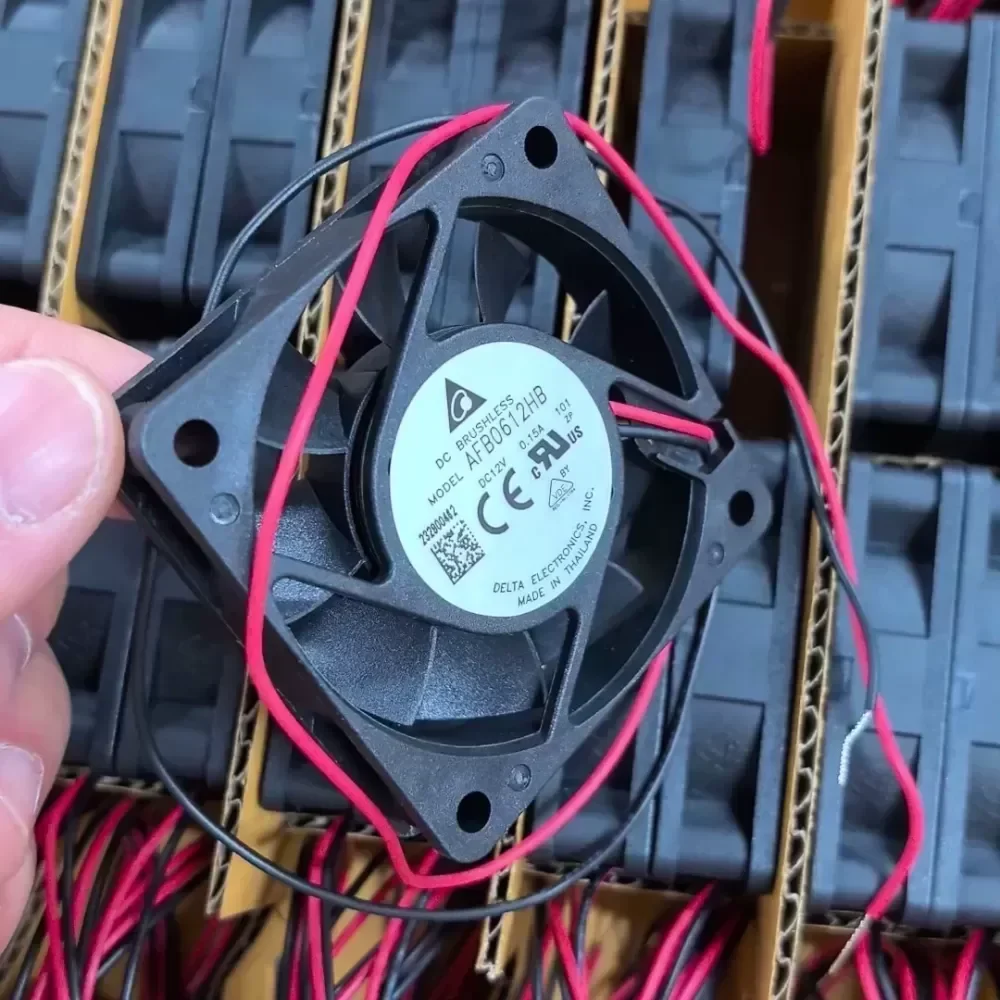

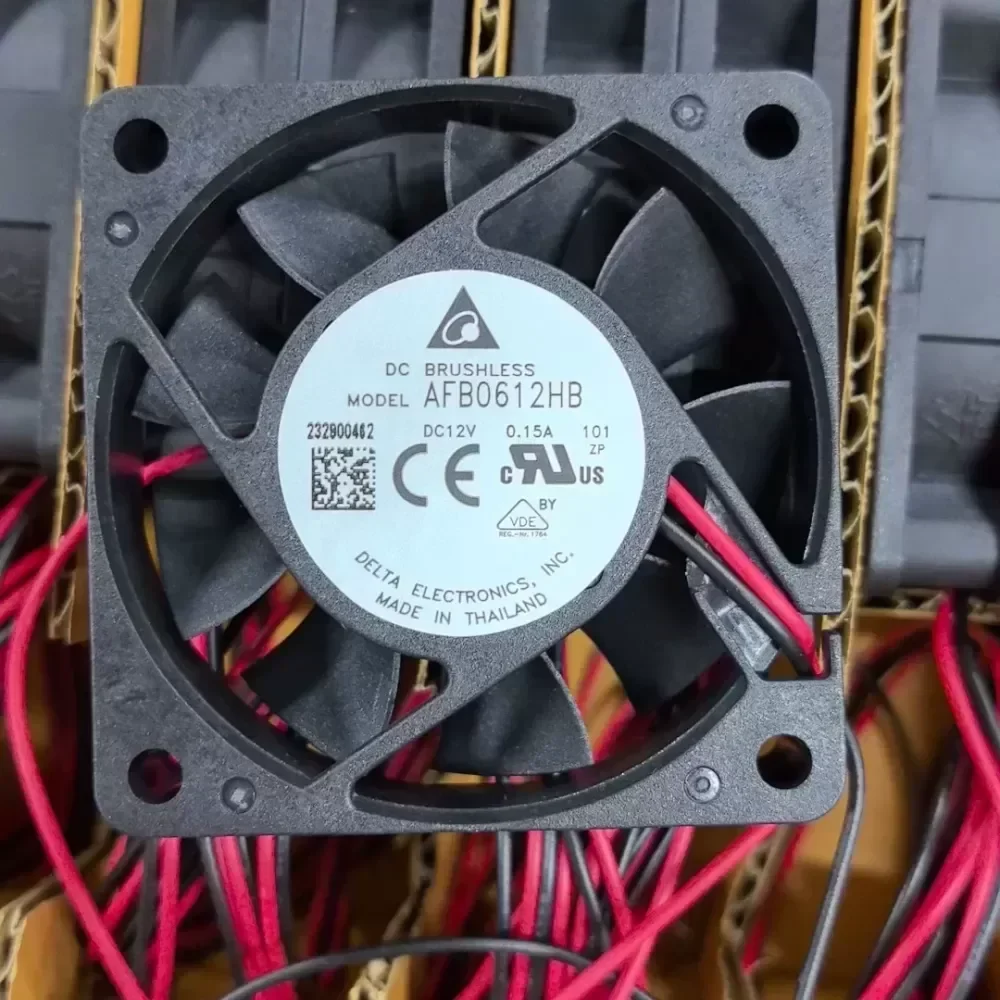

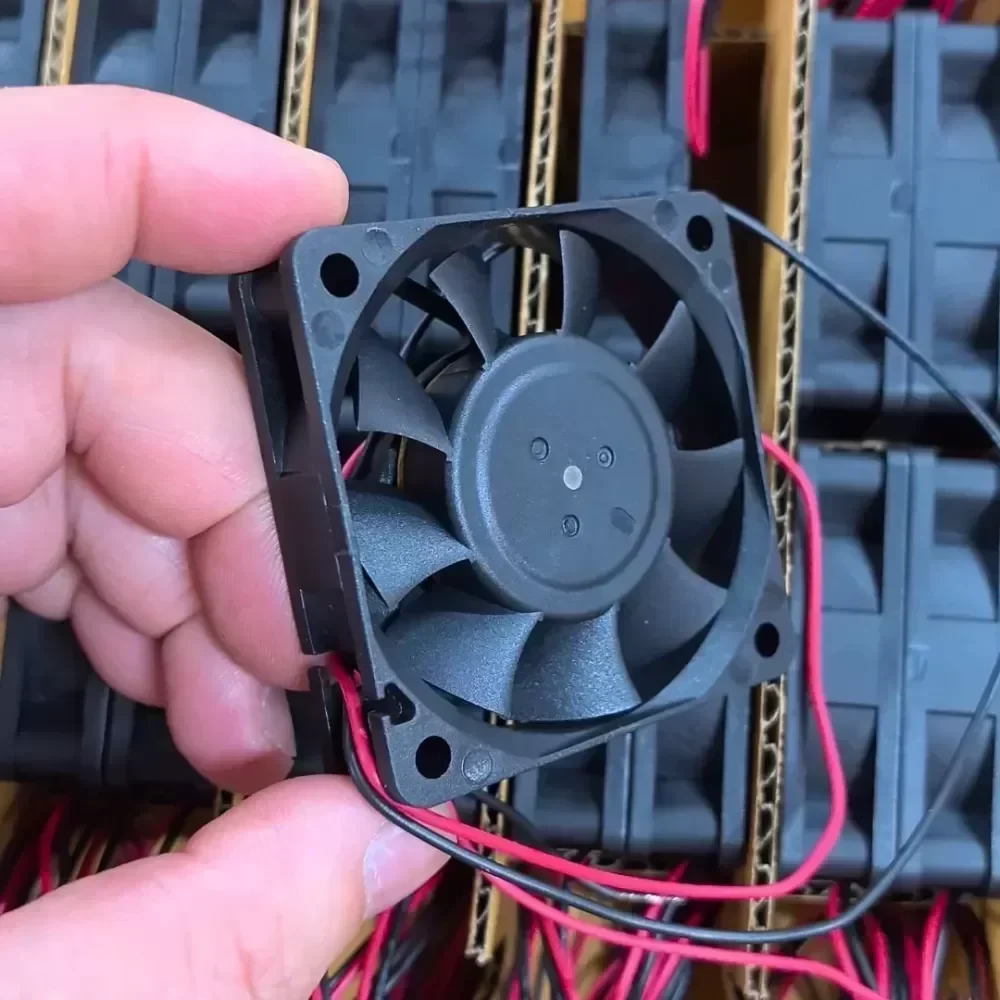

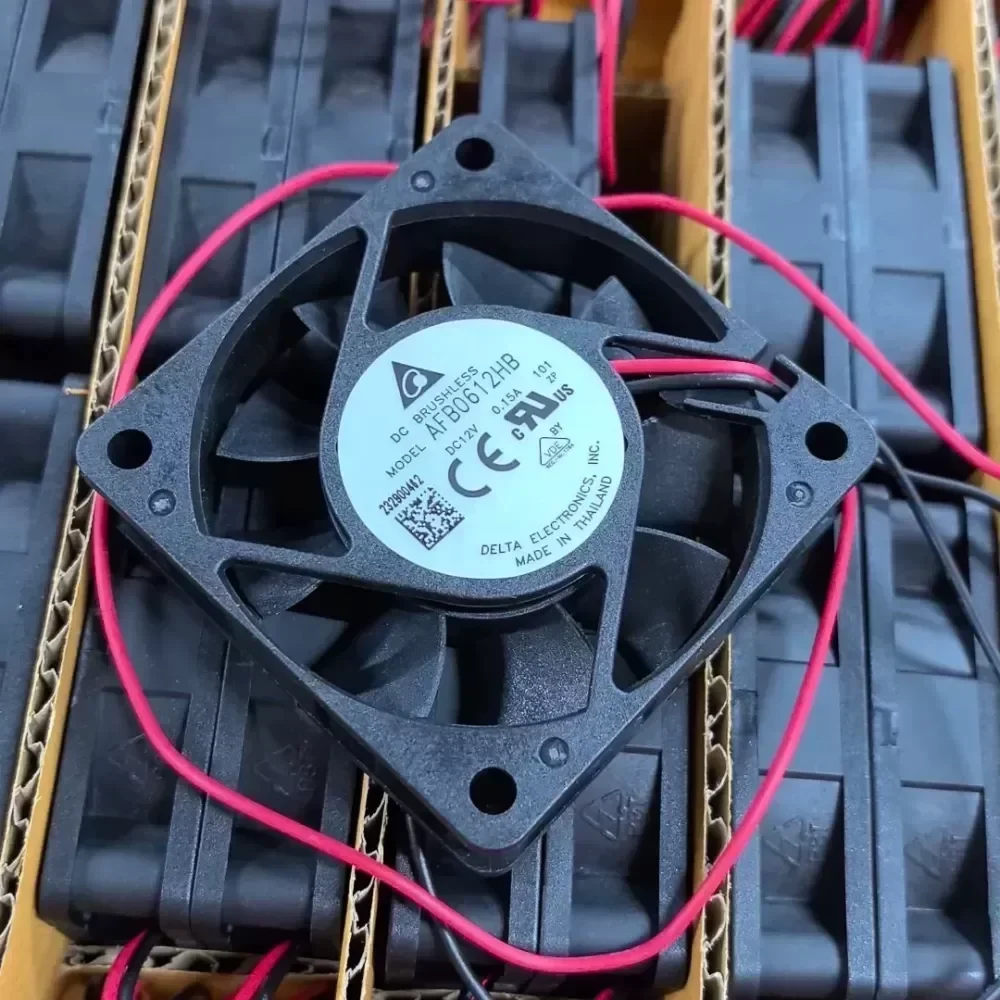

The Delta Electronics AFB0612HB is a high-performance DC axial fan engineered for precision thermal management in industrial electronics and compact server enclosures. Part of the AFB series, this model features a 60mm x 60mm x 15mm (6015) form factor, utilizing a robust Dual Ball Bearing system that ensures superior longevity and stability compared to standard sleeve bearing alternatives. Designed for 12V DC operation with a current draw of 0.15A, the unit delivers an optimized airflow-to-noise ratio, making it suitable for noise-sensitive environments requiring consistent heat dissipation. This component represents Original Engineering quality, preserved in pristine, unused condition to ensure immediate Technical Compatibility with existing thermal architectures.

Technical Specifications:
Manufacturer: Delta Electronics
Model Number: AFB0612HB
Component Type: DC Axial Cooling Fan
Dimensions: 60mm x 60mm x 15mm
Bearing System: Dual Ball Bearing
Rated Voltage: 12 VDC
Operating Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.15 A
Input Power: 1.80 W
Rotational Speed: 4000 RPM
Maximum Airflow: 15.18 CFM (0.430 m³/min)
Static Pressure: 3.54 mmH2O (0.139 IN H2O)
Noise Level: 32.0 dB-A
Frame Material: Glass Fiber Reinforced PBT (UL94V-0)
Impeller Material: Glass Fiber Reinforced PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Life Expectancy: 70,000 Hours at 40°C
Termination: Lead Wire (UL 1007 AWG #24)

This specific model is critical for applications where space constraints prevent the use of larger cooling solutions but high static pressure is required to force air through dense componentry. It is ideally deployed in rack-mount power supplies, telecommunications chassis, and industrial automation control panels where reliability is paramount. The unit’s unused status guarantees full lifecycle performance, minimizing Lead Time for urgent maintenance and repair operations involving legacy or current generation hardware.

Delta AFB0612HB DC12V 6015/0.15A fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
