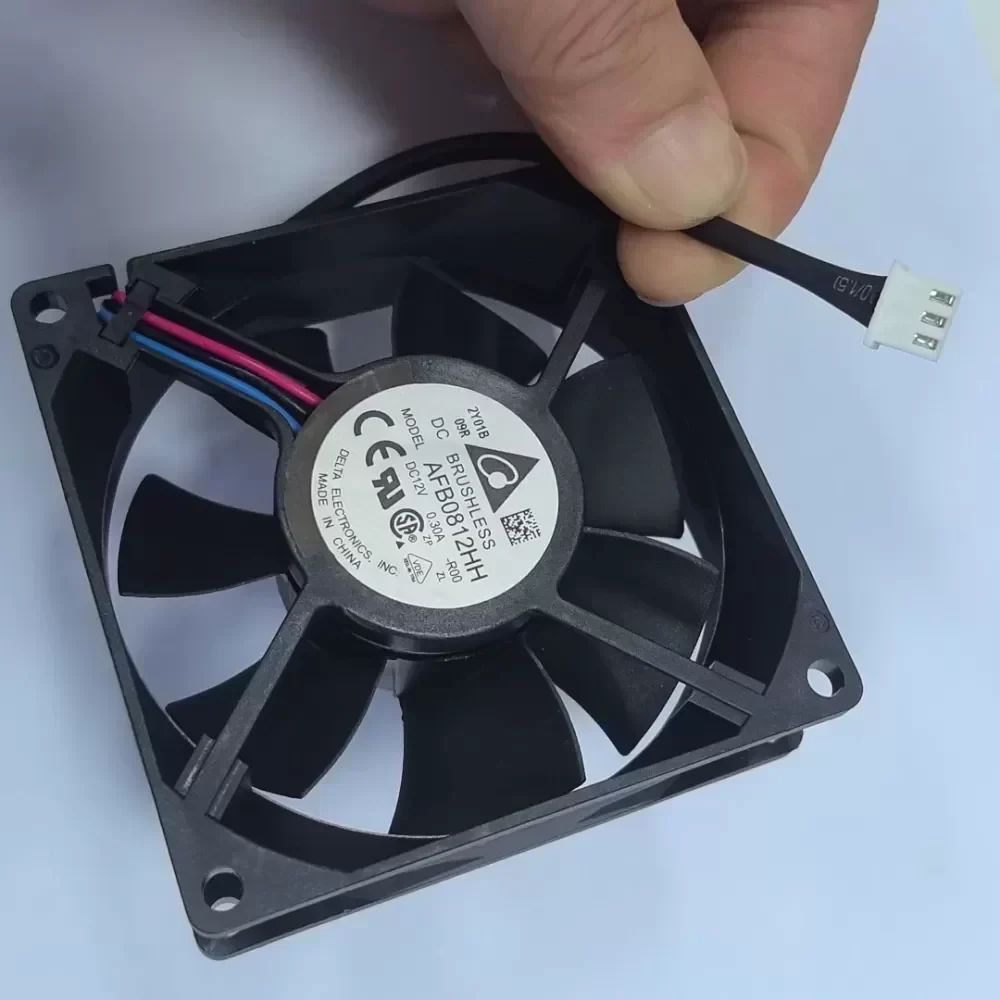

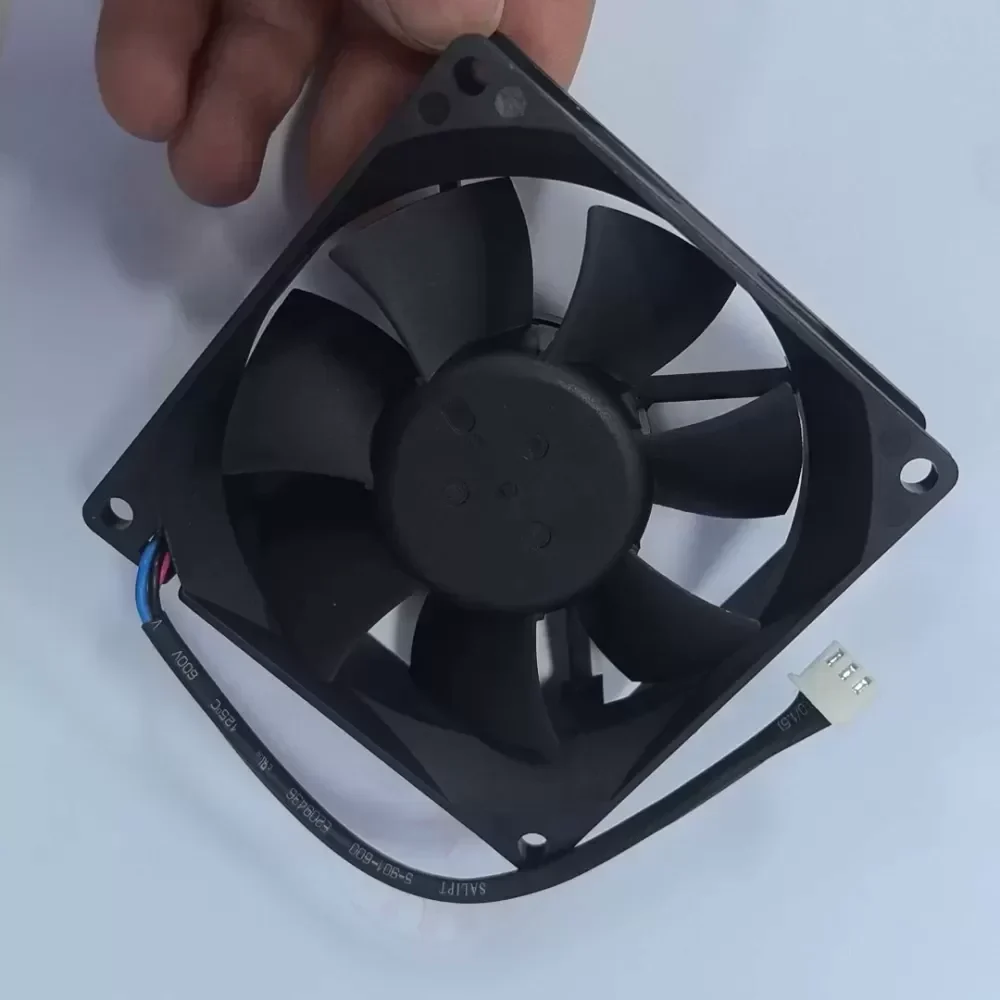

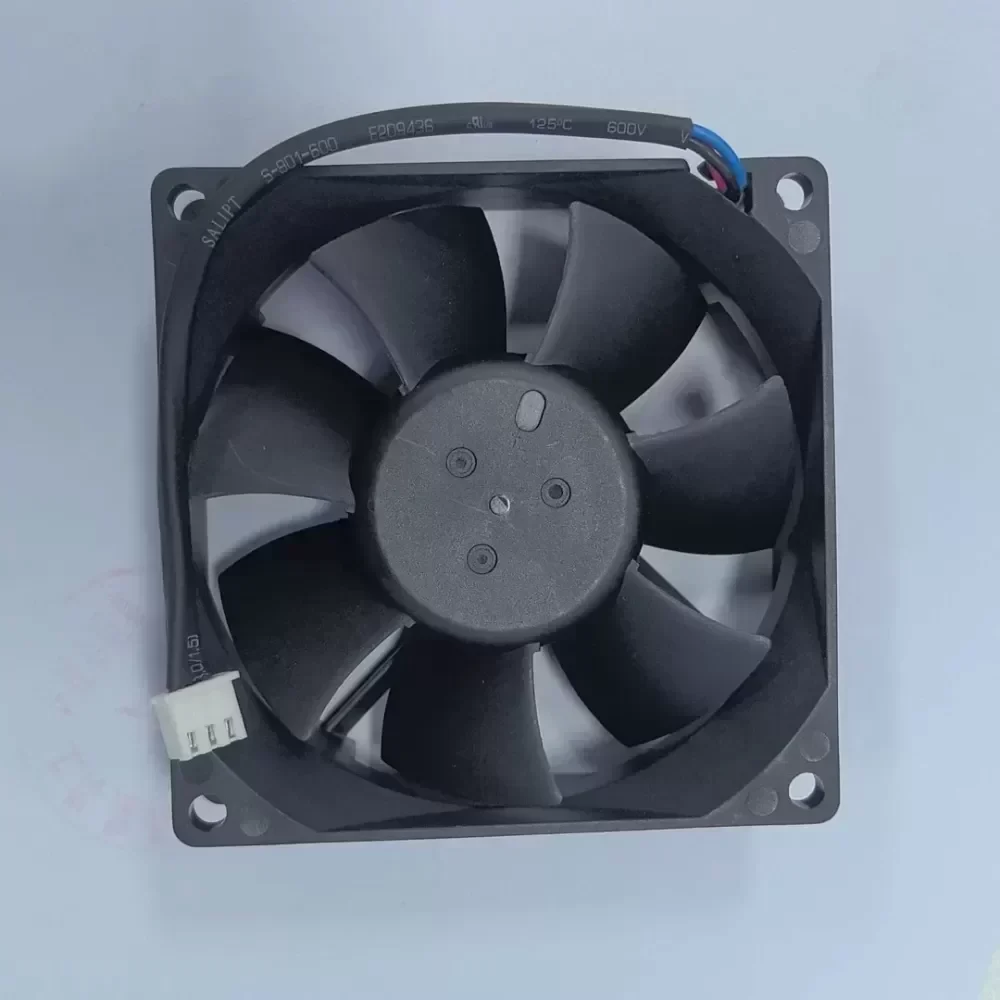

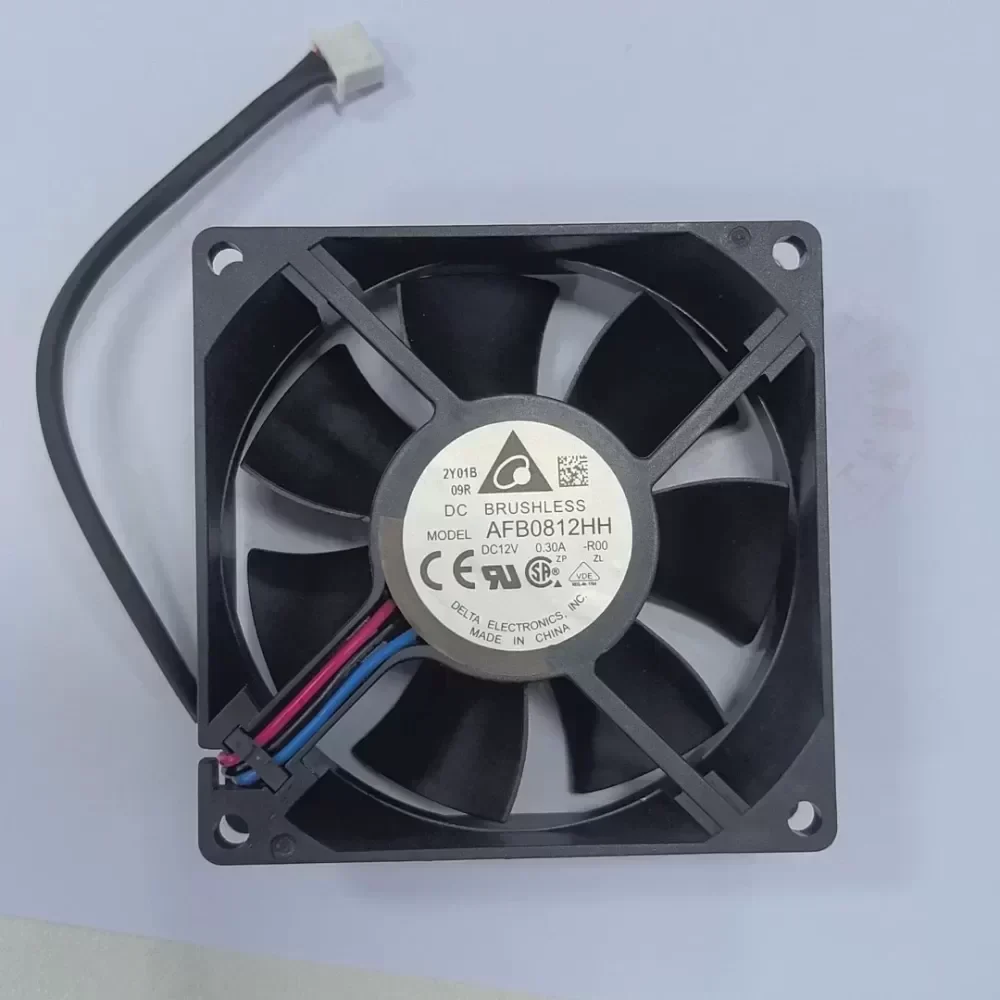

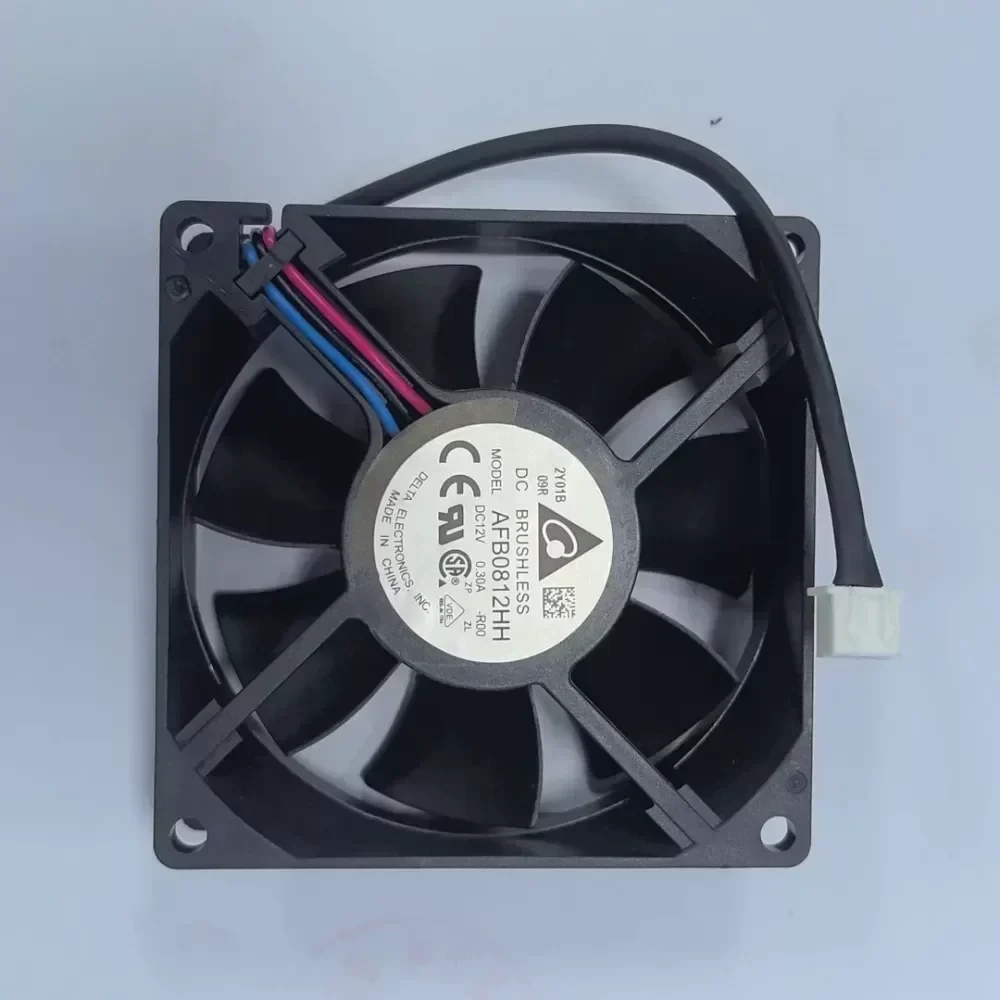

Delta AFB0812HH-R00 8025 12V 0.30A fan

Name: Delta AFB0812HH-R00 8025 12V 0.30A fan
Brand: Delta
SKU: 917803951789
Availability: InStock
Rating: 5 (4 reviews)

$3.57

SKU: 917803951789 Brand: Delta

Description
Reviews (0)

Description

The Delta Electronics AFB0812HH-R00 is a high-performance DC axial fan engineered for critical thermal management in industrial chassis and power inverter systems. This unit features the R00 Rotation Detector sensor, providing a locked rotor alarm signal essential for fail-safe operations in automation environments. Built with a dual ball bearing system, it ensures extended lifecycle stability under continuous operation. The 80mm form factor combined with high static pressure capabilities allows for efficient heat dissipation in restricted spaces.

Technical Specifications:
Manufacturer: Delta Electronics
Model Number: AFB0812HH-R00
Series: AFB
Bearing Type: Dual Ball Bearing
Nominal Voltage: 12V DC
Operating Voltage Range: 7.0V to 13.8V DC
Rated Current: 0.30 A
Input Power: 3.60 W
Rated Speed: 3250 RPM
Maximum Airflow: 1.06 m³/min (37.43 CFM)
Maximum Static Pressure: 4.59 mmH₂O
Acoustic Noise: 34.0 dB-A
Dimensions: 80mm x 80mm x 25.4mm
Frame Material: PBT Plastic (UL 94V-0)
Impeller Material: PBT Plastic (UL 94V-0)
Signal Output: R00 (Rotation Detector/Locked Rotor Alarm)
Termination: 3-Wire Lead
Operating Temperature: -10°C to +70°C
Life Expectancy: 70,000 Hours (at 40°C)
Net Weight: 80 g

Industrial Application:
This specific configuration is optimized for forced convection in variable frequency drives (VFDs), solar inverters, and server chassis where airflow monitoring is mandatory. The R00 signal output integrates directly with logic controllers to trigger immediate shutdowns or alarms if fan rotation ceases, preventing catastrophic thermal runaway in sensitive electronic components. Its high static pressure capability makes it suitable for high-density component layouts where impedance to airflow is significant.

Procurement Data:
Original Engineering standards are maintained to ensure exact fit and function. Contact us for current Lead Time and verification of Technical Compatibility with existing cooling assemblies.

Delta AFB0812HH-R00 8025 12V 0.30A fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
