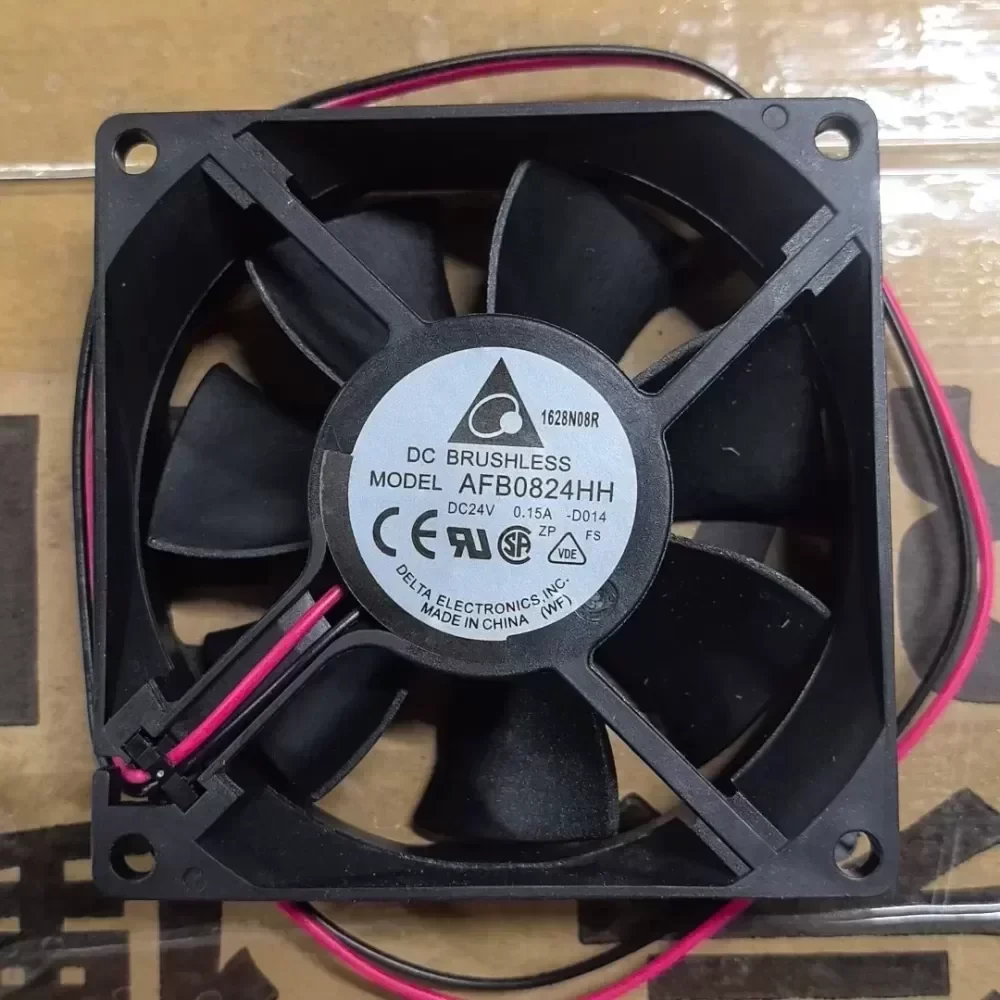

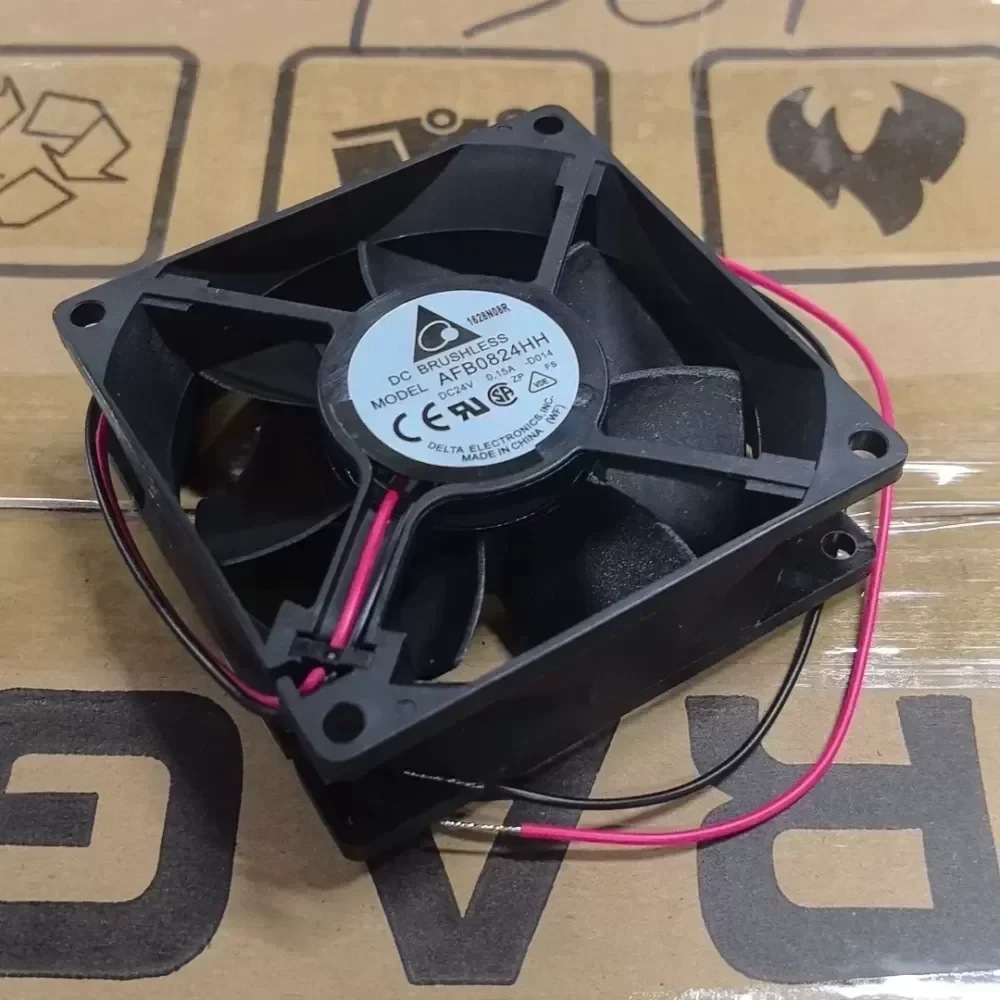

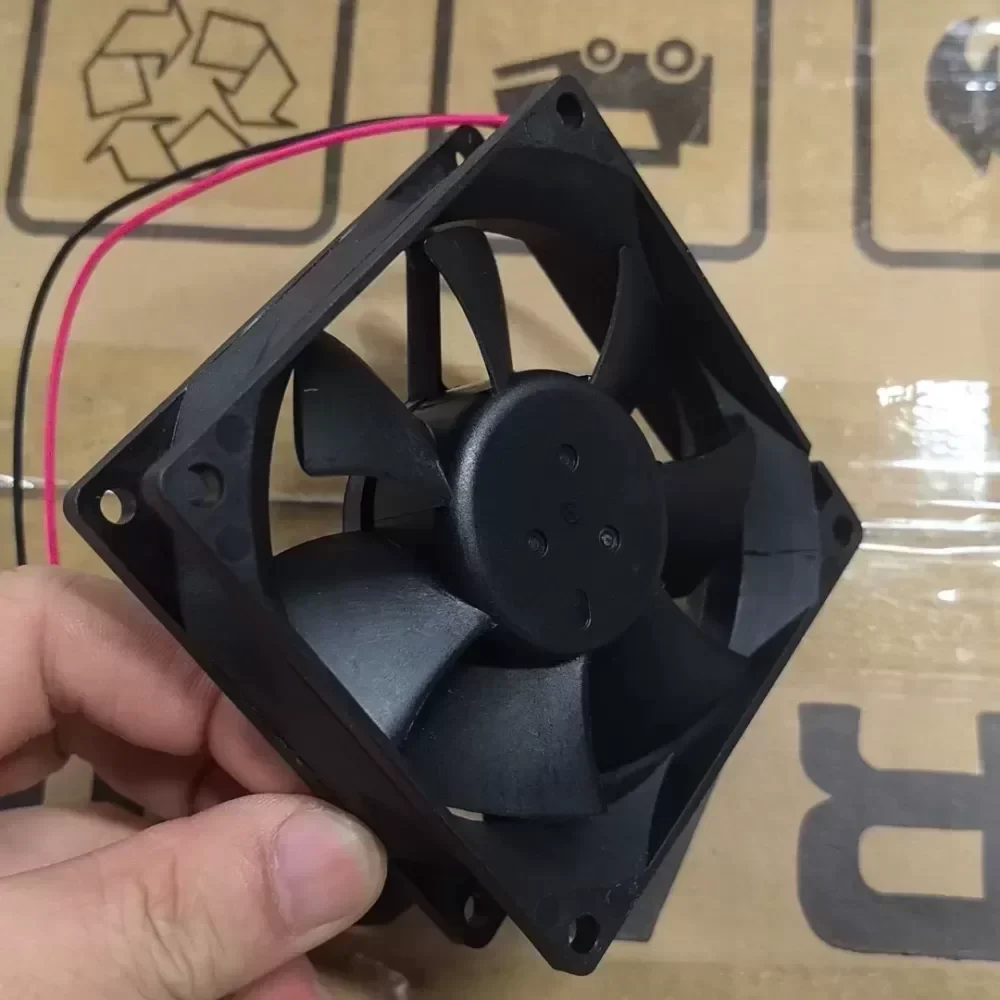

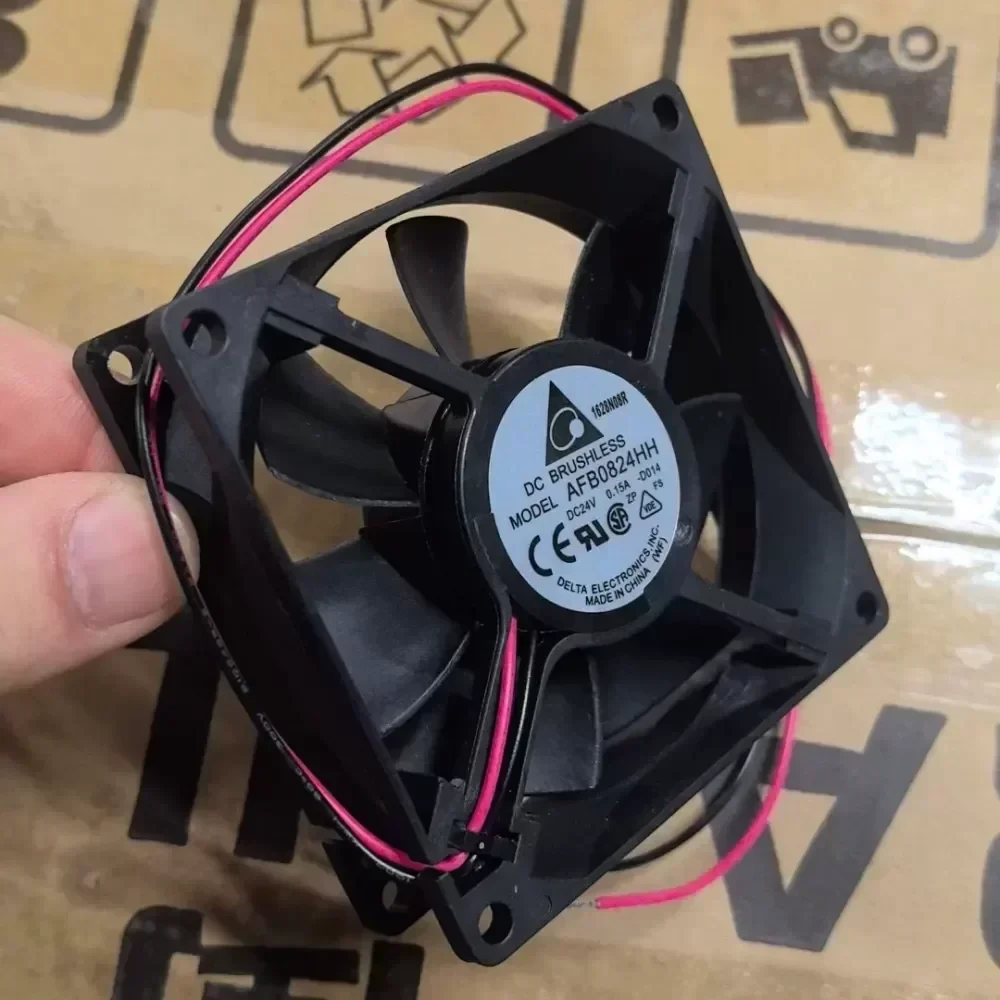

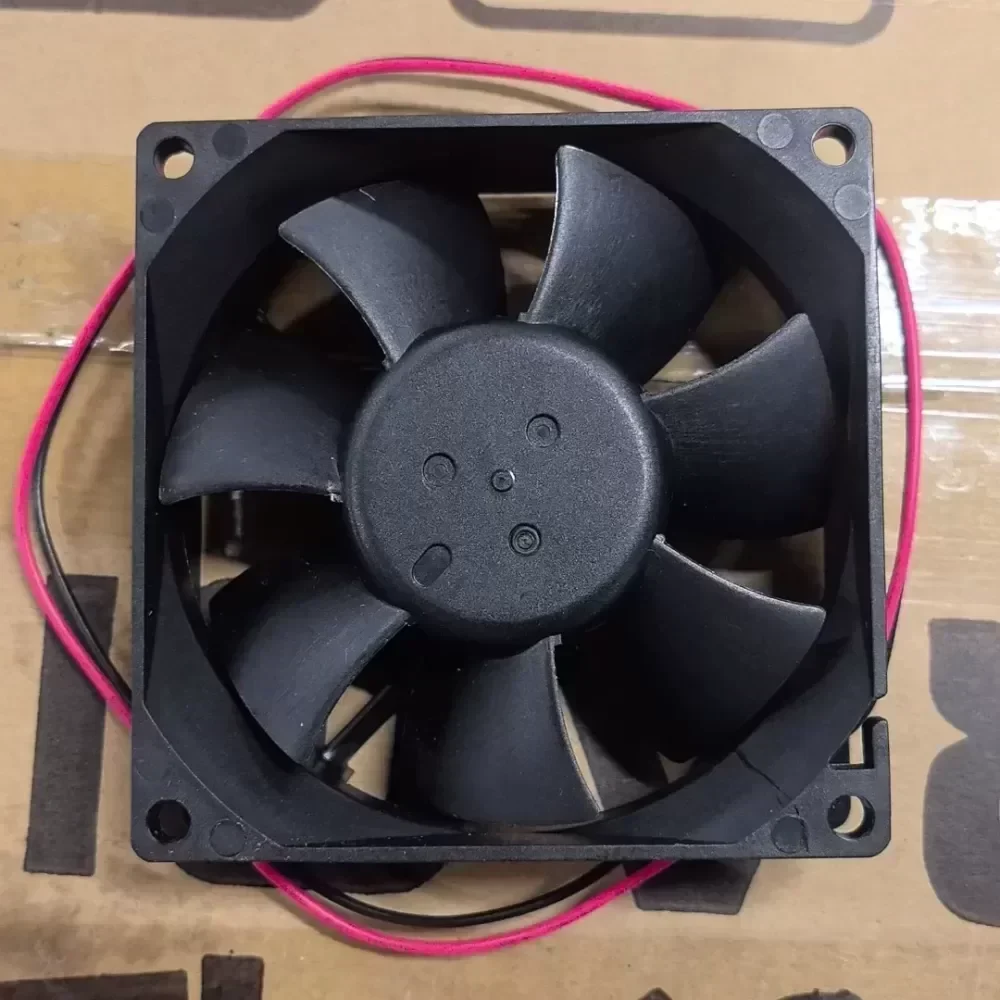

Delta AFB0824HH 8cm fan

Name: Delta AFB0824HH 8cm fan
Brand: Delta
SKU: 906170712082
Availability: InStock
Rating: 5 (4 reviews)

$3.14

SKU: 906170712082 Brand: Delta

Description
Reviews (0)

Description

The Delta Electronics AFB0824HH is a high-performance DC axial fan engineered for critical thermal management in industrial automation and power conversion systems. Utilizing a robust dual ball bearing design, this unit offers superior longevity and stability compared to sleeve-bearing alternatives, making it ideal for continuous-duty applications. The fan is characterized by its high airflow-to-noise ratio and is specifically calibrated to operate efficiently within high-impedance environments. Original Engineering specifications ensure precise aerodynamic performance, maintaining the reliability of sensitive electronic components under thermal stress.

Technical Specifications:
Manufacturer: Delta Electronics
Model Number: AFB0824HH
Series: AFB
Component Type: DC Axial Fan
Dimensions: 80mm x 80mm x 25.4mm (8025 Form Factor)
Bearing System: Two Ball Bearing
Rated Voltage: 24V DC
Operating Voltage Range: 14.0V to 27.6V DC
Rated Current: 0.15 A
Input Power: 3.60 W
Rated Speed: 3250 RPM
Maximum Airflow: 1.06 m³/min (37.43 CFM)
Maximum Static Pressure: 4.59 mmH₂O (0.181 inH₂O)
Acoustical Noise: 34.0 dB-A
Frame Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Operating Temperature: -10°C to +70°C
Life Expectancy: 70,000 Hours (at 40°C)
Termination: Lead Wire (UL 1007 AWG #24)
Weight: 80 g
Safety Certifications: UL, cUL, TUV, VDE

Industrial Application:
This specific cooling unit is engineered for the thermal regulation of industrial inverters, servo drives, and power supply units where internal component density restricts natural convection. The AFB0824HH provides the necessary static pressure to force air through dense heatsink fins and across power transistors (IGBTs), preventing thermal runaway during peak load operations. Its Technical Compatibility with standard 24V control circuits and universal mounting footprints minimizes downtime during maintenance. We offer competitive Lead Time options to support urgent MRO requirements and planned system overhauls.

Delta AFB0824HH 8cm fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
