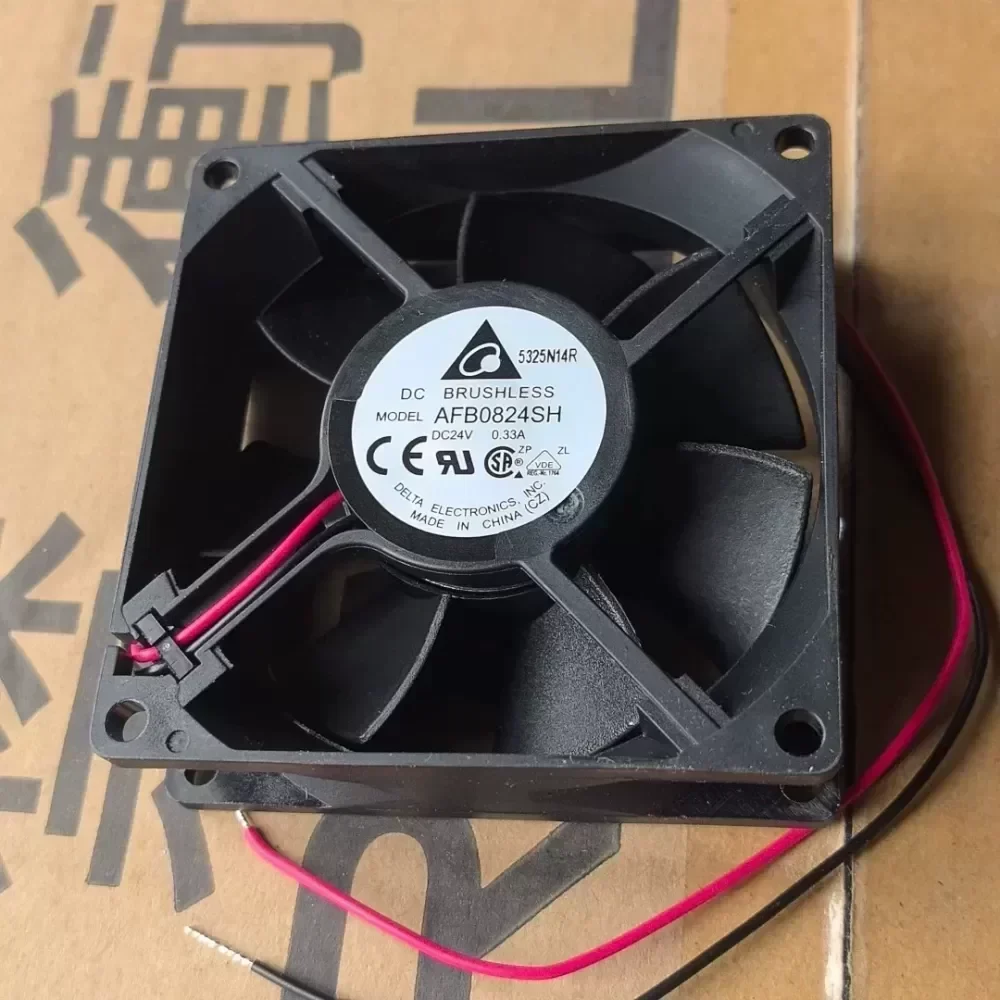

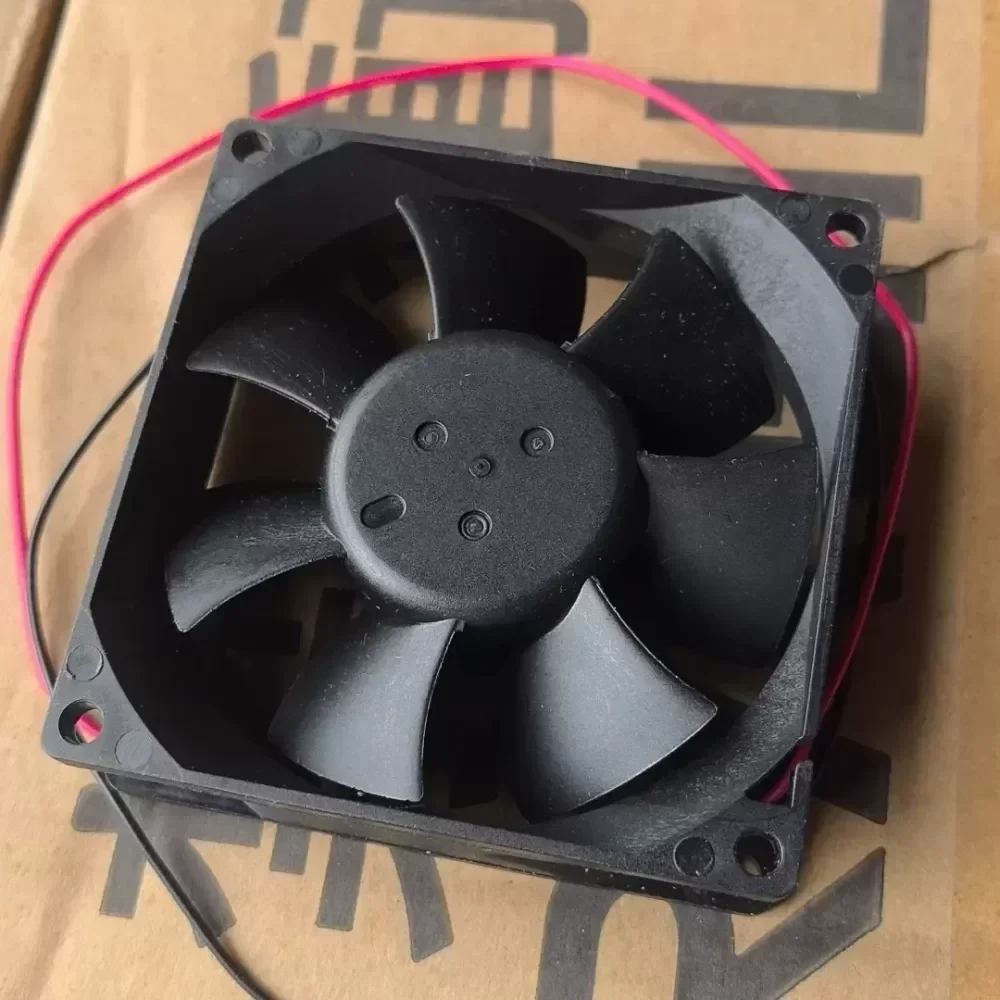

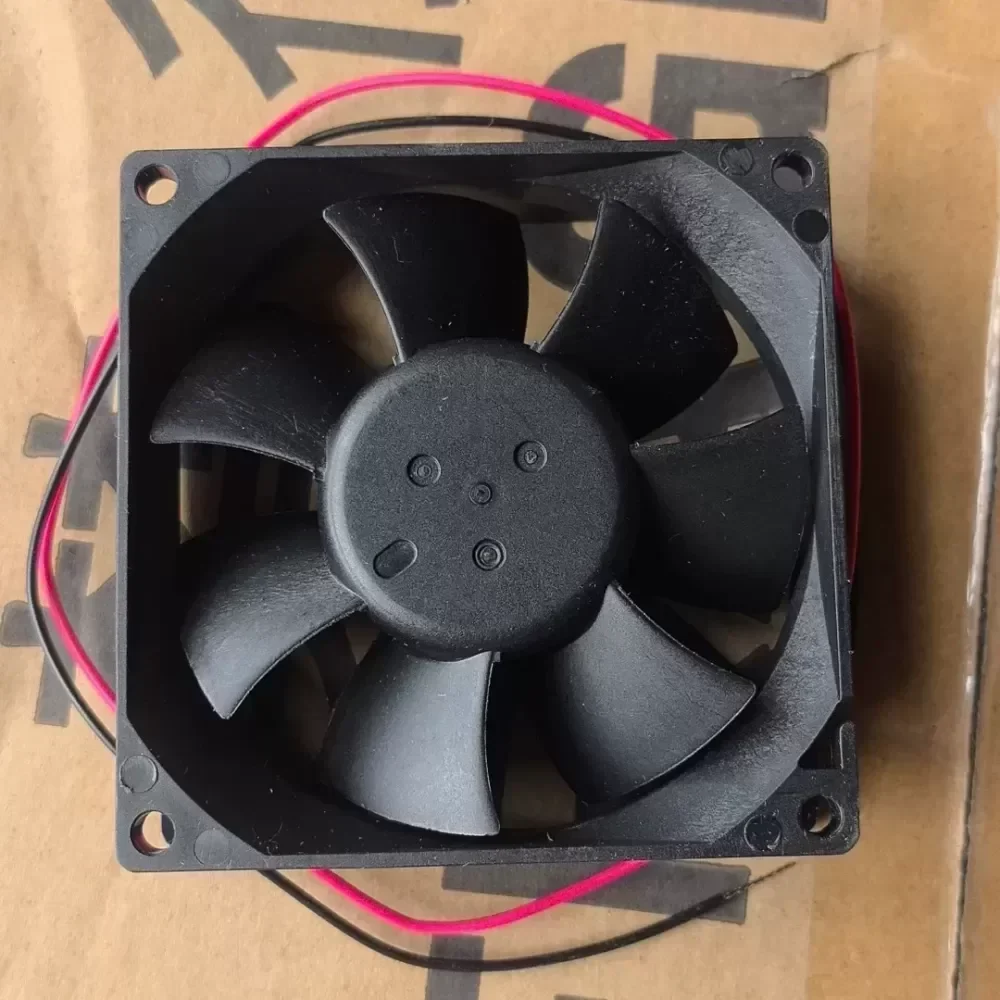

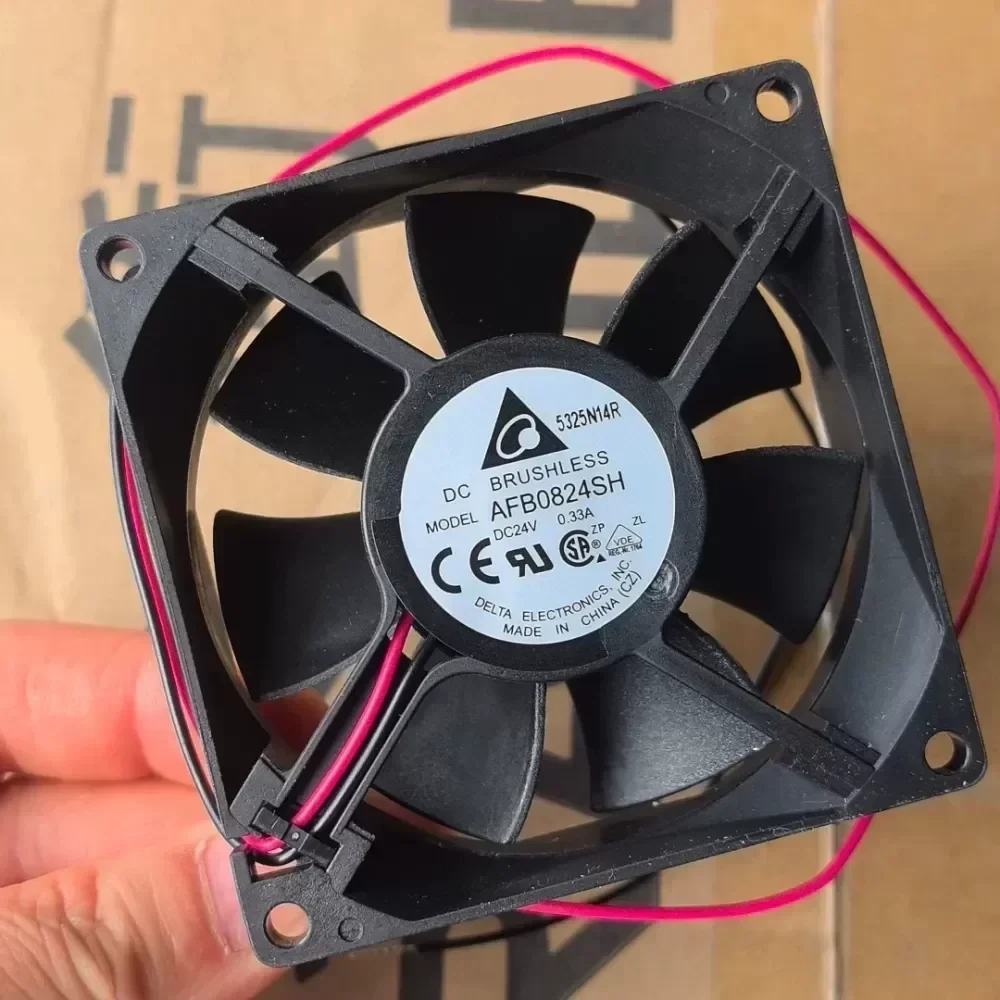

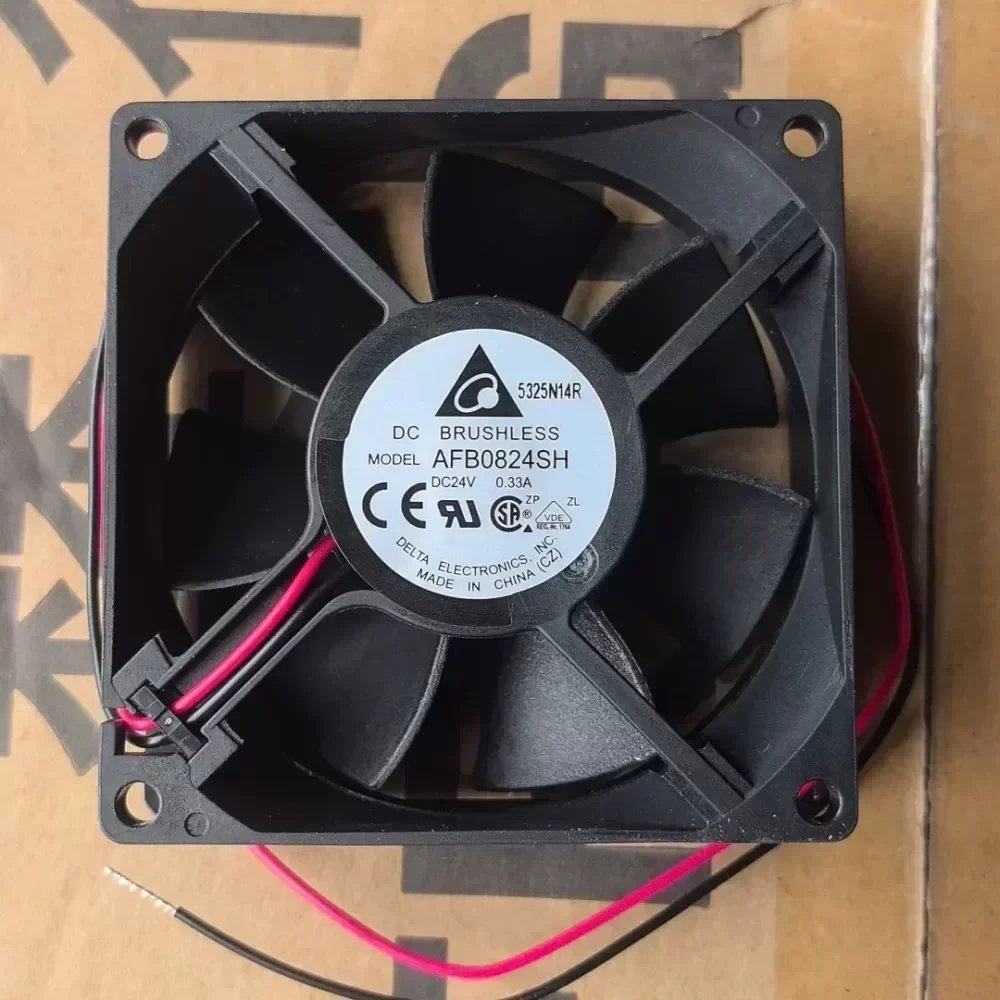

Delta AFB0824SH fan New 8025 24V

Name: Delta AFB0824SH fan New 8025 24V
Brand: Delta
SKU: 915182911084
Availability: InStock
Rating: 5 (4 reviews)

$3.57

SKU: 915182911084 Brand: Delta

Description
Reviews (0)

Description

The Delta Electronics AFB0824SH is a high-performance DC axial fan engineered for critical thermal management in industrial automation and power conversion systems. Designed with a robust double ball bearing architecture, this unit ensures extended operational longevity and mechanical stability under continuous duty cycles. The 80mm form factor with a 25.4mm profile (8025 standard) allows for seamless integration into compact inverter chassis, server racks, and telecommunication enclosures. This Original Engineering component utilizes a specialized impeller geometry that optimizes the ratio between airflow and static pressure, making it highly effective in high-impedance environments. The unit features a UL 94V-0 rated thermoplastic housing and impeller, ensuring compliance with stringent industrial safety standards.

Technical Specifications:
Manufacturer: Delta Electronics
Model Number: AFB0824SH
Component Type: DC Axial Cooling Fan
Frame Dimensions: 80mm x 80mm x 25.4mm
Rated Voltage: 24V DC
Operating Voltage Range: 14.0V to 27.6V DC
Rated Current: 0.33 A
Input Power: 7.92 W
Nominal Speed: 4000 RPM ±10%
Maximum Airflow: 46.62 CFM (1.32 m³/min)
Maximum Static Pressure: 6.78 mmH2O (0.267 inH2O)
Acoustic Noise: 40.0 dBA
Bearing System: Double Ball Bearing
Housing Material: PBT Thermoplastic (UL 94V-0)
Impeller Material: PBT Thermoplastic (UL 94V-0)
Life Expectancy: 70,000 Hours at 40°C
Operating Temperature: -10°C to +70°C
Weight: 80g
Certifications: UL, cUL, TUV, VDE, CE

Industrial Application:
This cooling unit is specifically calibrated for forced convection cooling in Variable Frequency Drives (VFDs), solar inverters, and industrial power supplies where heat dissipation density is critical. The high static pressure capability allows the airflow to effectively penetrate dense heatsink fin arrays found in 24V inverter systems, preventing thermal throttling and extending the lifecycle of sensitive power electronics. The double ball bearing design offers superior resistance to axial and radial loads compared to sleeve bearings, allowing for flexible mounting orientations without compromising reliability. Verify Technical Compatibility with your specific controller interface regarding tachometer output or locked rotor protection features. Contact our procurement team for current Lead Time and volume availability.

Delta AFB0824SH fan New 8025 24V

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
