Delta AFB0912HH fan

Name: Delta AFB0912HH fan
Brand: Delta
SKU: 935391934874
Availability: InStock
Rating: 5 (4 reviews)

$3.71

SKU: 935391934874 Brand: Delta

Description
Reviews (0)

Description

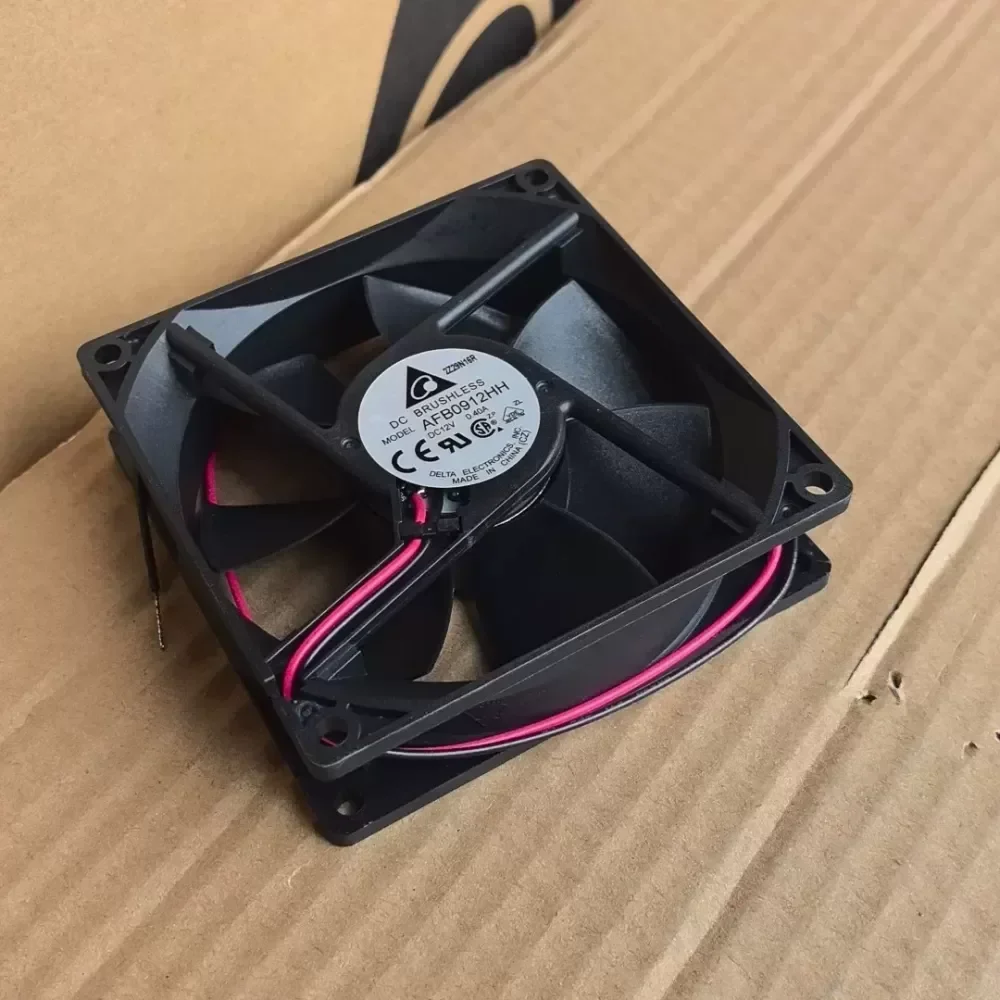

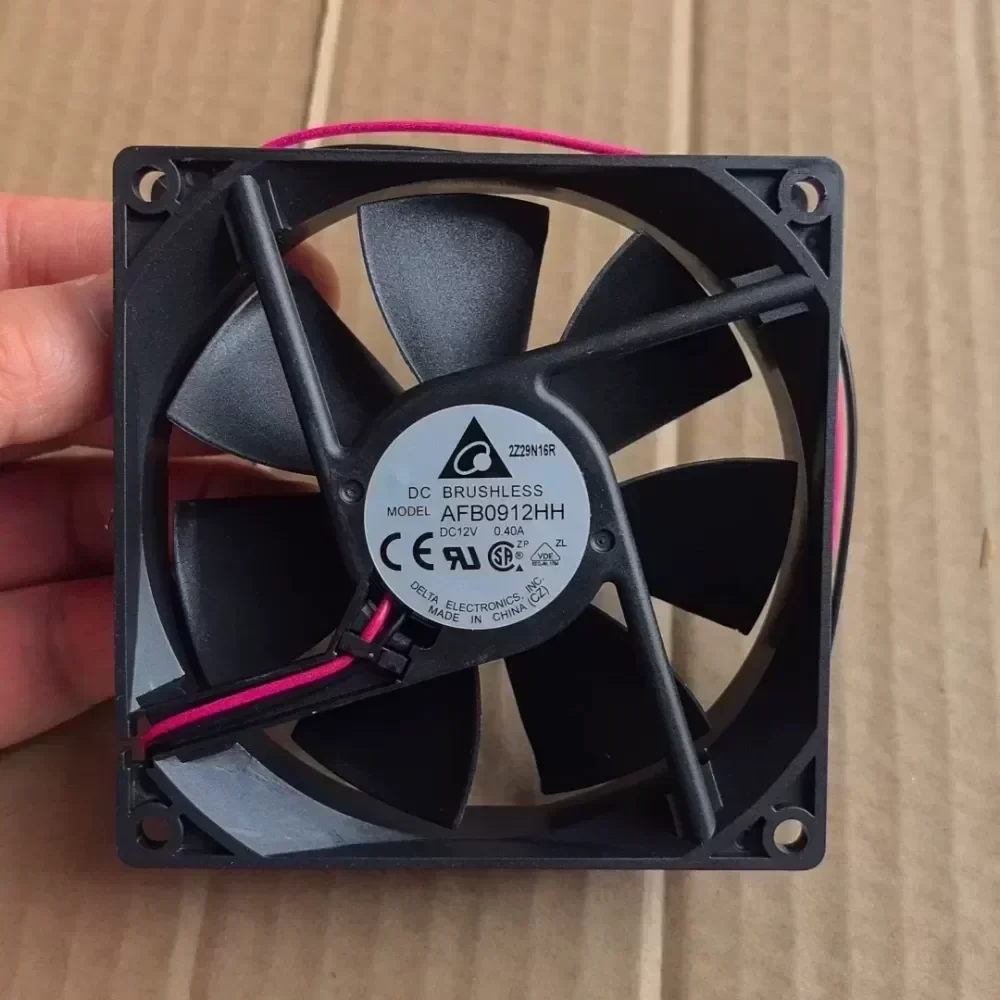

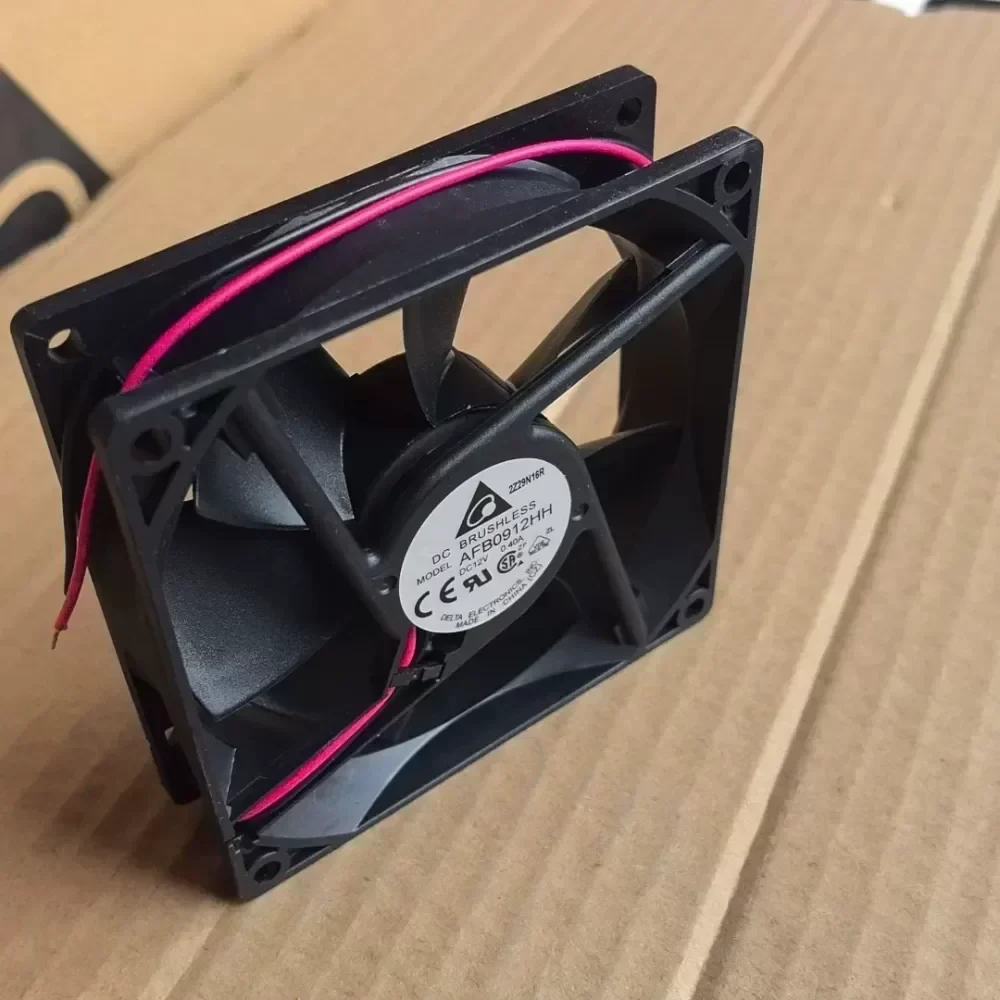

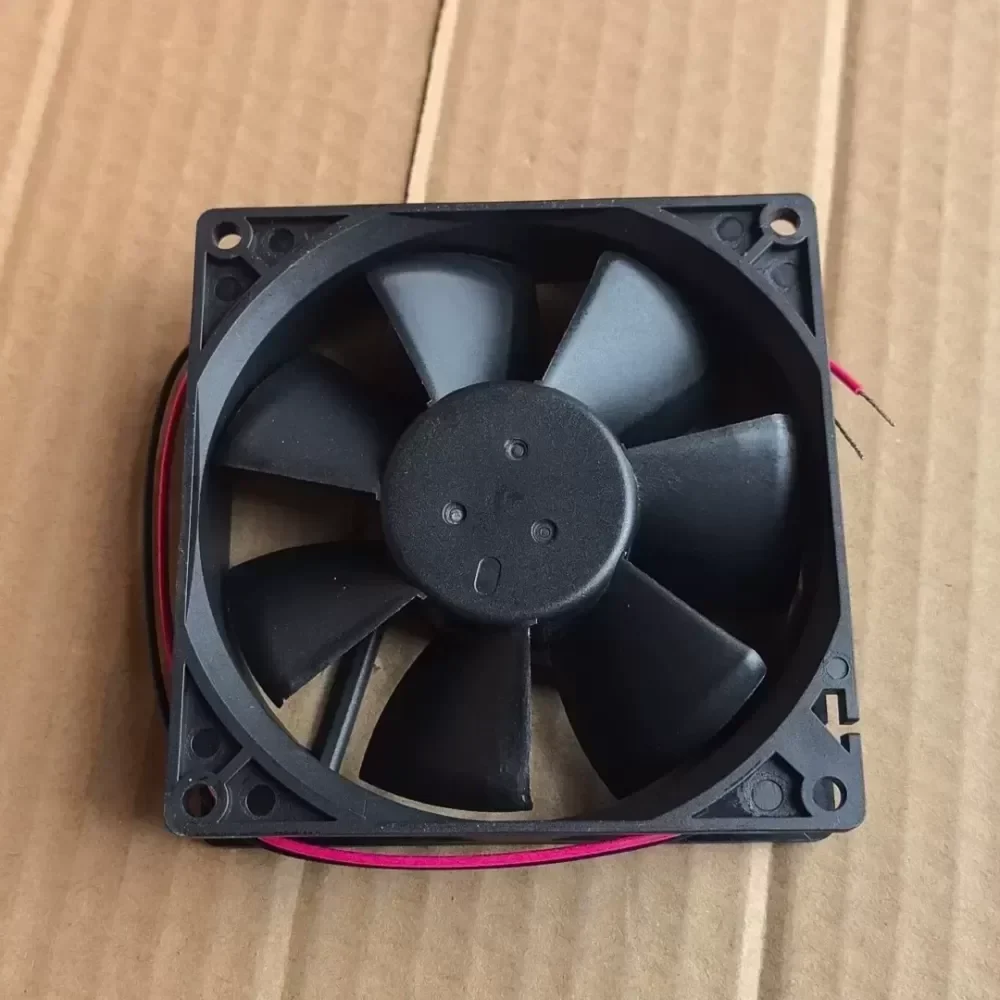

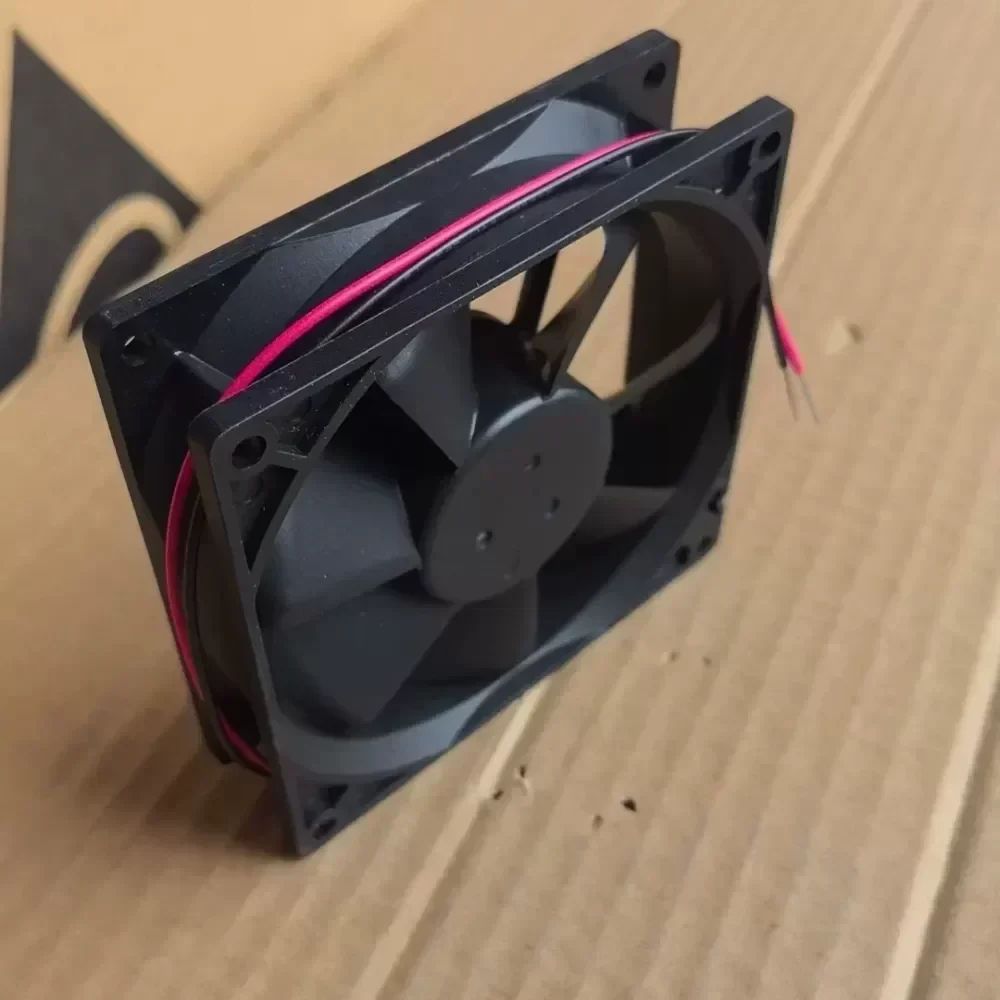

The Delta Electronics AFB0912HH is a high-performance 92mm axial cooling fan engineered for demanding industrial and computing environments. As a critical component in thermal management systems, this model utilizes a dual ball bearing design to ensure extended operational life and reliability in continuous 24/7 duty cycles. With a frame size of 90 x 90 x 25 mm, it delivers a significant airflow of 67.8 CFM, making it an ideal solution for high-density server chassis, industrial workstations, and power supply cooling where heat dissipation is paramount.

Technical Specifications:
Manufacturer: Delta Electronics
Model Number: AFB0912HH
Dimensions: 90 x 90 x 25 mm
Bearing Type: Dual Ball Bearing
Rated Voltage: 12 VDC
Operating Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.40 A
Input Power: 4.80 W
Rated Speed: 3200 RPM
Maximum Airflow: 67.80 CFM (1.920 m³/min)
Maximum Air Pressure: 5.67 mmH2O
Noise Level: 45.0 dB(A)
Interface: 2-Wire Lead
Weight: 120 g

Application and Reliability:
The AFB0912HH is designed for original engineering applications requiring robust static pressure and high-volume air movement. The dual ball bearing system provides superior resistance to high temperatures and mechanical wear compared to sleeve bearing alternatives. This fan is frequently deployed in telecommunications racks, medical instrumentation, and enterprise-grade CPU cooling solutions. Its 2-wire configuration ensures broad compatibility with legacy industrial hardware and standard DC power rails. Global lead time and availability are subject to stock levels for this original equipment manufacturer component.

Delta AFB0912HH fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
