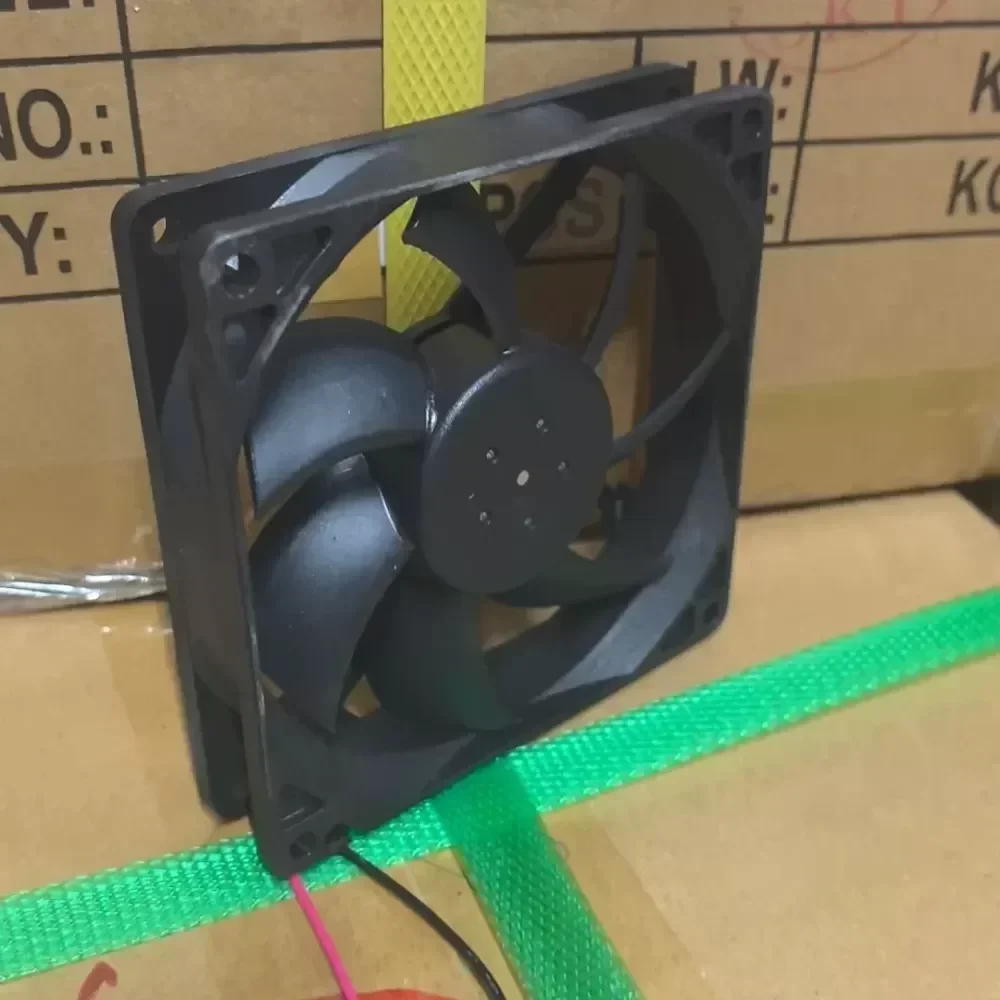

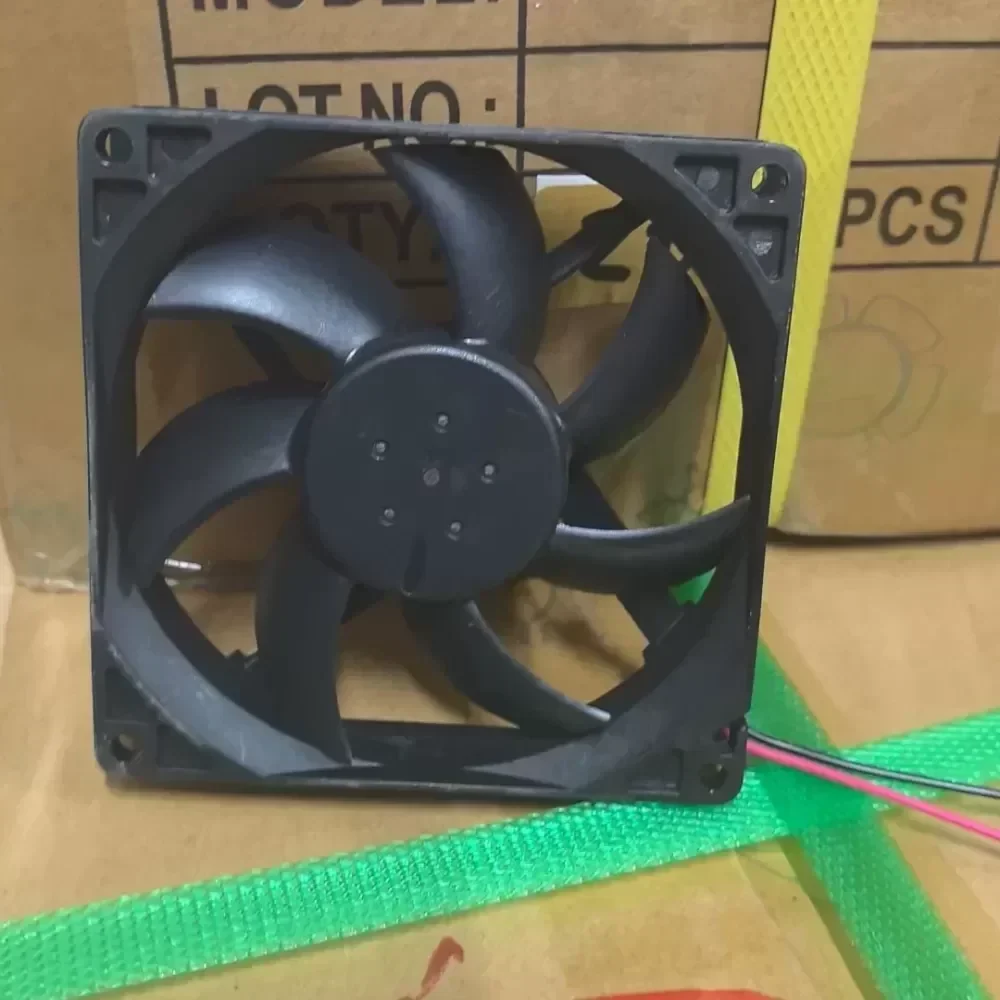

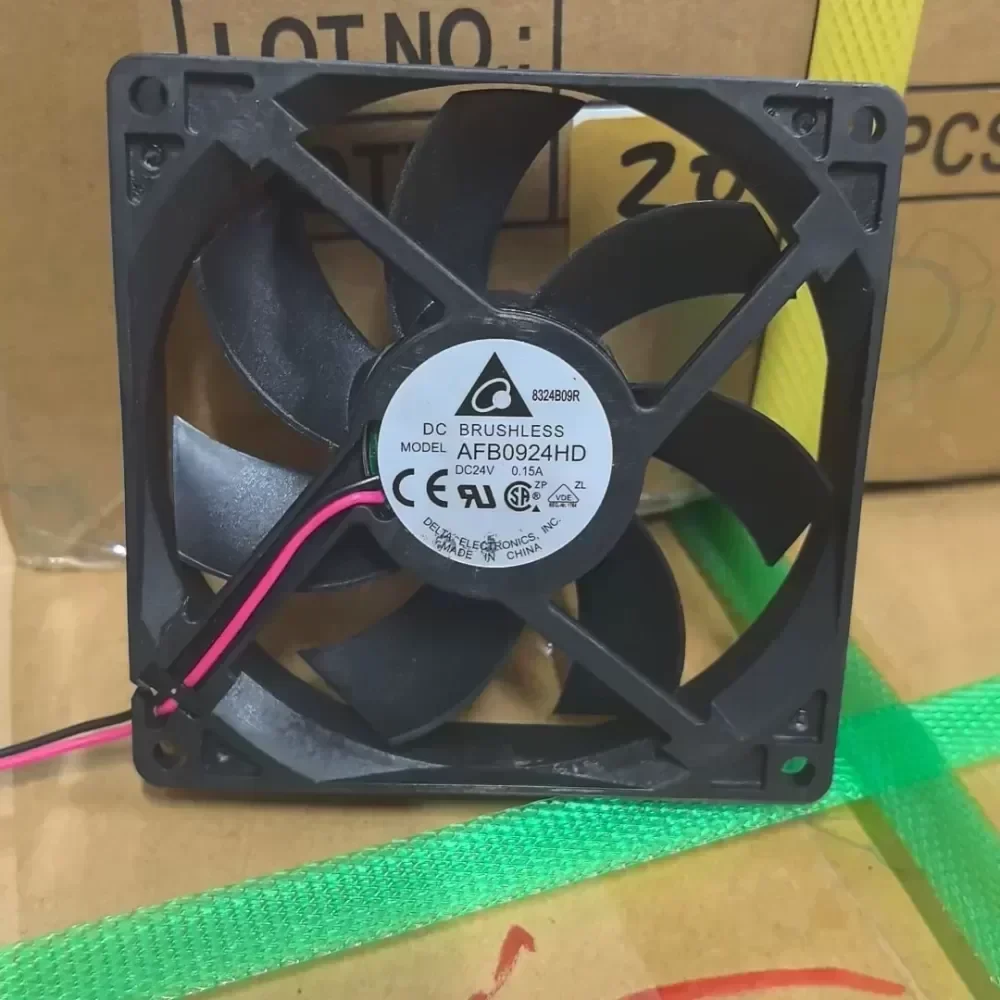

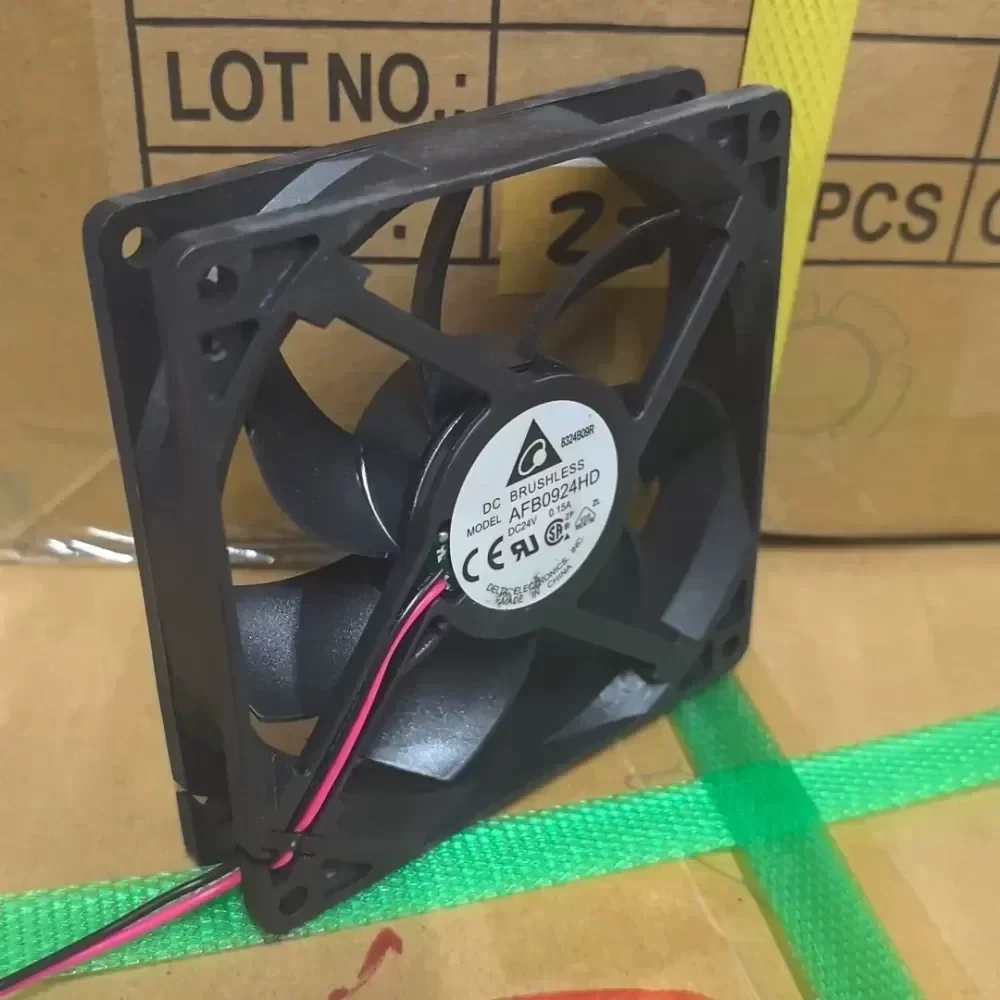

Delta AFB0924HD fan

Name: Delta AFB0924HD fan
Brand: Delta
SKU: 949792118899
Availability: InStock
Rating: 5 (4 reviews)

$3.57

SKU: 949792118899 Brand: Delta

Description
Reviews (0)

Description

The Delta Electronics AFB0924HD is a professional-grade 92mm axial fan designed for high-reliability thermal regulation in industrial environments. Featuring a robust dual ball bearing architecture, this component is optimized for continuous 24/7 operation, offering significantly higher durability and a longer service life compared to standard sleeve bearing alternatives. Operating at a nominal 24 VDC with a current draw of 0.15 A, the AFB0924HD provides an efficient balance of high air volume and static pressure, making it an essential component for maintaining optimal operating temperatures in sensitive electronic systems.

Technical Parameters:
Brand: Delta Electronics
Model: AFB0924HD
Frame Size: 92 x 92 x 20 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.15 A
Input Power: 3.60 W
Bearing System: Dual Ball Bearing
Weight: 88 g
Termination: Lead Wires

Industrial Application Scenarios:
The AFB0924HD is a critical component for industrial frequency inverters and power converters where consistent heat dissipation is mandatory to prevent thermal throttling and hardware failure. Its 20mm slim profile allows for integration into space-constrained server chassis, high-density power supply units (PSUs), and telecommunications switchgear. The dual ball bearing design ensures the fan can be mounted in any orientation (horizontal, vertical, or angled) without compromising the mechanical integrity or the 70,000-hour mean time to failure (MTTF) rating.

Procurement and Quality Standards:
Original Engineering: Yes
Condition: Brand New, Factory Original
Lead Time: Available for immediate dispatch
Compliance: Supports standard industrial testing protocols for voltage stability and airflow efficiency.

Delta AFB0924HD fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
