Delta BFB0712H-AF00 12V 0.33A 75x75x25 13.84CFM Power Mini Air Blowers Ball Bearing Plastic Blade

Delta BFB0712H-AF00 12V 0.33A 75x75x25 13.84CFM Power Mini Air Blowers Ball Bearing Plastic Blade

Name: Delta BFB0712H-AF00 12V 0.33A 75x75x25 13.84CFM Power Mini Air Blowers Ball Bearing Plastic Blade
Brand: Delta
SKU: 1601548672608
Availability: InStock
Rating: 5 (4 reviews)

$8.22

SKU: 1601548672608 Brand: Delta

Description
Reviews (0)

Description

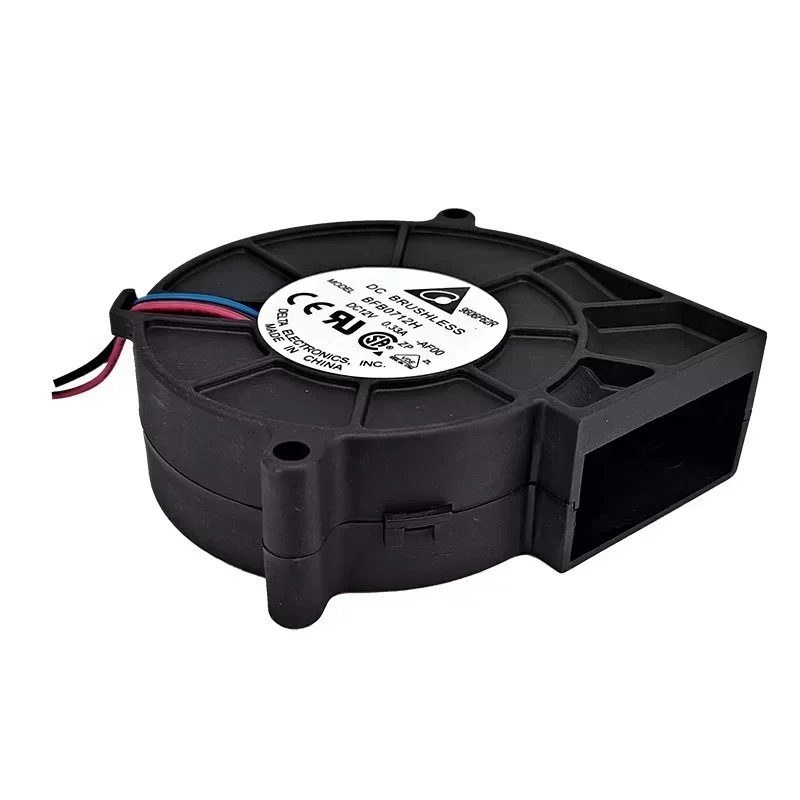

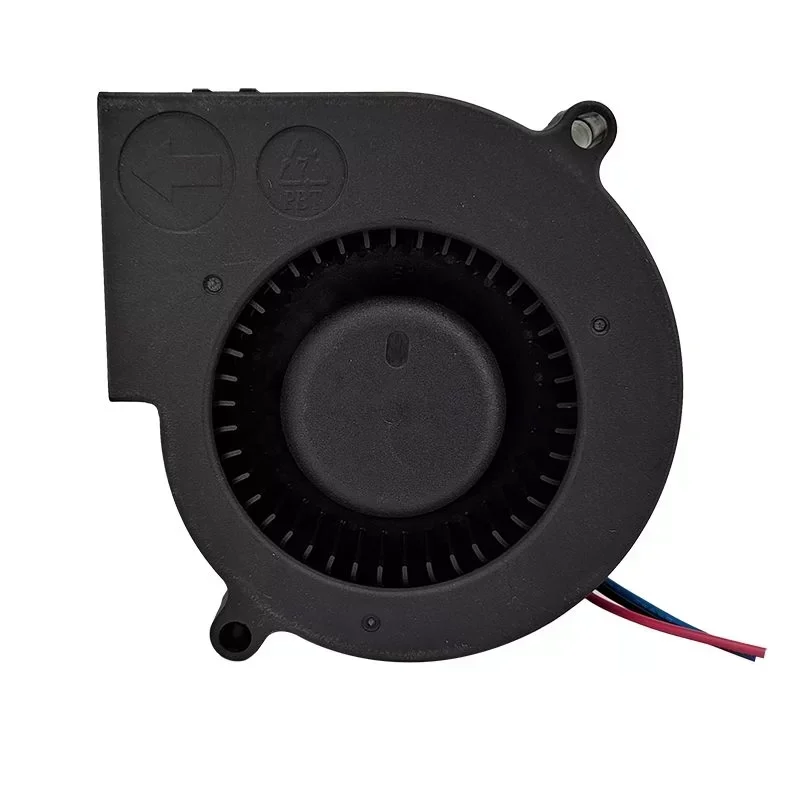

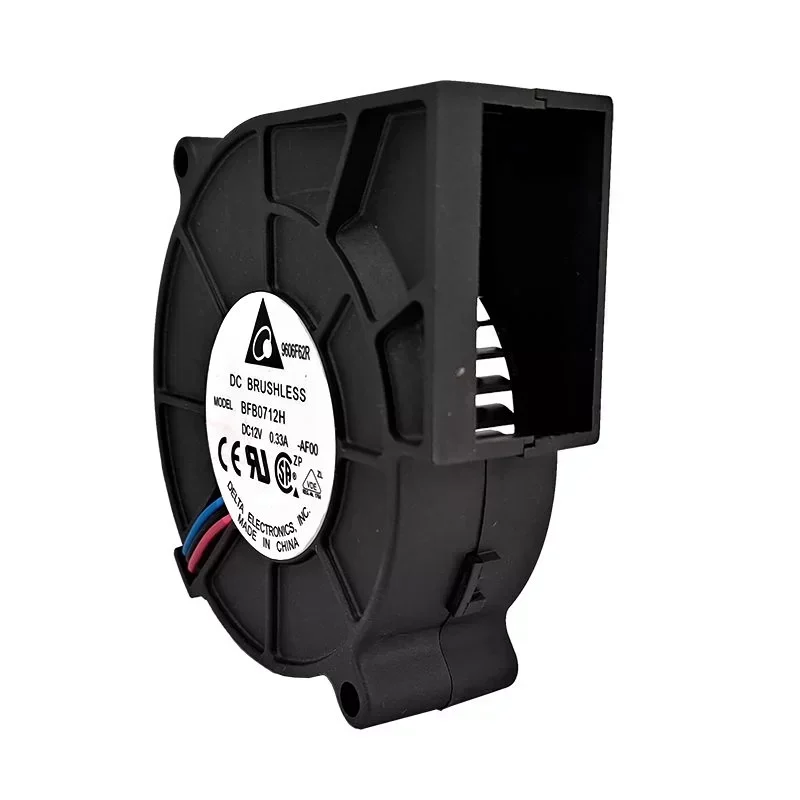

The Delta BFB0712H-AF00 is a high-performance centrifugal blower engineered for precision thermal management in demanding industrial and medical environments. Manufactured by Delta Electronics, a global leader in cooling solutions, this 75mm blower is designed to provide high static pressure, making it ideal for pushing air through restricted spaces such as heat sinks, ducting, and densely packed electronic enclosures. The unit features a robust dual ball bearing system, which significantly enhances reliability and extends the mean time between failures (MTBF) compared to sleeve bearing alternatives. With a rated speed of 4000 RPM and an airflow capacity of 13.84 CFM, the BFB0712H-AF00 ensures efficient heat dissipation for critical components.

Technical Specifications:
Brand: Delta Electronics
Model Number: BFB0712H-AF00
Voltage: 12 VDC
Current: 0.33 A
Power: 3.96 W
Speed: 4000 RPM
Airflow: 13.84 CFM (0.392 m³/min)
Static Pressure: 0.984 in H2O
Noise: 48.0 dBA
Bearing Type: Dual Ball Bearing
Dimensions: 75 x 75 x 25 mm
Weight: 90 g
Frame Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Operating Temperature: -10 °C to +70 °C

Industrial Applications:
This blower is a critical component in medical diagnostic equipment, where consistent airflow is required for sensitive sensors. It is also widely utilized in computer power supply units (PSUs), telecommunications hardware, and automated industrial control systems. Its compact 75mm footprint and high-pressure output make it a preferred choice for OEM and ODM thermal designs requiring long-term durability and high-efficiency cooling.

Key Attributes
Voltage: 12 V
Material: Plastic
Speed: 4000RPM
Mounting type: Free Standing
Type: Blower
Warranty: 1 year
Power Source: Electric
Blade material: Plastic
Bearing type: Ball bearing
Customized support: ODM, OEM
After-sales service provided: Online support
Place of origin: China
Brand name: Delta
Model number: BFB0712H-AF00
Application: Electronic medical equipment , computer power supply equipment,
Core Components: Motor, PLC, Bearing, Engine
Noise: 48dBA
Specification: 75*75*25mm
Weight: 90g

Packaging and Delivery
Selling Units: Single item

Delta BFB0712H-AF00 12V 0.33A 75x75x25 13.84CFM Power Mini Air Blowers Ball Bearing Plastic Blade

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
